Mini-Pendant Kit

Installation and Safety Instructions

Warning: Be sure the electricity to the wires you are working on is shut off; either the fuse is removed or the circuit

breaker is shut off.

GENERAL

You don't need special tools to install this fixture. Be sure to follow the steps in the order given. Under no

circumstances should a fixture be hung on house electrical wires, nor should a swag type fixture be installed on

a ceiling which contains a radiant type heating system. Read instructions carefully. If you are unclear as to

how to proceed, consult a qualified electrician.

WARRANTY

This fixture is warranted against defects in material and workmanship for a period of five years from purchase date. This

warranty is in lieu of all other warranties expressed or implied. This warranty does not cover acts of nature such as light-

ning damage, or corrosion and discoloration of components, nor does it cover damages caused through abuse, improper

installation, surges in electric current, or acts of third parties. This warranty does not cover the costs of removing and re-

installing the lighting fixture. If this product fails for any reason covered by this warranty, please contact us at www.west-

inghouselighting.com/contact-us.

INSTALLATION

Important: Do not attach fixture directly to outlet box.

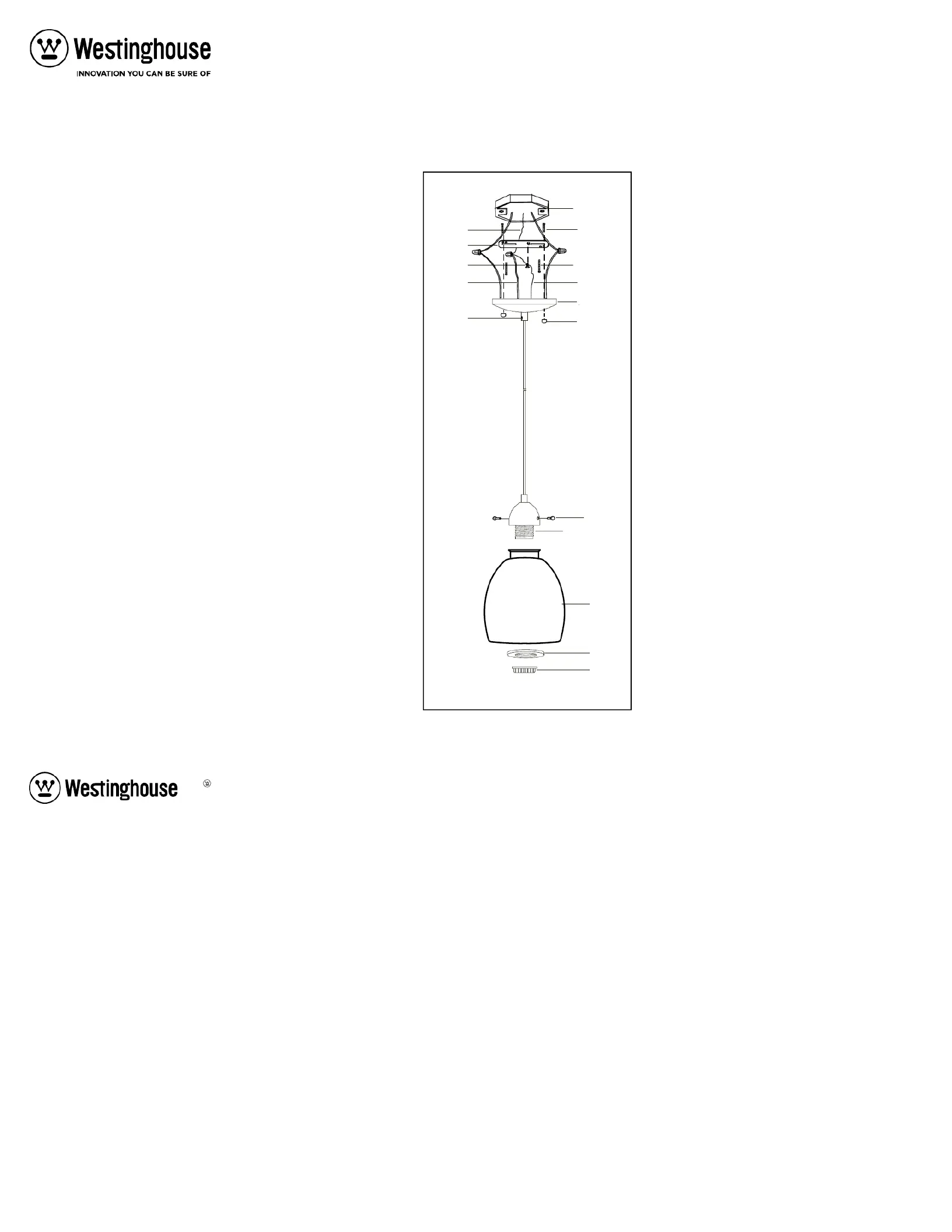

Step 1: Thread mounting screw (A) into the matching hole of mounting bar (B), as shown in the illustration.

Step 2: Secure the mounting bar (B) to outlet box (O) with outlet box screws (C) (not provided).

ADJUSTING LENGTH OF CORD (IF NEEDED)

These steps should only be performed by someone familiar with working with electrical wiring. Care must be taken when

adjusting the length of the cord to ensure insulation on internal wires is not damaged. If not familiar with these steps, seek

the aid of a qualified electrician.

Loosen the screw in strain relief (Q) until cord slides easily, being careful not to completely remove screw. Step 1:

Slide canopy down cord until the fixture is the desired distance below the canopy. Tighten the screw in the

strain relief until cord does not slide.

Step 2: Cut excess cord approximately six to seven inches (6”-7”) above canopy.

Step 3: Leaving at least one inch (1”) of outer insulation above the canopy, carefully cut through outer insulation of

cord, being careful not to damage inner insulation. Remove outer insulation. Strip inner insulation from end of

both wires, leaving approximately 1/2 inch of wire exposed.

Step 4: For cords without differently colored inner insulation, identify the tracer lines on the new ends of the inner wires

to match the labels on the original ends and connect to house wiring as described in the appropriate step.

GROUNDING AND WIRING INSTRUCTIONS

Step 1: Insert the green grounding screw (G) into the hole with two raised dimples on the mounting bar (B). Wrap the

grounding wire (F) from the fixture canopy around the green grounding screw (G) on the mounting

bar (B) leaving enough excess wire. Thread the green grounding screw (G) into the mounting bar (B) but do

not tighten screw at this time.

Connect thStep 2:

e greenish grounding wire (with green label) or green grounding wire (F)

and excess grounding

wire from the fixture canopy with the grounding wire from outlet box by using a wire connector (P), then

wrap the wire connector with electrical tape for a more secure connection. WARNING: Never connect

grounding wire to black or white power supply wires.

Step 3: Connect the black house wire to the transparent wires with black label or the black wire with a wire

connector, and wrap the wire connector with electrical tape for a more secure connection.

Step 4: Con

nect the white house wire to the transparent wires with white label or the white wire

with a

wire

connector, and wrap th

e wire connector with electrical tape for a more secure connection.

Note: Try to gently pull the wire connectors off the wires. If you can pull the connector off, carefully repeat

steps 2, 3 and 4 above, and check again for a firm connection. Make sure no bare wires can be seen outside

wire connectors.

Tighten grounding screw (G). Do not over tighten. Step 5:

FINAL ASSEMBLY

Step 1: After wires are connected, tuck them carefully inside outlet box. Raise canopy (D) allowing the mounting

screw (A) to protrude through the hole in the canopy (D), and secure with ball nut (E).

Step 2: Install the shade (K) and support ring (M) onto the socket (J) and secure with screws (N) or retaining ring (L),

whichever is applicable.

Step 3: Install lamp. Please do not exceed the maximum capacity recommended on the socket.

CLEANING

To clean, wipe fixture with a soft cloth. Clean glass with a mild soap. Do not use abrasive materials such as scouring pads

or powders, steel wool or abrasive paper.

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A.

www.westinghouselighting.com

, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF

are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Lighting.

Made in China

W-394

102819

*NOT SUPPLIED
