Side 1/4

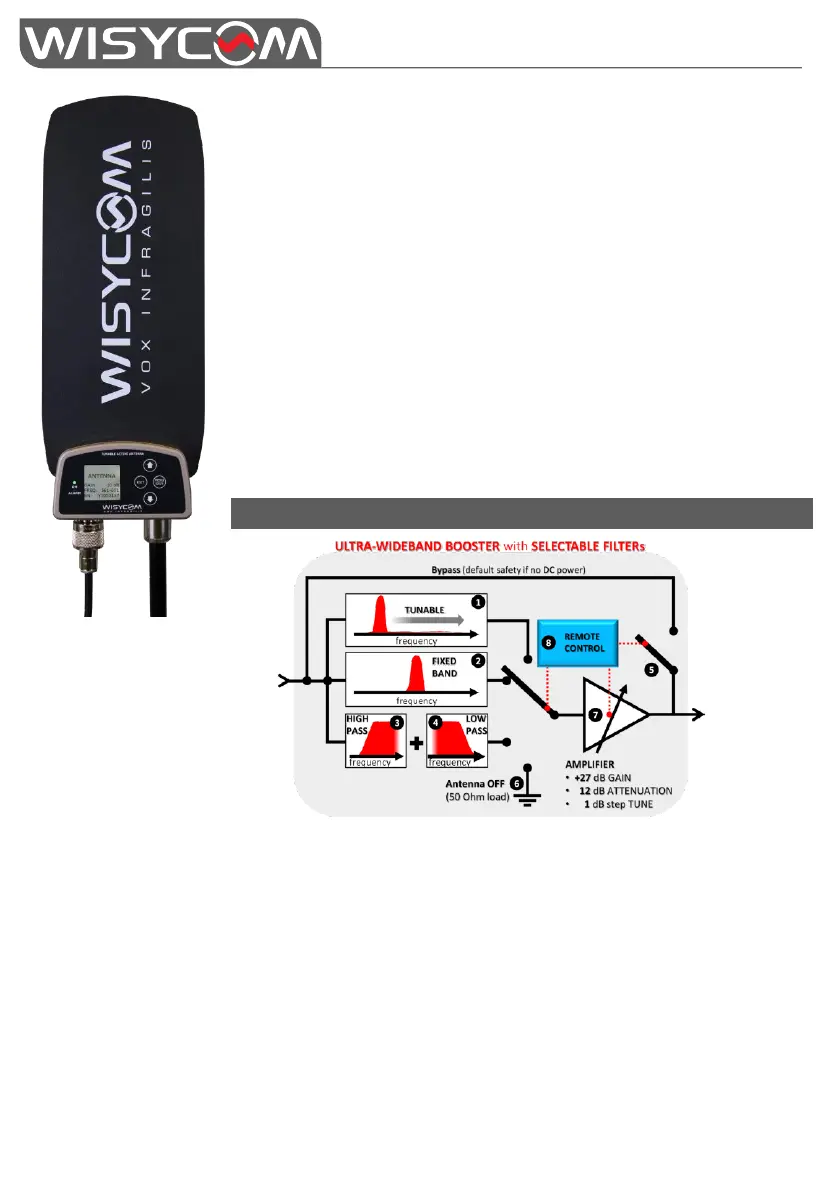

ADFA
Ultra-Wideband Active Antenna
with remote controlled filter bank
pg. 1
ADFA is an omnidirectional antenna with a unique design to achieve
an ultra-wideband of 430 -1160 MHz.
ADFA integrate a unique bank of filters along with a low noise
amplifier.
Filters and gain can be easily setup locally thru a 4 key navigation
buttons and a TFT display or remotely with a data connection on the
same RF coaxial cable.
Using the latest Wisycom filter technology, ADFA gives a full control of
RF zones and allows to build flexible and remote controllable antenna
systems.
The feeding line is integrated on the PCB (for mechanical robustness)
and all the electronic and mounting base are made by solid metal with
waterproof gasketing.
BLOCK DIAGRAM
❶ Tunable filter 430-730 (40 MHz wide)
❷ Fixed band saw filter: 940-960 MHz (Usa) or 1240-1260 (Japan) or 470-700MHz &
960-1160MHz (4G-STOP)
❸ ❹ High pass filter (410/470/510 MHz) and low pass filter (600/700/810 MHz)
CASCADE (9 bandpass combinations)
❺ Bypass line for full band reception (active mode if no DC power for safety)
❻ Antenna off for zone control
❼ Gain control from -12 dB to 27 dB
❽ Remote control with a data link running on coaxial cable
ADFA
Ultra-Wideband Active Antenna
with remote controlled filter bank
pg. 2

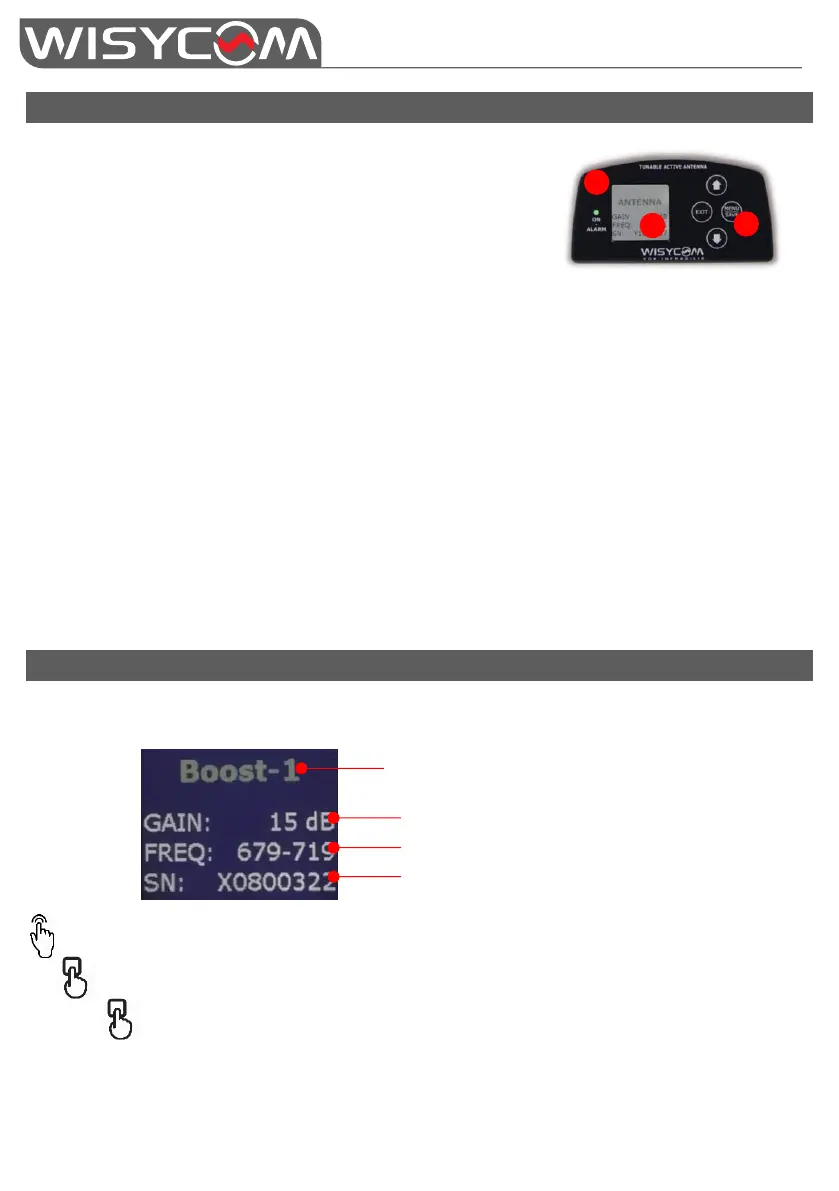

SETUP CONTROL
1) Simple operation with 4 buttons to quickly monitor
and setup the antenna booster and filters through
the user menu.
2) Signaling LED multicolor:
o White: when the unit is in bootloader
mode during the firmware upgrade
o Orange: booster bypassed, antenna becomes passive
o Green: active booster with gain between -12 ÷ 14 dB (low consumption
approx. 65mA@12V)
o Blue: active booster with gain between 15 ÷ 27 dB
(consumption approx. 110mA@12V)
o Red: fast blinking (when blinking function is activated by Manager or by
MAT/SPL for easily recognizing of antenna)
o Red: fixed, alarm (type of alarm is shown on the display)
o OFF: antenna OFF mode or LED disable by settings
3) TFT – transflective (176 x 176 pixels, RGB)
MENU STRUCTURE AND NAVIGATION
STATUS menu This is the first menu displayed after power up and provides access to submenus and
displays a summary of antenna settings.
Push MENU/SAVE to enter in the menu
Use the arrows to navigate the menu and edit the parameters
Keep pushing MENU/SAVE for 2 seconds to save
Confirm the new setup value within 5 sec. by pressing one more time on the MENU/SAVE
button. Without any confirmation within 5 sec. the modification is cancelled.
NAME of ANTENNA
Gain
Frequency range
Serial Number
2
1
3
