SPL2216/SPL2208

Active combiner/splitter:

2 zones into 16/8 outs with cascade

Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy

tel. +39 0424 382605 fax. +39 0424 382733 - www.wisycom.com - e-mail: sales@wisycom.com

Subject to change without notice

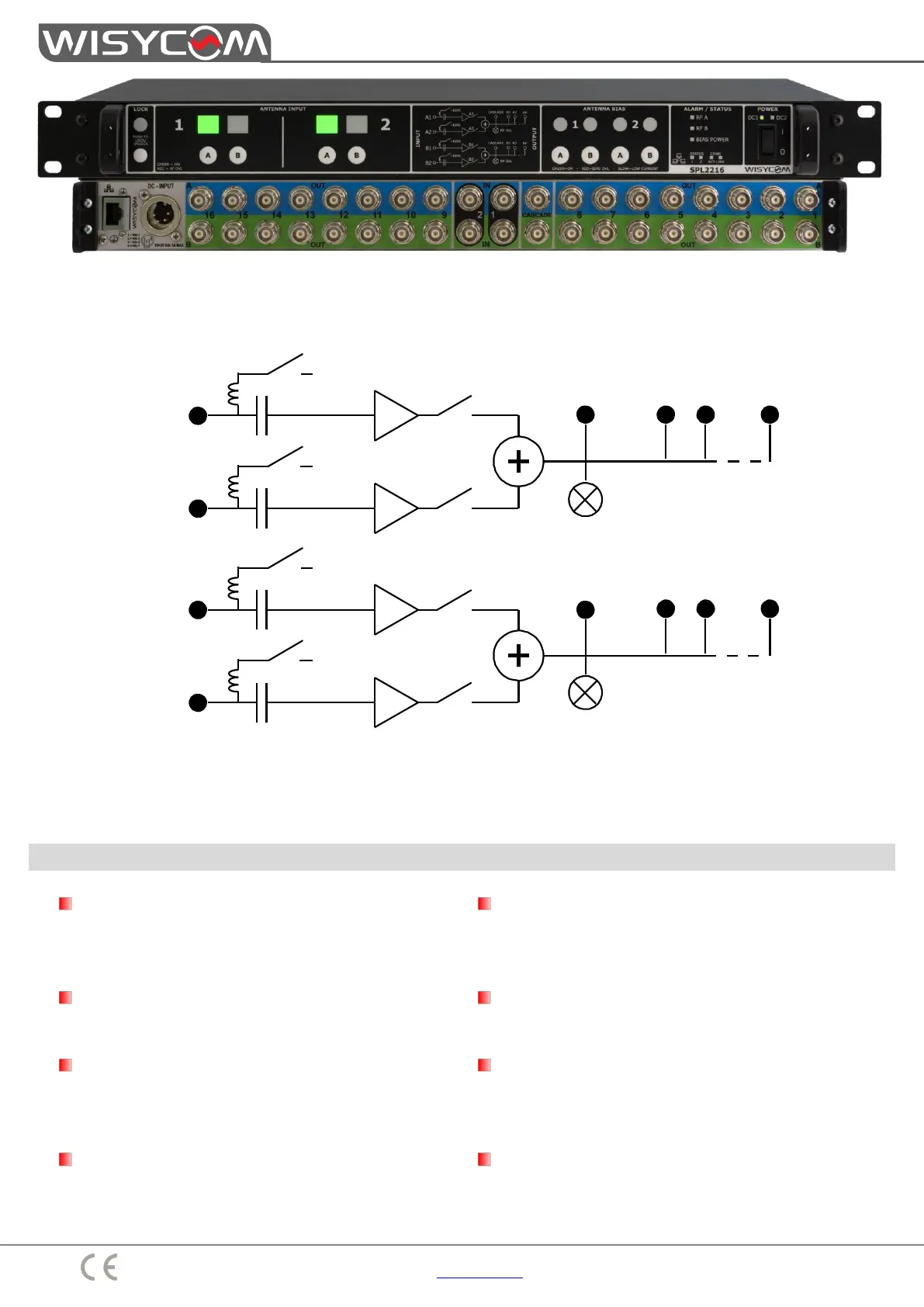

SPL2216/SPL2208 is an active combiner/splitter: 2 x 2 (diversity) input are combined and then distributed in 16 x

2 diversity outputs (for SPL2216) or 8 x 2 diversity outputs (for SPL2208). It allows a basic matrix-selection

between 2 diversity areas: each input feed can be activated with a button on the front panel.

It provides antenna bias & diagnostic check and integrates the Wisycom Remote Antenna Protocol: using the

same coaxial cable it creates a network to monitor and control remotely boosters (BFA) or antennas (LFA).

Thanks to the ethernet interface all of these functionalities can be supported on the PC using the Wisycom

Wireless Manager program.

MAIN FEATURES

Wideband: 170-1260 MHz

High Rf robustness and linearity: for high

density/equally spaced frequencies

operations (i.e. with MTP40s Linear)

Able to feed 16 diversity receivers (for

SPL216), 8 diversity receiver (for SPL2208)

Combine/Select signal from 4 antenna inputs

Redundant DC supply and antennas

diagnostic features

Wisycom Remote Antenna Protocol to

control antennas/booster remotely thru

coax

Ethernet interface to access all of feature

with a PC, making presets and real time

monitoring

Cascade output to connect another

SPL2216/SPL2208 or monitor devices

B1 B2

BIAS

CASCADE

A1 A2

BIAS

CASCADE

RF OVL

INPUT

OUTPUT

SPL2216/SPL2208

Active combiner/splitter:

2 zones into 16/8 outs with cascade

Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy

tel. +39 0424 382605 fax. +39 0424 382733 - www.wisycom.com - e-mail: sales@wisycom.com

Subject to change without notice

Technical Data

Frequency ranges

170 ÷ 1260 MHz

Input/output gain

+5dB approx.

Input/cascade gain

+1.5dB approx.

Amplifier linearity

± 1 dB (typical)

Noise figure

7,5 dB

Antenna booster powering

+12Vcc / 500mA MAX (for each BNC-female input connector A & B)

Connector

input: 2+2 BNC-F

output: 16+16 BNC-F (SPL2216)

8+8 BNC-F (SPL2208)

cascade: 2 BNC-F

Impedance

50 Ω

Managing interface

10/100 Base TX Ethernet port and thru frontal tactile buttons

Power supply

10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin

1: -Vdc1

2: +Vdc2

3: -Vdc2

4:+Vdc1

Power consumption

40W max

Temperature range

-25 ÷ +55 °C

Material

aluminum

Finishing

black varnish

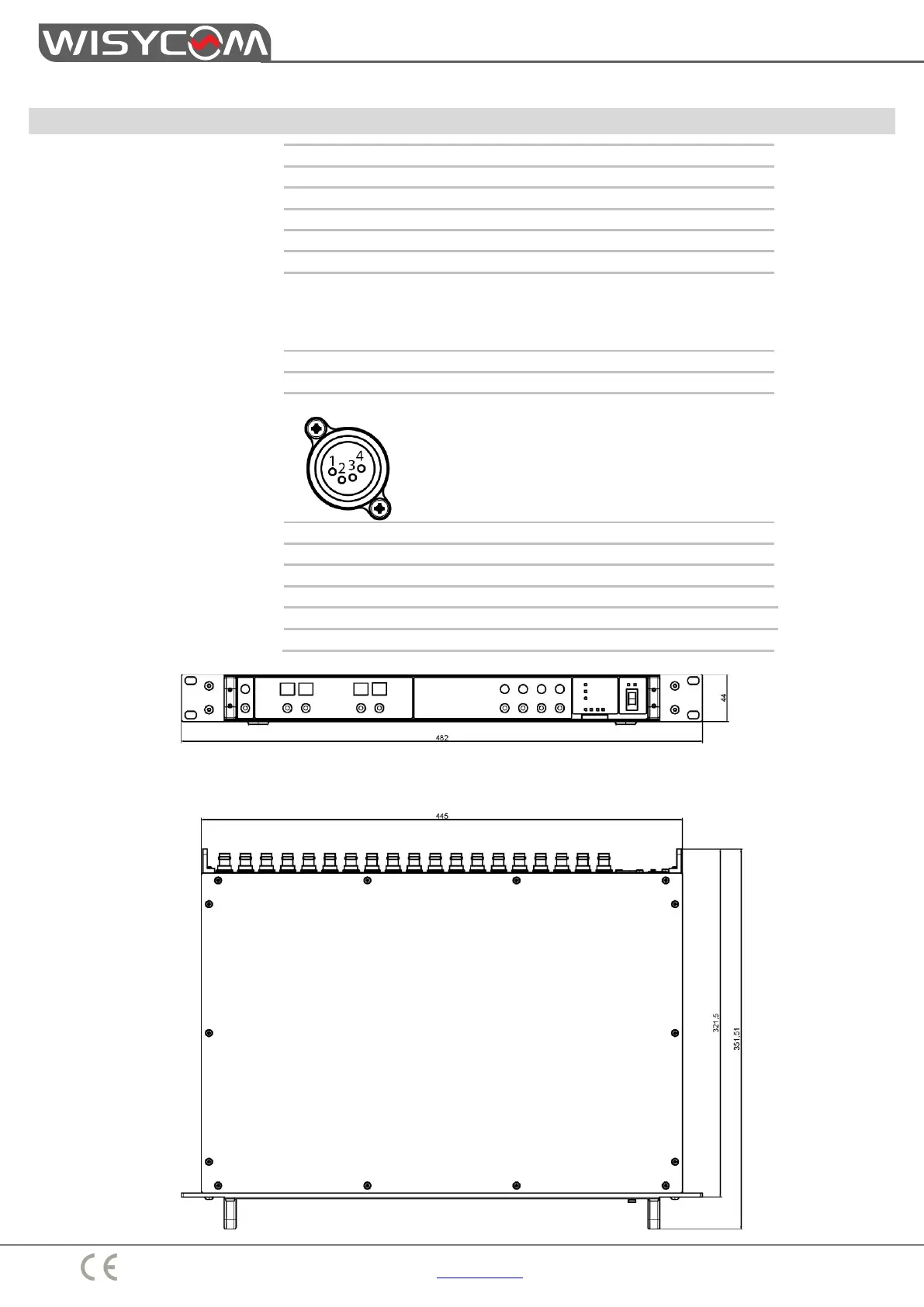

Dimensions

44 x 483 x 351 mm (HxWxD)

Weight

3 kg
