LBNA2

LNNA2

Wideband Active Antenna

Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy

tel. +390424382605 - www.wisycom.com - e-mail: sales@wisycom.com

Subject to change

without notice

pg. 1

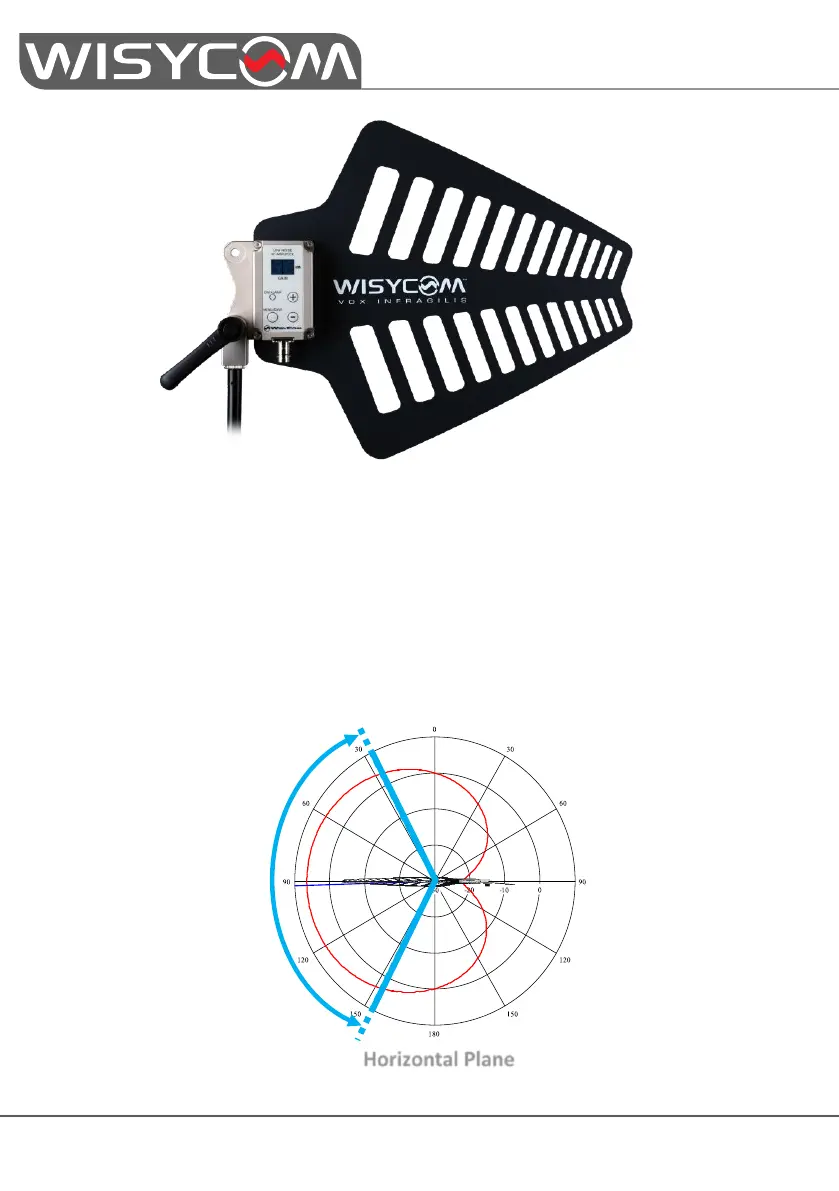

LBNA2/LNNA2 is a wideband UHF antenna LPDA (log periodic dipole array) with integrated

bandpass filter and low noise booster.

It enhances reception providing approximatively 7dB gain with typical beam-width of 120

degrees. Thanks to an exclusive skeleton design with sloped elements, this antenna can work

in 420-1300 MHz band (bypass mode). It is possible to enable the integrated passband filter

(470-960 MHz) and the internal booster (adjustable in 1 dB step).

The feeding line is integrated on the PCB (for mechanical robustness) and all the electronic and

mounting base are made by solid metal with waterproof gasketing.

Horizontal Plane

120°

LBNA2

LNNA2

Wideband Active Antenna

Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy

tel. +390424382605 - www.wisycom.com - e-mail: sales@wisycom.com

Subject to change

without notice

pg. 2

ANTENNA PLACEMENT

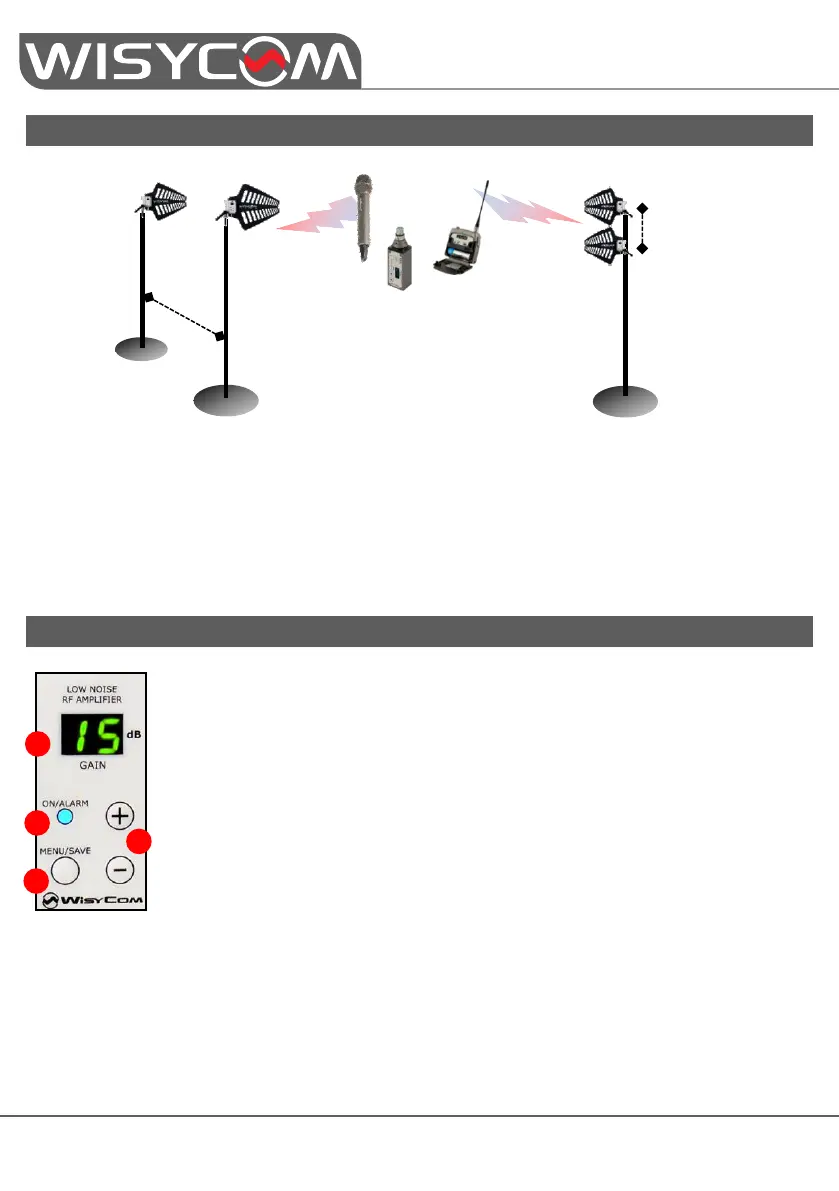

Here above some examples of diversity antenna configurations.

In example 1 the antennas are side to side: although 20 cm (1 foot) it is enough for the diversity

to work, in this case it is advisable to keep them at least at 1 m (5 feet) distance in order not to

get them interfere each other. In the example 2 the antennas are mounted vertically in a more

convenient configuration (since they do not interfere much), this configuration is very good also

with 2 antennas used for transmission.

BOOSTER

Space

diversity

Rx B

Rx A

Rx B

Rx A

Space

diversity

1) 2 digits LED display with booster gain indication [dB].

Brightness can be adjusted through the user menu.

2) Signaling LED multicolor:

- White: when turning-on indicates the booster start up

- Yellow: booster bypassed, antenna becomes passive

- Green: active booster with gain between 1 ÷ 8 dB

- Blue: active booster with gain between 9 ÷ 15 dB

- Red: fast blinking, powering insufficient (lower than ≈

9,5Vdc)

3) + / - adjusting buttons

4) MENU/SAVE selection button allows to edit the following

parameters (after 5 second gain indication is restored by default).

Example 1

Example 2
