QUICK USER GUIDEQUICK USER GUIDE
Download Documentation and Firmware
Get declaration, user manual, tips, software,
specications, on the download page:
wisycom.com/products/d/bt1-br1/
Keep up with Wisycom online
Follow us on Facebook and Instagram. You
can also subscribe on Youtube for more.
wisycom.com/social
Product Registration and Warranty
Register your product to extend your warranty
and receive updates on latest rmware:
wisycom.com/products/my-account
This guide is intended to assist you with initial quick setup and
operation for your Wisycom product.
You can refer to Wisycom Authorized Distributors for technical
support and information about service and repairs available in your
region or contact us directly by email.
Serial Number: Purchase Date:
WISYCOM S.r.l.
Via Tiepolo 7/E
35019 Tombolo (PD) - ITALY
+39 0424 382605
support@wisycom.com
sales@wisycom.com
BFLT1-en-q01#ISTR-BFLT1
BFLT1 BFLT1
IC
Filter Version (lter type indicated on serial number sticker)
F1: Europe, UK and USA version
Tunable: 470-758 MHz (40 MHz band)
Bandpass (MHz):
Safety EN62368-1:2014; EMC: ETSI EN 300 386 V1.6.1
(2012-04) and FCC CFR-47 part 15 Sub part B
WISYCOM INC.
14301 Sullyeld Circle, Suite C
Chantilly, VA 20151- USA
+1 703-574-7505
support.us@wisycom.com
sales.us@wisycom.com
Conformity
F2: Japan and Korea version
Tunable: 470-758 MHz (40 MHz band)
Bandpass (MHz):

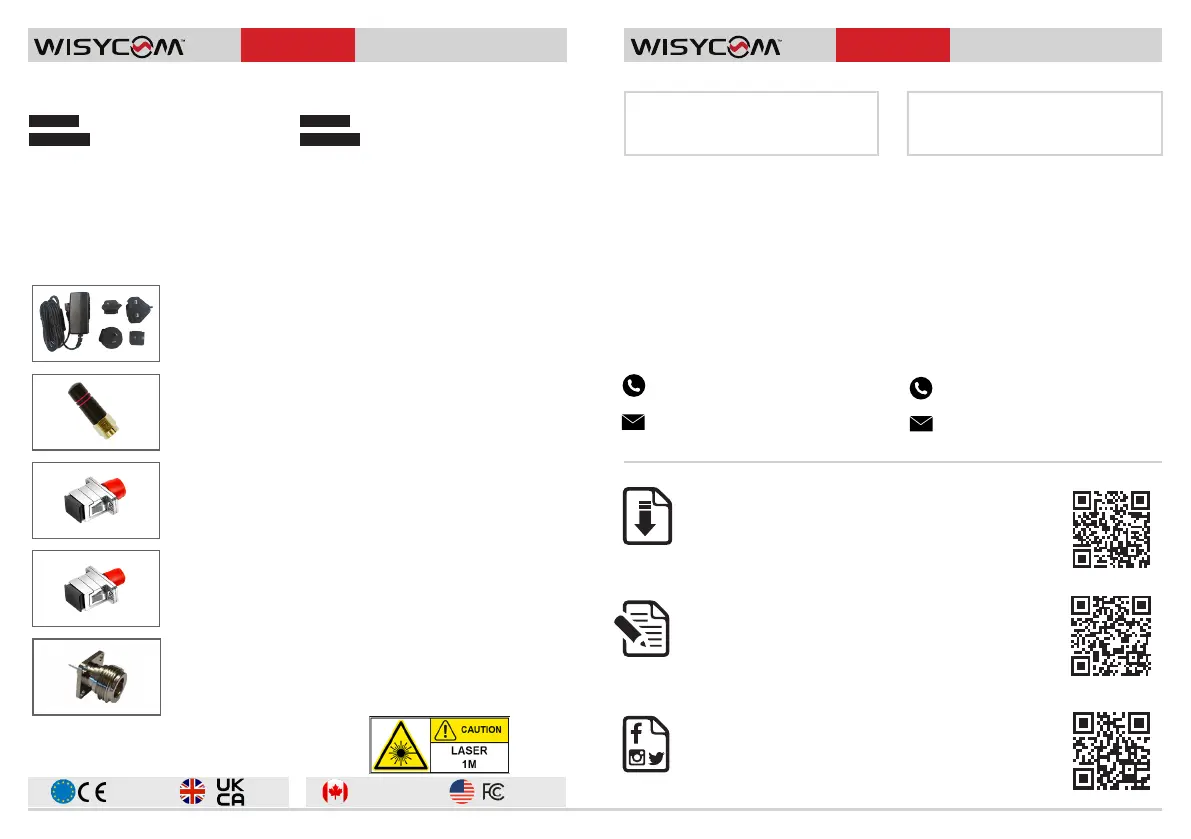

Main Accessories (for an updated and full list, visit wisycom.com)
PSP15V1A2: 90-264 Vac power supply with
Hirose 4 pin connector (15VDC 1.2mA)
Supplied with EU/UK/USA/AU plugs
ABTS: Bluetooth antenna
ADFC: FC/APC adapter (to upgrade BFL optical
connector from SC/APC to FC/APC)
ADST: ST/APC adapter (to upgrade BFL optical
connector from SC/APC to ST/APC)
CNGA26: N connector (to upgrade RF connec-
tor from BNC to N)
170-608 170-698 170-714 170-1260
470-608 470-698 470-714 470-1260
518-608 518-698 518-714 518-1260
566-698 566-714 566-1260 614-698
614-714 614-1260 806-810 927-935
1240-260
170-608 170-698 170-1160 170-1260
470-608 470-698 470-1160 470-1260
518-608 518-698 518-1160 518-1260
566-698 566-1160 566-1260 960-1160
960-1260 820-832 733-758 940-960
21G BFLx1 QUICK MANUAL
RF OUT
9
~
18 Vdc
BT
RX
OPT
IN
RX
RF INBT
TX
OPT
9
~
18 Vdc
OUT
TX

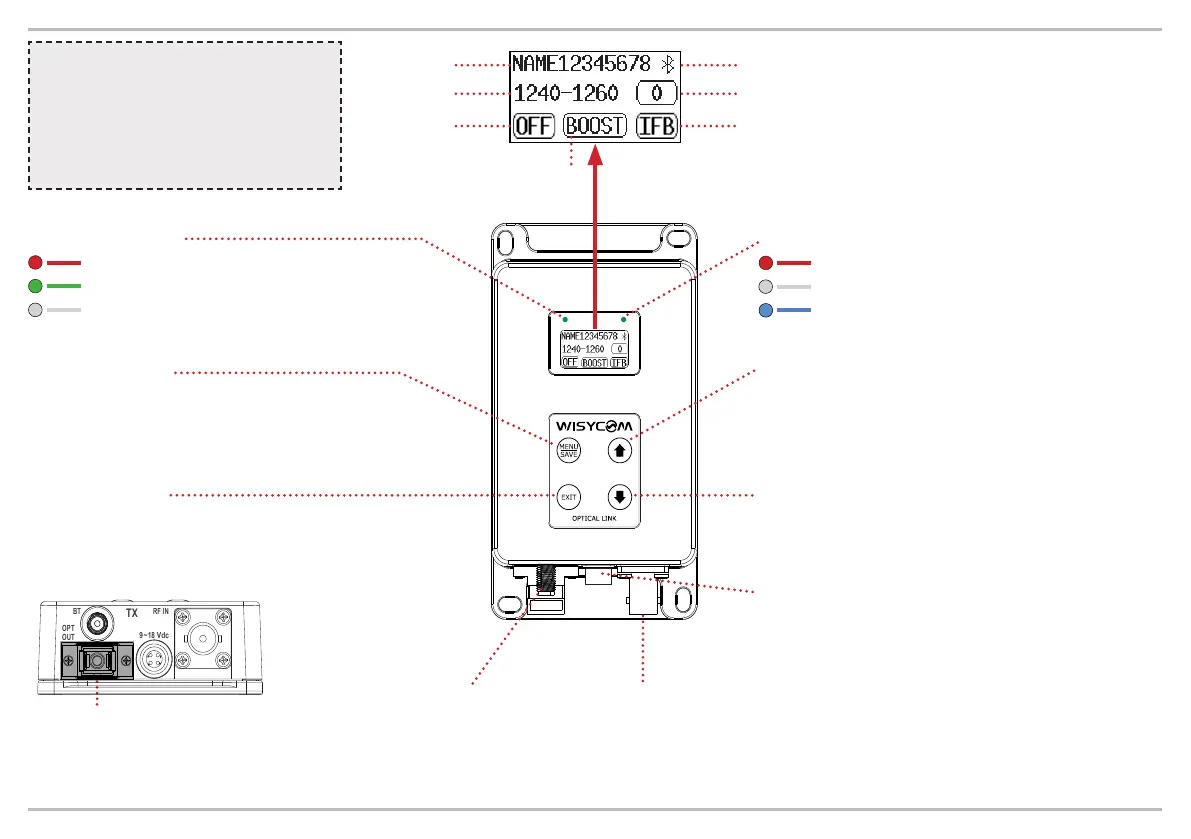

Menu Button
Press this button to enter the main
menu and select menu options.
Press to SAVE.
FIBER TIPS BOX
• Clean your ber connectors on both
ends
• Use single mode ber only
• Be sure your ber connectors are APC
• Typical ber loss with Wisycom systems
is approx. 0.4 dB/Km
Up
Short Press to scroll up in the main menu
or to access the rotary quick menu.
Down
Short Press to scroll down in the main
menu or to access the rotary quick menu.
Exit Button
Press this button to step back
while in the main menu.
RF Connector
BNC connector for RF input. If used with
active antennas enable the booster by BFL
settings menu Boost (12 VDC @ 150 mA max)
N connector is available for user upgrade.
BFL name
RF lter
Bluetooth enabled icon
Mode
• ANT operating in reception (wireless microphone)
• IFB operating in transmission (IEM / IFB remoting)
Gain level
Link status
Antenna booster status
Bluetooth Connector
SMA connector for BT
antennas to remotely
control via Wisycom BT
(iOS/Android app).
Power Connector
Hirose power connector 9-18 VDC
type HR10A-7R-4S (pin1: GND, pin4: VDC)
(consumption 3.5 W with booster & 2.5 W without).
Red: link alarm (laser fault)
Green: laser on
Grey: laser off
Red: RF alarm (Rf overload/booster fault)
Grey: Bluetooth off
Blue: Bluetooth on
Link Status Led Bluetooth Status and RF alarm Led
Optical Connector
SC/APC (others on request)
ST and FC connectors are
available for user upgrade.
21G BFLx1 QUICK MANUAL
RF OUT
9
~
18 Vdc
BT
RX
OPT
IN
RX
LASER 1M
RF INBT
TX
OPT
9
~
18 Vdc
OUT
TX
21G BFLx1 QUICK MANUAL
RF OUT
9
~
18 Vdc
BT
RX
OPT
IN
RX
LASER 1M
RF INBT
TX
OPT
9
~
18 Vdc
OUT
TX
