18Gbps 4K HDR HDBaseT Extender with

True ARC and Audio Breakout

EX-35-H2-ARC

Quickstart Guide

EX-35-H2-ARC Quickstart Guide | 181012

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

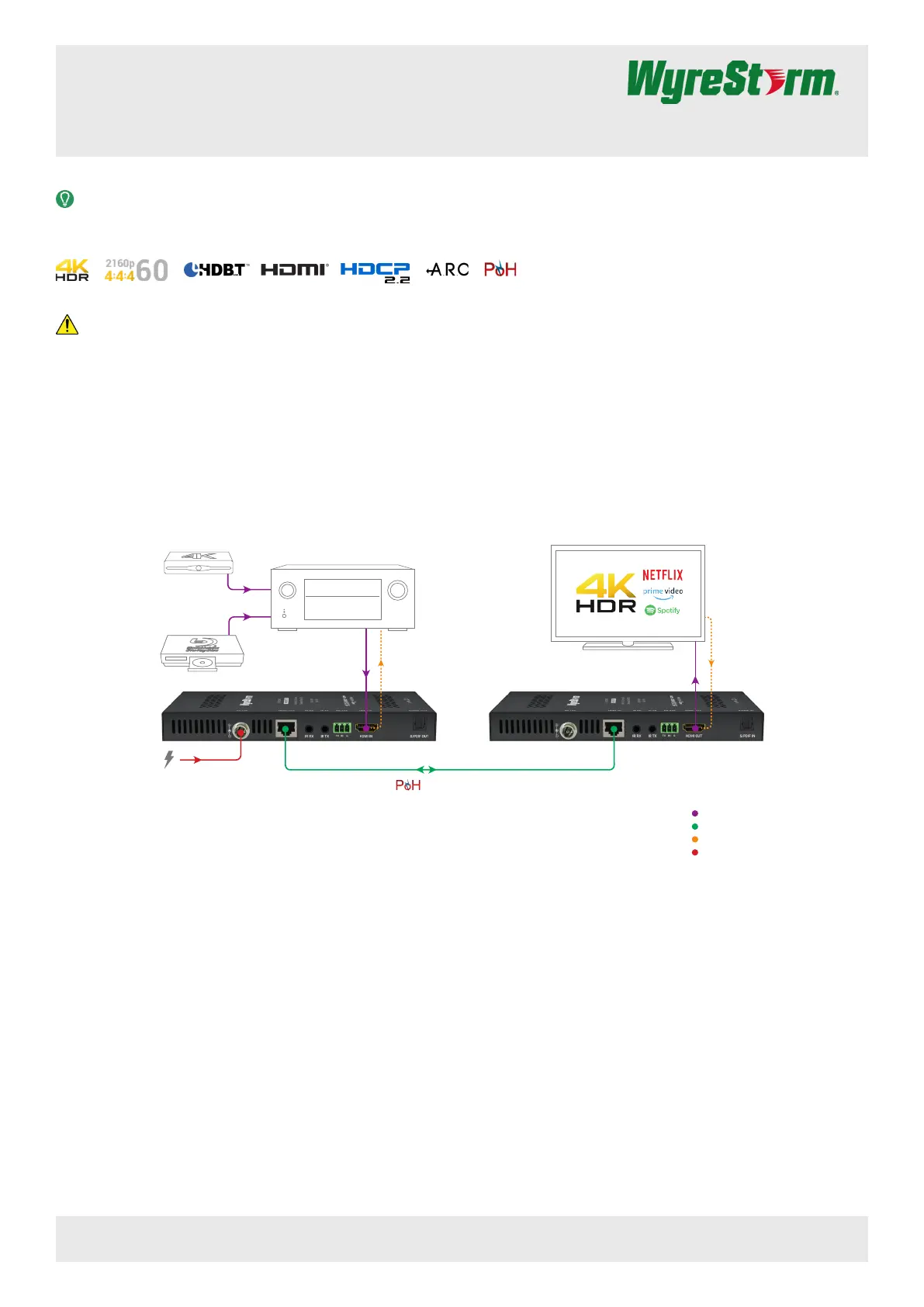

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x EX-35-H2-ARC Transmitter

1x EX-35-H2-ARC Receiver

1x 12V DC 3A Power Supply (US/EU/UK)

3x 3‐pin Screw Down Male Phoenix Connectors

1x IR Emitter

1x IR Receiver

4x Mounting Brackets (2x for TX | 2x for RX)

1x Quickstart Guide (this document)

HDMI

Audio Return

Channel

12V DC 3A

Power Supply

EX-35-H2-ARC Transmitter (TX) EX-35-H2-ARC Receiver (RX)

4K HLG Source

4K HDR Source

4K HDR HDMI Display

HDMI

Audio Return

Channel

KEY

HDMI

HDBaseT

Power

Audio Return Channel

HDBaseT

Cat6/6a/7

Note: S/PDIF I/O also available for audio return

Note: Extender set may be powered by either the TX or RX.

Only one power supply is required.

AV Receiver

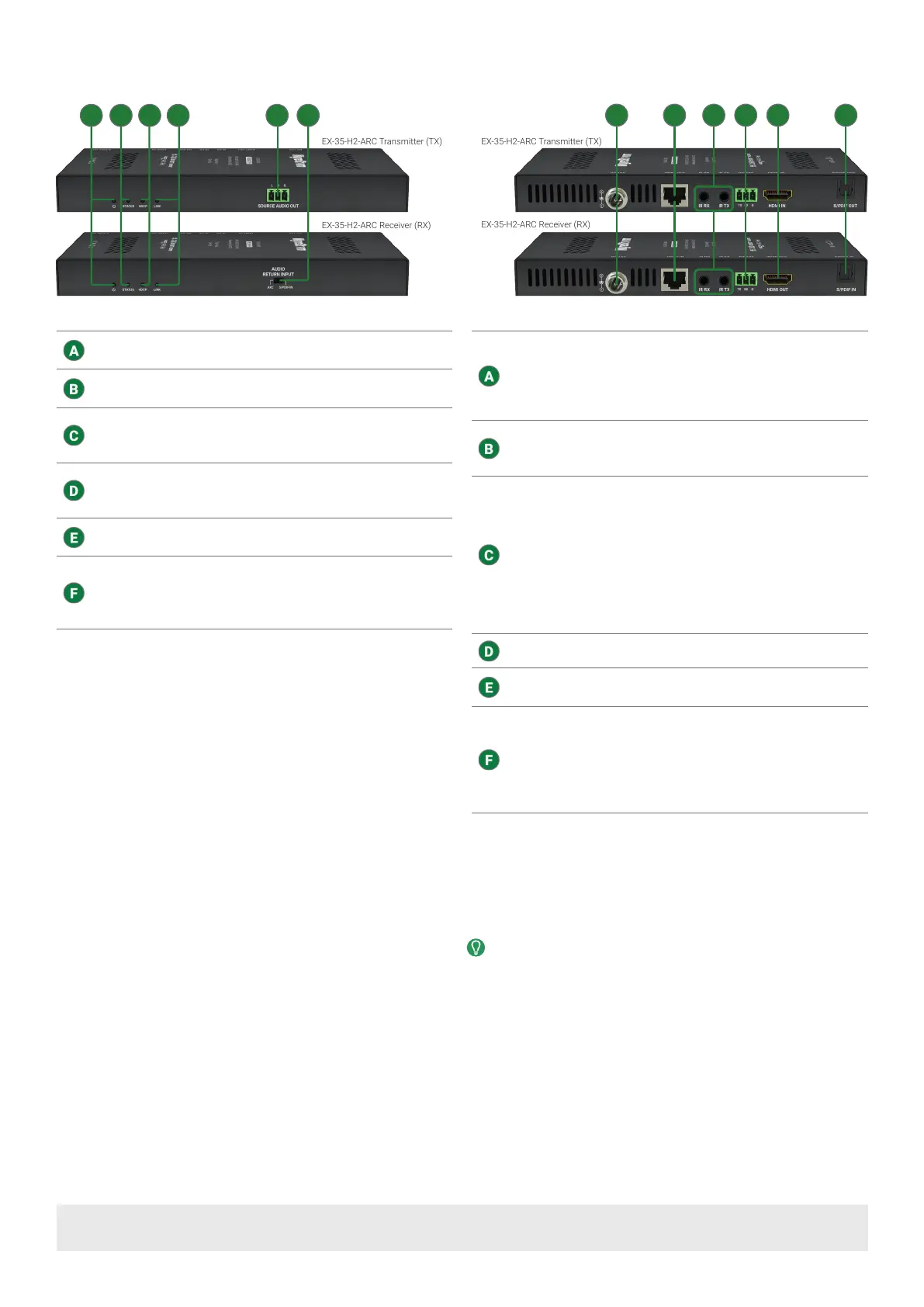

Front Panel (TX/RX) Rear Panel (TX/RX)

Power LED

Solid: The receiver is powered On

Off: The receiver is powered Off

Status LED

Flashing: The receiver is operating normally.

Off: The receiver is Not operating normally.

HDCP LED

Solid: HDCP content is present.

Flashing: HDCP content is not present.

Off: No signal.

LINK LED

Solid: Link to receiver has been established.

Flashing: Link to receiver has not been

established.

Source Audio Out

Use this connection to send audio separate

from the HDMI connection to the RX.

Audio Return Input

Set the switch to ARC to receive audio from

the display via the HDMI connection.

Set the switch to S/PDIF In to receive audio

from the display via the S/PDI In connection.

Power In

5.5mm Screw Down Barrel Jack

Connect to the included 18V DC 1A power

supply to the transmitter or receiver. A power

supply is not required on the other end as it

will be powered using PoH..

HDBT In

HDBT Out

8-pin RJ-45 female

Connect the transmitters HDBT Out to

receivers HDBT In.

IR TX

IR RX

IR TX - 3.5mm (1/8in) Mono Jack: Connect

to the supplied IR emitter to control a local

device from the remote display location via

HDBaseT.

IR RX - 3.5mm (1/8in) Stereo Jack: Connect

to the supplied IR receiver to send IR to the

remote display location via HDBaseT.

See IR TX/RX Guidelines for more

information.

RS-232 1x RS-232: 3-pin Phoenix

HDMI In

HDMI Out

19-pin type A HDMI female

Supports HDMI and DVI/D with adapter

S/PDIF In/Out

S/PDIF Out on the TX transmits audio from

the RX received via HDBaseT.

S/PDIF In on the RX receives audio to be sent

to the TX via HDBaseT. Audio Return Input

switch must be set to S/PDIF in order for

audio to be transmitted.

EX-35-H2-ARC Quickstart Guide | 181012

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

EX-35-H2-ARC Transmitter (TX)

EX-35-H2-ARC Receiver (RX)

A B C D E F

EX-35-H2-ARC Transmitter (TX)

EX-35-H2-ARC Receiver (RX)

A B C D E F

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the transmitter and receiving device.

• Verify that all HDMI and HDBaseT connections are not loose and are

functioning properly.

• Verify that the HDBaseT cable is properly terminated following EIA568B

standard.

• Verify that the output resolution of the source and display is supported by

this extender.

• Congure EDID Settings to a lower resolution.

• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

No or Intermittent 3rd party Device Control

• Verify that the IR and RS-232 cables are properly terminated following the

Wiring and Connections section.

Troubleshooting Tips:

• WyreStorm recommends using a cable tester or connecting the cable to

other devices to verify functionality.

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	AV forlænger
Model:	EX-35-H2-ARC
Type:	AV sender & modtager
Bredde:	195 mm
Dybde:	94.8 mm
Højde:	21 mm
Vægt:	360 g
Produktfarve:	Sort
Strøm:	3 A
Understøttede videotilstande:	1080p, 2160p
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Digital akustisk og optisk udgang:	1
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080),3860 x 2160,4096 x 2160
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
Strømforbrug (maks.):	8.88 W
DC-in-stik:	Ja
Bæredygtighedscertifikater:	RoHS
Driftsspænding:	12 V
Maksimal overførselsafstand:	35 m
Maksimal opdateringshastighed:	60 Hz
HDMI-version:	2.0
Ekstern strømadapter:	Ja
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Stativ-montering:	Ja
Digital akustisk og optisk indgang:	1
RS-232 indgangsporte:	1
HDCP-version:	2.2
Fjernbetjening (IR) indgang:	1
Fjernbetjening (IR) udgang:	1
HDBaseT-port:	Ja
Understøttede kabeltyper:	Cat6, Cat6a, Cat7, HDMI
Båndbredde:	9.2 Gbit/sek.
RJ-45 udgangs-porte:	1
HDBaseT certificeret:	Ja
Udvidet display identifikationsdata (EDID):	Ja
Understøtter forbrugerelektronik (CEC):	Ja
3,5 mm ud:	Ja
Digital lyd optisk inputtype:	Toslink
CEC gennemgang:	Ja
