Side 1/4
4K UHD HDBaseT Extender Set
with HDCP 2.2 & 2-way PoH
EX-70-G2 Quickstart Guide
Identifying Product Versions
This product was released in 2 different versions which contain different
chassis designs and feature sets. The differences are identied throughout
this document in order to make installation and use easier. Versions can
be identied by a v# after the model number on the product chassis model
number sticker. Note that version 1 of this product may not contain a v1 after
the product while all version 2s will contain a v2 after the model number.
In the Box
1x EX-70-G2 Transmitter
1x EX-70-G2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
1x IR Emitters
1x IR Receivers
2x 3‐pin Screw Down Male Phoenix Connectors
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)

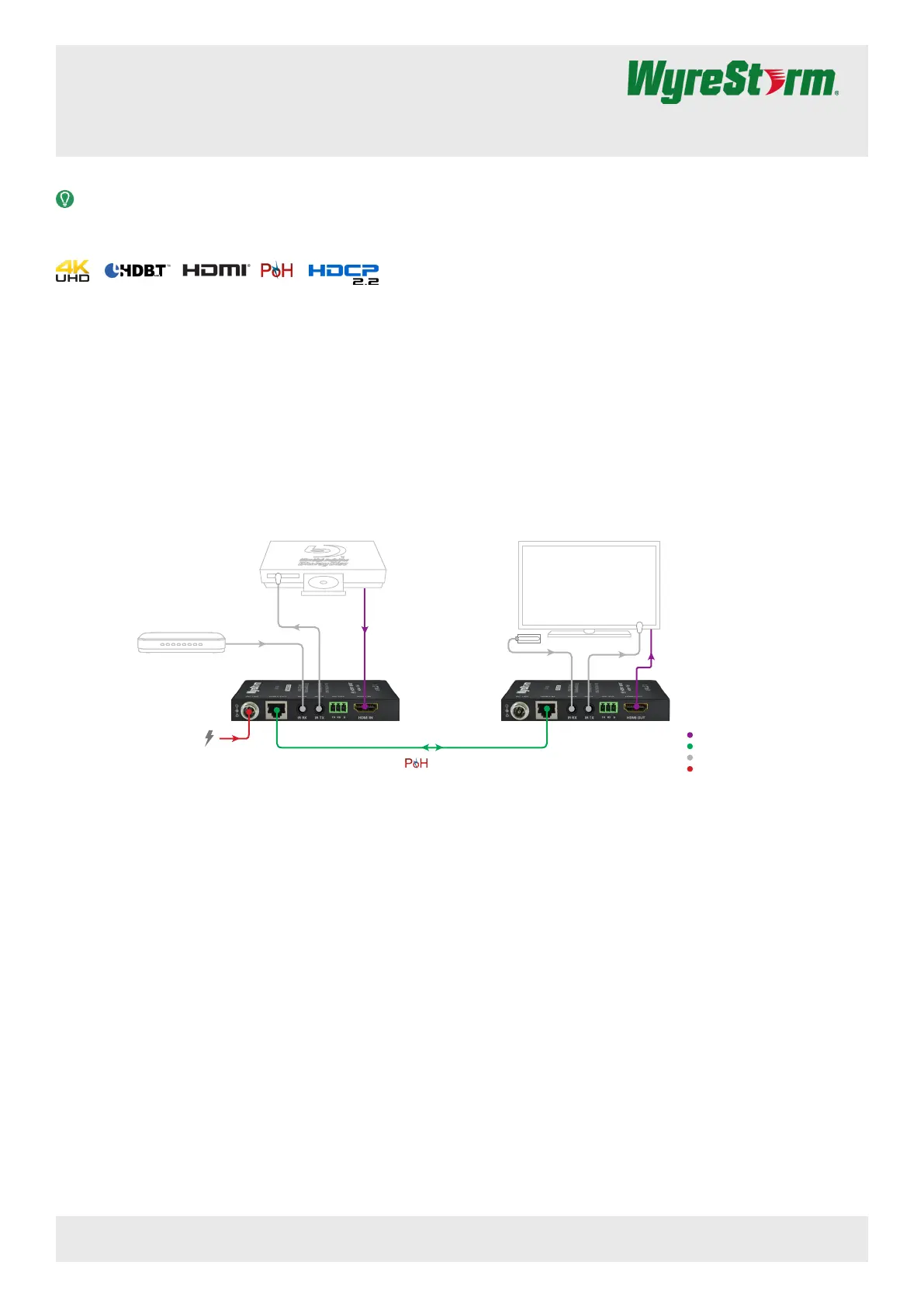

Basic Wiring Diagram
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
EX-70-G2 Quickstart Guide | 180919
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
HDMI
HDMI
IR Emitter
IR Emitter
IR Receiver
18V DC 1A
Power Supply
IR to Control System
CAB-IR-LINK (Sold Separately)
EX-70-G2 Transmitter (TX) EX-70-G2 Receiver (RX)
HDMI Source HDMI Display
KEY
HDMI
HDBaseT Cat5e/6/6a
IR TX and RX
Power
HDBaseT
Cat6/6a/7

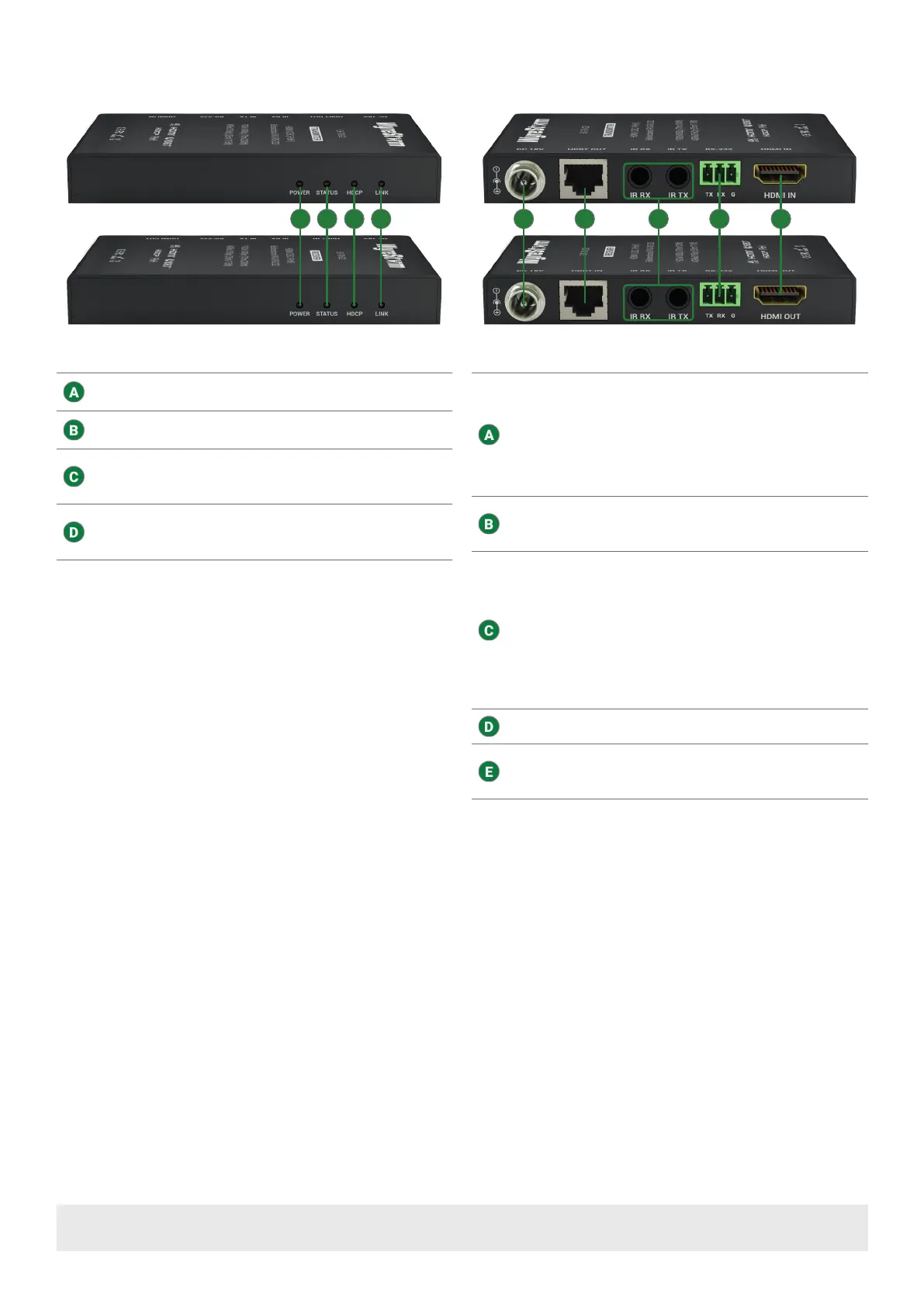

Front Panel (TX/RX) Rear Panel (TX/RX)
Power LED Solid: The receiver is powered On
Off: The receiver is powered Off
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
HDCP LED
Solid: HDCP content is present.
Flashing: HDCP content is not present.
Off: No signal.
LINK LED
Solid: Link to receiver has been established.
Flashing: Link to receiver has not been
established.
Power Input
5.5mm Screw Down Barrel Jack
Connect to the included 18V DC 1A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
See for important Power Supply Wiring
information.
HDBT In
HDBT Out
8-pin RJ-45 female
Connect the transmitters HDBT Out to
receivers HDBT In.
IR TX/RX
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See for more IR TX/RX Guidelines
information.
RS-232 1x RS-232: 3-pin Phoenix (v2 chassis only)
HDMI In (TX)
HDMI Out (RX)
19-pin type A HDMI female
Supports HDMI and DVI/D (requires adapter -
not included).
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
EX-70-G2 Quickstart Guide | 180919
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
EX-70-G2 Transmitter
EX-70-G2 Receiver
A B C D
EX-70-G2 Transmitter
EX-70-G2 Receiver
A B C ED
