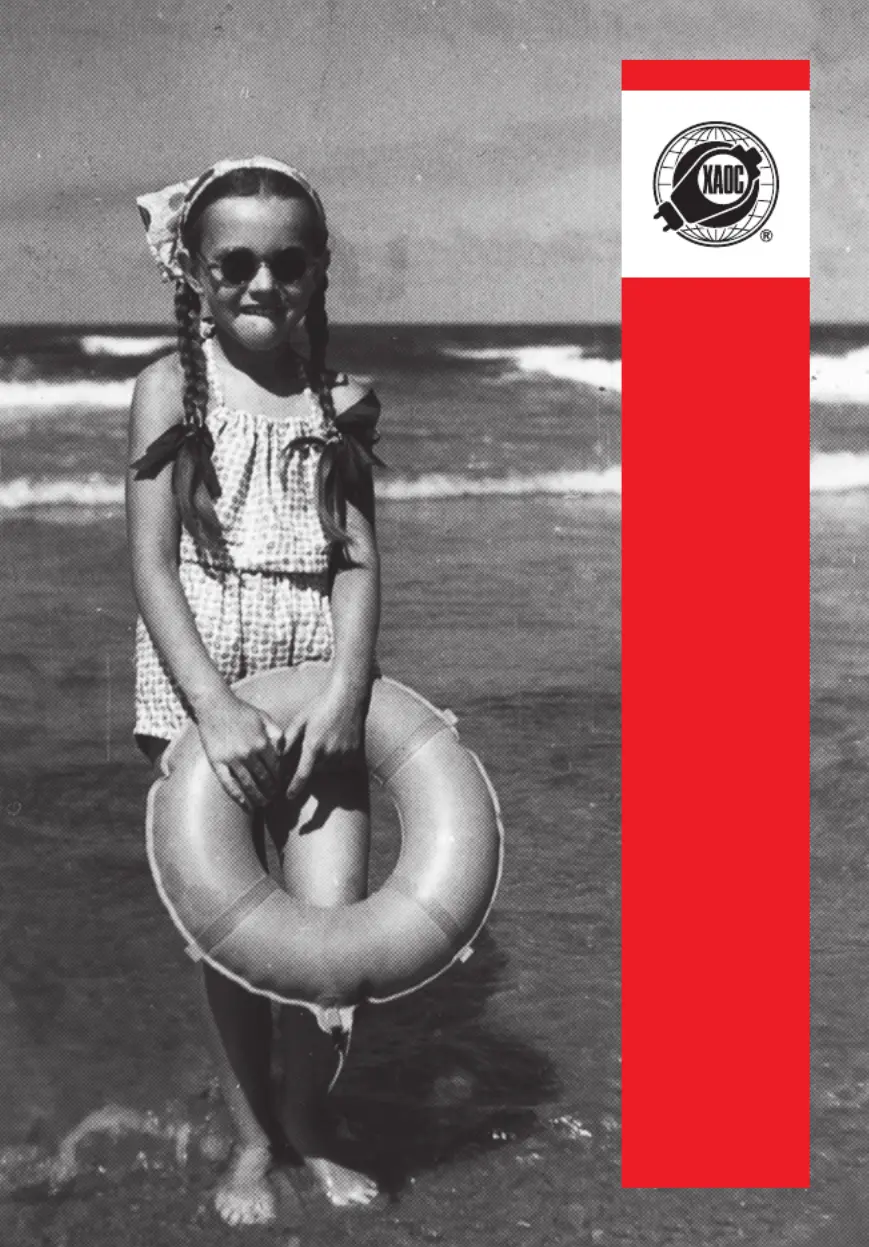

SOPOT

triple signal

summator

Model of 1980

operator’s manual rev. 1980/1.1

SALUT

Thank you for purchasing this Xaoc Devices

product. Sopot is a triple summing [ˈsɔpɔt]

mixer featuring three signal-adding sections,

with the middle one optionally fed to the top

and bottom ones. Sopot is a compact utility

module useful in summing multiple stereo

and mono sound sources (up to four signals

for each section).

To better understand the device, we strongly

advise the user to read through the entire

manual before use.

INSTALLATION

The module requires 6hp worth of free space

in the Eurorack cabinet.

Always turn the power off before plugging

the module to the bus board using the sup-

plied 16-pin to 10-pin ribbon cable, paying

close attention to power cable pinout and

orientation. The red stripe indicates the

negative rail and should match the –12v

mark on the bus board and the unit. Sopot

is internally secured against reversed pow-

er connection; however, flipping the 16-pin

plug may cause serious damage to other

components of your system because it will

short circuit the +12V and +5V power lines.

Always pay particularly close attention to

the proper orientation of your ribbon cable

on both sides!

The module should be fastened by mount-

ing the supplied screws before powering up.

However, before doing so, you may consider

selecting the desired attenuation in each of

the three sections by appropriately setting

the three jumpers at the back. A detailed ex-

planation of their function is provided below.

MODULE OVERVIEW

Sopot features three independent summing

sections

. Each section has four

inputs

and one output

. The middle

section, marked mix m

, may be optionally

mixed into the upper one, mix l

, and the

lower one, mix r

. Two 3-position switches

allow for including this additional submix

in the upper and lower sections, or both (or

neither). The switches offer three options:

50% attenuation, off, and 100% (no atten-

uation).

Each summing section features a soft clip-

ping circuit to prevent unpleasant distortion.

In addition, there is a signal level indicator

in each of the three summing sections. It

shows the volume of the corresponding out-

put using light intensity and color, gradually

changing from green to yellow and red when

the sum exceeds 16Vpp.

OPERATION

The main application of Sopot is combining

up to four stereo sources ( for the left mix l

channel, for the right channel) with mix r

up to four mono sources ( fed to the mix m

upper and lower sections). Depending on

the position of the two switches, the middle

section’s submix may appear in the stereo

panorama as a centered source ( ) 100/100

or an off-centered one ( or ).100/50 50/100

module

explained
