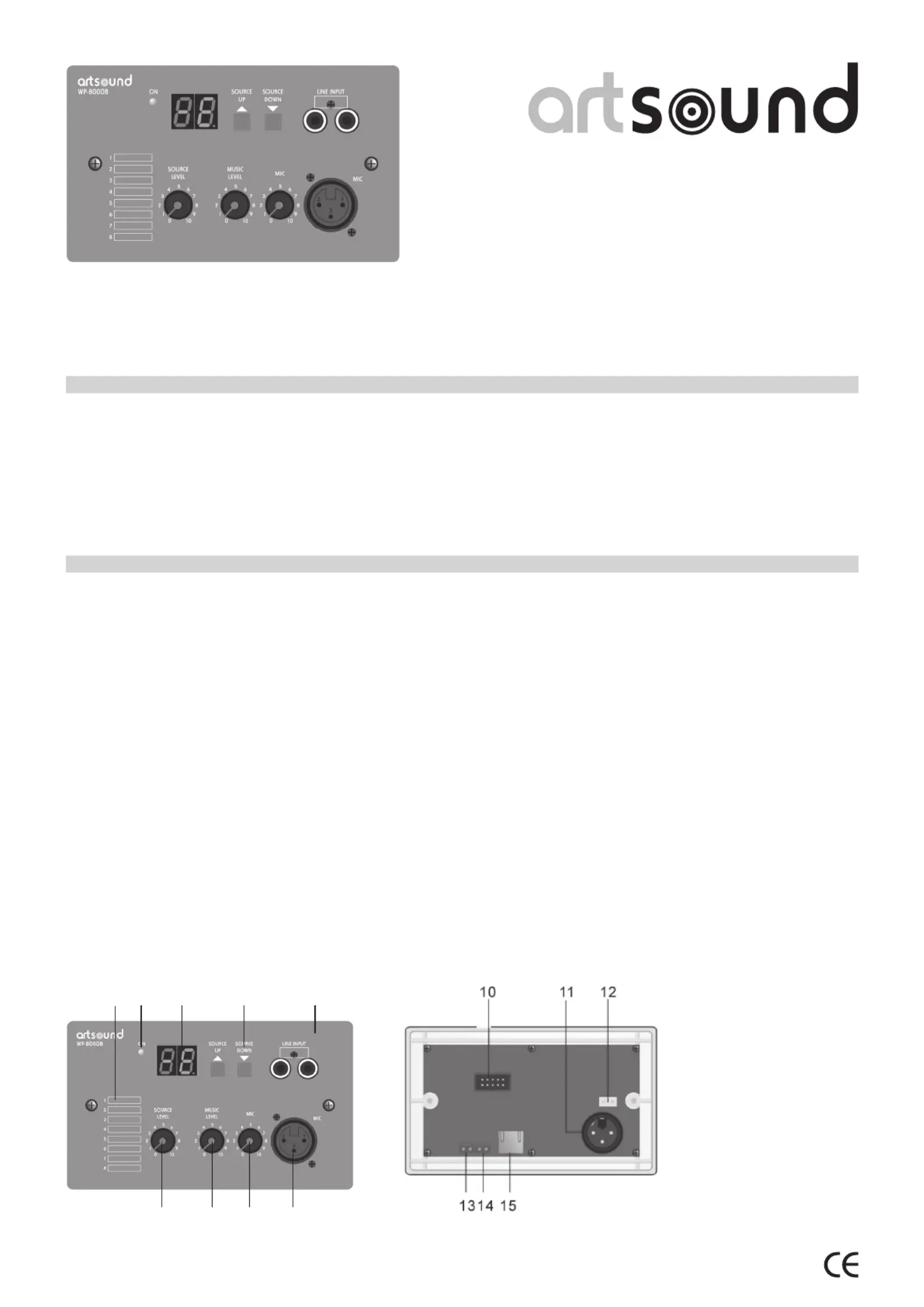

2. Front panel & rear panel.
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference
Check our website for any updates of this manual: www.artsound.be
WP-8000B is a remote control panel work together with
MAT-8000, which will be used as a remote source selec-
tor, volume control and local input panel. The remote
control panel is designed with LED to provide direct dis-
play of the selected sources, the up and down button will
be used increase or decrease the source input channel. A
ten levels volume control is provided over the sources. A
line input by dual RCA type connector and a microphone
input by XLR type connector are included, while both of
them are designed of level control. The communication
between the panel and the matrix is through universal
industrial standard CAT5 cable, which also is used to sup-
ply power from the matrix to this panel within 50 meters.
There are total 8 units of remote control panels could be
work together with the matrix.
The label could be end user-printed as guidance over
The LED will be light on blue after power on and will
be extinguished after power off.
The white LED in blue background will display the
source channel 1 to 8 as 01 to 08 and local input as L.
4. SOURCE UP & SOURCE DOWN.
The two buttons are used to increase or decrease the
input sources channel from 1 to 8 and local input.
Local line input by dual RCA type connector.
Local microphone input by XLR type connector.
Ten levels volume control over local microphone
input, clockwise adjustment to increase the volume
Ten levels volume control over local line input,
clockwise adjustment to increase the volume from
Ten levels volume control over selected source out-
put, clockwise adjustment to increase the volume
It is used to burn program.
Connector to input microphone signal to the PCB
13. SPARE AUX OUTPUT TO AMP.
Extra DC 24V will be needed to power supply the
remote control panel when the communication
distance is longer than 50 meters.
15. Rj45 COMMUNICATION PORT.
The RJ45 port is used to communicate between the
remote control panel and the matrix, it also will be
used to power supply the panel within 50 meters.
