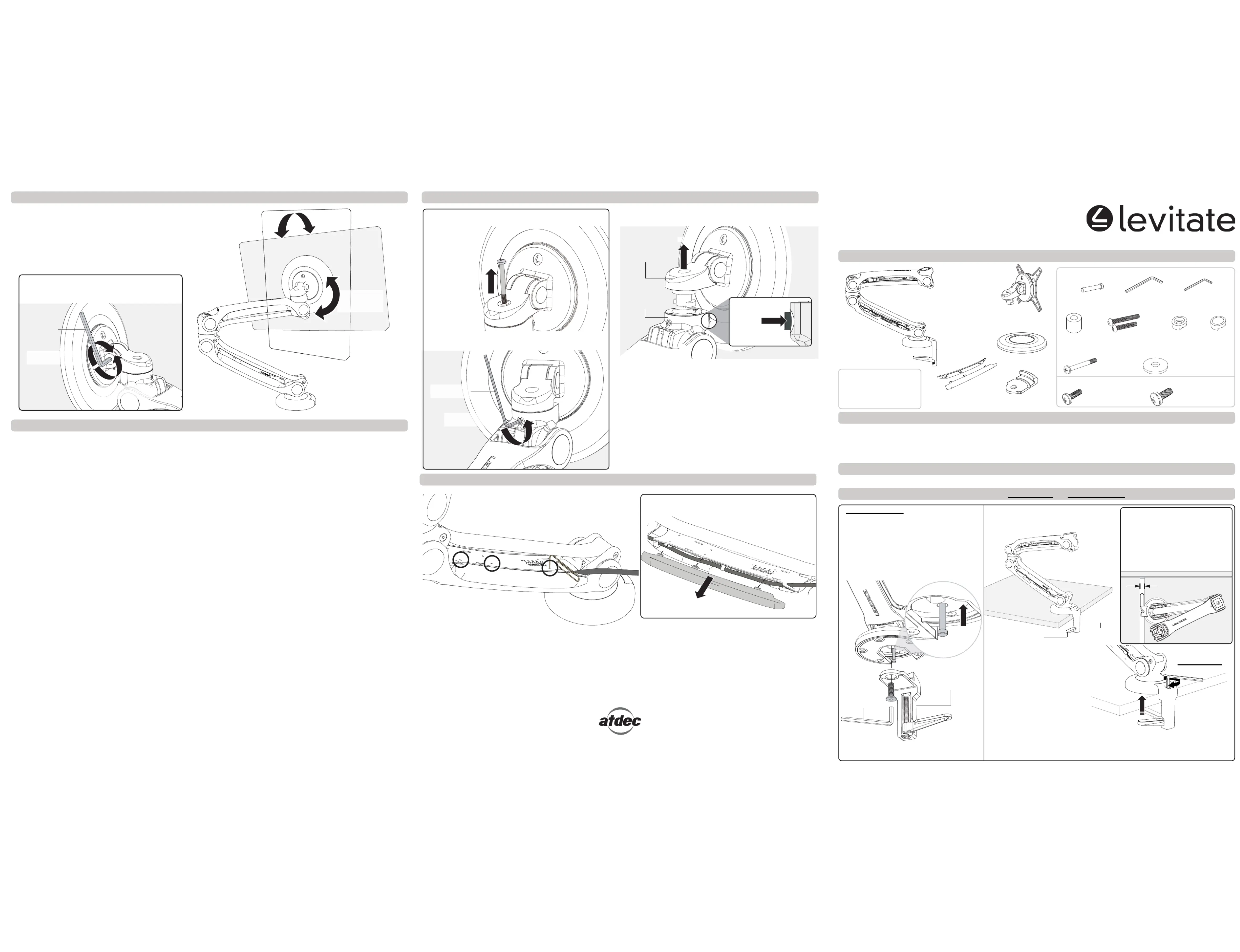

Step 2. Fasten Base to Work Surface - Choose DESK CLAMP OR BOLT THROUGH option (PTO...)

Component Checklist

A - DESK CLAMP

The default base setup allows of 360°

rotation of the Lower Arm around the base.

If you want to limit the Lower Arm rotation to

180° go to A1, if not skip to A2.

A1. OPTIONAL 180° ROTATION

To limit the Lower Arm rotation to insert 180°

the Brake Pin underneath the Desk Clamp.

Brake

Pin (x1)

5mm Allen

Key (x1)

2mm Allen

Key (x1)

Spacer

Bush (x4)

45mm/60mm

Bolts (x1 each)

Security

Washer (x1)

Head

Cap (x1)

Security

Screw (x1)

Bolt Through

Washers (x3)

M4 x 12mm (x4)

M4 x 16mm (x4)

M5 x 12mm (x4)

M5 x 16mm (x4)

Mounting

Head

Cover Plate

Base Plate

Display Mounting Screws (BAG B)

Hardware (BAG A)

Arm Assembly

(with pre-assembled Desk Clamp)

Tools Required:

Phillips Head Screwdriver

Power drill

8mm (

/ ”) drill bit16

IMPORTANT INFORMATION

! IMPORTANT - Install Levitate Single Monitor Arm as per Installation Instructions

! This product supports a maximum weight of 9kg (19.5lbs).

! This product supports VESA mounting hole configurations 75 x 75mm and 100 x 100mm.

! The manufacturer accepts no responsibility for incorrect installation.

Check you have received all parts against the Component Checklist and Hardware.

Step 1. Check Components

L-PB

L-PW

Desk | Single

Installation Instructions

Cable Covers

(x2 sets)

Insert

Brake Pin

PUSH

Desk Clamp

5mm Allen

Key

A2. Position Arm Assembly on the work

surface so that the Desk Clamp hangs over

the edge.

TOP LOADING ATTACHMENT

TIP: When sliding the Desk Clamp

between two work surfaces, ensure

that the Clamp Pad is fully open

and parallel with the edge of the

work surface.

Min. gap=18mm (0.71”)

Work Surface

(top view)

Desk

Clamp

A3. Using the 5mm Allen Key, close

the Desk Clamp to grip the work

surface. Tighten very firmly.

NOTE: The unique top loading Desk Clamp allows product installation/removal

without having to gain access to the underside of the work surface.

A4. Desk Clamp is now installed, please skip to Step 3 (PTO>>>).

The Clamp Pad will automatically

rotate under the work surface

when tightened.

Remove and re-install the Desk Clamp, using

the 5mm Allen Key supplied. Then go to A2.

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to the continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 22.07.11 ©

INSTALLATION COMPLETE - Refer to the User Operator Guide for user adjustments

How to remove the Monitor

Step 8. Monitor Orientation

TIGHTEN

VERY FIRMLY

(clockwise)

Clamp Pad

1. Rotate the monitor to Portrait or Landscape position

depending on user requirements.

NOTE: The monitor will only rotate 90° clockwise from

the starting position (when facing the screen).

2. Tilt the monitor up or down to suit the user.

TIP: Depending on the weight of the monitor, make

adjustments to the tilt tension using the 5mm Allen

Key if necessary.

5mm Allen

Key

MORE TENSION

(clockwise)

LESS TENSION

(anti-clockwise)

How to remove Cable Covers

1. If you inserted the Security Screw in Step 5, remove it

using a Phillips head screwdriver.

REMOVE

(anti-clockwise)

LIFT

Mounting Head

Quick Release

Coupling

1. Using a paper clip or a ball point pen press in

the three tabs holding the Cable Cover in place.

2. Pull the Cable Cover away from the Arm. Repeat this

process for each Cable Cover.

REMOVE

TIP: Access the tabs through the three

pinholes nearest the Cable Cover you

want to remove (e.g. A,B,C).

2. If you tightened the swivel tension in Step 5, loosen the

screw (do not remove) using the 2mm Allen Key supplied.

3. Unlock the Quick Release coupling (as shown below), and lift

the Monitor away from the Arm Assembly.

LESS TENSION

(anti-clockwise)

2mm Allen

Key

NOTE: When you press in the black inner button, the white outer

button will pop out to indicate the lock has been disengaged.

Upward/

Downward Tilt

Portrait/

Landscape

Rotation

Press in BLACK

inner button

TO UNLOCK

Mounting Head

Quick Release

Coupling

Press in WHITE

outer button

TO LOCK

Recessed Mounting Holes or

Display with a Curved Rear Panel

If the Mounting Holes are recessed into the

back of the monitor, or the monitor has

a curved rear panel, use the Spacer Bushes

supplied to pack the Mounting Holes.

Spacer Bush (x4)

Display Mounting

Screws (x4)

Mounting Hole

Insert

Brake Pin

PUSH

B - BOLT THROUGH

B1. Remove the Desk Clamp using the 5mm Allen Key supplied.

B3. Install the Base Plate to replace the Desk Clamp

(no screw required).

TIP: To correctly insert the Brake Pin, so that the head of the

Brake Pin is flush, the base and Lower Arm must be aligned as

shown above.

Desk Clamp

5mm

Allen Key

Base Plate

B4. Drill an 8mm (

/ ”)16 hole through the work surface where

you want the centre of the base to be.

NOTE: The hole should be at least 55mm (2.17”) from any

work surface edge to allow for the diameter of the base.

B5. Select the appropriate length bolt, 45mm or 60mm

depending on the work surface thickness.

SHORT (45mm) suits work

surface thickness between

14-28mm

(0.5”-1.1”).

LONG (60mm) suits work

surface thickness between

29-43mm .(1.1”-1.7”)

Max.

28mm (1.1”)

Min.

14mm (0.5”)

Max.

25mm (1”)

Min.

17mm (0.7”)

Max.

25mm (1”)

Min.

17mm (0.7”)

Max.

43mm (1.7”)

Min.

29mm (1.1”)

Use 1,2, or 3 Bolt Through Washers to provide a thread length

of 17mm minimum to 25mm maximum protruding (0.7”-1”)

above the work surface.

TIP: For work surfaces thicker than 43mm

(1.7”), longer M8

bolts can be purchased from hardware stores.

B6. Align the centre of the base over the pre-drilled hole.

Using the hardware selected in B5 fasten the base to the work

surface.

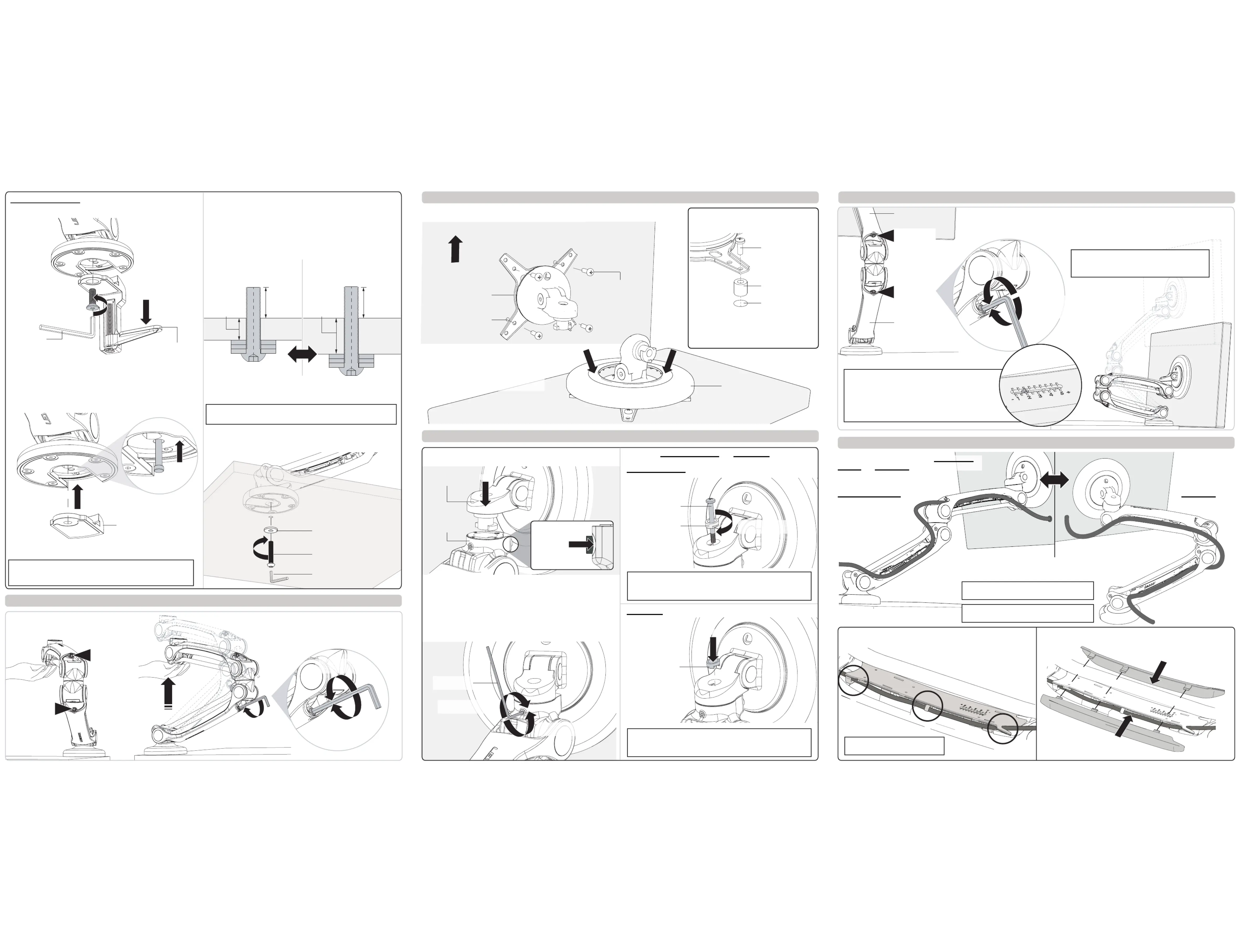

Step 3. Tighten Tension Bolts

1. Lift and support the weight of the Upper

and Lower Arms.

PUSH

2. Using the 5mm Allen Key supplied, tighten

the Upper and Lower Arm Tension Bolts until

the Arm Assembly supports its own weight.

Step 4. Attach Mounting Head to Monitor

Step 5. Attach Monitor onto Arm Assembly (How do I remove the Monitor? See final page for help)

Step 6. Adjust Spring Assistance

Step 7. Cable Management (How do I remove Cable Covers? See final page for help)

1. Select appropriate Display Mounting Screws from hardware ‘BAG B’ to suit the

monitor, and fasten the Mounting Head to the back of the monitor.

Mounting Head

Display Mounting

Screws (x4)

Mounting Hole

TOP OF

MONITOR

2. Push the Cover Plate over the

Mounting Head.

Press firmly around the inside edge

until you hear a ‘CLICK’.

Cover Plate

PUSHPUSH

1. Align and locate the Mounting Head onto the Quick Release

coupling.

2. Once the Mounting Head is in position, press in the WHITE

outer button to lock in place. Listen for ‘CLICK’.

NOTE: To unlock and remove the monitor, refer to instructions

on the final page.

3. If necessary adjust the swivel tension to increase head

stability. Use the 2mm Allen Key supplied.

REMOVE

(anti-clockwise)

2mm Allen

Key

MORE TENSION

(clockwise)

LESS TENSION

(anti-clockwise)

4. SECURITY SCREW HEAD CAP Choose OR option.

PUSH

Head Cap

DO NOT

OVERTIGHTEN

Security Washer

Security Screw

MORE TENSION

(clockwise)

SECURITY SCREW

HEAD CAP

TIP: When inserting the Security Washer ensure that the

thicker side is towards the monitor, so that it follows the

contour of the Mounting Head.

TIP: When inserting the Head Cap ensure that the thicker

side is towards the monitor, so that it follows the contour of

the Mounting Head.

Starting with the Lower Arm, tighten the Tension Bolt until the arm comfortably holds its

position wherever it is moved.

Once satisfied, repeat the process for the Upper Arm.

TIP: FOR MULTIPLE INSTALLATIONS ONLY.

When tensioning the Upper and Lower Arms take

note of the Visual Gauge on each arm.

This will help when installing multiple Levitate

products supporting the same weight monitors.

TIP: DO NOT OVER TENSION.

Both arms should move freely, and support

the weight of the monitor in any position.

Upper Arm

Lower Arm

Tension Bolt

Upper Arm

Tension Bolt

Visual Gauge

1. Position the Arm Assembly for MAXIMUM

REACH COMPACT OR use depending on your

monitor requirements.

3. Push cables under retaining clips on the Upper and Lower

Arms to hold the cables in position.

4. Install Cable Covers on both sides of the Upper and Lower

Arms.

45mm or

60mm Bolt

Bolt Through

Washer

5mm Allen Key

TIGHTEN

FIRMLY

(clockwise)

NOTE: The Cable Covers are different for left and right sides.

PUSH

MORE TENSION

(clockwise)

LESS TENSION

(anti-clockwise)

LESS

TENSION

(anti-clockwise)

MORE TENSION

(clockwise)

TIP: If necessary gently flex clips

A and C to hold the cable.

Back of Monitor

The default base setup allows of rotation of the Lower Arm 360°

around the base. If you want to limit the Lower Arm rotation to

180° go to B2, if not skip to B3.

B2. OPTIONAL 180° ROTATION

To limit the Lower Arm rotation to insert the Brake Pin (as 180°

shown below). Then go to B3.

MAXIMUM REACH COMPACT

2. Route cables along the length of the Arm

Assembly and connect to the monitor.

TIP: Leave enough slack in the cables to

allow full movement at the joints.

TIP: If cable plugs are too big to fit through

the joints, route the cables on the outside.

Lower Arm

Tension Bolt

Upper Arm

Tension Bolt

PUSH
