Side 1/2

A. Determine the degree of

rotation you require. (Refer to

Mounting Options above)

B. To Limit the Rotation,

use the 2.5mm Allen Key to

insert the supplied M5

Grub Screw into your

chosen Locking Hole until it

sits flush with the Base Plate.

OTE: If you want the full

355° rotation, you do OT

need to install a grub screw.

Step 1. Limit Rotation

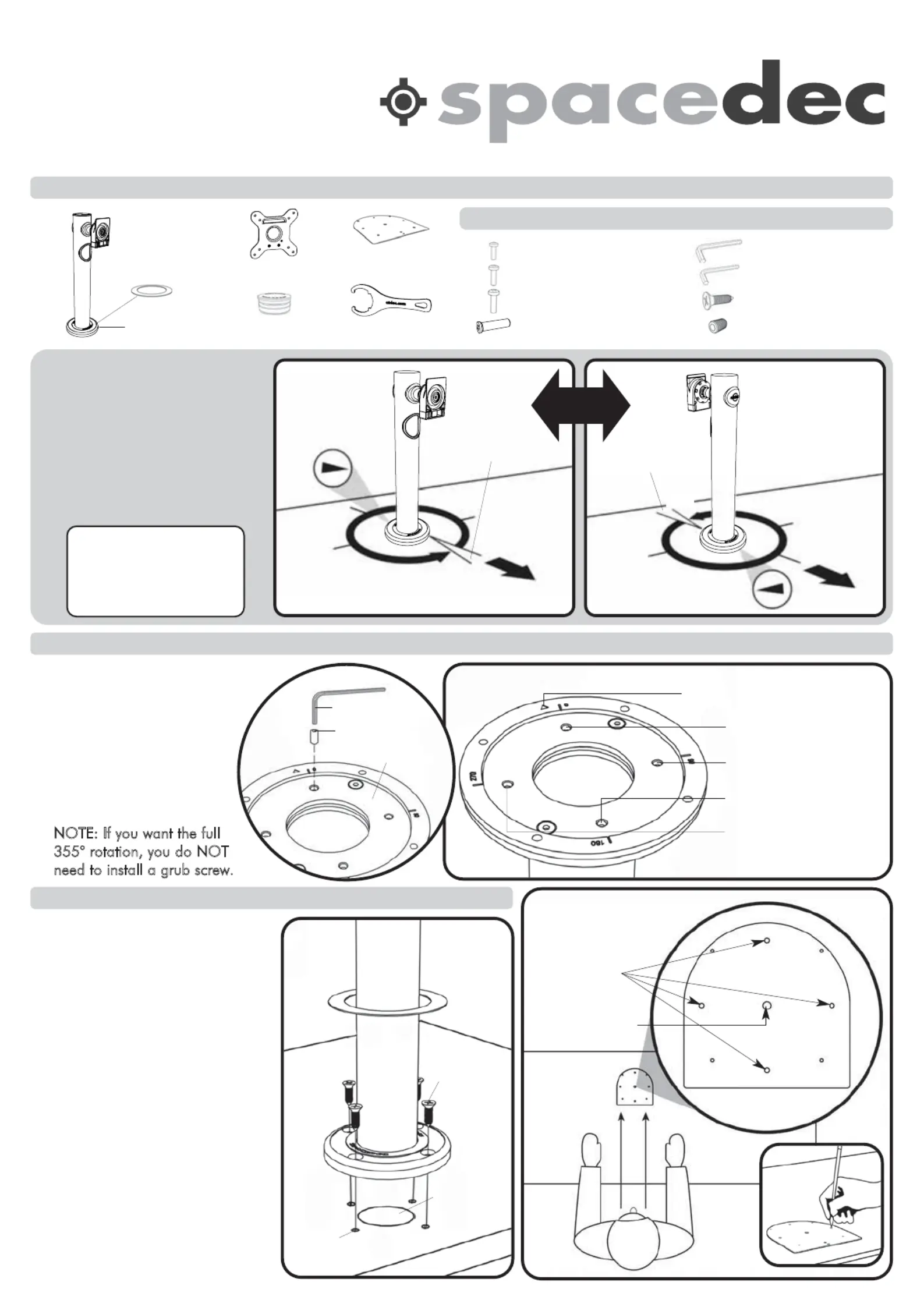

Component Checklist (Check you have received all parts against the Component Checklist below)

M4x10mm Screws (x4)

M4x16mm Screws (x4)

POS Assembly (x1)

Hardware

2.5mm Allen Key (x1)

M4x12mm Screws (x4)

Installation Instructions

Installation Template

(x1)

M5 Grub Screw (x1)

4 x Ø3mm (

”)

Pilot Holes

Centre for

45mm(1¾”) Cable

Access Hole

Mounting Options

A. Position the Installation

Template in the desired location

on your work surface. Ensure the

straight edge sits perpendicular

with the User’s line of sight. Mark

the center points of each of the

required holes onto the work

surface with a pencil.

B. Drill 4 x 3mm (

”) Pilot

Holes to a depth of 15mm (

”).

Use a 45mm (1¾”) hole saw to

drill the Cable Access Hole in the

work surface.

C. Reposition POS Multi with

the “Direction Arrow” pointing in

the direction required for your

chosen rotation. Secure the POS

to the work surface using the

supplied 14 Gauge Screws (x4).

INSTALLATION

TEMPLATE

Top Cap (x1)

Screw Cover

(x1)

14 Gauge Screws (x4)

0° Locking Hole (Fixed)

0-180° Locking Hole

0-270° Locking Hole

0-90° Locking Hole

Direction Arrow

Locking Holes

Rotation Options

0° Rotation (Fixed)

0-90° Rotation

0-180° Rotation

0-270° Rotation

0-355° Rotation

14 Gauge

Screws (x4)

Ø45mm

(1¾”) Cable

Access Hole

4 x Ø3mm (

”)

Pilot Holes

USER

5° Gap in

Rotation

USER

Step 2. Locate and Secure your POS Multi

5° Gap in

Rotation

270°

180°

0°

90°

270°

180°

0°

90°

355°

M5 Grub Screw

Your POS Multi offers 355° of

Rotation. This can also be limited

to suit a specific application.

The Direction in which you

mount POS Multi will determine

where the 5° gap in Rotation is

located, and how you choose to

limit the rotation.

2.5mm Allen Key

Base Plate

Direction

Arrow

Direction

Arrow

2mm Allen Key (x1)

Display | POS Multi

SD-POS-VBM

Security Screw (x1)

Tightening Tool (x1)

VESA plate (x1)

A. Loop the Security Cable

(Kensington or similar)

around the internal post

of the POS Assembly.

B. Feed the other

end

of the cable through

the POS Assembly and

out the Cable

Management Hole.

C. After you have attached the monitor

(As directed in ) install the lock to theStep 8

monitor as per the manufacturer guidelines.

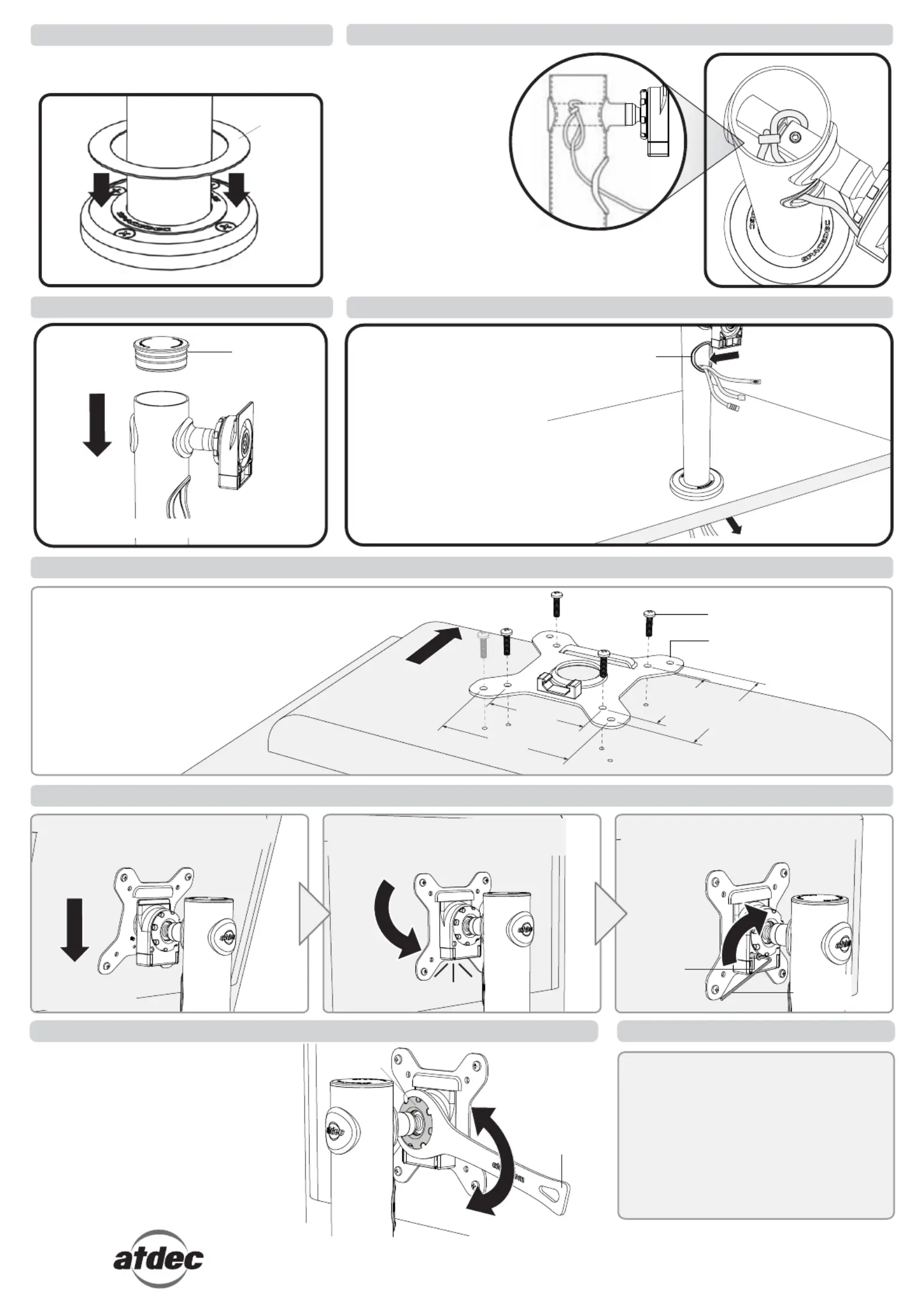

Step 5. Install Top Cap

Step 4. (Optional) Install Monitor Security Cable (Security Cable NOT Included)

Prior to attaching your monitor,

install the monitor cables.

Run them through the Cable

Management Hole, down the

pole and out the Cable Access

Hole in the work surface.

Step 6. Install Monitor Cables

Top Cap

Cable

Management

Hole

OUT

Step 3. Attach Screw Cover

Remove the paper backing from the Screw

Cover and adhere to the POS base as shown.

Screw

Cover

These Installation Instructions secure

the POS Multi using the provided

fasteners from above thework surface.

For advanced Security Installation from

below the work surface. Please refer to

the Advanced Security Installation

Addendum.

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 27.07.09 ©

Position your Display to the desired viewing

angle, using the 40° angular movement

allowed by the VESA Ball Mount.

If the display does not hold its position,

or is too resistant, adjust the Tension Plate

(see diagram right).

To make any adjustments, use the

Tightening Tool supplied.

Top of

Display

There are two mounting hole configurations:

UÊÇxÊÝÊÇx

UÊ£ääÊÝÊ£ää

Choose appropriate Mounting Screws

from the Hardware supplied to suit

your Display.

Mounting Screws (x4)

VESA Plate

Back of Display

Çx

(3”)

£ää

(4”)

Çx

(3”)

£ää

(4”)

Step 7. Attach the VESA plate to your Display

Step 8. Attach your Display to the POS Assembly

Step 9. Adjust the VESA Ball Mount

Advanced Security Installation

PUSH

Push down firmly to attach the Top Cap.

Hook the top of the VESA plate onto

the Quickshift Mount.

Gently push the bottom of the Display

into the Mount until you hear a ‘CLICK’.

Insert the Security Screw, and tighten

using the 2mm Allen Key supplied.

Tighten (+Kg)

Loosen (-Kg)

Tension

Plate

Tightening

Tool

Security

Screw

CLICK

PUSH

HOOK

TIGHTEN

Back of Display

2mm

Allen Key

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	SD-POS-VBM
Højde:	390 mm
Produktfarve:	Sort
Monteringstype:	Skrivebord
Rotationsvinkel:	355 °
Maksimal vægtkapacitet:	40 kg
Monteringsgrænseflade:	VESA 75mm x 75mm / 100mm x 100mm / 200mm x 100mm
