Side 1/2

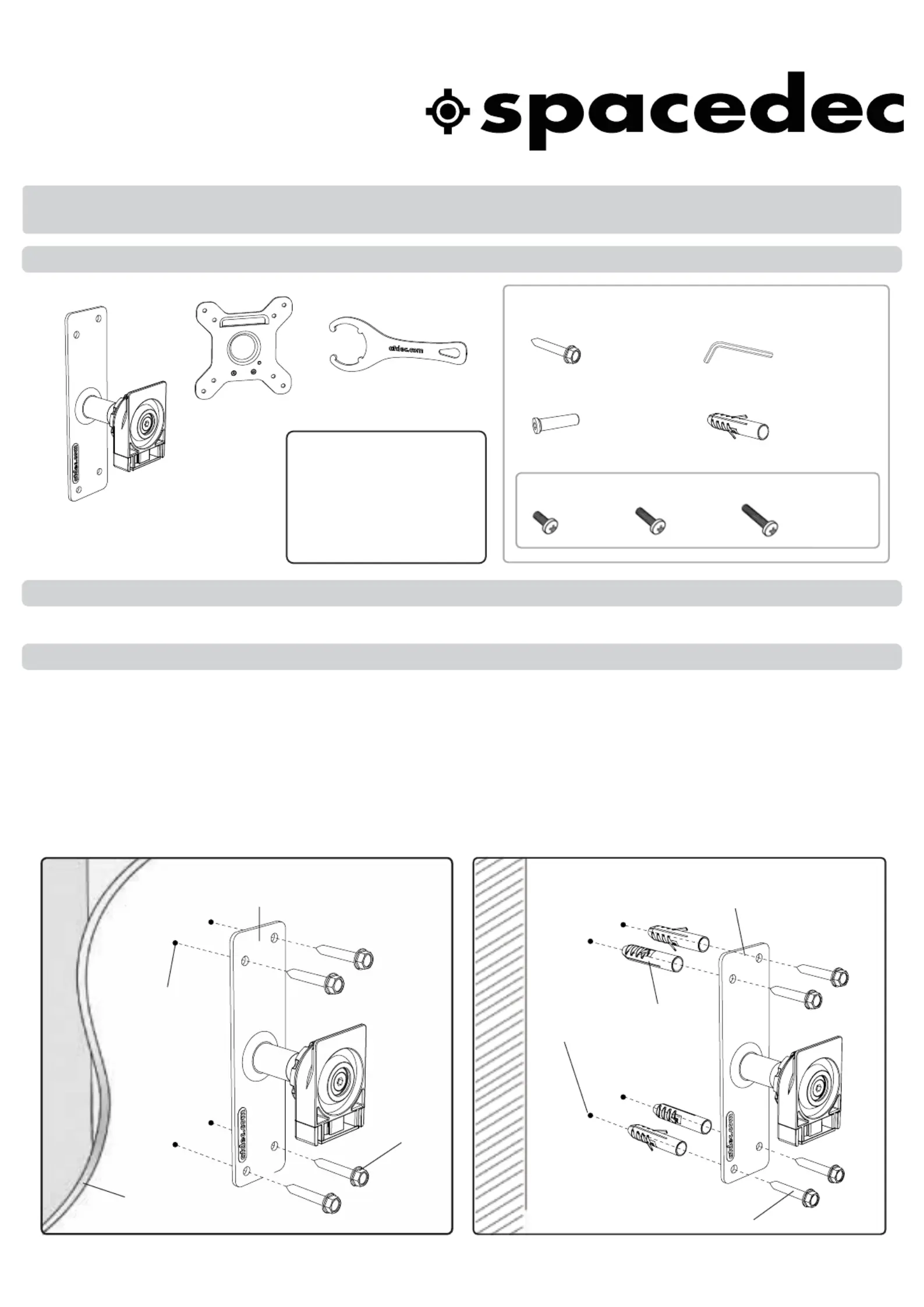

Component Checklist

2mm Allen

Key (x1)

Step 1. Component Checklist

Check you have received all parts against the Component Checklist above.

Hardware

Mounting Fasteners

M4x10mm

Screw (x4)

M4x12mm

Screw (x4)

M4x16mm

Screw (x4)

Installation Instructions

Wall Mount

Assembly (x1)

Step 2. Installing the Wall Mount Assembly (choose from one of the following options)

For mounting Spacedec to a Timber Stud Wall - Using the Wall Mount Assembly Bracket, mark

the location of the 4 holes and drill using a 4mm drill bit. Secure the bracket to the wall using the M6 Coach

Screws as shown in diagram A.

For mounting Spacedec to a Masonry Wall - Using the Wall Mount Assembly Bracket, mark

the location of the 4 holes and drill using an 8mm masonry drill bit. Secure the bracket to the wall using the M6

Coach Screws and Nylon Anchors as shown in diagram B.

Wall Mount Assembly

Bracket

M6 Coach

Screw

4 x 4mm

Holes

Wall Material

Stud

Wall Mount Assembly

Bracket

M6 Coach Screw

4 x 8mm

Holes

Masonry Wall

Nylon Anchor

A. Timber Stud Wall B. Masonry Wall

Note: This product will suit VESA compliant monitors with 75mm x 75mm (3” x 3”) and 100mm x 100mm (4” x 4”) hole patterns only.

It will support up to a maximum weight of 25kg (55lbs).

Display | Wall Direct

SD-WD



TOOLS REQUIRED:

UÊ*ÜiÀÊÀ

UÊ*ps Head Screw Driver

UÊ{Ê3/16”) Drill Bit

UÊnÊ5/16”) Masonry Drill Bit

UÊnÊ5/16”) Socket Wrench

or Shifter

Security

Screw (x1)

M6 Coach

Screws (x4)

Tightening Tool

VESA

plate (x1) Nylon

Anchor (x4)

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 07.09.09 ©

Installation Complete

There are two mounting hole configurations:

UÊÇxÊÝÊÇx

UÊ£ääÊÝÊ£ää

Choose appropriate Mounting Screws

from the Hardware supplied to suit

your Display. Top of

Display

Mounting Screws (x4)

VESA Plate

Back of Display

Çx

(3”) £ää

(4”)

Çx

(3”)

£ää

(4”)

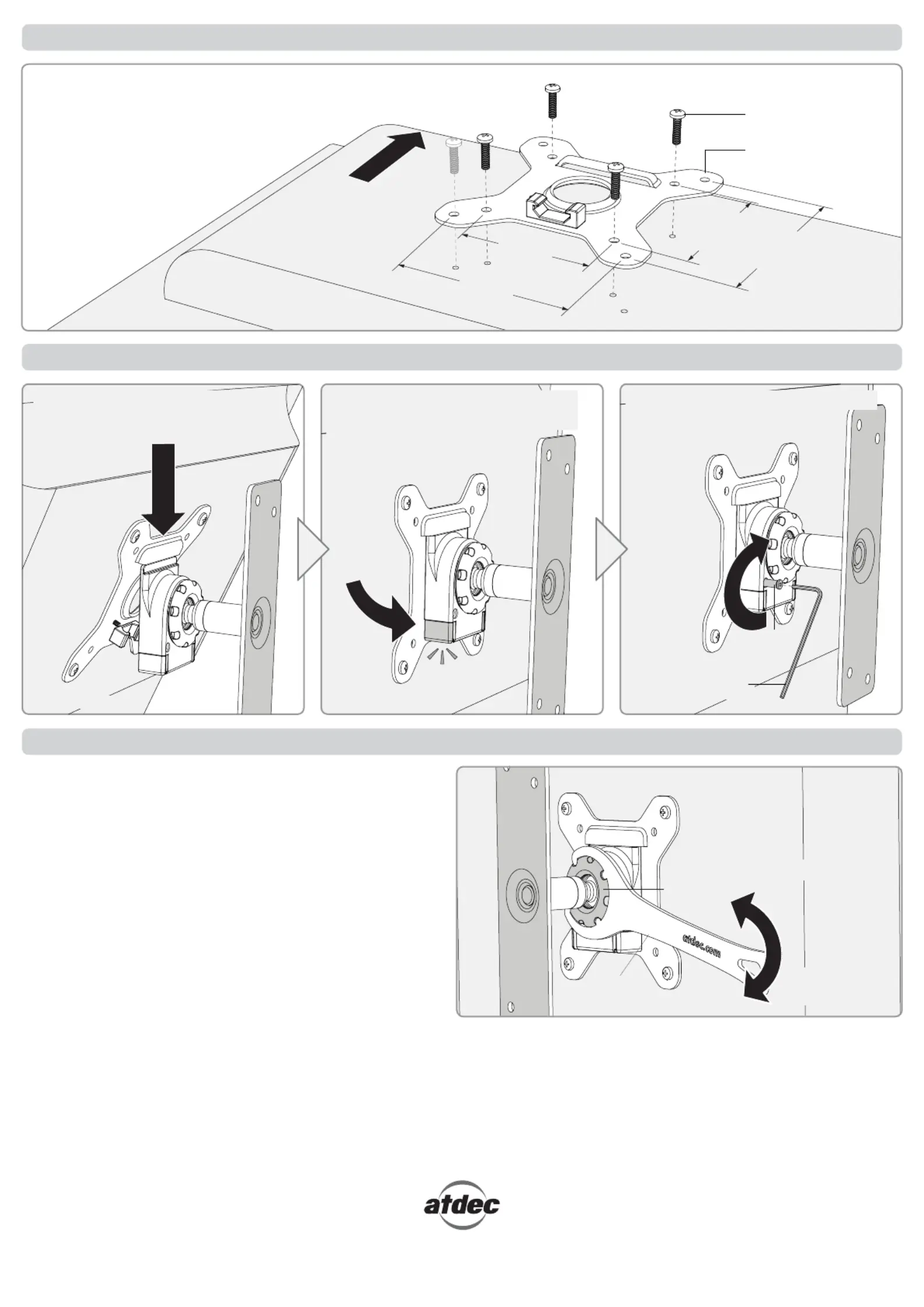

Step 4. Attach your Display to the Wall Mount Assembly

Step 5.

Adjust the VESA Ball Mount

Step 3. Attach the VESA plate to your Display

TIGHTEN

Position your Display to the desired viewing angle, using the 40°

angular movement allowed by the VESA Ball Mount.

Depending on the weight of the display, it may be necessary to make

adjustments to the VESA Ball the display Mount. If does not hold its

position, or is too resistant, adjust the Tension Plate located at the

rear of the VESA Ball Mount (see diagram right).

To make any adjustments, use the Tightening Tool supplied.

Check the display, and then adjust again if necessary.

Loosen (-Kg)

Tightening

Tool

Tension

Plate

Tighten

(+Kg)

Insert the Security Screw supplied, and

tighten using the 2mm Allen Key.

Push the bottom of the Display gently

into the VESA Ball Mount until you

hear a ‘CLICK’.

Security

Screw

2mm

Allen Key

Hook the top of the VESA Plate onto

the VESA Ball Mount.

Back of Display

CLICK
