Component Checklist
Roll / Shift Adjustment
Component Checklist
A
Check you have received all parts against the Component Checklist above.
Bits Bag
WARNING
WARNING: This bracket supports up to 15kg (33lbs).
Ensure the Ceiling can support the total weight of the Projector and the Universal Ceiling Mount.
All bolts and screws must be used at the designated points in the installation instructions to prevent damage
to the projector, or personal injury.
DO NOT install near air conditioner vents or where there is excessive dust or smoke.
Ensure the projector is mounted so that it is not possible for excessive loads to be placed on the bracket.
Extension Brackets
150mm (x2)
Extension Brackets
75mm (x2)
Cross Recessed Screws
M2.5x15 (x4)
M3x15 / M3x20 (x4 each)
M4x15 / M4x20 / M4x25 (x4 each)
M5x15 / M5x20 / M5x25 (x4 each)
M6x15 / M6x20 / M6x25 (x4 each)
M5x10mm
Socket Button
Cap Screw (x4)
Spacer
Large (x4)
Medium (x4)
Small (x4)
6mm Allen
Key (x1)
Bottom
Spacer (x4)
Ceiling Mount
Assembly (x1)
Nylon Anchor
Plug (x4)
14 Gauge Coach Screw (x4)
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 22.03.07©
G.1.

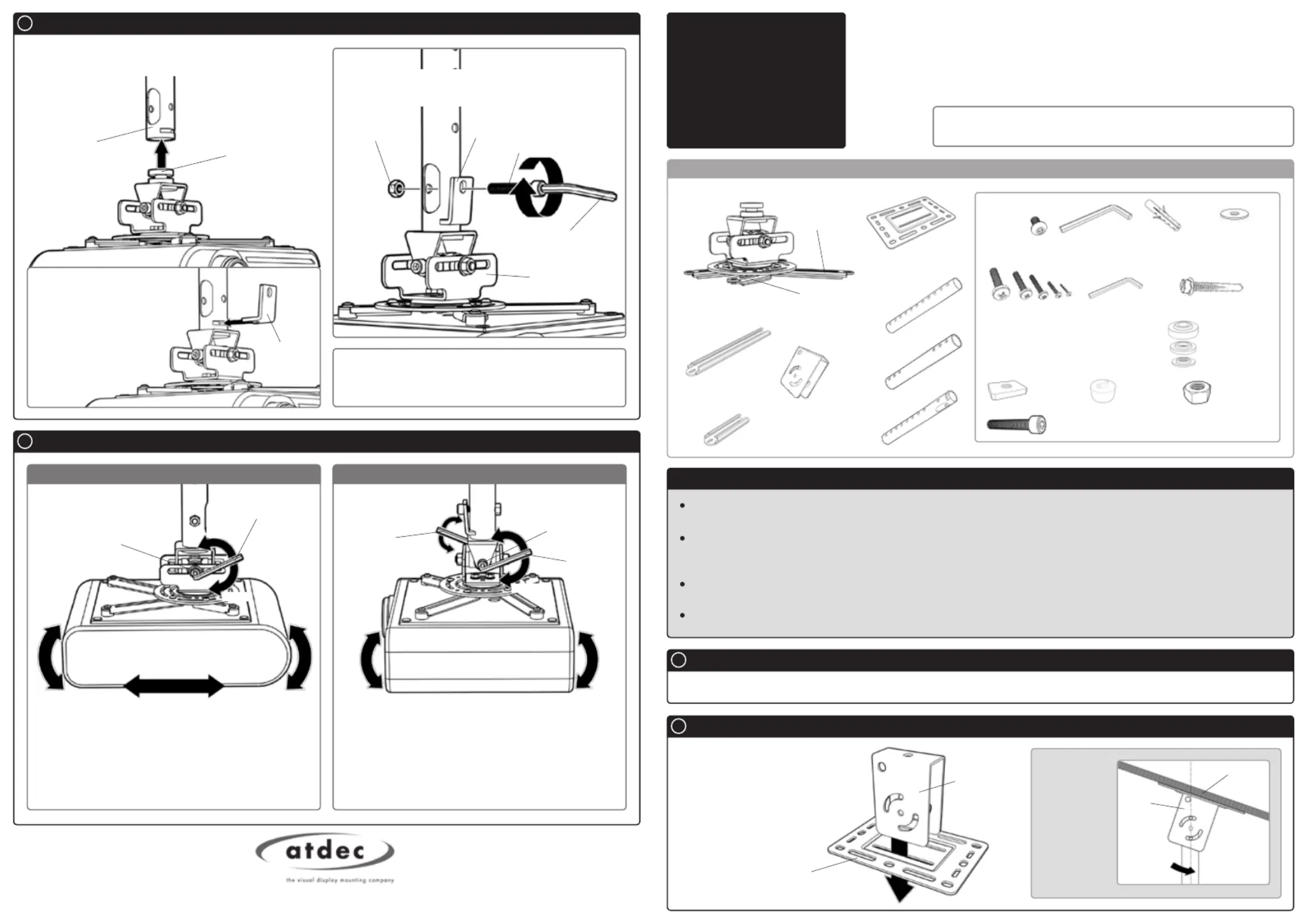

Connect the Shaft to the Bottom Ceiling Hanger as
shown below.
Installation Instructions
TELEHOOK
UNIVERSAL PROJECTOR CEILING MOUNT
Please read these
instructions before
commencing installation
as faulty installation could
result in injury. Atdec
assumes no responsibility
for faulty installations.
IMPORTANT
Assembling the Mounting Plate and the Fixing Coupler
B
Attaching the Ceiling Mount Assembly to the Ceiling Hanger
G
Adjusting the Projector
H
Installation Complete
G.2.
Insert the Locking
Hook into the slot in
the Bottom Ceiling
Hanger to lock
the Ceiling Mount
Assembly.
Bottom
Ceiling
Hanger
Locking
Hook
M8 Nyloc Nut
M8x50mm
Socket Cap
Screw
Locking
Hook
6mm
Allen Key
Ceiling Mount
and Projector
M8x15mm
Screw
6mm
Allen Key
6mm
Allen Key
Assemble the Mounting
Plate and the Fixing
Coupler as shown, then
move onto the next step to
attach it to the ceiling.
Pitch Adjustment
Loosen
Tighten
3mm Allen
Key (x1)
To make Roll/Shift adjustments, first ensure the
weight of the projector is supported. Then loosen
the M8x65mm Screw with the supplied 6mm
Allen Key, and adjust to your desired position.
Re-tighten the screw firmly.
To make Pitch adjustment, first ensure the weight
of the projector is supported. Then loosen both
M8x15mm Screws with the supplied 6mm Allen
Key, and adjust to your desired position.
Re-tighten both screws firmly.
6mm
Allen Key
M8x65mm
Screw
Loosen
Tighten
Shift
Washer
20mm (x4)
10mm (x4)
8mm (x4)
Square
Nut (x8)
Shaft
M8x50mm Socket
Head Cap Screw (x8)
M8 Nyloc
Nut (x8)
Mounting
Plate (x1)
Fixing Coupler
(x1)
Top Ceiling
Hanger (x1)
Bottom Ceiling
Hanger (x1)
Mid Ceiling
Hanger (x1)
Mounting Plate
Fixing Coupler
NOTE
If mounting
onto an angled
ceiling, ensure
the Fixing
Coupler is in
the correct
orientation.
angled
ceiling
Fixing
Coupler
Pitch Pitch
Roll Roll
Tip: When the projector requires servicing, remove
the projector via this easy disconnection point to
save time.
Extension Brackets
100mm (x2)
Extension Brackets
50mm (x2)
G.3.
Tighten the Locking Hook with the supplied
M8x50mm Socket Cap Screw and the M8 Nyloc
Nut.
Centre of
Ceiling Mount
Centre of Gravity
NOTE
If your mounting holes are recessed
into the projector, you may need to use
the additional Spacers supplied in the
Bits Bag. Please select the appropriate
Spacers according to the design of your
projector.
Extension Bracket
Bottom Spacer
Spacer
Recessed Mounting Hole
E.1.
Pick up the projector using both of your index fingers.
Move your fingers along the side of the Projector (follow
Step 1) until it is level. Remember the balance point.
E.2.
Repeat this process for the perpendicular side
(follow Step 2)
E.3.
Where both balance points meet is the Centre of Gravity
of your projector. Use a pencil to mark this point.

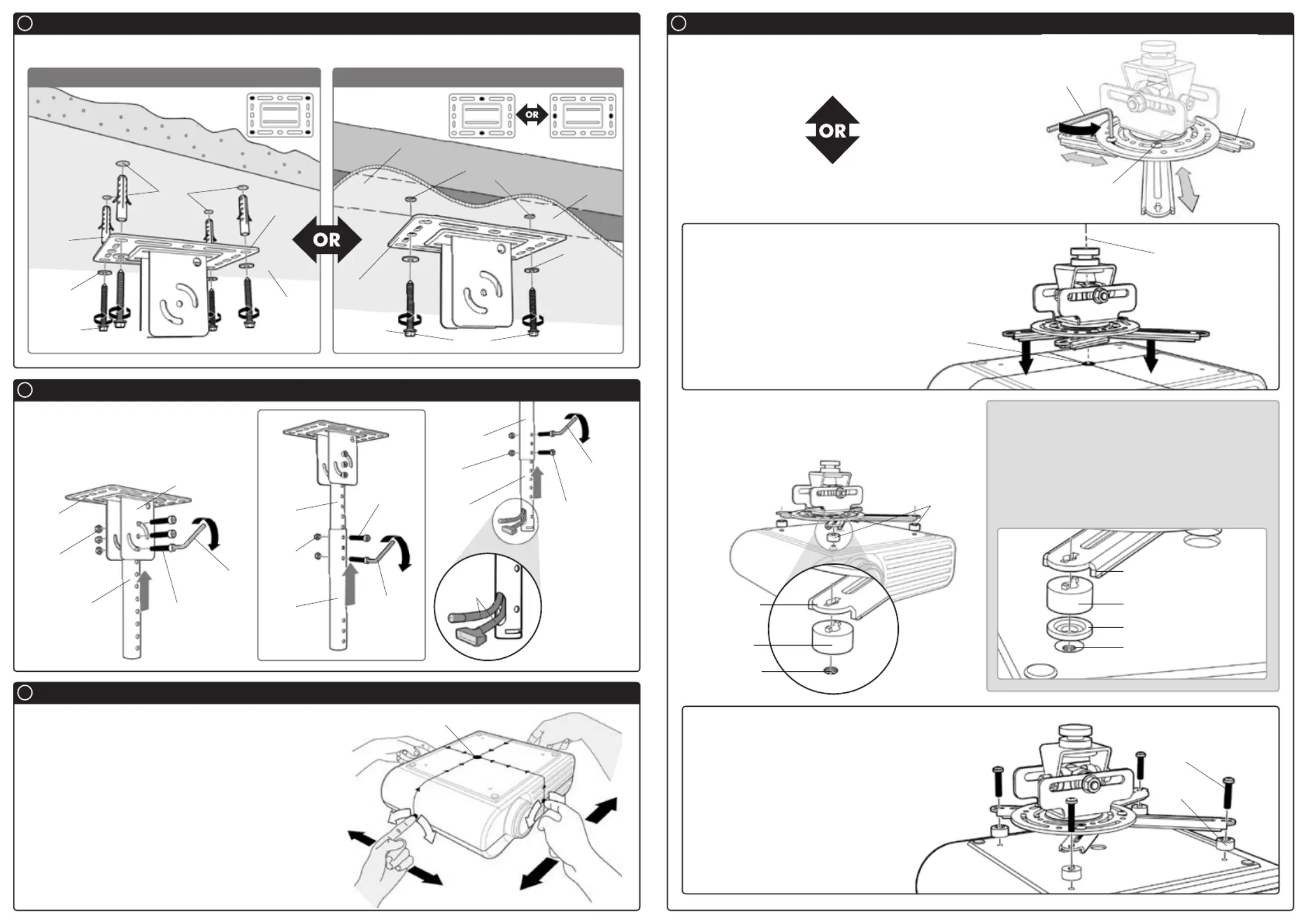

Choose the appropriate installation procedure depending on your ceiling type.
Installing the Ceiling Plate
C
Finding the Centre of Gravity of the Projector
E
Attaching the Ceiling Mount Assembly to the Projector
F
Nylon
Anchor
Plug
Centre of Gravity
3mm
Allen Key
Extension
Bracket
F.1.
Loosen the M5x10mm Screws using the supplied 3mm
Allen Key until you can slide the extension brackets freely,
as shown.
You may need to replace the attached Extension Brackets
with the additional longer brackets supplied in the package,
to suit the mounting hole configuration of your projector.
F.4.
Select the correct Mounting Screws from the Bits
Bag and firmly screw the Ceiling Mount Assembly
onto your Projector.
Once this is done, the Projector Ceiling Mount
Assembly is ready to be mounted onto the Bottom
Ceiling Hanger.
F.2.
Place the Ceiling Mount Assembly over the Projector and
align the centre of the Ceiling Mount with the Centre of
Gravity marked previously on the Projector.
Step 1
Step 1
Step 2
Step 2
NOTE:
Ensure the
screws are
securely
fixed into the
Timber Beam
Mounting
Plate
Washer
14 Gauge
Coach Screw
Masonry
Ceiling
8mm
(
5
/
16
”)
Holes
Timber
Beam
20mm
Washer
14 Gauge
Coach Screw
Mounting
Plate
Plaster
Board
3mm (
1
/
8
”)
Holes
Tighten
Tighten
Masonry Plaster Board
Attaching the Ceiling Hangers to the Fixing Coupler
D
D.1.
Install the Ceiling Hangers to the
required height as shown in the following
diagrams.
D.2. D.3.
Bottom
Spacer
Extension
Bracket
Mounting
Hole
Bottom
Spacers
Mounting Screws
Bottom Spacer
F.3.
Place the Bottom Spacers in between the Extension
Brackets and the Projector, and align the mounting
holes as shown below.
Use the recommended mounting
hole pattern shown:
Use the recommended
mounting hole pattern
shown:
Mounting
Plate
Fixing
Coupler
M8x50mm
Socket Head
Cap Screw
6mm
Allen
Key
M8
Nyloc Nut
Top
Ceiling
Hanger
M8
Nyloc
Nut
M8x50mm
Socket Head
Cap Screw
6mm
Allen
Key
Mid Ceiling
Hanger
Bottom
Ceiling
Hanger
M8x50mm
Socket Head
Cap Screw
6mm
Allen
Key
M8
Nyloc Nut
Top
Ceiling
Hanger
Mid
Ceiling
Hanger
Cable Management
Option
Feed the projector
cables through the
slot on the Bottom
Ceiling Hanger as
shown.
projector
cables
M5x10mm
Socket Button
Cap Screw
