Side 1/2

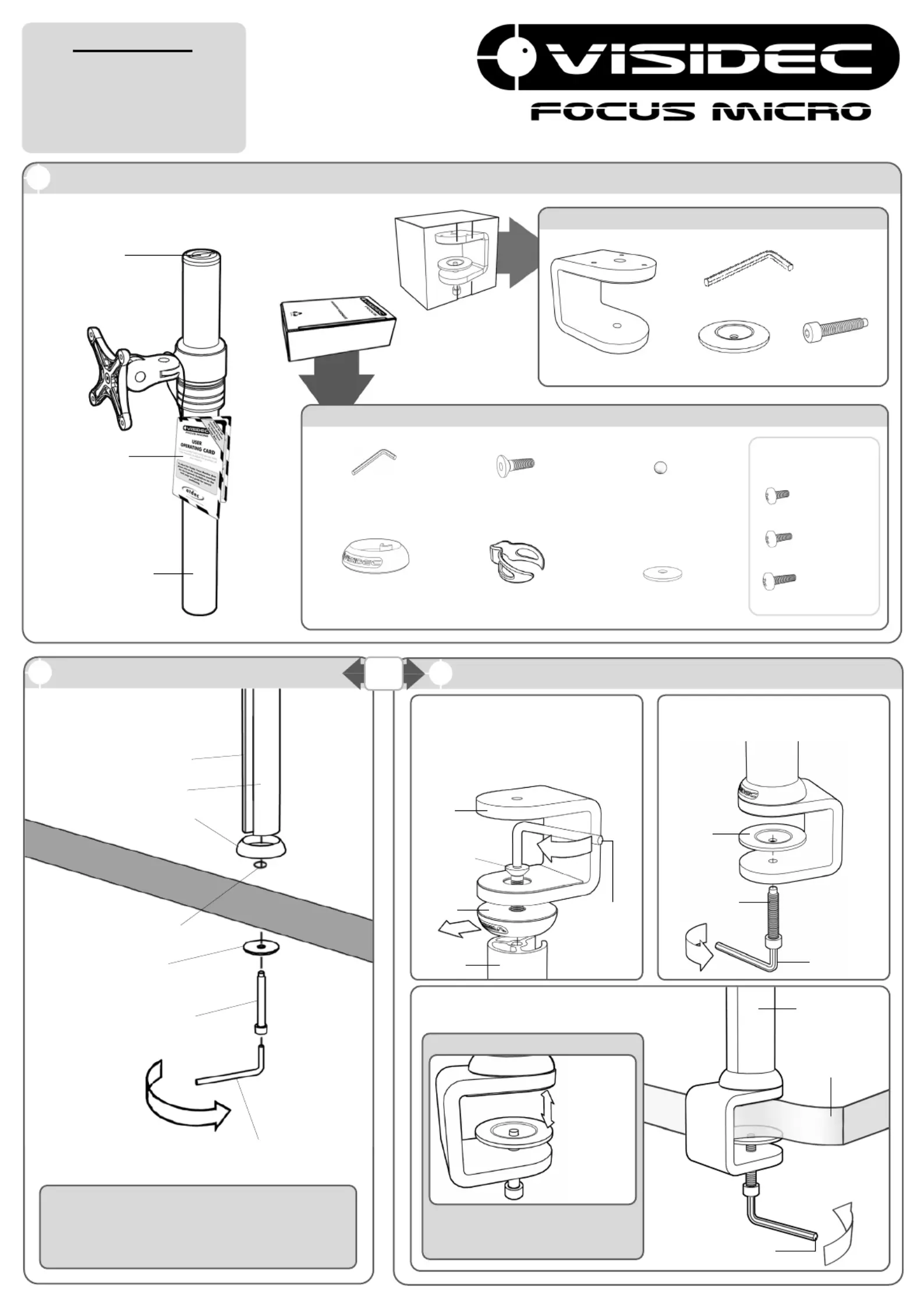

A Component Checklist - Check you have received all parts against the component checklist prior to installing

Installation Instructions

Pole Assembly

5mm Allen

Key

User

Operating

Card

(See note at top

of page)

IMPORTANT:

The “User Operating

Card” must be left

with Visidec Focus

Micro once installed

Bottom

Top

Bits Box

Bolt Through

Base

Steel Washer

M8x30mm

Screw

Cable Clip

2mm Allen

Key

Display Mounting

Screws

M4x16mm

(x4)

M4x12mm

(x4)

M4x10mm

(x4)

Desk Clamp Box

5mm Allen

Key

Desk Clamp Bracket

Pressure Plate

M8 Desk

Clamp Screw

Bolt Through

Steel Washer

Bolt Through Base

M8 Desk Clamp Screw

(found in the Desk

Clamp Box)

5mm Allen Key

9mm (³/

”) Hole

Drill a 9mm (³/

”) hole in the work

surface at the desired position and

assemble as shown below.

Work Surface

Pole

Assembly

Step 3: Adjust the height of the Pressure Plate to suit the

work surface and tighten firmly in the desired location.

5mm Allen Key

Tighten Firmly

Desk Clamp

Pole Assembly

Step 1: Attach the Desk Clamp Bracket

to the bottom of the Pole Assembly using

the M8x30mm Screw. Tighten firmly

using the 5mm Allen Key. Ensure the

Visidec logo is facing the front as shown.

M8x30mm

Screw

Bottom

Step 2: Install the M8 Desk Clamp

Screw and Pressure Plate as shown.

Desk

Clamp

Bracket

5mm

Allen Key

Bolt Thru

Base

Pole

Assembly

Pressure

Plate

M8 Desk

Clamp Screw

5mm

Allen Key

NOTE: It is recommended that the Pole

Assembly be clamped to the rear or side

edge of the work surface

Suits 12mm (½”)

to 38mm

(1½”)

thick work

surfaces

ADJUSTMENT RANGE

Cable Balls

(x2)

Slot

NOTE:

Ensure the slot in the Pole Assembly faces away from

the user.

It is recommended that the Pole Assembly be mounted

towards the rear edge of the work surface

Tighten

Firmly

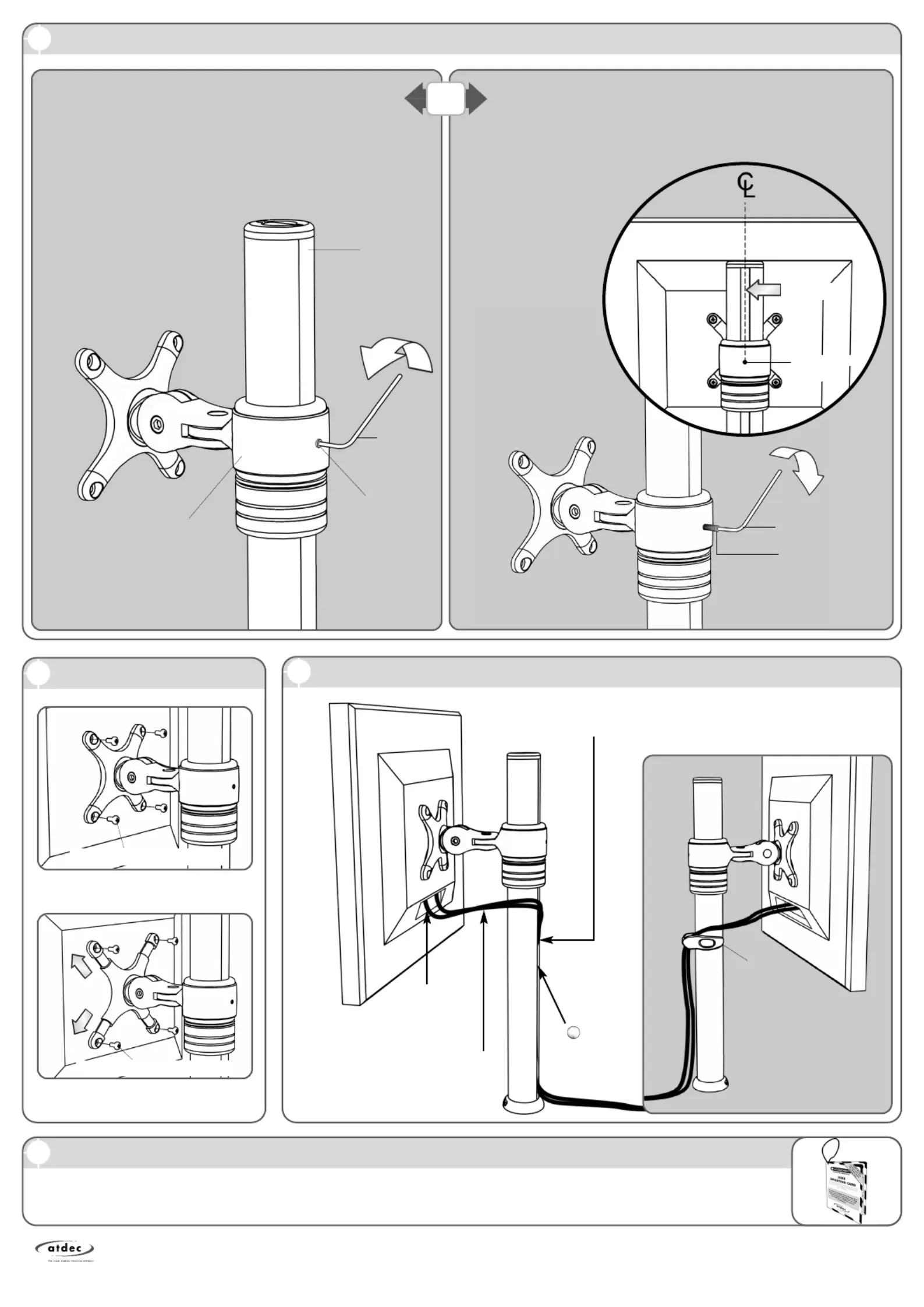

D Mount the Display

As LCD Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the mounting hole pattern does not comply with the international VESA

standards. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 21.12.06 ©

For Displays with 75mm x 75mm

(3” x 3”) mounting hole patterns

M4 Display Mounting Screws

Step 1:

Connect

cables

NOTE: Leave enough slack in the

cables to allow for movement

E Cable Management

NOTE: If Focus Micro

is to be used in a multi-

user environment, use

the supplied Cable Clip

to secure the display’s

cables to the pole.

C Unlock/Lock Arm Rotation (Note: Focus Micro comes assembled in the “Locked” position.)

If you wish your Focus Micro Arm to have 360° rotation

about the Pole you will need to un-lock the arm’s rotation.

2mm

Allen Key

For Displays with 100mm x 100mm

(4” x 4”) mounting hole patterns

M4 Display Mounting Screws

F Leave the “User Operating Card” with Visidec Focus Micro

Leave the “User Operating Card” secured to the Visidec Focus Micro for the user’s reference.

Step 2: Insert cables into slot, using cable

balls to hold them in place

(single user only)

Cable

Balls (x2)

Step 1:

Ensure the hole for the

Grub Screw in the Micro

Arm is lined up with

the centre of the Slot

in the pole.

Step 2:

Re-insert the Grub

Screw previously

removed. Turn the

Grub Screw clockwise

until it is tight. Do

not over-tighten

UN-LOCK: LOCK:

2mm Allen Key

Slot In Pole

Pole

Micro Arm

Cable

Clip

Grub Screw

Step 1:

Unlock the arm by turning

the Grub Screw anti-

clockwise removing the grub

screw completely.

(

NONOTE

TETE:

Store the Grub

Screw in a safe place if you

are to return the arm to the

Locked position.)

If you have un-locked the Focus Micro Arm, but wish to fix

rotation around the pole, you will need to lock the arm.

Grub Screw

Hole

Grub Screw

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Flad panel støtte
Model:	VF-M
Produktfarve:	Sølv
Monteringstype:	Skrivebord
Hældningsvinkelområde:	-70 - 70 °
Panoreringsområde:	0 - 140 °
Rotationsvinkel:	360 °
Maksimal vægtkapacitet:	8 kg
Vægt (efter britisk standard):	17.5 Pund
Monteringsgrænseflade:	VESA 75mm x 75mm / 100mm x 100mm
Løft:	34.5 cm
