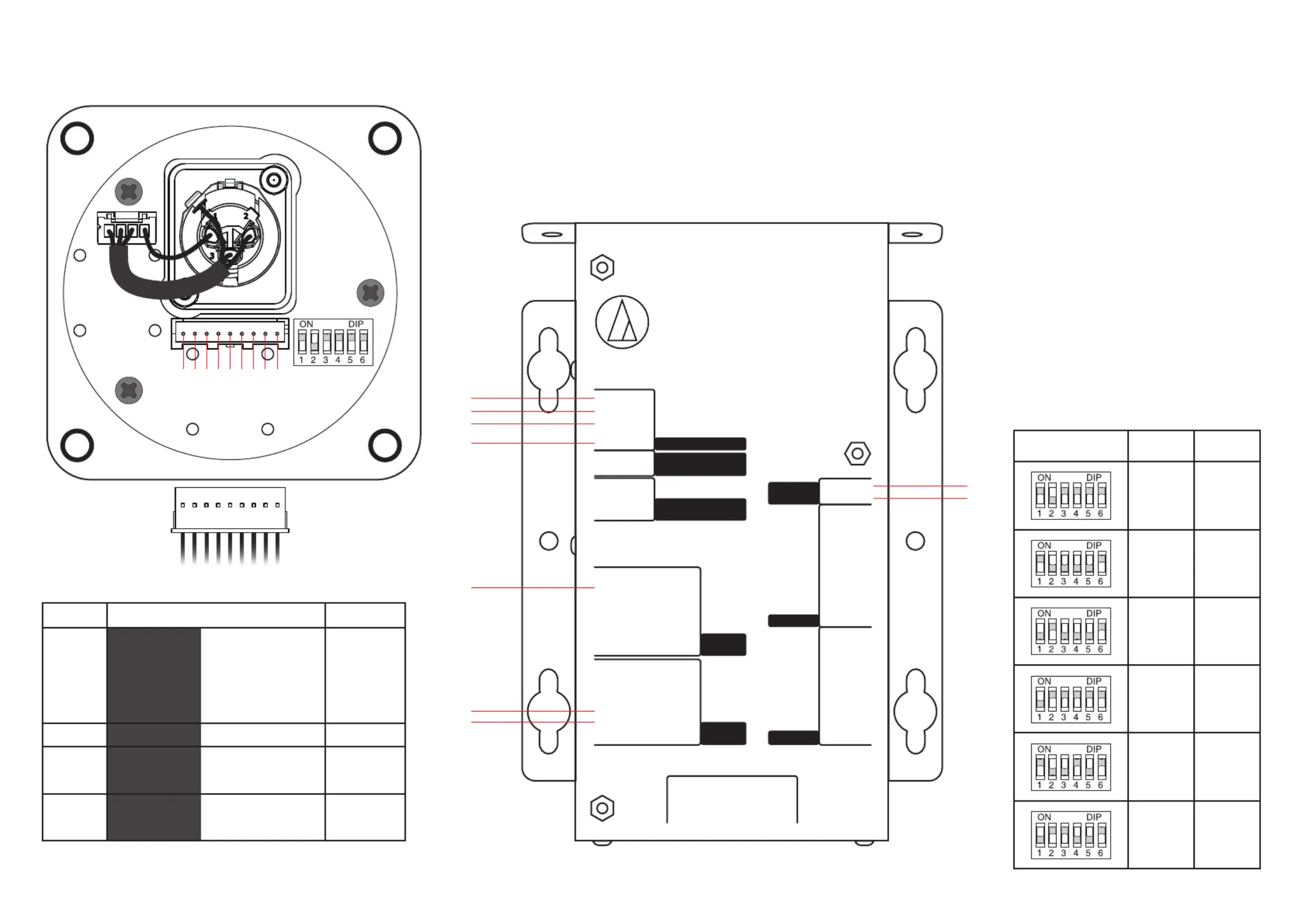

FM03 / FM04 接线配置

a b c d e f g h i

接线盒

50IU-FM03 / 50IU-FM04

ATUC-50IU

选项:灯号颜色发言开启

红色

绿色

红色

绿色

白色

关闭

白色

绿色

红色

发言关闭

Ground

Cold

Hot

Ring LED

TalkLED : Low/ Hi

Status Output

Control Input

Power Output

TalkOn

Cut / Mute (只限FM02)

VDD

Ground

* a - c : d - g :3 芯线 4 芯线 h - i : 2 芯线

接线分配名称

预期的连接电线规格

(FM03/FM04 至 ATUC-50IU) : 20AWG~26AWG

Microphone

黑色

蓝色

白色

深蓝色

白色

红色

黑色

黄色

绿色

1 GND

2 COLD

3 HOT

4 RING LED MICROPHONE

SPEAKER OUTPUT

(1.4W 8Ω MIN 4Ω)

HEADPHONES

OUTPUT

STATUS

OUTPUT

POWER

OUTPUT

GPI

GPO

CONTROL

INPUT

5 HOT

6 COLD

7 L CH.

8 R CH.

9 GND

GND 23

GPI 7 31

GP0 0 32

GP0 7 39

WARNING! DO NOT CONNECT

RJ-45 PORTS TO ETHERNET

Audio-Technica LINK DEVICES ONLY

B A

GP0 6 38

GP0 5 37

GP0 4 36

GP0 3 35

GP0 2 34

GP0 1 33

GPI 6 30

GPI 5 29

GPI 4 28

GPI 3 27

GPI 2 26

GPI 1 25

GPI 0 24

5V 22

21 TALK ON (INVERT)

20 CUT/MUTE

19 TALK ON

18 VOL.DOWN

17 VOL. UP

16 CHANNEL

15 LANGUAGE 3 LED

14 LANGUAGE 2 LED

13 LANGUAGE 1 LED

12 FLOOR LED

11 TALK LED:LOW/HI

10 TALK LED: OPEN/CLOSE

a b c d e f g h i

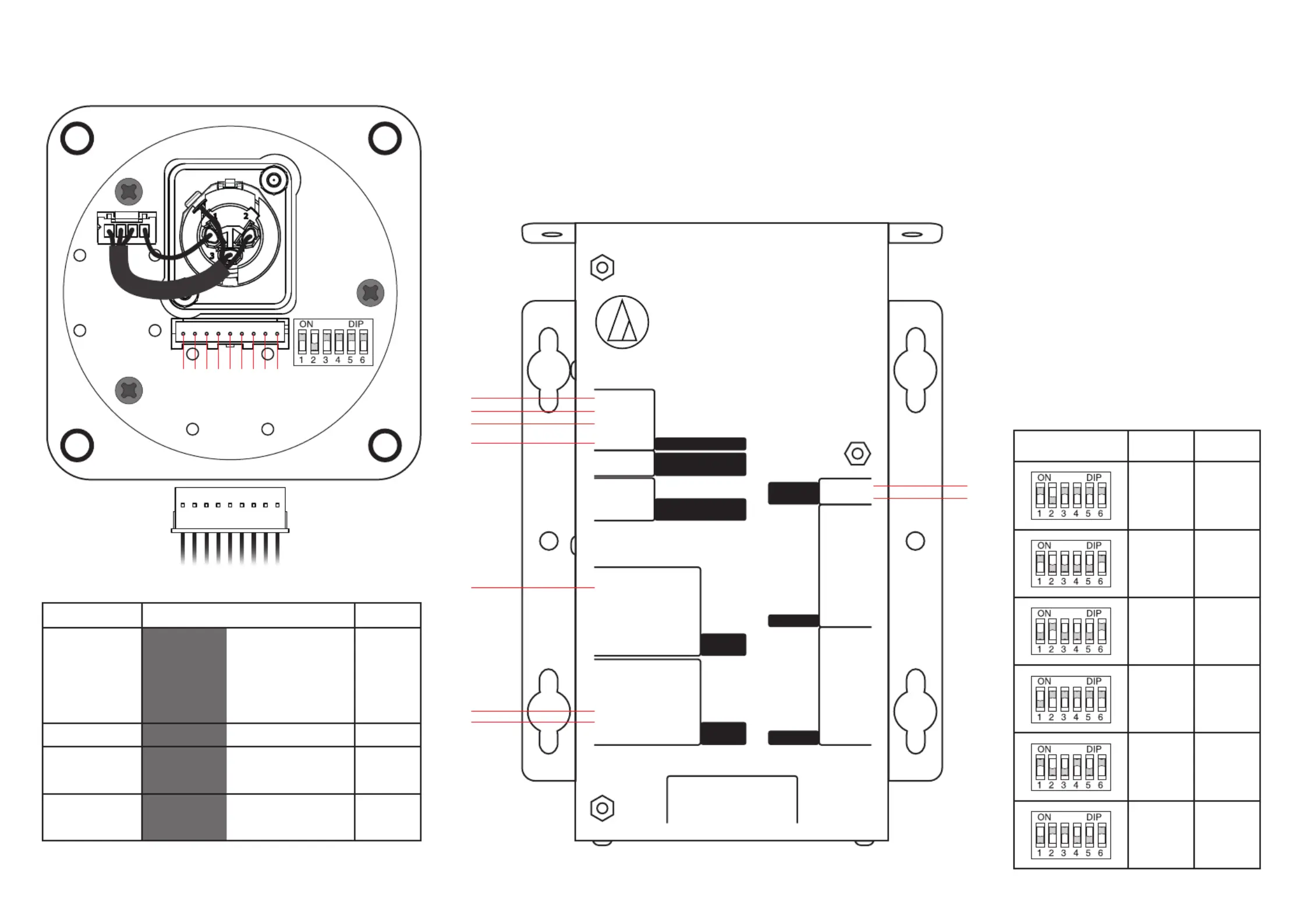

FM03 / FM04 Pin Assignment

Assigned Pin Name

Connection Wire Speciﬁcation

(FM03/FM04 to ATUC-50IU) : 20AWG - 26AWG

Select : LED Color Talk On Talk Oﬀ

Red White

Red Close

Green Close

Green White

Red Green

Green Red

ATUC-50IUTerminal Block

50IU-FM03 / 50IU-FM04

GroundBlack

Cold

Hot

Ring LED

Blue

White

Dark Blue

TalkLED : Low/ Hi

Status Output

Control Input

Power Output

TalkOn

Cut / Mute (FM02 Only)

VDD

Ground

White

Red

Black

Yellow

Green

*a-c:3 core cable d-g:4 core cable h - i : 2 core cable

Microphone

1 GND

2 COLD

3 HOT

4 RING LED MICROPHONE

SPEAKER OUTPUT

(1.4W 8Ω MIN 4Ω)

HEADPHONES

OUTPUT

STATUS

OUTPUT

POWER

OUTPUT

GPI

GPO

CONTROL

INPUT

5 HOT

6 COLD

7 L CH.

8 R CH.

9 GND

GND 23

GPI 7 31

GP0 0 32

GP0 7 39

WARNING! DO NOT CONNECT

RJ-45 PORTS TO ETHERNET

Audio-Technica LINK DEVICES ONLY

B A

GP0 6 38

GP0 5 37

GP0 4 36

GP0 3 35

GP0 2 34

GP0 1 33

GPI 6 30

GPI 5 29

GPI 4 28

GPI 3 27

GPI 2 26

GPI 1 25

GPI 0 24

5V 22

21 TALK ON (INVERT)

20 CUT/MUTE

19 TALK ON

18 VOL.DOWN

17 VOL. UP

16 CHANNEL

15 LANGUAGE 3 LED

14 LANGUAGE 2 LED

13 LANGUAGE 1 LED

12 FLOOR LED

11 TALK LED:LOW/HI

10 TALK LED: OPEN/CLOSE

a b c d e f g h i

50IU-FM03 / 50IU-FM04

a b c d e f g h i
