WARNING [EN]

For climbing and mountaineering only. Climbing and

mountaineering are dangerous. Understand and accept the

risks involved before participating. Minors and others not able

to assume this responsibility must be under the direct control of

an experienced and responsible person. You are responsible for

your own actions and decisions. Before using this product, read

and understand all instructions and warnings that accompany

it and familiarize yourself with its proper use, capabilities and

limitations. Seek qualified instruction. Contact Black Diamond if

you are uncertain about how to use this product. Do not modify

this product in any way. Failure to read and follow these warnings

can result in severe injury or death!

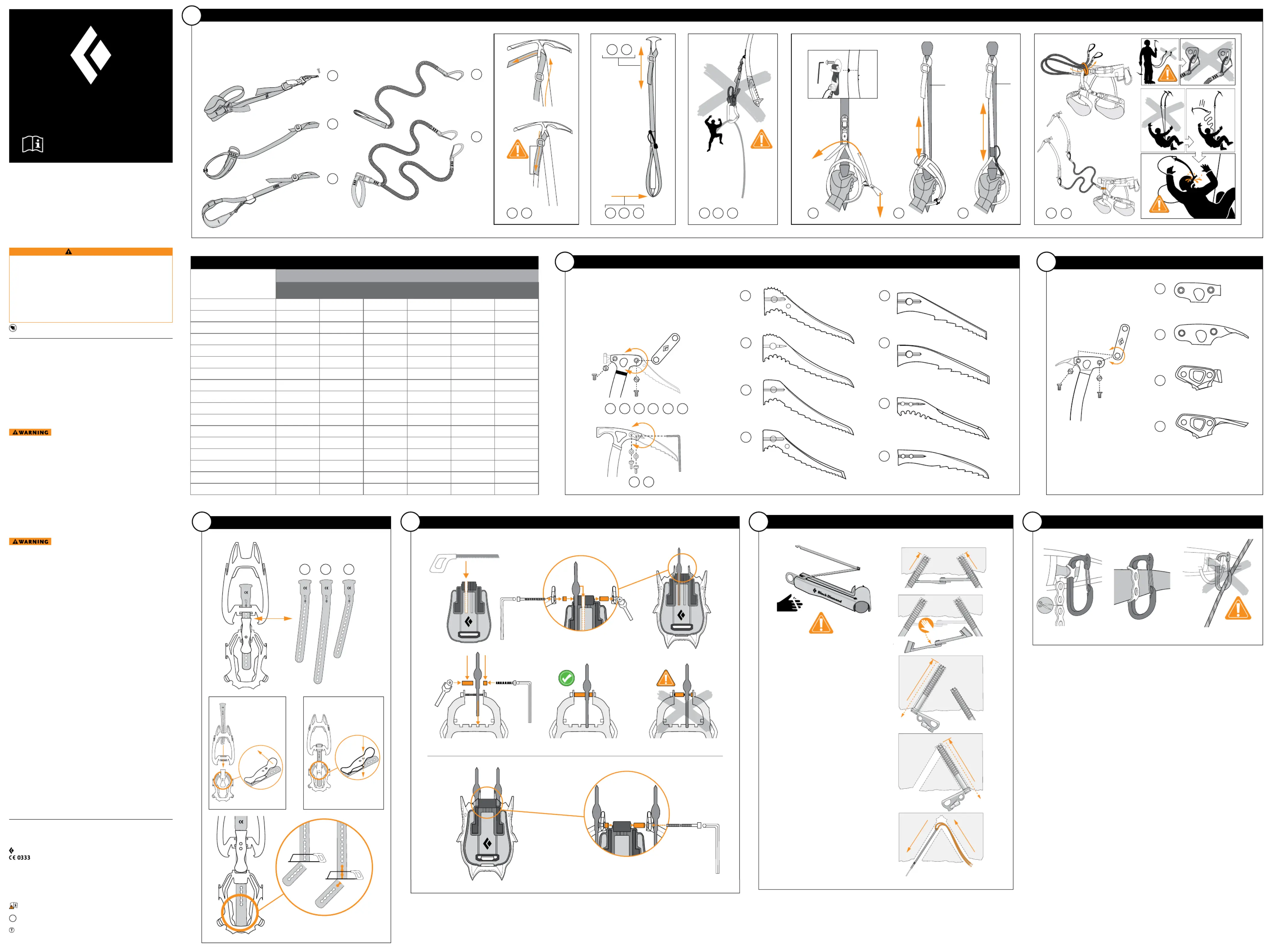

INSTRUCTIONS FOR USE

ICE ACCESSORIES

LEASHES (Illustration 1)

1. It is best to position the buckle (Slider and Lockdown Leashes) as

high as possible against the head of the tool. That way the loop of

webbing that goes through the head hole cannot flip up and over a

hammer or adze.

2. Tighten the buckle under body weight.

3. Cut off the excess webbing at an angle, leaving at least an 8 cm

(3 in) tail, and singe the trimmed end carefully to prevent fraying.

• NOTE: Inspect all of the Android Leash’s thumb lever assembly before

each use and make sure the thumb lever is parallel to the leash tab. This

will ensure that the leash tab engages and disengages the stud correctly

and minimizes the possibility of the leash disengaging inadvertently.

• When not using an Android Leash on your Cobra or Viper ice tool, ensure

that the hole is plugged with the bolt.

Leashes are intended to support body weight only.

In the event of a shock load, your leash will not stretch. Even a short fall

onto a leash can injure you and can potentially cause your leash or your

placement to fail, resulting in serious injury or death.

PICKS (Illustration 2)

The Mixed, Ice+, Ice, Alpine, Mountain Tech and Mountain Classic Picks fit

all of Black Diamond’s modular ice axes except the Venom ice axe, which

requires a Venom Pick. The Alpine Pick is Black Diamond’s most durable

pick and is recommended for all-around use. The Ice Pick and Ice+ Pick

excel on steep ice, and the Mixed Pick is intended for mixed climbing. Be

aware that Type 2 picks intended for climbing steep terrain are less durable

than Type 1 picks.

CENTER BARS (Illustration 4)

• Extra-long center bars are available for boots larger than size 46 (U.S. 12).

• Asymmetric center bars are available for boots with radically curved

soles.

FIRST SHOT (Illustration 6)

The condition of the ice will determine the placement’s

overall strength and reliability. Avoid placing ice anchors in soft, aerated

or fractured ice. Be aware that a lessening of the force needed to turn a

screw as it goes in can indicate an air pocket inside the ice and necessitate

moving the screw to a better location.

INSPECTION AND RETIREMENT

We recommend that you inspect your climbing gear before and after each

use for signs of damage and wear. Inspect your ice axe pick often.

Retire your leash immediately if:

• The buckle is cracked or bent.

• The webbing has any kind of rip or hole, is burnt, singed or melted, has

torn threads or heavy abrasion, or is faded from exposure to ultraviolet

light. Minor fuzzing of the webbing is not a cause for concern.

• The bar tacks are abraded or showing wear.

Retire your ice axe pick or adze immediately if:

• It is bent, cracked or deformed in any way or has been in hard service for

more than a few seasons.

• The pick tip is excessively worn due to hitting rocks or repeated

sharpening.

• The pick cannot be filed back to its original pick angle and shape.

Retire your crampon center bar immediately if:

• It is cracked, deformed or broken.

DO NOT modify your ice accessories except as shown in the instructions.

Refer to your ice tool instructions for proper pick sharpening techniques.

If a climbing component is worn but not obviously damaged it may still be

ready for retirement. It is vitally important that your climbing equipment be

sound. If you have any doubts about the dependability of a piece of gear,

retire it and get a new one. Any time you retire a piece of gear, destroy it to

prevent future use.

CLEANING

Wash in cold water with a mild soap. Do not use bl each or harsh

detergents. Rinse well in clean water. Hang to dry, out of direct sunlight.

Steel parts may be lightly oiled to reduce rusting.

STORAGE TIPS FOR ALL OF YOUR ICE ACCESSORIES

• Store all of your climbing equipment in a clean and dry environment, out

of direct sunlight.

• Do not store gear near heat sources such as steam radiators or wood-

burning stoves.

• Gear must not come into contact with corrosive materials like battery

acid or solvents.

• Keep all leashes and sewn climbing equipment away from gnawing

rodents and pets.

ADOPTION

We strongly discourage secondhand use. You must know the history of

your equipment to be able to trust it.

Black Diamond Crampons conform to EN 893. Black Diamond Ice Tools

conform to EN 13089.

MARKINGS (when present)

BLACK DIAMOND: Name of manufacturer

: Black Diamond’s Logo

: Monitoring of this PPE performed by AFNOR Certification, 11

rue Francis de Préssensé, 93571 La Plaine Saint Denis Cedex, France. NB

No 0333.

No t ifie d bo d y per fo r m ing th e CE t y p e e xami n atio n : APAVE

SUDEUROPE SAS, BP 193 - 13322 MARSEILLE CEDEX 16, France, NB

No 0082.

DATE CODE : When present, the four digit date code 1234 would mean

that a product was manufactured in 2011, on the th day of the year.234

: Instruction pictogram advising users to read the instructions and

warnings.

: Indicates the ice tool and/or pick are certified as category Type 2,

“intended for use on rock, and/or snow, and/or ice.” Ice tools not marked

are Type 1, “intended for use in snow, and/or ice.” Type 2 picks must

pass higher strength requirements and are more durable than Type 1

North America: Black Diamond Equipment, Ltd.

2084 East 3900 South

Salt Lake City, UT 84124

Europe: Black Diamond Equipment AG

Hans-Maier-Straße 9

6020, Innsbruck, Austria

ICE TOOL ACCESSORY COMPATIBILITY CHART

ACCESSORIES

ICE TOOLS

FUE L FU SIO N VE NOMCO BR A VI PER RAV EN

Cobra/Viper Android Leash

• •

Lockdown Leash

••••••

Slider Leash

••••••

Mixed Pick

• • • •

Ice+ Pick

• • • •

Ice Pick

• • • •

Alpine Pick

• • • •

Mountain Classic Pick

• • • •

Mountain Tech Pick

• • • •

Venom Tech Pick

•

Venom Classic Pick

•

Micro Hammer

•

Micro Adze

•

Alpine Hammer

•

Alpine Adze

•

Bolt and Wrench Kit

• • • •

Venom Bolt and Wrench Kit

•

ICE CLIPPER

CYBORG

A—Standard Flex Center Bar

B—Long Flex Center Bar

C—Asymmetrical Flex Center Bar

CENTER BARS

CBA

min. 8 cm

(3 in)

A—Cobra/ Viper Android

B—Lockdown

C—Slider

D—Slinger

E—Spinner

LEASHES

DA A A

C C CC

B B BB

≤75cm

≤90cm

FIRST SHOT

PICKS

A—Mixed Pick (Type 2)

B—Ice+ Pick (Type 1)

C—Ice Pick (Type 1)

D—Alpine Pick (Type 2)

E—Mountain Tech Pick (Type 1)

F—Mountain Classic Pick (Type 1)

G—Venom Tech Pick (Type 1)

H—Venom Classic Pick (Type 1)

G H

A B C

E FD

HEAD ATTACHMENTS

A—Micro Hammer

B—Micro Adze

C—Alpine Hammer

D—Alpine Adze

43-53 N-m

5-10 N-m

ICE ACCESSORIES

ACCESSOIRES GLACE

EISZUBEHÖR

MONO

DUAL
