Side 1/5
TECHNICAL DATA

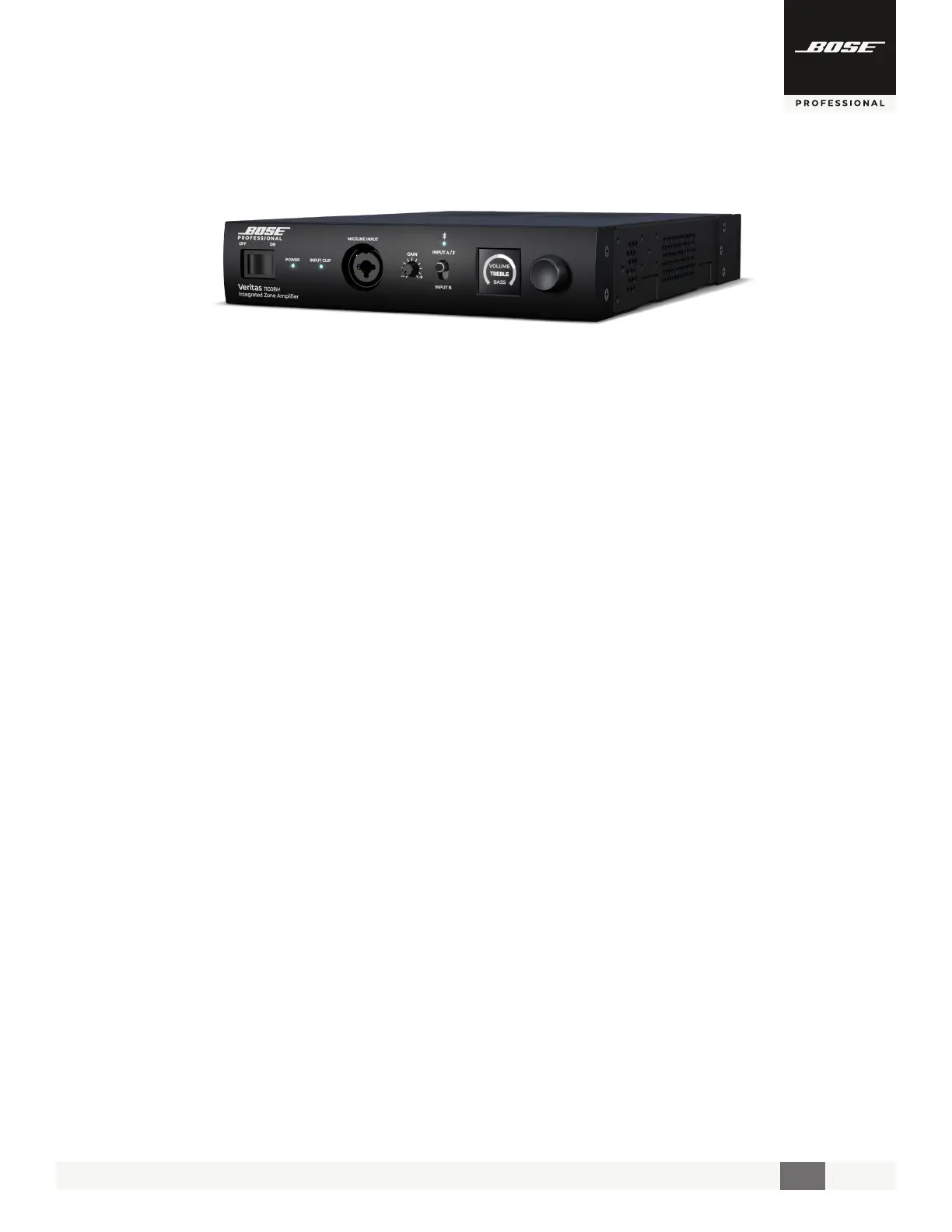

Veritas 1100BH
smart mixer amplier
BoseProfessional.com 1 OF 5
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 09/2025
Product Overview
The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and
multimedia for commercial applications.
Bluetooth
®
5.0 wireless input and user-intuitive OLED screen with quick-start
QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas ampliers
offer the perfect combination of power, performance and exibility.
Compact and powerful, the 1100BH is suited for smaller distributed audio systems, background music, and paging
applications. Designed for 70V/100V high-impedance systems, it efciently powers multiple wall or ceiling loudspeakers
to deliver broad coverage. Perfect for smaller venues, ofces, and retail spaces, the 1100BH features a smaller half-rack
size and front XLR/¼-inch input for convenient mic or audio source connection.
Applications
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
Key Features
Premium amplication with advanced DSP for optimized performance
Bluetooth
connectivity and RCA connectivity—no wire splicing required
Intuitive front-panel OLED screen for easy setup and control
Included bracket accessory for mount-anywhere exibility
Embedded quick-start QR code in the OLED screen simplies installation
Supports high-impedance (70/100V) applications
Remote level control with Bose Professional or third-party wall controllers
Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
Up to 30 selectable EQ presets ensure Bose Professional signature sound
performance and long-term reliability
Opti-Voice paging feature ensures clear speech intelligibility
Convection cooling for fanless operation in quiet installs such as ofces and
conference rooms
TECHNICAL DATA
Veritas 1100BH
smart mixer amplier
BoseProfessional.com 2 OF 5
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 09/2025
Technical Specications
POWER RATING
 1 × 100 W at 70V/100V
AUDIO PERFORMANCE
Frequency Response 70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz)
THD+N 0.3 % (at full rated power)
Dynamic Range 88 dB
INTEGRATED DSP
A/D & D/A Converters 24-bit, 48 kHz
Processing Functions Volume, tone controls, Opti-Voice paging, loudspeaker EQ, Dynamic EQ
Loudspeaker Presets


Audio Latency 
AUDIO INPUTS Line Inputs Page Inputs
Input Channels  
Connectors  
Input Range -10 dBV to +10 dBV -60 dBV to +10 dBV
Adjustment Range -20 dB to +20 dB 0 dB to +50 dB
Input Impedance  
 +10 dBV +10 dBV
Sensitivity -10 dBV -58 dBV
Nominal Input Level 0 dBV -40 dBV
AUDIO OUTPUTS Loudspeaker Outputs Auxiliary Outputs
Output Channels  
Connectors  
Output Impedance n/a 
Nominal Output Level 1 × 100 W at 70V/100 V 
INDICATORS & CONTROLS
Power LED Solid blue (powered on)
Input Clip LED Green (-34 dBu to +10 dBu), red (> +10 dBu). Input gain level set to 5.
Bluetooth
LED
Off (no
Bluetooth
device connected), blinking blue (ready to pair to a
Bluetooth
device),
solid blue (connected to a
Bluetooth
device)
Display OLED, 16-bit grayscale, 96 × 96 resolution
Controls, Front Panel
Power on/off switch, input select switch (A/
Bluetooth

rotary encoder
Controls, Rear Panel Input gain knobs (A, B, page), mute connector, ControlCenter port
