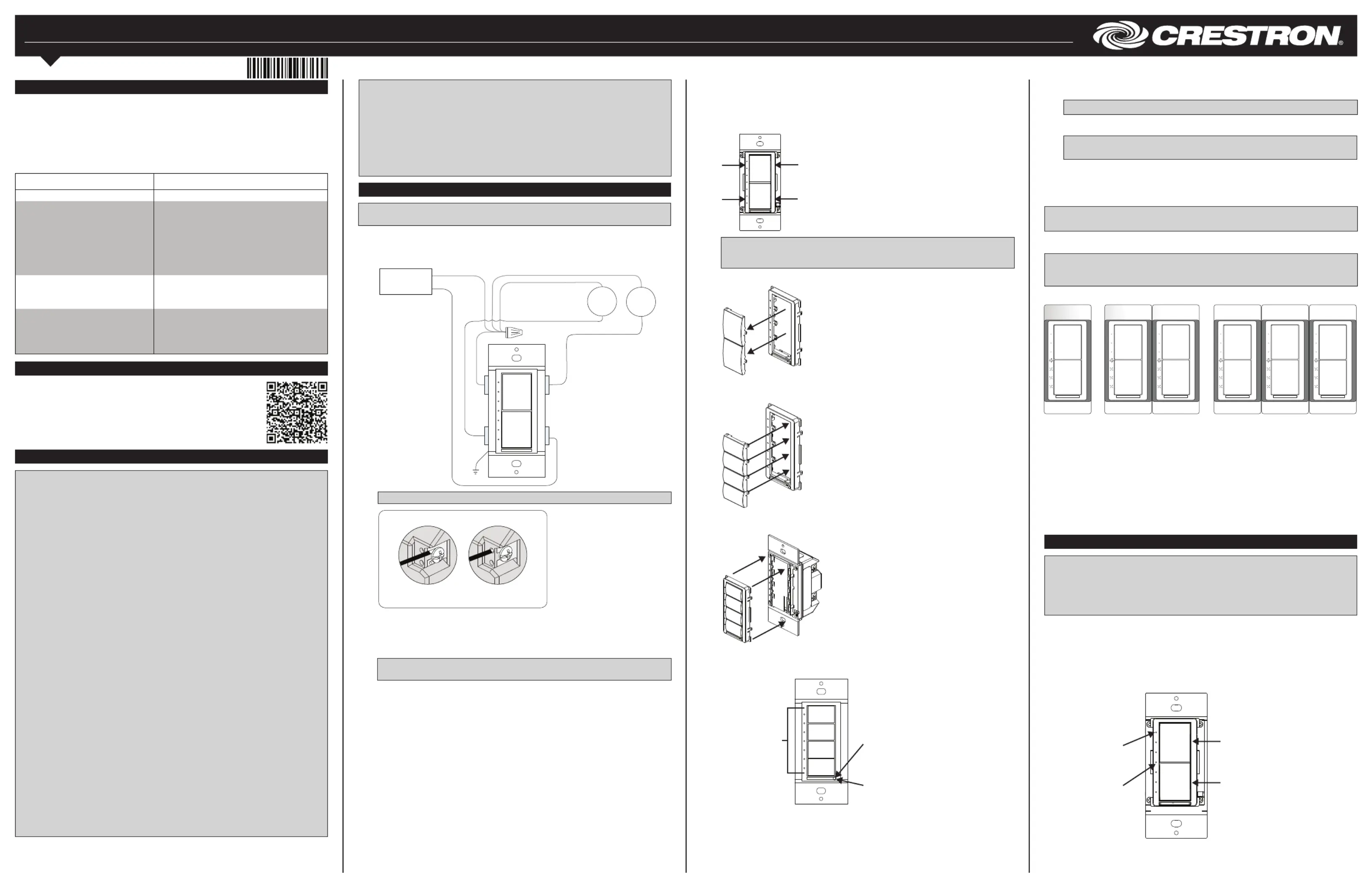

CLW-DIMSWEX-P

Cameo

Wireless In-Wall Dimmer and Switch Combo

Installation and Operation Guide

Changing the Button Assemblies

The button assembly can be removed and replaced with other button assemblies. To

change the button assembly:

1. Remove the button assembly by squeezing the sides of the bezel near the bezel

snaps.

Description

The CLW-DIMSWEX-P is a Cameo

wireless in-wall combination dimmer and switch that

features eld-replaceable and engravable buttons. Without the need for additional

control wiring, the CLW-DIMSWEX-P easily replaces any standard in-wall dimmer or light

switch. Although functional as a standalone dimmer or light switch, the

CLW-DIMSWEX-P delivers enhanced automation and control capability when connected

to any Crestron

control system using the inNET EX

network.

CLW-DIMSWEX-P Specications

Important Notes

WARNING: To avoid re, shock, or death, turn off power at the circuit breaker or fuse

and test that power is off before wiring!

WARNING:

New installations should be checked for short circuits prior to installing a

CLW-DIMSWEX-P. With the power off, close the circuit and then restore power. If the

lights do not work or a breaker trips, check and correct the wiring or xture (if

necessary). Install the device only when the short is no longer present. The warranty is

void if the device is installed and operated with a shorted load.

CAUTION: TO REDUCE THE RISK OF OVERHEATING AND POSSIBLE DAMAGE TO

OTHER EQUIPMENT, DO NOT INSTALL TO CONTROL A RECEPTACLE, A

MOTOR-OPERATED APPLIANCE, OR A TRANSFORMER-SUPPLIED APPLIANCE.

ATTENTION: GRADATEURS COMMANDANT UN BALLAST-AFIN DE REDUIRE LE

RISQUE DE SURCHAUFFE ET LA POSSIBILITE D’ENDOMMAGEMENT A D’AUTRES

MATERIELS, NE PAS INSTALLER POUR COMMANDER UNE PRISE OU UN

APPAREIL ALIMENTE PAR UN TRANSFORMATEUR.

NOTES: Observe the following points:

• Installation: This product should be installed by a licensed electrician.

• Codes: Install in accordance with all local and national electrical codes.

• Wiring: Use copper wire only. For supply connections, use wires rated for at least

75°C.

• Wiring: The CLW-DIMSWEX-P requires a neutral connection.

• Lamp Type: For use with permanently installed incandescent, magnetic low

voltage, tungsten-halogen, or dimmable CFL only.

• Temperature: For use where temperatures are between 32° to 104°F (0° to 40°C).

• Electrical Boxes: Devices mount in standard electrical boxes. For easy installation,

Crestron recommends using 3 1/2 in (89 mm) deep electrical boxes. Several

devices can be installed in one electrical box (multigang). This requires derating of

the dimming device.

For a smooth appearance, one-piece multigang faceplate (not supplied) can be

installed.

• Switches: Mechanical 3- or 4-way switches will not work with the

CLW-DIMSWEX-P series.

• Spacing: If mounting one device above another, leave at least 4 1/2 in (115 mm)

vertical space between them.

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)

for additional information and the latest rmware updates. Use a QR

reader application on your mobile device to scan the QR image.

• Low Voltage Applications: Use with core and coil (magnetic) low voltage

transformers only. Do not use any solid-state electronic low voltage transformers.

Operation of a low voltage circuit with all lamps inoperative or removed may result

in current ow in excess of normal levels. To avoid overheating the transformer and

premature transformer failure, Crestron recommends the following:

> Do not operate low voltage circuits without operative lamps in place.

> Replace burned-out lamps as quickly as possible.

> Use transformers that incorporate thermal protection or fuse transformer primary

windings to prevent transformer failure due to overcurrent.

NEU

DIM

HOT

Line

120 V ~

GND

Load

Lighting

Load

White

Black

White

Black

NOTE: Refer to the following diagram when making connections to the device.

3. Push all power wires back into the electrical box and, with the provided screws,

fasten the device to the electrical box.

4. Attach the decorative faceplate.

5. Ensure all buttons actuate without sticking.

NOTE: To operate the device in Switch mode, follow the instructions in

“Switching Between Dim and Switch Mode.”

6. Restore power at the circuit breaker.

YesNo

Do not insert the wires behind the screw head.

Insert the wires into the wire entry holes.

NOTE: When the button assembly is removed, power disconnects from the

internal electronics and the connected loads. Power is still supplied to the HOT

terminal.

2. Remove the buttons from the front of the button assembly.

3. Insert the new buttons through the front of the bezel and snap them into place.

Ensure that the LED strip is on the left side.

4. Attach the button assembly to the device. Ensure that the LED strip is on the left

side.

5. Once power has been restored, press and hold the program button.

After 5 seconds, the LEDs associated with the old button layout begin to ash.

Continue to hold the button and proceed to step 6.

6. While holding the button, press each of the installed buttons in the new layout. The

LED next to the tapped button will light.

NOTE: If the rocker switch is installed, press the top and bottom of the rocker.

7. After all of the buttons have been pressed, release the program button to save the

settings.

NOTE: Changing the button conguration will alter the device’s behavior. Refer

to “Default Button Functions” for details.

Multigang Installations

In multigang installations, several devices are grouped horizontally in one electrical box.

For a smooth appearance, a one-piece multigang faceplate (not supplied) can be

installed.

NOTE: When installing into a multigang box, do not fully tighten the devices to the box

until the faceplate has been aligned.

The load capacity for each device in the electrical box must be derated. Refer to the

diagrams for derating information.

NOTE: VA ratings are for input power to the transformer. If the input power

requirements of the transformer are unknown, use the bulb's wattage rating to

determine the proper rating.

Derating Information for the CLW-DIMSWEX-P

Squeeze at the

arrow points and

pull to remove the

button assembly.

Gently spread the

frame apart to

remove the buttons.

Gently spread the

frame apart to insert

the buttons.

Step 5:

Press and hold

the program

button.

Step 6:

Press each of

the installed

buttons on the

device.

Step 7:

Release the

program button to

save the settings.

Dim

500 VA

Switch

Dim

400 VA

Dim

400 VA

Switch

Dim

400 VA

Switch

Dim

250 VA

Dim

400 VA

Switch

Switching Between Dim and Switch Modes

The CLW-DIMSWEX-P is capable of operating in Switch mode. Toggling between Dim

and Switch mode is useful if the load is not dimmable or if it is preferred not to have the

load dimmed. To toggle between Dim and Switch modes:

1. Open the air-gap switch by pressing on the left side of the air-gap switch. Refer to

“Disconnecting the Power” for details.

2. While the power is off, press and hold the top and bottom button caps (regardless

of the button conguration) simultaneously while reengaging the air-gap switch to

reapply power. After 5 seconds, the top LED will blink three times to indicate Dim

mode or ve times to indicate Switch mode.

4. Release the buttons within the next 5 seconds.

Operation

NOTE: Before using the CLW-DIMSWEX-P, ensure the device is using the latest

rmware. Check for the latest rmware for the CLW-DIMSWEX-P at

www.crestron.com/rmware. Firmware is loaded onto the device using Crestron

Toolbox™.

NOTE: The device may be warm to the touch during operation. This is normal.

Basic Operation

The operation described in this guide assumes the CLW-DIMSWEX-P is operating in

Local mode (without the use of a control system). The device can also operate in Remote

mode in which button behavior is dictated entirely by the control system program. The

CLW-DIMSWEX-P is shipped with two buttons already installed. In this conguration, the

unit will function as shown.

Press to turn on the Dim load.

Press twice to turn on the Dim load.

Press and hold to raise or lower the

light level.

Press to turn on the Switch load.

Press twice to turn off both loads.

The LEDs indicate the

load level. When all

loads are off, the top

LED remains dimly lit

to act as a nightlight.

In Switch mode, the

top LED indicates the

on or off status only.

All other LEDs are off.

Installation

WARNING: Turn off power at the circuit breaker. Installing with the power on can

result in serious personal injury and damage to the device.

The following describes the installation of a CLW-DIMSWEX-P.

1. Turn power off at the circuit breaker.

2. Wire the device as shown in the diagram.

SPECIFICATION DETAILS

Power Requirements

120 Vac, 60 Hz, line power

Load Ratings: Dimmer

Minimum Load

25 W

Incandescent/Tungsten,

Magnetic Low Voltage, and

Dimmable CFL

500 VA/W

Load Ratings: Switch

Exhaust Fan

1 A

Environmental

Temperature

32° to 104°F (0° to 40°C)

Humidity

10% to 90% RH (non-condensing)

Dimensions

Height

4.13 in (105 mm)

Width

1.75 in (45 mm)

Depth

1.75 in (45 mm)

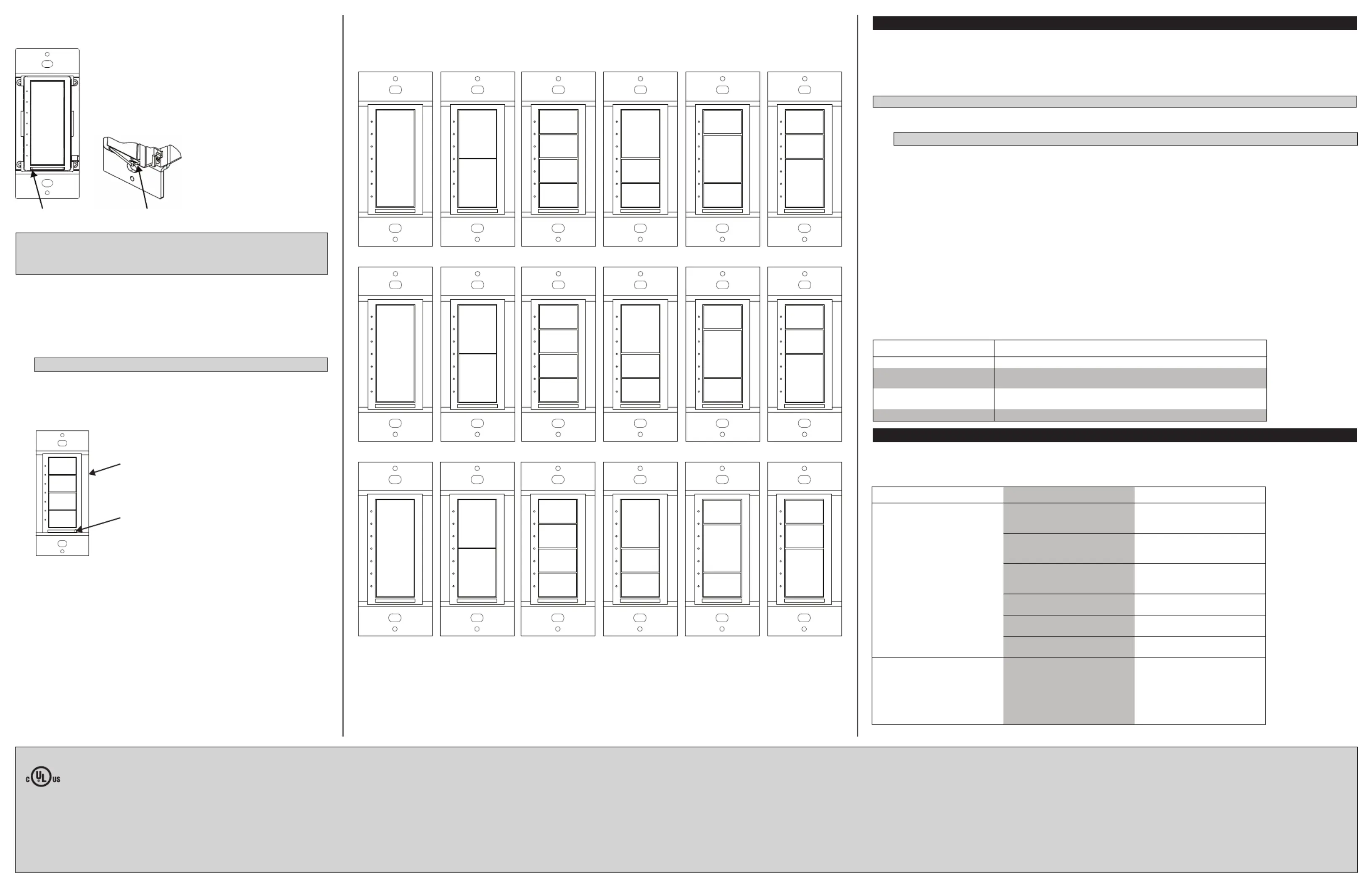

Troubleshooting

The following table provides corrective actions for possible trouble situations. If further assistance is required, please contact a Crestron

customer service representative.

CLW-DIMSWEX-P Troubleshooting

Wireless Communications

The device connects to the Crestron network via the inNET EX communications protocol. Use the procedures outlined below to join or

leave an inNET EX network and to verify communications between the device and the control system.

Joining an inNET EX Network

Before a device can be used in a lighting system, it must rst join an inNET EX network. To join an inNET EX network, the device must

be acquired by an inNET EX gateway.

NOTE: A device can be acquired by only one gateway.

1. Put the inNET EX gateway into Acquire mode from the unit itself or from Crestron Toolbox. Refer to the gateway’s manual at

www.crestron.com/manuals for details.

NOTE: In an environment where multiple gateways are installed, only one gateway should be in Acquire mode at any time.

2. Put the device into Acquire mode:

a. Tap the top button three times and then press and hold it down (tap-tap-tap-press+hold) until the top LEDs on the device blink

once (this can take up to 10 seconds).

b. Release the button to start the acquire process. The top LED blinks slowly to show that the device is actively scanning the

inNET EX network.

• The top two LEDs turn on for 5 seconds to show that the device has been successfully acquired by the infiNET EX network.

• The top LED blinks fast to indicate that the device was not successfully acquired by the infiNET EX network. Tap the top

button to acknowledge the failure. Ensure the gateway is in Acquire mode and within range before attempting the acquire

process again.

3. Once all devices have been acquired, take the gateway out of Acquire mode. Refer to the gateway’s manual for details.

Leaving an inNET EX Network

To leave an inNET EX network, put the device into Acquire mode, as described in “Joining an inNET EX Network” above, when no

gateway is in Acquire mode.

Verifying Communications Status

To check the communications status of the device, tap the top button three times and then press and hold it down

(tap-tap-tap-press+hold) for up to 2 seconds. The LED blinks to indicate the communications status. Refer to the following table for

details.

Disconnecting the Power

Power to the dimmed and switched loads can be disconnected by pushing the air-gap

switch.

Push here to open

the air-gap.

The air-gap switch is

in the open position.

NOTE: When the button assembly is removed, power disconnects from the internal

electronics and the connected loads. Power is still supplied to the HOT terminal.

For instructions on removing the button assembly, refer to “Changing the Button

Assemblies.”

Setting the Preset Levels

The CLW-DIMSWEX-P can recall and store up to two presets depending on the installed

button conguration. A third preset can be accessed via the control system.

To set a preset level:

1. Adjust the light to the desired level.

2. Enter the Programming mode by quickly tapping the right side of the air-gap

switch. The LEDs will blink beside the buttons capable of storing a preset.

NOTE: Programming mode is disabled when the load is off.

3. Press and hold the desired preset button for approximately 2 seconds. The LED

will begin to blink.

4. Release the button to store the new level.

The CLW-DIMSWEX-P will exit Programming mode if no button is pressed within

5 seconds.

Step 3:

Hold the button to

store the new level.

Step 2:

Quickly tap the program

button. The LEDs blink to

indicate the buttons that

can be programmed.

Preset 1

Switch

Toggle

All Off

Preset 2

Default Button Functions

The the default button functions differ for each button conguration. “Dim” refers to the dimmable lighting load, and “Switch” refers to the

motorized load. Unless otherwise noted, toggle functionality is between on and off (or delayed off if programmed to do so). Refer to the

following illustrations for single button press, double button press, and press and hold functions.

Single Button Press

Switch:

Toggle

All Off

Dim:

Preset 1

Switch: On

Dim:

Preset 1

Toggle

Dim:

Preset 1

Toggle

Dim:

Preset 2

Toggle

Switch:

Toggle

All Off

with

Delay

All Off

Switch:

Toggle

Dim:

Preset 1

Toggle

Switch:

Toggle

Dim:

Preset 1

Toggle

All Off

Dim:

Preset 1

Toggle

Switch:

Toggle

All Off

Cycle

Dim

Single Button Press and Hold (Hold for More than 1/2 Second)

Cycle

Dim

Cycle

Dim

Cycle

Dim

Cycle

Dim

Cycle

Dim

Raise

Dim

Lower

Switch:

Toggle

All Off

with

Delay

Double Button Press (Press Twice within 1/2 Second)

Dim:

Full On

Switch:

All

Fast Off

All

Fast Off

All

Fast Off

Switch:

Toggle

All

Fast Off

All

Fast Off

Switch:

Toggle

Dim:

Preset 1

Toggle

All

Fast Off

Dim:

Preset 1

Toggle

Dim:

Preset 2

Toggle

Dim:

Preset 1

Toggle

Dim:

Preset 1

Toggle

Dim:

Preset 1

Toggle

LED COMMUNICATIONS STATUS

Turns on for 5 seconds

The device is communicating with the control system.

Blinks three times The device is communicating with the gateway, but the gateway is not

communicating with the control system.

Blinks twice The device was previously joined to the network but is not communicating

with the gateway.

Blinks once

The device is not joined to the network.

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

The dimmer does not function. The dimmer is not receiving line

power.

Verify that the dimmer is properly

connected to the power line and

that the circuit breaker is closed.

The air-gap switch is open. Verify that the load is operational

and that the air-gap switch is

closed.

The device is in Remote mode. Check the SIMPL program to

determine or change the

operating mode.

The dim and hot wires are

reversed.

Swap the dim and hot

connections.

The switch and hot wires are

reversed.

Swap the switch and hot

connections.

A neutral connection does not

exist.

Connect the neutral.

The dimmer does not dim. The device is in Switch mode. Remove power from the device.

Reapply power and press and

hold the top and bottom buttons

for 5 seconds. If the LED blinks

three times, the device is in Dim

mode; if it blinks ve times, it is in

Switch mode.

This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

FCC ID: Contains EROCWD6790

Compliance Statement (Part 15.19 )

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

Crestron Electronics, Inc. Installation and Operation Guide - DOC. 6822D

15 Volvo Drive Rockleigh, NJ 07647 (2024293)

Tel: 888.CRESTRON 08.15

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.

Warning (Part 15.21)

Changes or modications not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

RF Exposure (OET Bulletin 65)

To comply with FCC’s RF exposure limits for general population / uncontrolled exposure, this transmitter

must be installed to provide a separation distance of at least 20 cm from all persons and must not be

co-located or operating in conjunction with any other antenna or transmitter.

The product warranty can be found at www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specic information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Cameo, Crestron Toolbox, and inNET EX are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries. UL and the UL logo

are either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this

document to refer to either the entities claiming the marks and names or their products. Crestron disclaims

any proprietary interest in the marks and names of others. Crestron is not responsible for errors in

typography or photography.

This document was written by the Technical Publications department at Crestron.

Produkt Specifikationer

Mærke:	Crestron
Kategori:	Lysdæmper
Model:	CLW-DIMSWEX-P-DA-S
Type:	Lysdæmper & kontakt
Bredde:	44 mm
Dybde:	44 mm
Højde:	105 mm
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
RF-transmissionsfrekvens:	2400 MHz
