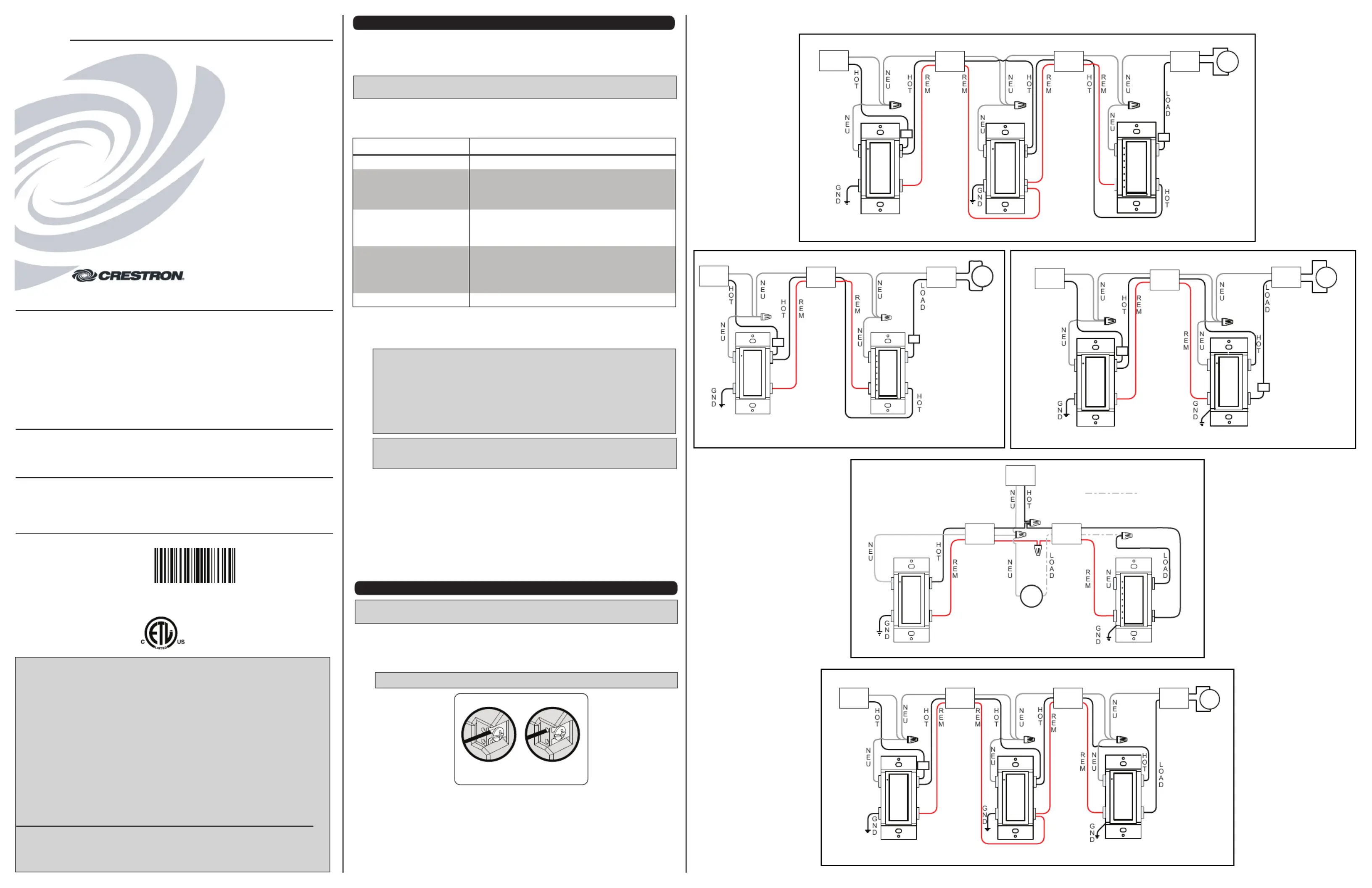

Crestron Electronics, Inc. Installation Guide - DOC. 7364A

15 Volvo Drive Rockleigh, NJ 07647 (2033215)

Tel: 888.CRESTRON 02.13

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Further Inquiries

To locate specific information or resolve questions after reviewing this guide, contact Crestron's True Blue Support at

1-888-CRESTRON [1-888-273-7876] or refer to the listing of Crestron worldwide offices on the Crestron Web site

(www.crestron.com/offices) for assistance within a particular geographic region.

To post a question about Crestron products, log onto the online help section of the Crestron Web site

(www.crestron.com/onlinehelp). First-time users must establish a user account to fully benefit from all available

features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of the CLW-SLVU-P, additional

information may be made available as manual updates. These updates are solely electronic and serve as

intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as

an “Addendum” in the Download column.

WARNING: To avo ock or deid fire, sh , ath turn; off po rc ea use nd power is be ore wer at ci uit br ker or f a test that off f

wiring!

NOTES: Observe the following points.

• To be installed and/or used in accordance with appropriate electrical codes and regulations.

• This product should be installed by a qualified electrician.

PREPARING AND CONNECTING WIRES

Strip the ends of the wires approximately 1/4 in (6 mm). Use care to avoid nicking the conductors.

Crestron CLW-SLVU-P

Dimmer Accessory

Installation Guide

Federal Communications Commission (FCC) Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This product conforms to UL STD 1472; certified to CSA STD C22.2 No. 184.1.

INSTALLATION

WARNING: Turn off power at the circuit breaker. Installing with power on can result in

serious personal injury and damage to the device.

Dimmer Must be

Located at the

Load Side of the

3-Way Chain

Replace 3-Way Switch with

CLW-DIMEX-P / CLW-DELVEX-P

Replace 4-Way Switch with

CLW-SLVU-P

Replace 3-Way Switch with

CLW-SLVU-P

Three Or More Points Of Dimming Control (4-way)

TAG

LOAD

Line

120 V~

3-Wire

Cable

3-Wire

Cable

3-Wire

Cable

NEU

CLW-SLVU-P

MARK AS HOT

CLW-DIMEX-P

Two Points Of Dimming Control

And Power Fed Through

Light Fixture

LOAD

Line

120 V~

3-Wire

Cable

3-Wire

Cable

Switch Must be

Located at the

Load Side of the

3-Way Chain

Replace 3-Way Switch with

CLW-SWEX-P

Replace 4-Way Switch with

CLW-SLVU-P

Replace 3-Way Switch with

CLW-SLVU-P

Three Or More Points Of Switching Control (4-way)

LOAD

3-Wire

Cable

Line

120 V~

3-Wire

Cable

3-Wire

Cable

NEU

TAG

Switch Must be

Located at the

Load Side of the

3-Way Chain

The Wires

Shown with the

Tags are the

Wires that were

Previously

Connected to the

Common

Terminal of the

Original Switches

(Typically Black

Instead of Brass)

CLW-SLVU-P CLW-DIMEX-P

CLW-DELVEX-P

Two Points Of Dimming Control (3-way)

TAG

LOAD

Line

120 V~

3-Wire

Cable

3-Wire

Cable

NEU

Switch Must be

Located at the

Load Side of the

3-Way Chain

The Wires

Shown with the

Tags are the

Wires that were

Previously

Connected to the

Common

Terminal of the

Original Switches

(Typically Black

Instead of Brass)

Replace 3-Way Switch with

CLW-SWEX-P

Replace 3-Way Switch with

CLW-SLVU-P

Two Points Of Switching Control (3-way)

LOAD

Line

120 V~

3-Wire

Cable

3-Wire

Cable

NEU

TAG

DESCRIPTION

The CLW-SLVU-P is a Crestron

wall mount slave dimmer designed for use with CLW

dimmers and switches. Multipoint dimming is enabled using CLW dimmers or switches and

up to nine slave dimmers each. Multipoint dimming is similar to conventional 3-way or 4-way

switching, allowing dimming control of a single load from multiple locations in the room.

NOTE: The CLW-SLVU-P cannot be used to control a load directly, but must be used in

conjunction with a CLW-SWEX-P, CLW-DIMEX-P or CLW-DELVEX-P.

Specifications

Specifications for the CLW-SLVU-P are listed in the following table.

CLW-SLVU-P Specifications

WIRING DIAGRAMS

Important Notes

Read before installation.

• Codes: Install in accordance with all local and national electrical codes.

CAUTION: TO REDUCE THE RISK OF OVERHEATING AND POSSIBLE DAMAGE

TO OTHER EQUIPMENT, DO NOT INSTALL TO CONTROL A RECEPTACLE, A

MOTOR-OPERATED APPLIANCE OR TRANSFORMER-SUPPLIED APPLIANCE.

ATTENTION: GRADATEURS COMMANDANT UN BALLAST-AFIN DE RÉDUIRE

LE RISQUE DE SURCHAUFFE ET LA POSSIBILITÉ D’ENDOMMAGEMENT À

D’AUTRES MATÉRIELS, NE PAS INSTALLER POUR COMMANDER UNE PRISE,

UN APPAREIL OPÉRÉ DE MOTEUR OU UN APPAREIL ALIMENTÉ PAR UN

TRANSFORMATEUR.

NOTE: All 3- or 4-way switches in a multi-way circuit must be replaced by

CLW-SLVU-P units with a single CLW-DELV, CLW-DIM or CLW-SW unit installed at

the load side of the multi-way chain.

• Wiring: Use copper wire only. For supply connections, use wire rated for at least 75° C.

• Electrical Boxes: Devices mount in standard electrical boxes. For easy installation,

Crestron recommends using 3 1/2 in (89 mm) deep electrical boxes. Several devices

can be installed in one electrical box (multigang). This requires derating of the dimming

device. For a smooth appearance, one-piece multigang faceplates (not supplied) can

be installed.

• Spacing: If mounting one device above another, leave at least 4 1/2 in (115 mm)

vertical space between them.

• Neutral connection required for CLW-SLVU-P LED to function.

The following describes the installation of a CLW-SLVU-P dimmer.

1. Turn power off at the circuit breaker.

2. The diagrams to the right illustrate typical wiring configurations for the

CLW-SLVU-P. Select the appropriate configuration and connect the necessary wires.

NOTE: Refer to the following diagram when making connections to the device.

3. Push all power wires back into the electrical box and fasten the device to the electrical

box with the provided screws.

4. Attach decorative faceplate.

5. Ensure all buttons actuate without sticking.

6. Restore power at the circuit breaker.

YESNO

DO NOT INSERT WIRES BEHIND SCREW HEAD

INSERT WIRES INTO WIRE ENTRY HOLES

SPECIFICATION DETAILS

Power Requirements 120 Vac, 60 Hz

Max Wire Length Between

CLW-DELV / CLW-DIM /

CLW-SW and Furthest

CLW-SLVU-P

250 ft (77 m)

Environmental

Temperature

Humidity

32º F to 104ºF (0º C to 40º C)

10 to 90% Relative Humidity (Non-Condensing)

Dimensions

Height

Width

Depth

4 1/8 in (105 mm)

1 3/4 in (45 mm)

Weight 5 oz (128 g)

The table after this paragraph provides corrective action for possible trouble situations.

This troubleshooting applies to multi-way installations where one or more slave device

( is connected to a master (CLW-D EX-P, CLW-SWEX CLW-SLVU-P) IM -P or CLW-DELVEX-P). If further

assistance is required, please contact a Crestron customer service representative.

Button DOUBLE TAP

Button TAP

Off

TROUBLESHOOTING

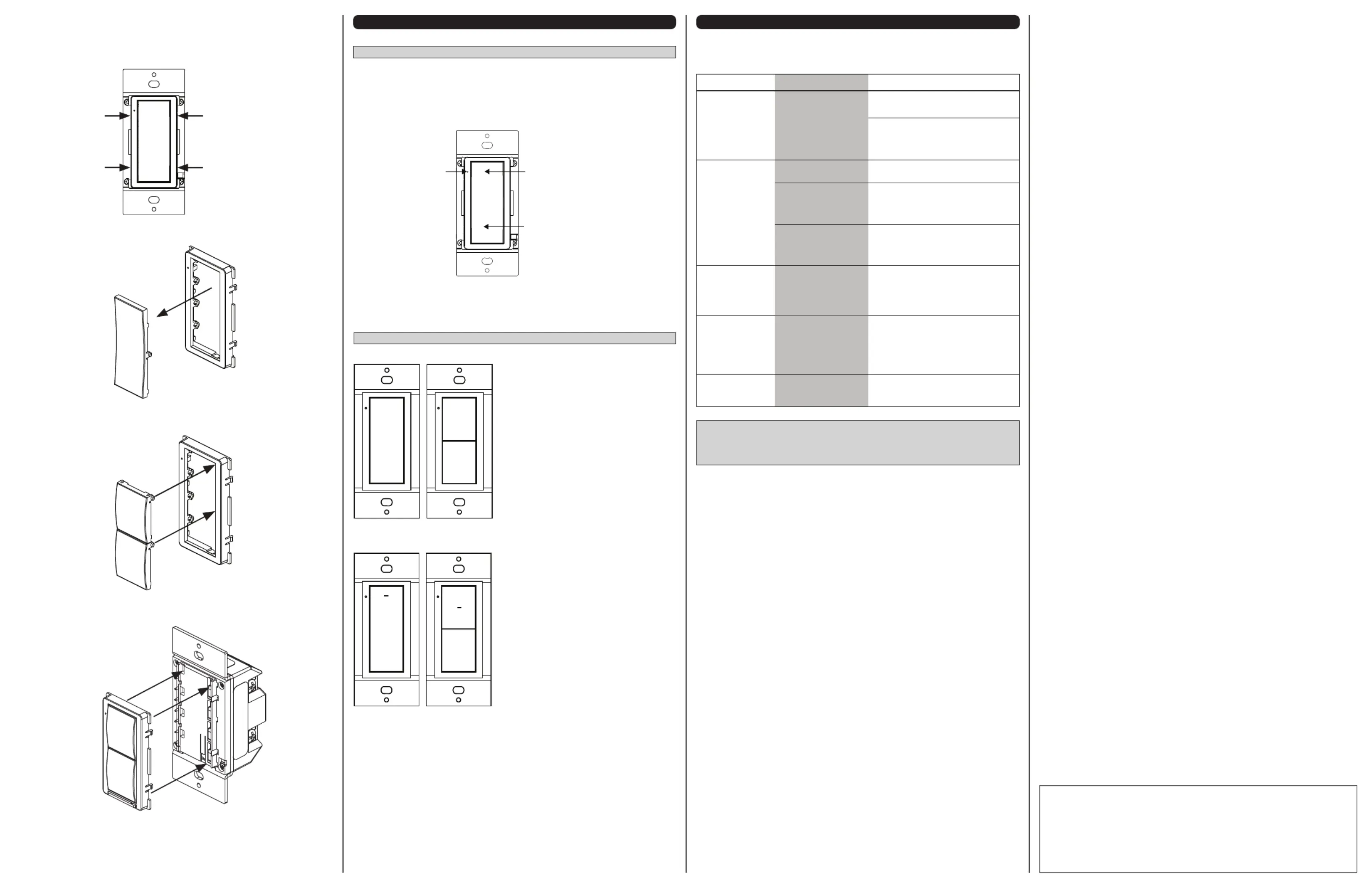

OPERATION

Basic Operation

NOTE: The device may be warm to the touch during operation. This is normal.

The CLW-SLVU-P is shipped with a rocker switch already installed. In this configuration, the

unit functions as shown below.

The specific functions of the slave device depend on the master device at the other end. If

the master is a CLW-DELVEX-P or CLW-DIMEX-P, then the button function is the same as a

CLW-DIMEX-P with a rocker; if a switch is installed, the slave function is the same as a

switch with a rocker button.

Default Button Functions

The figures below illustrate the default functions available for each physical button

configuration and tap/hold actuation sequence.

NOTE: Delayed off can be added via control system programming.

NOTE: Model number for master dimmer: CLW-DIMEX-P infiNET EX

Dimmer

CLW-DELVEX-P infiNET EX Dimmer

Model number for master switch: CL SWEX-P infinet EX SwitchW-

Gently Spread

Frame Apart to

Insert Buttons

Gently Spread

Frame Apart to

Remove Buttons

Changing Button Assemblies

The button assembly can be removed and replaced with other button assemblies. To

change the button assembly:

1. As shown in the following diagram, remove the button assembly by squeezing the

sides of the bezel near the bezel snaps.

2. Remove button(s) from the front of the button assembly as shown in the following

diagram.

3. Insert new buttons through the front of the bezel and snap into place as shown in the

following diagram. Ensure that the LED strip is on the left side.

4. Attach button assembly to the device as shown in the following diagram. Ensure that

LED strip is on the left side.

Squeeze At Arrow

Points And Pull To

Remove Button

Assembly

Tap To Turn On

LED:

•Bright When Load Is On

•Dim When Load Is Off

(Night Light)

Tap To Turn Off

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Master dimmer

does not

function when

buttons pressed

on master or

slave.

Problem with

dimmer installation.

Refer to “Troubleshooting” section in

dimmer installation guide.

Existing 3- or 4-way

switch still

connected.

Replace 3- or 4-way switches with

CLW-SLVU-230-P. Replace 3-way

switch connected to load with

CLW-DIM or CLW-SW.

Master dimmer

works but

neither button

on slave works.

Wiring issue. Check connections on all slave units

and on master dimmer.

Wiring issue at

master dimmer,

LOAD HOT and

reversed.

Check connections at master

dimmer.

Existing 3- or 4-way

switch still

connected.

Replace 3- or 4-way switches with

CLW-SLVU-230-P. Replace 3-way

switch connected to load with

CLW-DIM or CLW-SW.

Master dimmer

works but only

the bottom

button on slave

works.

Master dimmer /

slave is not

connected at the

load side of the

multi-way circuit.

Ensure master dimmer is connected

at the load side of the multi-way

chain connects directly to the lighting

fixture.

Pressing

buttons on slave

makes master

dimmer perform

the wrong

action.

Wiring at slave is

incorrect, and HOT

REM swapped.

Ensure that , and on HOT NEU REM

slave are connected correctly.

Slave LED does

not function

(i.e., stays off).

No neutral

connection at slave.

Connect neutral to slave.

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo and infiNET EX are either trademarks or registered trademarks of Crestron

Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks

and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Crestron disclaims any proprietary interest in the marks and names of others.

Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization

from Crestron. To obtain warranty service for Crestron products, contact an authorized

Crestron dealer. Only authorized Crestron dealers may contact the factory and request an

RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of

the problem, name and phone number of contact person, RMA number and return address.

2. Products may be returned for credit, exchange or service with a Crestron Return

Merchandise Authorization (RMA) number. Authorized returns must be shipped freight

prepaid to Crestron, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA

number clearly marked on the outside of all cartons. Shipments arriving freight collect or

without an RMA number shall be subject to refusal. Crestron reserves the right in its sole

and absolute discretion to charge a 15% restocking fee plus shipping costs on any products

returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by Crestron,

shipping by standard ground carrier. In the event repairs are found to be non-warranty,

return freight costs shall be paid by the purchaser.

Crestron Limited Warranty

Crestron Electronics, Inc. warrants its products to be free from manufacturing defects in materials

and workmanship under normal use for a period of three (3) years from the date of purchase from

Crestron, with the following exceptions: disk drives and any other moving or rotating mechanical

parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touch screen

display and overlay components are covered for 90 days; batteries and incandescent lamps are not

covered.

This warranty extends to products purchased directly from Crestron or an authorized Crestron

dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's

warranty, if any.

Crestron shall not be liable to honor the terms of this warranty if the product has been used in any

application other than that for which it was intended or if it has been subjected to misuse, accidental

damage, modification or improper installation procedures. Furthermore, this warranty does not cover

any product that has had the serial number altered, defaced or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall

Crestron be liable for incidental or consequential damages of any kind (property or economic

damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any

claim made by a third party or made by the purchaser for a third party.

Crestron shall, at its option, repair or replace any product found defective, without charge for parts

or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered

only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, Crestron makes no other warranties, expressed or

implied, nor authorizes any other party to offer any warranty, including any implied warranties of

merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by

law are limited to the terms of this limited warranty. This warranty statement supersedes all previous

warranties.

Produkt Specifikationer

Mærke:	Crestron
Kategori:	Lysdæmper
Model:	CLW-SLVU-P-B-S
Type:	Lysdæmper
Bredde:	44 mm
Dybde:	44 mm
Højde:	105 mm
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
