MagellanTM 8300/8400
Technical Guide
Datalogic Scanning, Inc.
959 Terry Street
Eugene, Oregon 97402
USA
Telephone: (541) 683-5700
Fax: (541) 345-7140
An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures
described therein may be reproduced or transmitted in any form or by any means without prior written permission of
Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”). Owners of Datalogic
products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for
the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices,
including copyright notices, contained in this documentation and shall ensure that all notices appear on any repro-
ductions of the documentation.
Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic
representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.data-
logic.com) or provided on appropriate media. If you visit our website and would like to make comments or sugges-
tions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate,
however, Datalogic reserves the right to change any specification at any time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the
U.S.A. and the E.U. All other brand and product names may be trademarks of their respective owners.
This product may be covered by one or more of the following patents: 4603262 • 4639606 • 4652750 • 4672215 • 4699447 • 4709369 • 4749879
• 4786798 • 4792666 • 4794240 • 4798943 • 4799164 • 4820911 • 4845349 • 4861972 • 4861973 • 4866257 • 4868836 • 4879456 • 4939355 •
4939356 • 4943127 • 4963719 • 4971176 • 4971177 • 4991692 • 5001406 • 5015831 • 5019697 • 5019698 • 5086879 • 5115120 • 5144118 •
5146463 • 5179270 • 5198649 • 5200597 • 5202784 • 5208449 • 5210397 • 5212371 • 5212372 • 5214270 • 5229590 • 5231293 • 5232185 •
5233169 • 5235168 • 5237161 • 5237162 • 5239165 • 5247161 • 5256864 • 5258604 • 5258699 • 5260554 • 5274219 • 5296689 • 5298728 •
5311000 • 5327451 • 5329103 • 5330370 • 5347113 • 5347121 • 5371361 • 5382783 • 5386105 • 5389917 • 5410108 • 5420410 • 5422472 •
5426507 • 5438187 • 5440110 • 5440111 • 5446271 • 5446749 • 5448050 • 5463211 • 5475206 • 5475207 • 5479011 • 5481098 • 5491328 •
5493108 • 5504350 • 5508505 • 5512740 • 5541397 • 5552593 • 5557095 • 5563402 • 5565668 • 5576531 • 5581707 • 5594231 • 5594441 •
5598070 • 5602376 • 5608201 • 5608399 • 5612529 • 5629510 • 5635699 • 5641958 • 5646391 • 5661435 • 5664231 • 5666045 • 5671374 •
5675138 • 5682028 • 5686716 • 5696370 • 5703347 • 5705802 • 5714750 • 5717194 • 5723852 • 5750976 • 5767502 • 5770847 • 5786581 •
5786585 • 5787103 • 5789732 • 5796222 • 5804809 • 5814803 • 5814804 • 5821721 • 5822343 • 5825009 • 5834708 • 5834750 • 5837983 •
5837988 • 5852286 • 5864129 • 5869827 • 5874722 • 5883370 • 5905249 • 5907147 • 5923023 • 5925868 • 5929421 • 5945670 • 5959284 •
5962838 • 5979769 • 6000619 • 6006991 • 6012639 • 6016135 • 6024284 • 6041374 • 6042012 • 6045044 • 6047889 • 6047894 • 6056198 •
6065676 • 6069696 • 6073849 • 6073851 • 6094288 • 6112993 • 6129279 • 6129282 • 6134039 • 6142376 • 6152368 • 6152372 • 6155488 •
6166375 • 6169614 • 6173894 • 6176429 • 6188500 • 6189784 • 6213397 • 6223986 • 6230975 • 6230976 • 6244510 • 6259545 • 6260763 •
6266175 • 6273336 • 6276605 • 6279829 • 6290134 • 6290135 • 6293467 • 6303927 • 6311895 • 6318634 • 6328216 • 6332576 • 6332577 •
6343741 • 6454168 • 6478224 • 6568598 • 6578765 • 6705527 • 6857567 • 6974084 • 6991169 • 7051940 • 7170414 • 7172123 • 7201322 •
7204422 • 7215493 • 7224540 • 7234641 • 7243850 • 7374092 • 7407096 • 7490770 • 7495564 • 7506816 • 7527198 • 7527207 • 7537166 •
7562817 • 601 26 118.6 • AU703547 • D312631 • D313590 • D320011 • D320012 • D323492 • D330707 • D330708 • D349109 • D350127 •
D350735 • D351149 • D351150 • D352936 • D352937 • D352938 D352939 • D358588 • D361565 D372234 • D374630 • D374869 • D375493
• D376357 D377345 • D377346 • D377347 • D377348 D388075 D446524 • D606544 •EP0256296 EP0260155 • EP0260156 • EP0295936
• EP0325469 • EP0349770 • EP0368254 • EP0442215 • EP0498366 • EP0531645 • EP0663643 • EP0698251 • EP01330772 • EP870761 •
GB2252333 • GB2284086 • GB2301691 • GB2304954 • GB2307093 • GB2308267 • GB2308678 • GB2319103 • GB2333163 • GB2343079 •
GB2344486 • GB2345568 • GB2354340 • ISR107546 • ISR118507 • ISR118508 • JP1962823 • JP1971216 • JP2513442 • JP2732459 •
JP2829331 • JP2953593 • JP2964278 • MEX185552 • MEX187245 • RE37166 • RE40071 • Other Patents Pending
Product Reference Guide 3
Technical Guide i-i
Table of Contents
Chapter 1. Introduction ................................................................................... 1-1
Technical Support ........................................................................................................ 1-1
Datalogic Website Support ...................................................................................... 1-1
Reseller Technical Support ...................................................................................... 1-1
Telephone Technical Support ................................................................................... 1-1
................................................................................................................................. 1-2
Scanner and Scanner/Scale Nomenclature ...................................................................... 1-2
Connections ................................................................................................................ 1-3
Weighing .................................................................................................................... 1-4
Warm-Up Time ...................................................................................................... 1-5
Electrical Specifications ................................................................................................. 1-6
Power Supply ........................................................................................................ 1-7
Agency Compliances .................................................................................................... 1-8
Chapter 2. Site Preparation and Installation.................................................... 2-1
Models ....................................................................................................................... 2-1
Pre-Installation Considerations ...................................................................................... 2-3

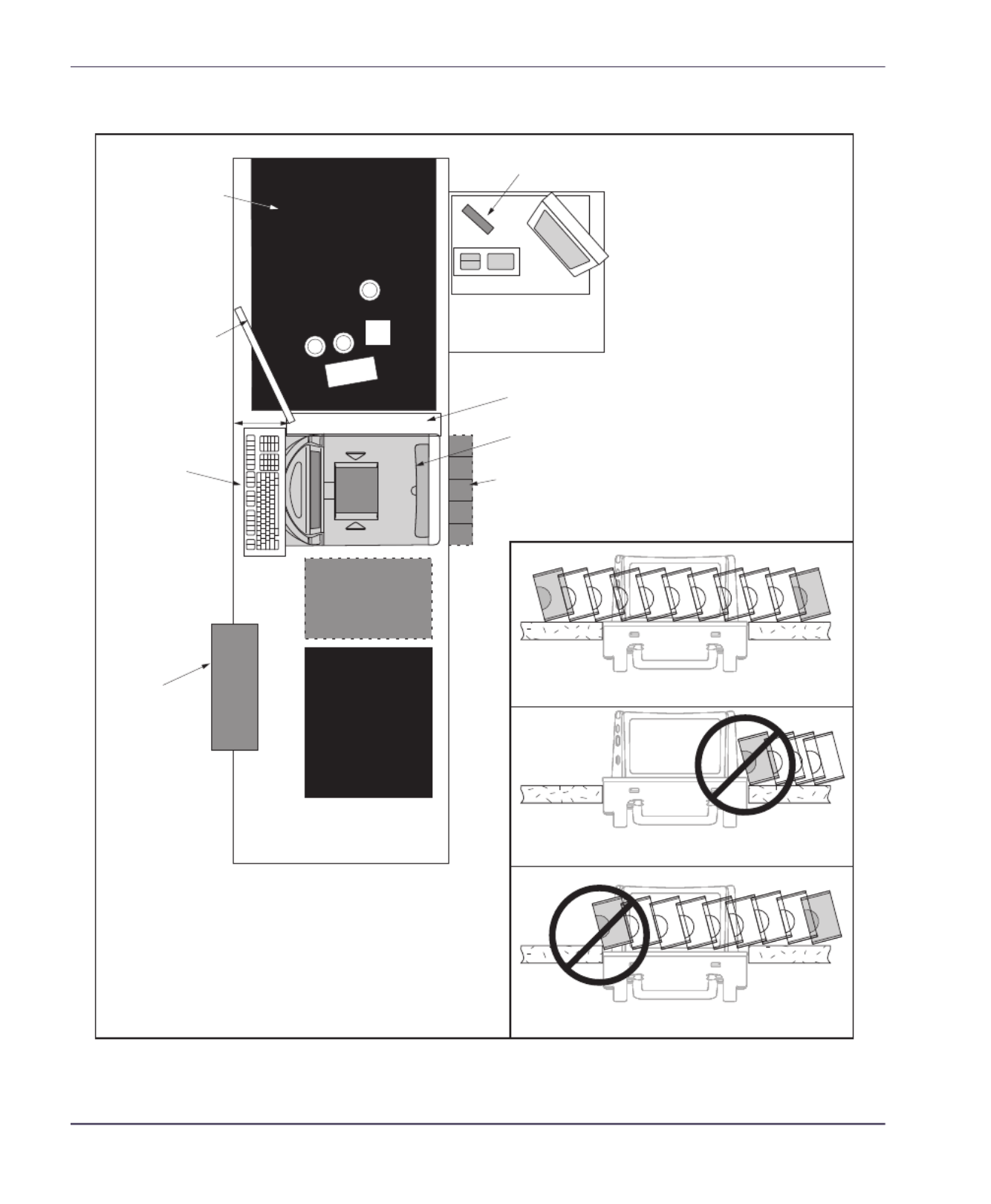

Checkstand Design ...................................................................................................... 2-3
Scanner Installation ..................................................................................................... 2-4
Scanner Maintenance ................................................................................................... 2-4
Scanner Usage ............................................................................................................ 2-5
Site Preparation Overview ............................................................................................. 2-5
Ventilation and Spacing ................................................................................................ 2-7

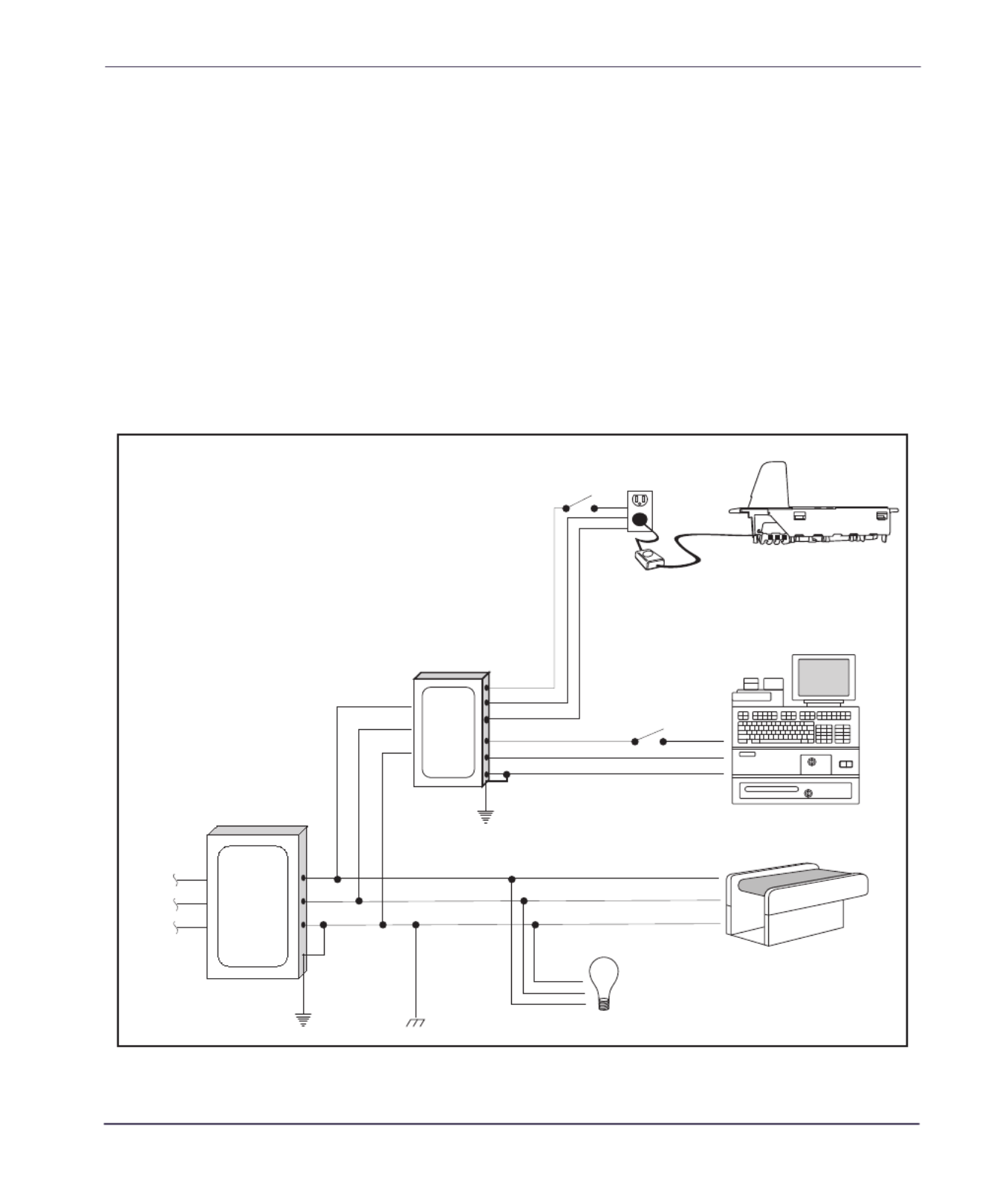

Power Installation ........................................................................................................ 2-9
Grounding ............................................................................................................ 2-9

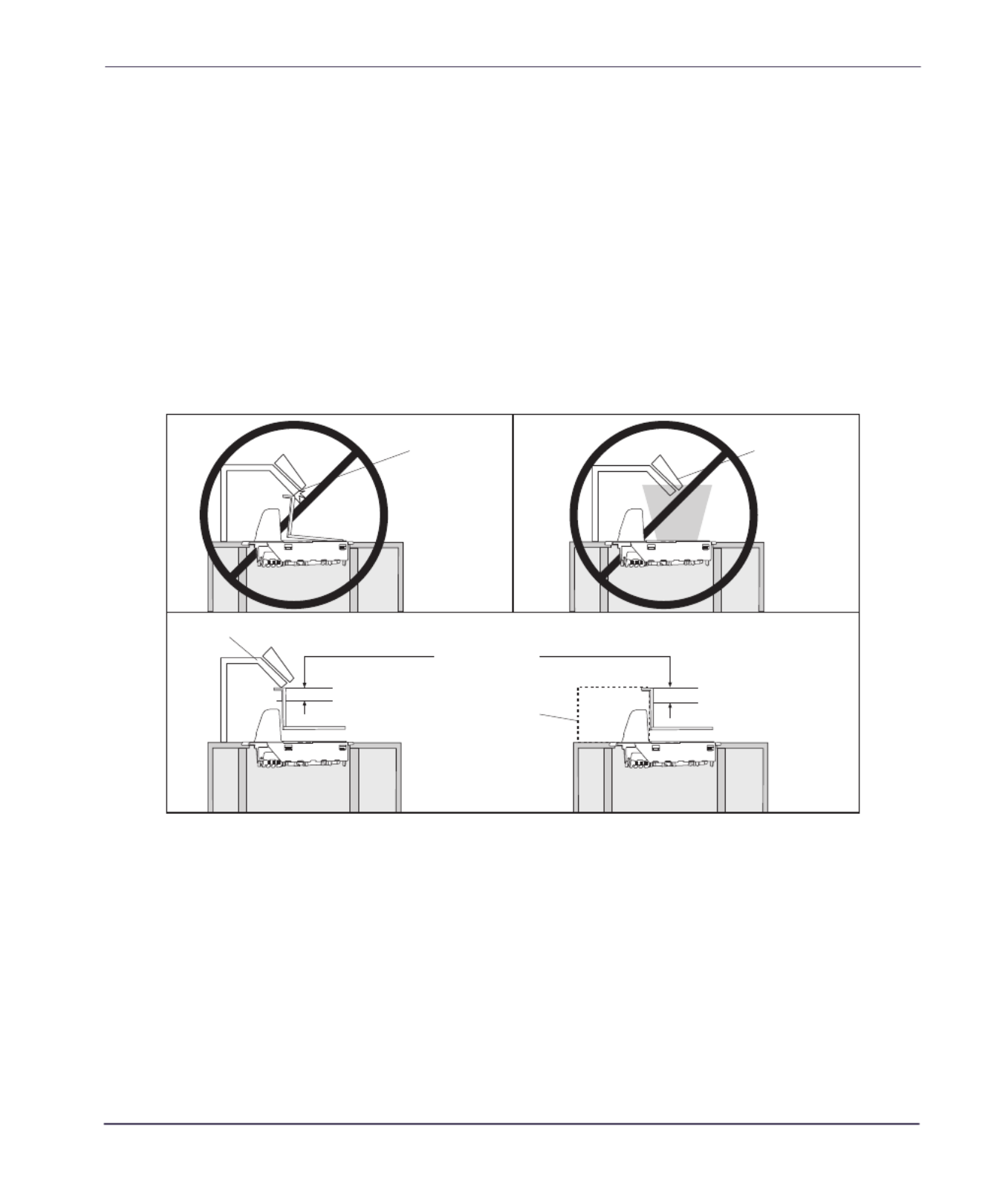

Liquid Spills and Moisture ...................................................................................... 2-10

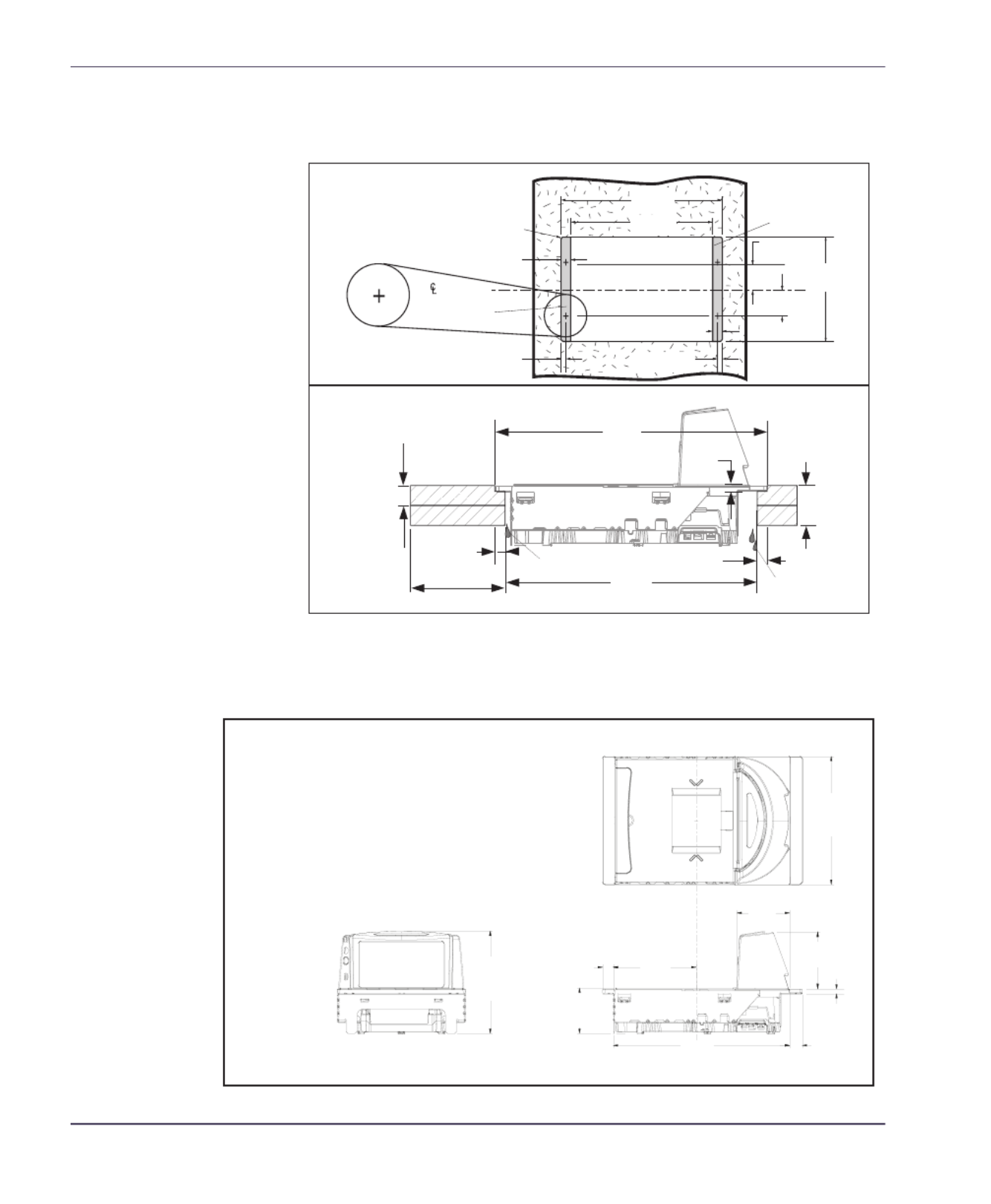

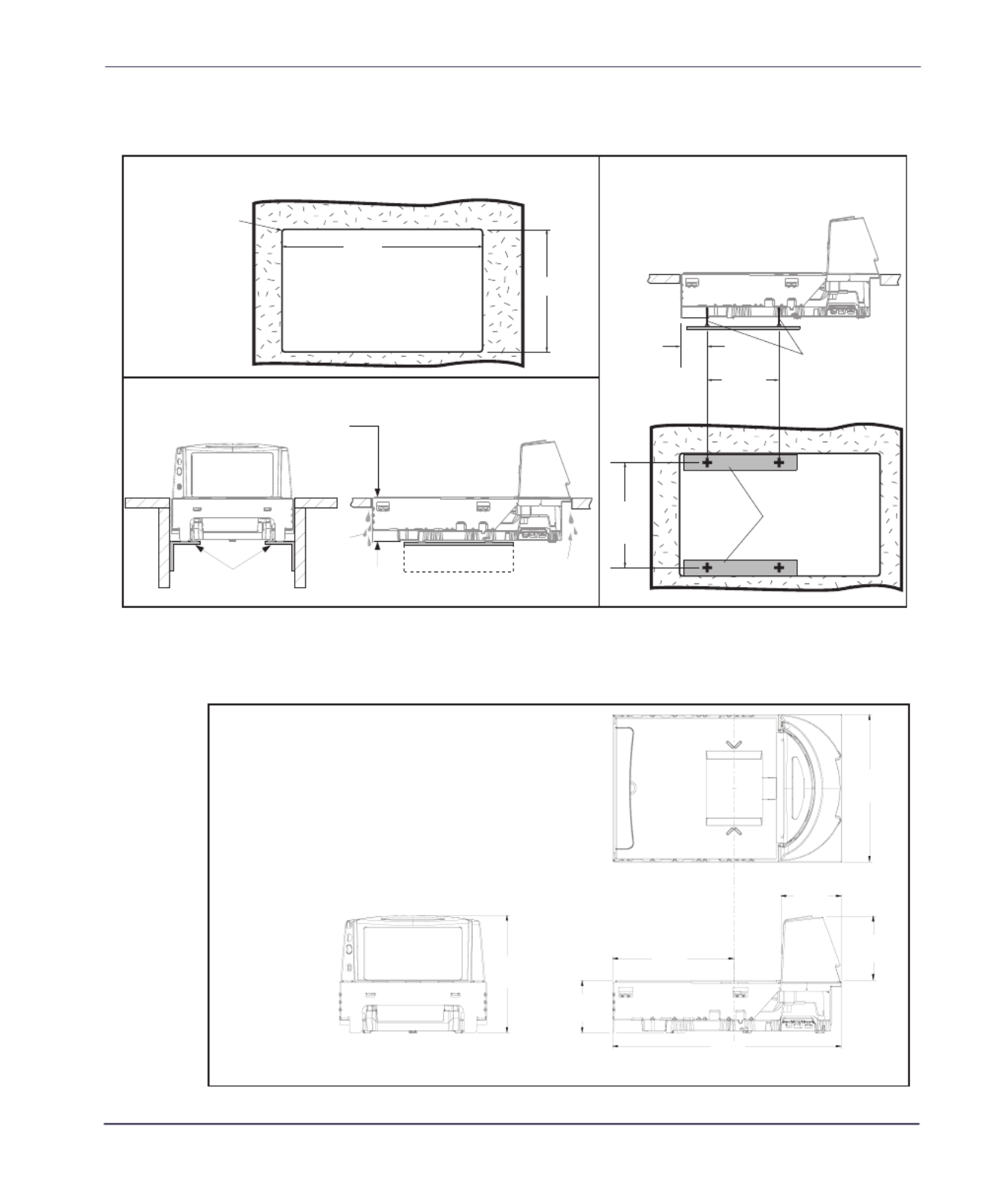

Counter Cutout ...........................................................................................................2-10
Installation Overview ................................................................................................... 2-17
Unpacking ........................................................................................................... 2-17
Scale Diagnostic Mode ...........................................................................................2-19
Cables & Connections ............................................................................................2-19

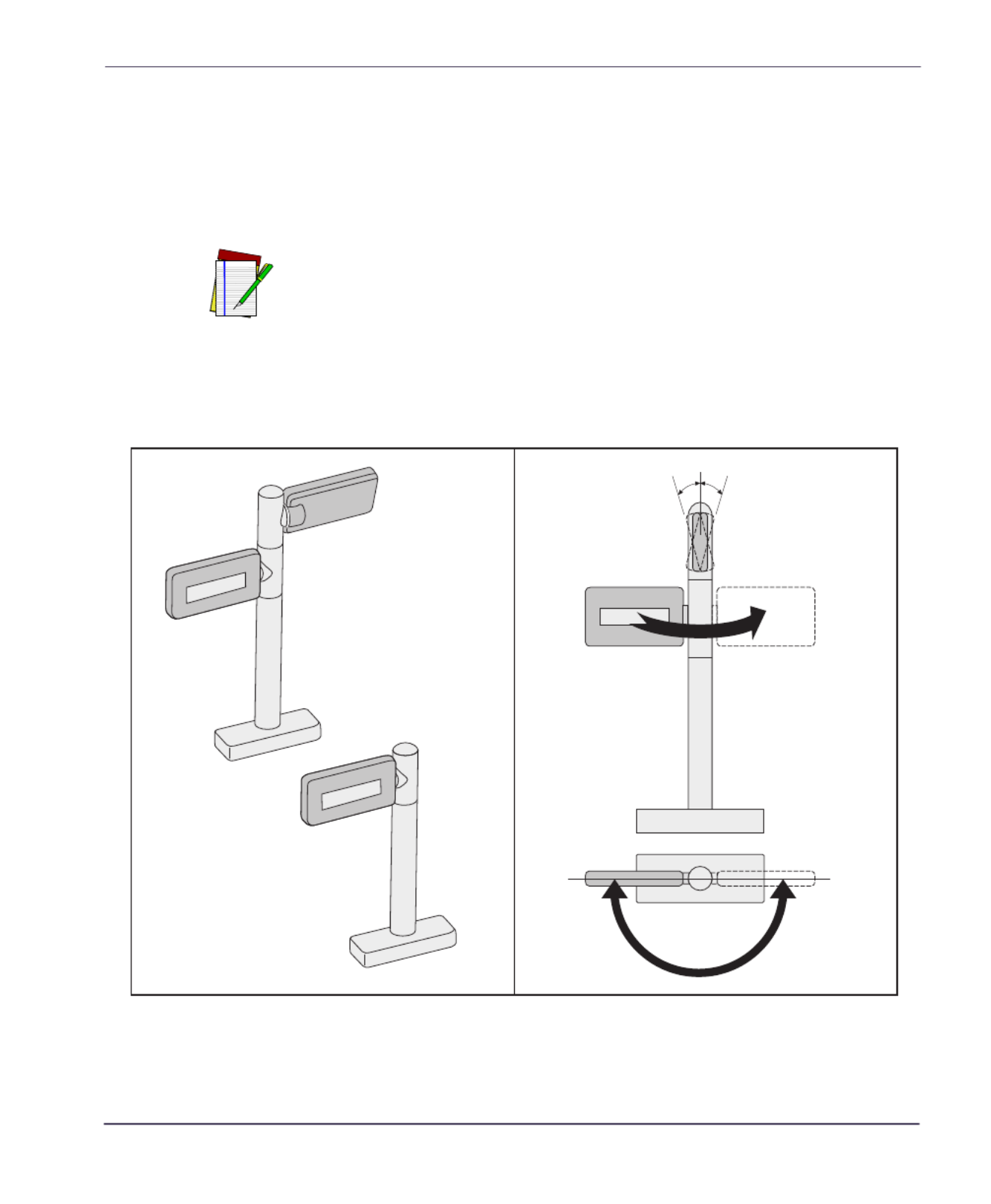

Remote Scale Display Placement/Installation ..................................................................2-20
Lighting Considerations ......................................................................................... 2-20
Viewing Angle ......................................................................................................2-21
Remote Display Cabling .........................................................................................2-22
Placing and Installing the Remote Scale Display ........................................................2-22
Set-Up & Installation ................................................................................................... 2-25
Set-up ................................................................................................................ 2-25
Installation .......................................................................................................... 2-27
Chapter 3. Problem Isolation ........................................................................... 3-1
Diagnostic Procedures .................................................................................................. 3-2
Error Codes ................................................................................................................. 3-3
1-4 Magellan® 8300/8400
Weighing
Specifications for scale capacity, settling time, minimum and maximum
static weight, zeroing, and warm-up time are given below.
Rated Weight Capacity
The scale’s operational weight capacity is:
15.000 kilograms, displayed in 0.005 increments.
Minimum Increment
The minimum weight that can be accurately measured by the scale is
0.005 kg.
Maximum Static Weight (Overload)
A maximum static weight of 68 kg can be sustained by the scale without
incurring damage or degrading performance.
Weighing
Technical Guide 1-5
Warm-Up Time
There are two pertinent warm-up times that apply to the scanner or scan-
ner/scale:
Thermal Equilibrium
When the unit is moved from a cooler temperature (such as a storage area)
to a warmer environment (such as a checkstand location), 60 minutes
must be allowed to acclimate the unit to ambient conditions prior to cali-
bration or operation.
Power-up
Once installed and powered up, a warm-up time of 15 minutes must be
allowed before calibrating or performing weighing operations.
User Configurable Warm-up
The user may configure the unit for a pre-programmed warm-up time
that is activated every time the scanner is powered up. During this time,
the scale is viewed by the POS terminal as off-line.
NOTE
The two warm-up periods can be performed concurrently, thereby reducing
the total required warm-up time to 60 minutes.
NOTE
Contact to learn more about this advanced pro-Technical Support
grammable feature.
1-6 Magellan® 8300/8400

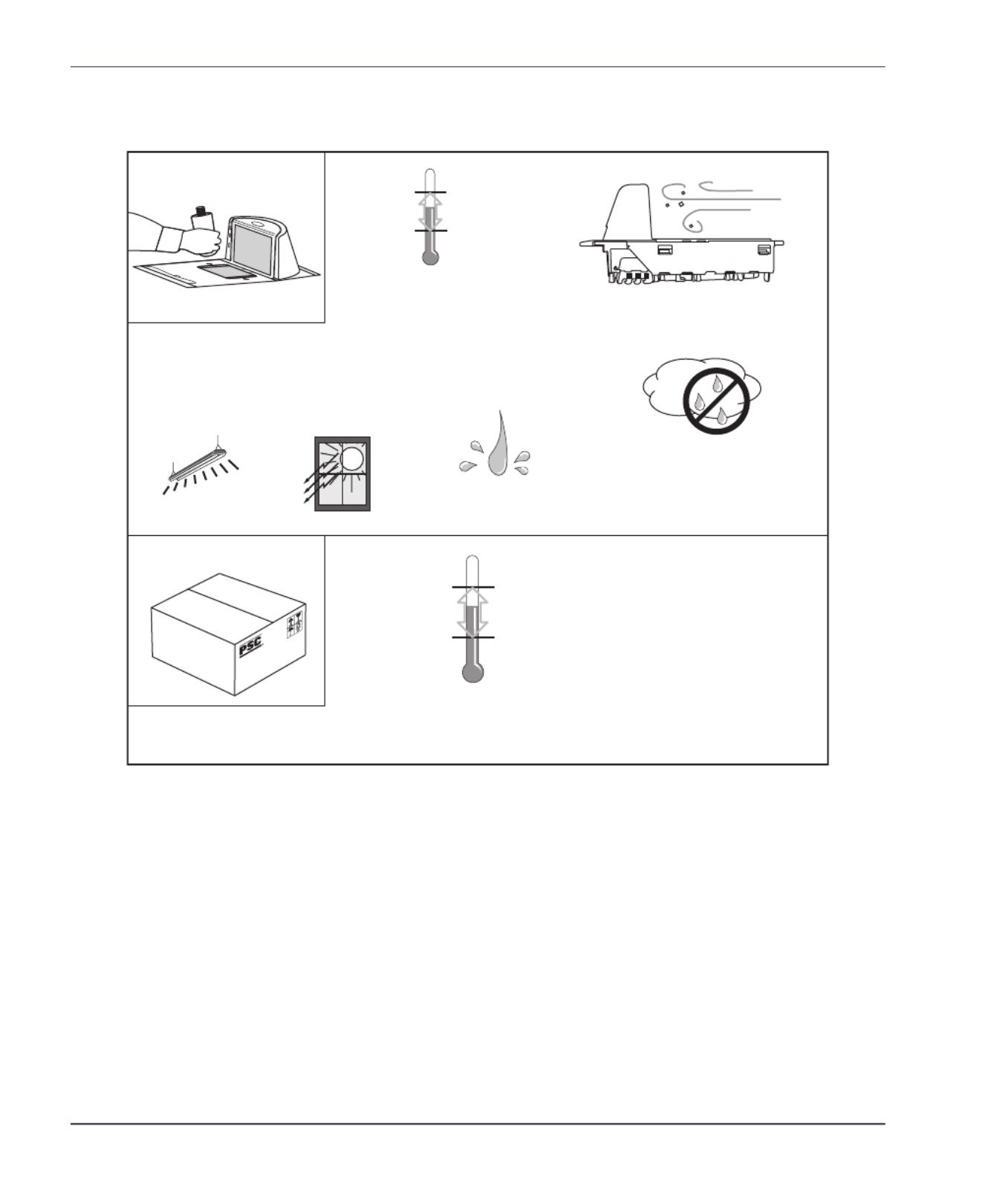

Figure 1-3. Environmental Specifications
Electrical Specifications
Before installation, always verify that the site’s electrical service meets the
scanner/scale’s requirements. The scanner has been engineered for com-
patibility with most international electrical systems operating in ranges
from 100 to 240VAC at 50-60 Hz. Verify that the power source will sup-
ply “clean” electrical power to the equipment; that is, it must be free of
excess electrical noise.
Operation
Storage
+40 C +104 F
10 C 50 F
Temperature
10° to +40° C
50° to +104° F Dust Proof Optics Cavity, IP5X
+70 C +158 F
-40 C -40 F
Temperature
-40° to +70° C
-40° to +158° F
Illumination
Artificial Light:
0-450 Foot-candles
(4,842 LUX)
Sunlight:
0-8,000 Foot-candles
(86,080 LUX)
POS Scanner
Humidity
Hot / Wet 40°C / 95% RH
Hot / Dry 40°C / 15% RH
Cold / Dry 10°C / 1 5% RH
Warm / Wet 25%C / 50% RH
Spill Proof
(Datalogic MS-0006-13-0004)
1-8 Magellan® 8300/8400
Agency Compliances
The scanner and scanner/scale meets or exceeds the requirements for its
device type as set forth by the following agencies and regulations:
COUNTRY COMPLIANCE COMMENTS
Electrical
United States UL 60950
State of California Energy Efficiency Standard
Canada CAN/CSA 60950
Europe TÜV EN 60950
Mexico NOM
Korea K-Mark
Argentina IRAM
Taiwan BSMI
China CCC
Japan PSE
Australia/New Zealand AS/NZ 60950
Emisions
United States 47CFR Part 15J FCC Class B
Canada ICES-0003 Class B
Europe EN 55022 Class B
Australia/New Zealand AS/NZS CISPR22 Class B
Japan VCCI Class B
Taiwan CNS 13438 BSMI
Korea Mic Mark
Agency Compliances
Technical Guide 1-9
Contact Datalogic®Product Marketing at (541) 683-5700, or your Data-
logic representative for a complete listing of approvals for other countries.
ROW CISPR 22 Class B
Laser Safety
United States CDRH, 21CFR Part 1040 CDRH Class IIa laser device
Europe IEC60825-1:2007
EN60825-1:2007
Class 1
Class 1
Weights & Measures
United States NIST Handbook 44 (Dept. of Commerce)
Canada Measurement Canada
Australia/New Zealand National Measurement Institute
Brazil INMETRO
EC Countries Type Approval Cert
Mexico NOM
Puerto Rico Same as USA
Singapore Spring Singapore
ROW OIML R76
Russia
COUNTRY COMPLIANCE COMMENTS
Technical Guide 2-1
Chapter 2
Site Preparation and
Installation
Models
Scanner and scanner/scale models (reference Figure 2-1) are available in
different lengths, allowing them to fit with little or no modification into
openings cut for previously installed scanners such as Datalogic
®Magel-
lan®scanners, or NCR®scanner models 7820/24 and 7870. Other mod-
els are designed for applications with smaller footprint requirements.

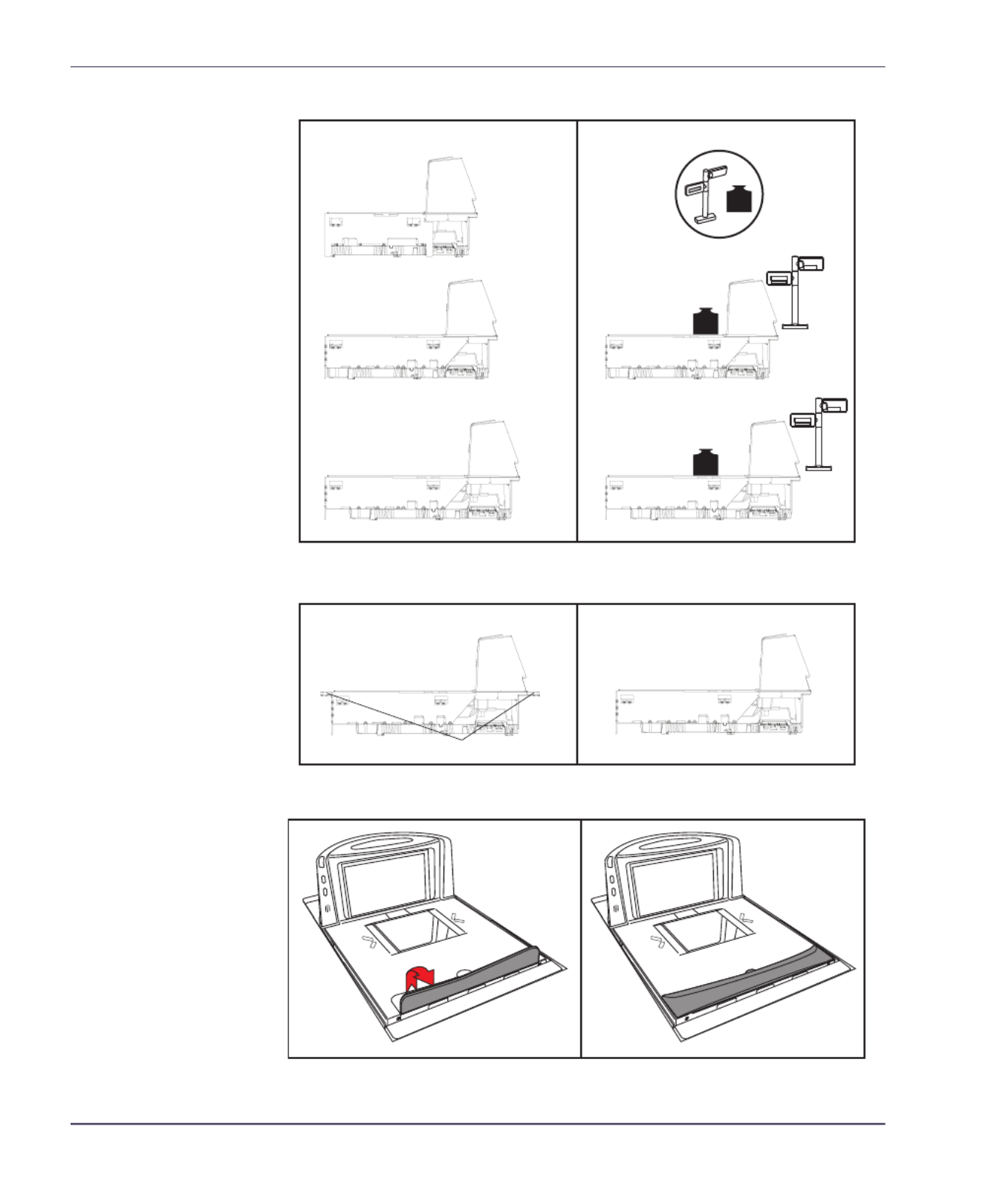

Figure 2-1 provides simplified illustrations of short, medium and long
models. The appearance of your unit may vary. Scanner/scale models also
offer an option for a raised Produce Rail, or a flip-up Produce Bar as
shown in Figure 2-3.
2-2 Magellan® 8300/8400
Figure 2-1. Model Examples
Figure 2-2. Flanged and Shelf Model Examples
Figure 2-3. Produce Bar and Produce Rail
Short
Medium
Long
Model 8301/8401
Model 8302/8402
Model 8303/8403
Scanner ONLY models Scanner/Scale models
Medium
Long
Model 8304/8404
Model 8305/8405
Flange Model Shelf Model
Flanges
Produce
Bar Option
Produce
Rail Option
Pre-Installation Considerations
Technical Guide 2-3
Pre-Installation Considerations
It should be noted that the scope of this manual does not encompass all
factors related to worker safety and checkstand design. It does, however,
offer a list of considerations that may be helpful in ensuring greater safety
and productivity. Careful planning using these general guidelines should
result in a more efficient, comfortable work environment.
The U.S. Bureau of Labor Statistics reports that the incidence of repetitive
motion injuries has increased dramatically in recent years. Checkstand
design and scanner installation and operation procedures can reduce the
risk of repetitive motion injuries, but not eliminate it.
Although there are currently no formal guidelines for checkstand ergo-
nomics, the Food Marketing Institute (FMI) and the National Institute of
Occupational Safety (NIOSH) of the Department of Health and Human
Services have released the reports listed at the end of these recommenda-
tions. These reports contain useful suggestions for ergonomic improve-
ment of checkstand designs and scanner installation, maintenance and
usage. Portions of the reports are summarized below. For copies of the
complete reports, or to inquire about any modifications to the recommen-
dations, contact FMI and NIOSH at the addresses listed at the end of
these recommendations.
Checkstand Design
1. Select a design which allows load-sharing by several muscle groups
(for example designs which allow the cashier to use both hands for
scanning and bagging).
2. Select checkstands which deliver products to the cashier on an input
belt and do not require the unloading of items from a cart. These
designs put less stress on the cashiers’ shoulders and back.
3. Minimize the distance between the input and take-away conveyors
(i.e., the distance the cashier has to reach to move the products).
4. Minimize the width of the input conveyor to reduce the cashier’s
reach to items on the far side of the belt; use a diverter to direct
products closer to the cashier.
2-4 Magellan® 8300/8400
5. Select a design which encourages the cashier to slide products across
the scanner rather than gripping and lifting. Make sure the horizon-
tal surface of the scanner is flush with all surrounding surfaces.
6. Choose a design which integrates the scanner and scale to eliminate
extended reaches and lifts during weighing tasks.
7. Provide an easily accessible bag stand at a height 13 - 17 inches (33 -
43.2 cm) lower than the top surface of the checkstand to reduce
stresses to the shoulders, elbows, and risks associated with lifting
products into bags.
8. Do not position the bag stand between the cashier and the scanner,
due to the increased reach involved.
9. Position the scanner’s horizontal scanning surface 34 - 36 inches
(86.4 - 91.4 cm) above the floor. Maintain a minimum of five
inches (12.7 cm) clearance between elbows and work surfaces.
10. Provide adjustable keyboard mounting (height, tilt, and horizontal
reach).
11. Position the printer, cash drawer, and other checkstand devices the
cashier uses within easy reach (less than 18 inches/45.7 cm).
12. Provide adequate toe space, foot rests or rails, antifatigue mats, and
where feasible, an adjustable seat or stand against which the cashiers
can lean.
Scanner Installation
1. Mount the horizontal surface of the scanner flush with the counter-
top to encourage slide scanning rather than lifting.
2. Position the centerline of the scanner read area 8 - 10 inches (20.3 -
25.4 cm) from the edge of the checkstand (cashier side).
Scanner Maintenance
1. Keep scanner windows clean. This will improve productivity and
reduce rescans.
2. Replace scanner glass when excessive scratches are evident.
2-6 Magellan® 8300/8400
Service Access Requirements —
Routine operations such as ‘zero-
ing’ and calibration do not require removal of the scanner from the check-
stand or disassembly of the product. The installer should plan service
access for the AC/DC Power Supply and cables.
Recommended Power Installation —
Since the typical grocery envi-
ronment includes conveyor belts and electric motors, care should be taken
to ensure that the scanner has a supply of “clean” power (power without
excessive electrical noise). A wiring diagram shows the recommended wir-
ing that will provide the scanner with a “clean” source of power. Refer to
Figure 2-6.
Counter Preparation —
Since the majority of grocery checkout lanes
are designed as “left-hand take away,” the counter drawings in this chapter
focus on this counter design. Simply reverse the layout for a “right-hand
take away” requirement. The unit scans equally well in either of these two
configurations.
Liquid Drainage —
Should a liquid spill occur, ensure that moisture can
flow through the checkstand without pooling.
Leveling —
Plan ahead and provide screws/bolts in the checkstand
mounts and a leveling guide (board) to allow leveling of the scanner or
scanner/scale within the counter. Use a 0.375” thick board to replicate the
mounting flange on the long scanner or scanner/scale, and adjust screws
or bolts until the board is flush within the counter. Use a 4.0” wide board
stood on its end to adjust leveling screws/bolts in rail support applications.
Cable Routing —
Placement of the scanner/scale should be planned to
allow easy access to other components as well as optimize communication
between the scanner, the POS terminal, the optional Remote Scale Dis-
play and any EAS peripheral equipment. Do not route interface cables
near any electrical motors or other sources of electromagnetic interference.
Remote Scale Display Placement —
The customer, and checker in
some instances, must be able to easily view and read the Remote Scale Dis-
play. Ambient light and mounting height considerations are discussed
later in this chapter.
Ventilation and Spacing
Technical Guide 2-7
Vertical Clearance —
Provision must be made to allow adequate space
above the scanner bonnet for removal and replacement of an L-shaped
platter. Optimal clearance permits the platter to be grasped at its top verti-
cal edge and lifted for removal without obstruction (such as a fixed key-
board mount or any type of enclosure). Should such an enclosure be
unavoidable, an alternate method of platter removal using two coins may
be employed, however a minimum vertical clearance of 1.5” (3.8 cm)
MUST be provided (reference ). Another consideration is thatFigure 2-4
the scan zone must be kept free of obstructions such as enclosures, key-
board mounts, etc.
Figure 2-4. Vertical Clearance
Ventilation and Spacing
The scanner/scale’s perimeter housing has been designed to provide ade-
quate space for convective cooling and unrestricted movement of the
weighing apparatus. shows the debris chutes and ventilationFigure 2-5
slots. The checkstand design must allow:
The ambient air temperature inside the checkstand adjacent to the
scanner must not exceed 104°F (40°C).
DO NOT
Ob tr cts u
S ac n Zone
DO NOT
Ob tr cts u
L-Pl ttera
Removal
Allow minim ma u
cle r nce ofa a
1.5" ( . cm)3 8
(Enclo re)su
(Keybo rd Mo nt)a u
Power Installation
Technical Guide 2-9
Power Installation
Reference the wiring diagram in for the recommended fusingFigure 2-6
arrangement.
Grounding
The AC/DC Power Supply should have an AC outlet with a clean earth
ground. If you are not sure how to verify the amount of electrical noise
(interference) on the power line, ask a qualified electrician to measure the
input line voltage.
Figure 2-6. Input Power Wiring
AC/DC Power
Supply
Power
Mains
Line
Neutral
Ground
Earth
Ground
Panel
Ground
Panel
Ground
Main
Breaker
Panel
Checkstand
Breaker Panel
Line
Neutral
Ground
Line
Neutral
Ground
Lighting
Inductive Loads
(e.g. Conveyor Belts, Motors, etc)
Scanner or
Scanner/Scale
POS Terminal
On/Off
Switch
On/Off
Switch
Counter Cutout
Technical Guide 2-11
3. Install the AC/DC Power Supply, the Remote Scale Display cable (if
Remote Display is used) and the interface cable(s) observing the fol-
lowing:
Interface cables (and display cable, if applicable) should be
routed away from all highly inductive electrical devices, like
motors and conveyor belts, and even away from the unit’s
power cable if possible.
Cables should be easy to remove in the event that replace-
ment is required. A little planning now will save a lot of frus-
tration later.
4. Connect and verify all system operations.
The scanner should be installed so that leading and trailing edges of the L
-Platter are flush with the countertop to enhance smooth, slide-through
scanning (reference the insert in ). Keep in mind that theFigure 2-7
debris chutes on both sides of the platter provide the necessary clearance
for proper scale operation if you are installing a scanner/scale (you won’t
need to provide an additional gap for that).
Table 2-1. Cut-Out Dimension References
MODEL(s) TYPE FLANGE/SHELF OPTION DIMENSIONAL REFERENCE
8302/8304
8402/8404 Medium Scanner/Scale Shelf Figure 2-8
8302/8304
8402/8404 Medium Scanner/Scale Flange Figure 2-10
8303/8305
8403/8405 Long Scanner/Scale Shelf Figure 2-12
8303/8305
8403/8405 Long Scanner/Scale Flange Figure 2-14
2-12 Magellan® 8300/8400
Figure 2-7. Typical Checkstand Design & Cutout Location
Option la
Item Diverter
Conveyor
De dpl tea a
S ac nner
B gginga
Area
Take-Away
Belt
Key o rdb a
Remote Di pl ys a
PO Termin lS a
& Printer
Check
Writing
S at nd
(Option l)a
S gcan & Ba
Well
(Optional)
6. " 3
(16.0cm)
C h Dr weras a
(Below c nner)S a
Flu h — Corrects
Above Flu h — Incorrects
Below Flu h — Incorrects
Counter Cutout
Technical Guide 2-13

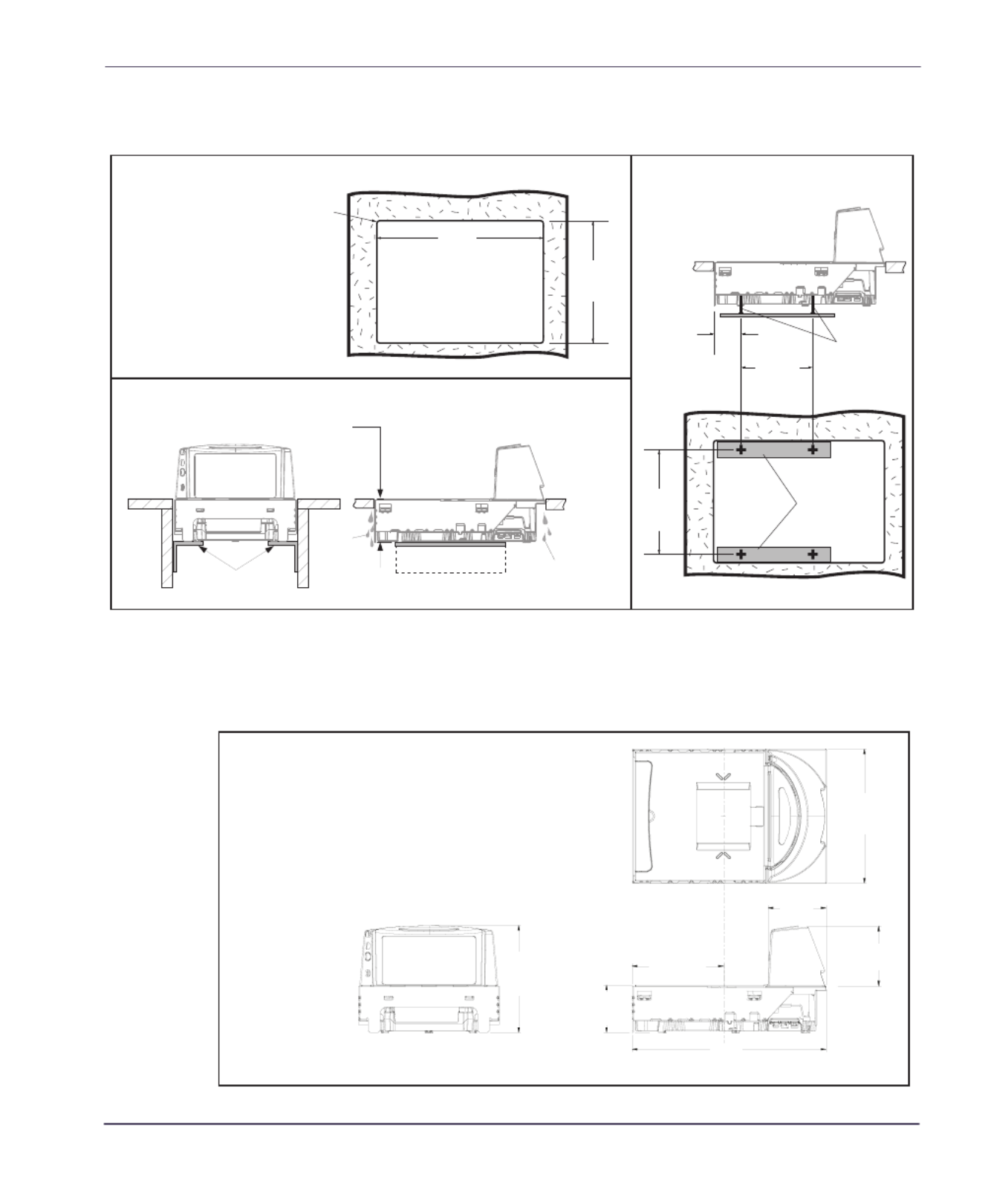

Figure 2-8. Medium Shelf Models 8302/8304/8402/8404
Cutout Dimensions
Figure 2-9. Medium Shelf Models 8302/8304/8402/8404
Scanner Reference Dimensions
Models 8302/8304/8402/8404 (Medium Shelf)
Minimum Cutout
Dimensions
Optional Leveling Feet
11.625"
(29.53cm)
min.
Max. Radius = 0.25"
(0.635cm) 4x
15.825"
(40.2cm)
min.
Models 8302/8304/8402/8404 (Medium Shelf)
Supports 4.08" ( )103.6mm
Liquid
Drainage
Liquid
Drainage
Support Rails
6.89"
(17.5cm)
1.76"
(4.47cm)
10.83"
(27.5cm)
Shelf/
Support Rails
Leveling
Feet
Models 8302/8304/8402/8404 (Medium Shelf)
Scanner Reference Dimensions
7.5"
(19.05cm)
4.08"
(10.36cm
± 0.15cm)
15.71"
(39.9cm ± 0.15cm)
4.59"
(11.7cm)
11.5"
(29.21cm
± 0.1cm)
5.19"
(13.2cm)
9.27"
(23.6cm
± 0.2cm)
2-14 Magellan ® 8300/8400
Figure 2-10. Medium Flanged Models 8302/8304/8402/8404
Cutout Dimensions
Figure 2-11. Medium Flanged Models 8302/8304/8402/8404
Scanner Reference Dimensions
Models 8302/8304/8402/8404
(Medium Flanged)
Minimum Cutout Dimensions
Models 8302/8304/8402/8404
(Medium Flanged)
Supports
18.00"
(45.7cm)
16.625"
(42.23cm)
0.75"
(1.9 cm)
1.5"
(3.8 cm)
0.75"
(1.9cm) 0.75"
(1.9cm)
4.0"
(10.2 cm)
0.375" (0.95cm)
Liquid
Drainage Liquid
Drainage
18.00"
(45.7cm)
16.625"
(42.23cm)
Max. Radius = 0.25"
(0.635cm) 4x
0.75"
(1.905cm)
Rail
Rail
(Center Line)
0.75"
(1.905cm)
0.375"
(0.952cm)
0.375"
(0.952cm)
If leveling feet are needed,
use the placement shown here,
represented with plus signs (+).
3.06"
(7.77cm)
3.06"
(7.77cm)
11.625"
(29.53cm)
Models 8302/8304/8402/8404 (Medium Flanged)
Scanner Reference Dimensions
7.5"
(1.905cm)
1.0"
(2.54cm)
4.08"
(10.36cm
± 0.15cm)
15.71"
(39.9cm ± 0.15cm)
1.125"
(2.86cm)
0.375"
(0.95cm)
4.59"
(11.7cm)
11.5"
(29.21cm
± 0.1cm)
5.19"
(13.2cm)
9.27"
(23.6cm
± 0.2cm)
Counter Cutout
Technical Guide 2-15
Figure 2-12. Long Shelf Models 8303/8305/8403/8405
Cutout Dimensions
Figure 2-13. Long Shelf Models 8303/8305/8403/8405
Scanner Reference Dimensions
Models 8303/8305/8403/8405 (Long Shelf)
Cutout
11.625"
(29.53cm)
Max. Radius = 0.25"
(0.635cm) 4x
17.87"
(45.4cm)
Models 8303/8305/8403/8405 (Long Shelf)
Supports 4.08" ( cm)10.36
Liquid
Drainage
Liquid
Drainage
Support Rails
Optional Leveling Feet
6.89"
(17.5cm)
1.76"
(4.47cm)
10.83"
(27.5cm)
Shelf/
Support Rails
Leveling
Feet
Models 8303/8305/8403/8405 (Long Shelf)
Scanner Reference Dimensions
9.27"
(23.6cm
± 0.2cm)
9.5"
(24.13cm)
17.75"
(45.1cm ± 0.15cm)
4.59"
(11.7cm)
11.5"
(29.21cm
± 0.1cm)
5.19"
(13.2cm)
4.08"
(10.36cm
± 0.15cm)
Remote Scale Display Placement/Installation
Technical Guide 2-21
Viewing Angle
The optimum display angle is directly facing the viewer. Tilt and rotatioin
adjustments can be made as shown in Figure 2-17b. To ensure that dis-
plays are easily readable for customers/cashiers of average height, display
heads should be between 48” to 60” (122 to 152 cm) from the floor.
Figure 2-17. Modular/Adjustable Remote Scale Display
NOTE
Check with local Weights and Measures authorities regarding proper posi-
tioning of scale displays used in retail trade.
1 0˚8
Rot tiona
15˚
Upw rd ora
Downw rd Tilta
1 0˚8
Rot tiona
15˚ 15˚
D l Di pl yua s a
He da s
S s aingle Di pl y
He da
ab
Technical Guide 3-1
Chapter 3
Problem Isolation
In the event of a suspected functional problem, use the troubleshooting
references provided in this chapter. This useful information will help you
to identify and resolve the cause of the problem.
The scanner/scale has a number of features that indicate when a scanner or
scale problem occurs. The unit may:
emit a series of tones
light the 7-segment (FRU status) display
flash one or more LEDs
display error codes on the Remote Display (if installed)
Three error reporting modes are used: Power-Up Selftest, Operational
tests and Diagnostic tests. These test sequences are explained on the fol-
lowing pages.
Power-Up Selftest
The Power-up Selftest is a pre-operational series of tests that must be suc-
cessfully completed before the scanner indicates readiness for operation.
This pre-operational period is the time between power-up and normal
operation during which the motor comes up-to-speed and software, firm-
ware and hardware are being tested. These tests ensure that all subsystems
are fully functional before turning on the Visible Laser Diode (VLD).


Produkt Specifikationer

Mærke: Datalogic
Kategori: Stregkodelæser
Model: Magellan 8302

Har du brug for hjælp?

Hvis du har brug for hjælp til Datalogic Magellan 8302 stil et spørgsmål nedenfor, og andre brugere vil svare dig
