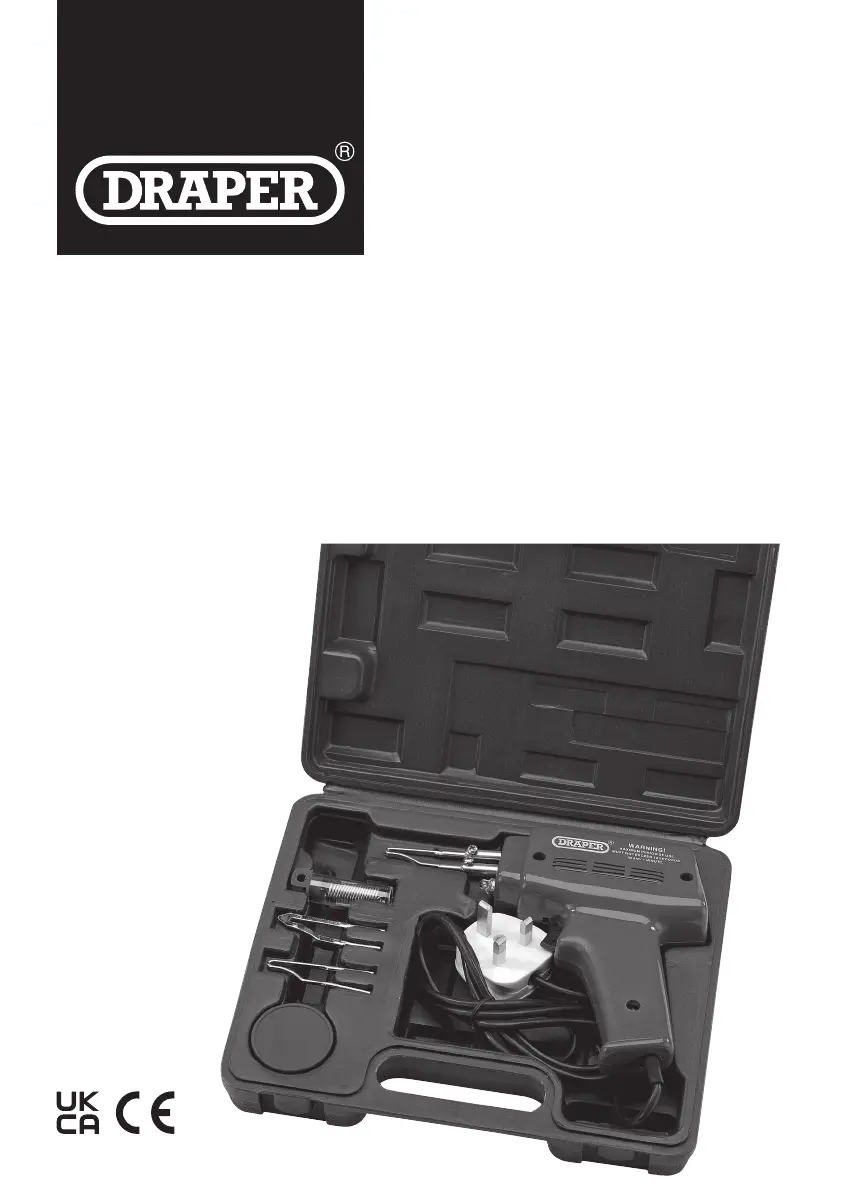

Side 1/4

Original Instructions

Version 2 – July 2025

100W 230V

SOLDERING

71420

GUN KIT

Read this manual in full before using this product and

retain it for future use. Always use the latest version of

the manual. Please visit drapertools.com/manuals for

the latest version.

Version 1: October 2021

First release

Version 2: July 2025

1. Intended Use

This soldering gun kit is designed for carrying out a

range of soldering applications. Any other application

beyond the conditions established for use will be

considered misuse. Draper Tools accepts no

responsibility for improper use of this product.

2. Specication

Stock No. 71420

Part No. SG100

Rated voltage 230V/50Hz

Rated input 100W

3. HealthandSafetyInformation

Important: Read all the Health and Safety instructions

before attempting to operate, maintain or repair this

product. Failure to follow these instructions may result

in injury or damage to the user, the product or

the workpiece.

3.1 General Health and Safety Precautions

• DO NOT use if the soldering gun is damaged or any

parts are missing.

• DO NOT leave the soldering gun unattended and keep

out of the reach of children.

• Unplug the soldering gun from the power supply when

not in use. Allow to cool before changing the

soldering tips.

• Wear appropriate protective clothing and safety

eye protection.

• DO NOT put the hot soldering gun down on any

delicate or ammable surfaces.

• Ensure the work piece is adequately held before

operating the soldering iron.

• NEVER use the soldering gun outside or in the rain.

• NEVER dismantle the soldering gun.

• DO NOT allow foreign objects to enter the soldering

gun as they may cause internal damage.

3.2 Connection to the Power Supply

CAUTION! Risk of electric shock.

DO NOT open.

This appliance is supplied with an approved rewireable

plug and cord for your safety.

If the power supply cord is damaged, it must be replaced

by Draper Tools, an authorised service agent or similarly

qualied personnel in order to avoid a hazard.

The damaged or incomplete plug, when cut from the

cord, shall be disabled to prevent connection to a live

electrical outlet.

This appliance is Class II† and is designed for connection

to a power supply matching that detailed on the rating

label and compatible with the plug tted.

The value of the fuse tted is marked on the pin face of

the plug. Should the fuse need replacing, unscrew the

face of the plug and remove the fuse. Ensure the

substitute is of the correct rating, approved to BS 1362

and ASTA or BS Kite marked. This should only be

performed by suitably qualied personnel.

ASTA

BSI

†Double insulated : This product requires no earth

connection as supplementary insulation is applied to the

basic insulation to protect against electric shock in the

event of failure of the basic insulation.
