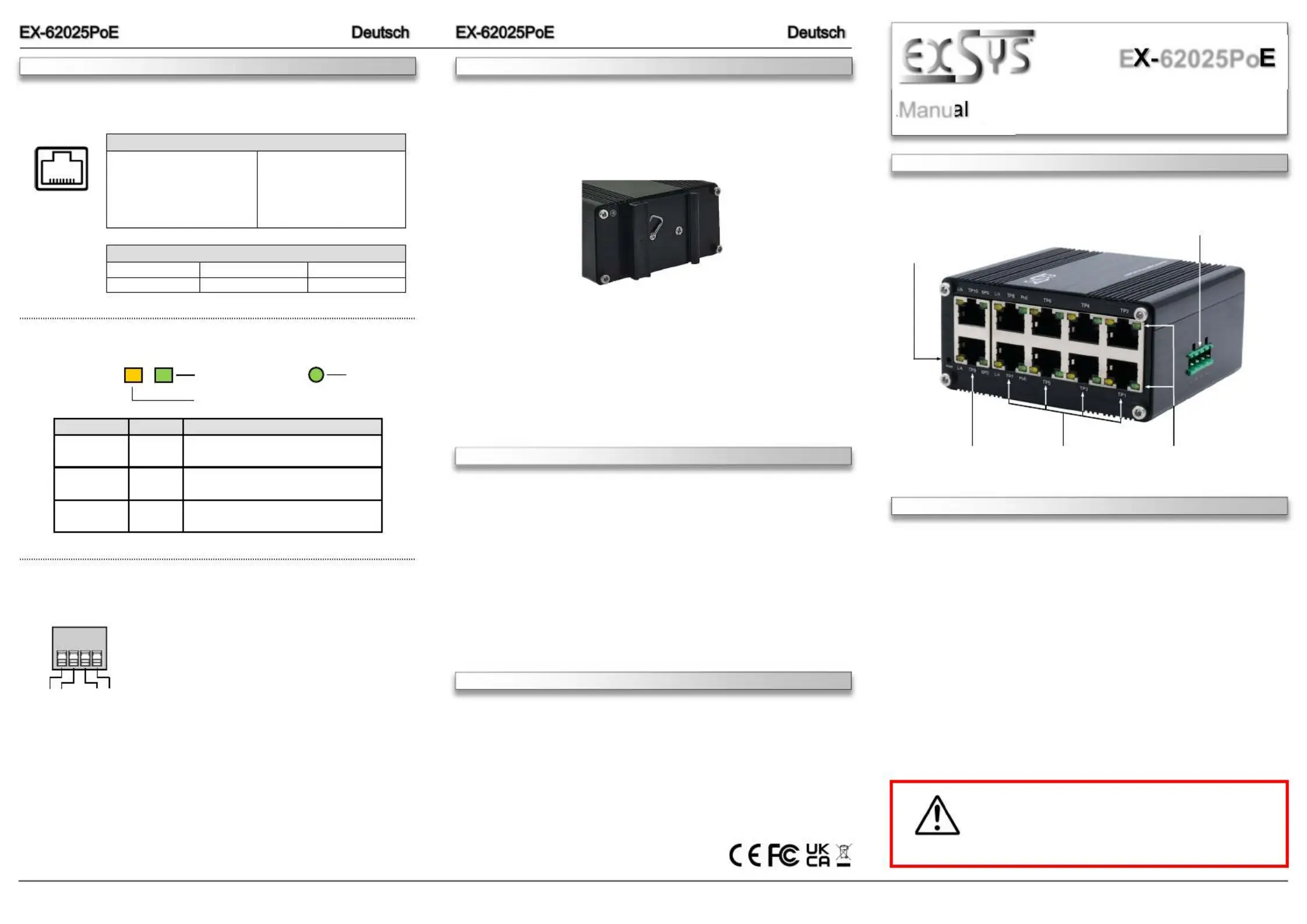

Side 1/2

Switzerland:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Germany:

EXSYS Vertriebs GmbH

Industriestrasse 8

61449 Steinbach

www.exsys.de

Italy:

EXSYS Italia Srl

Via Belvedere, 45/B

I-22100 Como

www.exsys.it

Anleitun

Vers. 1.2 / 10.12.24

ATTENTION!

Please pay attention to the correct polarity!

Never connect the power supply to the terminal block

while it is switched on!

Redundant power supply possible to reduce operational failure.

Both power supplies must use the same voltage!

E 62025Po

Kompatibilität: Gigabit Ethernet 10/100/1000Base-T

PoE: IEEE 802.3af/at (PoE+), Mode/Alternative B

Betriebssysteme: Alle Betriebssysteme

Anschlüsse: 10x RJ45-Buchse (8x PoE+), 1x Terminal Block 48~57VDC

Lieferumfang: EX-62025PoE, DIN-Rail Kit, Anleitung

Der wohl kleinste industrietaugliche 10-Port Gigabit PoE-Switch EX-62025PoE bietet trotz

seiner äusserst geringen Aussenmaße volle Gigabit Leistung an allen 10 Ports. An acht

Downlink-Ports stehen jeweils bis zu 30W für den Anschluss von PoE Power Devices (PD) wie

z.B. IP-Kameras oder IP-Telefone zur Verfügung. Dank dem robusten Metallgehäuse und dem

erweiterten Betriebstemperaturbereich von -40°C bis 80°C ist er für eine Vielzahl von

Anwendungen auch in rauen Umgebungen geeignet. Die Stromversorgung erfolgt über den

Terminal Block (48~57VDC) und kann zur Verminderungen von Betriebsausfällen auch

redundant erfolgen. Der EX-62025PoE unterstütz Auto-MDI/MDI-X und Auto-Negotation.

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

48-57V T-Block für optional

erhältliches Netzteil

Betriebs LED

8x RJ45

Gigabit PoE

PoE / Status-LEDs 2x RJ45

100/1000 Mbit/s

Please read the following installation instructions.

1. Install the EX-62025POE on a mounting rail using the DIN-Rail kit.

2. Connect the power connector of the optionally available power supply to the terminal block

and turn on the power supply.

3. When the power is turned on, the PWR indicator lights up. If the indicator is not lit, check

for proper connection to the power supply.

4. Connect your network devices to the switch using a network cable.

5. If all cables are connected correctly, the indicators light according to the port status of the

LEDs (page 5).

HARDWARE INSTALLATION

CONNECTORS & LED'S

87654321

RJ45 Port

Pin Signal PoE Pin Signal PoE

1 BI_DA+ 5 BI_DC- VCC+

2 BI_DA- 6 BI_DB-

3 BI_DB+ 7 BI_DD+ VCC-

4 BI_DC+ VCC+ 8 BI_DD- VCC-

LINK / Activity LED

PoE LED

48V to 57V T-Block:

Status LEDs:

LED Name Color LED Function

LINK (ACT) Yellow

On: Linked

Flashing: Data Transmission

Speed (SPD)

Green

On: 1000 Mbit/s

Off: 10/100 Mbit/s

PoE Green

On: PoE is activated

Flashing: Power Device (PD) detected

Off: No (PD) device connected

V- V+

RJ45 Port:

SPD LED

Power over Ethernet IEEE802.3af/at (PoE+), Mode B

PoE Budget

Port 1-8 30W / Port Total 240W

Port 9+10 - -

ACHTUNG!

Bei geerdetem Minuspol der Stromversorgung

unbedingt den Technischen Hinweis auf Seite 3

beachten.

To clean the unit, use only a dry, lint-free cloth and apply light pressure to remove dirt. Take

care not to leave any fibres of the cloth in the connectors.

Never use a damp or wet cloth for cleaning!

CLEANING

TECHNICAL NOTE

Procedure for STP Cable Grounding

When using shielded cables to connect two Ethernet devices, a ground loop may occur if the

shielding on the cables generates an additional grounding connection path. This can cause

ground current to flow through to the Ethernet ports and damage the devices. If it is necessary

to use shielded cables, we recommend using a metallic RJ45 connector on one end and a non-

metallic connector on the other end. Alternatively, a patch panel can be used in between the

two devices to prevent ground loops from occurring.

For connections over short distances (e.g., between two devices installed in the same cabinet),

both ends of the shielded cable can be referenced to the same grounding point. Therefore, in

this case, it is acceptable to use a shielded cable with metallic RJ45 connectors on both

devices.

The DIN-Rail Kit is pre-assembled with

two screws on the rear side
