RS- 232 to Fiber Optic Converter

1. Introduction

Thank you for purchasing this RS232 to Fiber Optic Converter. It is designed to

extend RS232 signals over optical fiber. It provides the most versatile connection

possible between any asynchronous RS232 equipments using fiber optic cable.

The optical fiber isolates the data signals from ground potential, ground loops and

provides EMI/RFI protection. There are 2 models, single mode and multi mode. - -

The multi mode converter is used to extend serial transmission distance up to -

2Km. The single model converter extends up to 40Km. -

Features:

 Provides 1 RS232 Port over Fiber Optic

 Provides 1 RS232 DB9 Male Connector

 Fiber Optic: SC, Multi Mode, 850nm, Duplex

 SC, Single Mode, 1310nm, Duplex

 RS232 Baud Rate from 300bps to 921.6Kbps

 Protects Against Electrical Interference or Chemical Corrosion

 Extends RS232 Transmission up to 2Km, multi mode (or 40Km, single mode- -

Distance

 15KV ESD Protection for Serial Port Signals

 Powered by Serial Connector or External DC Jack

 Provides both Wall Mounting and DIN RAIL Kits

 Compact Size

2. Layout

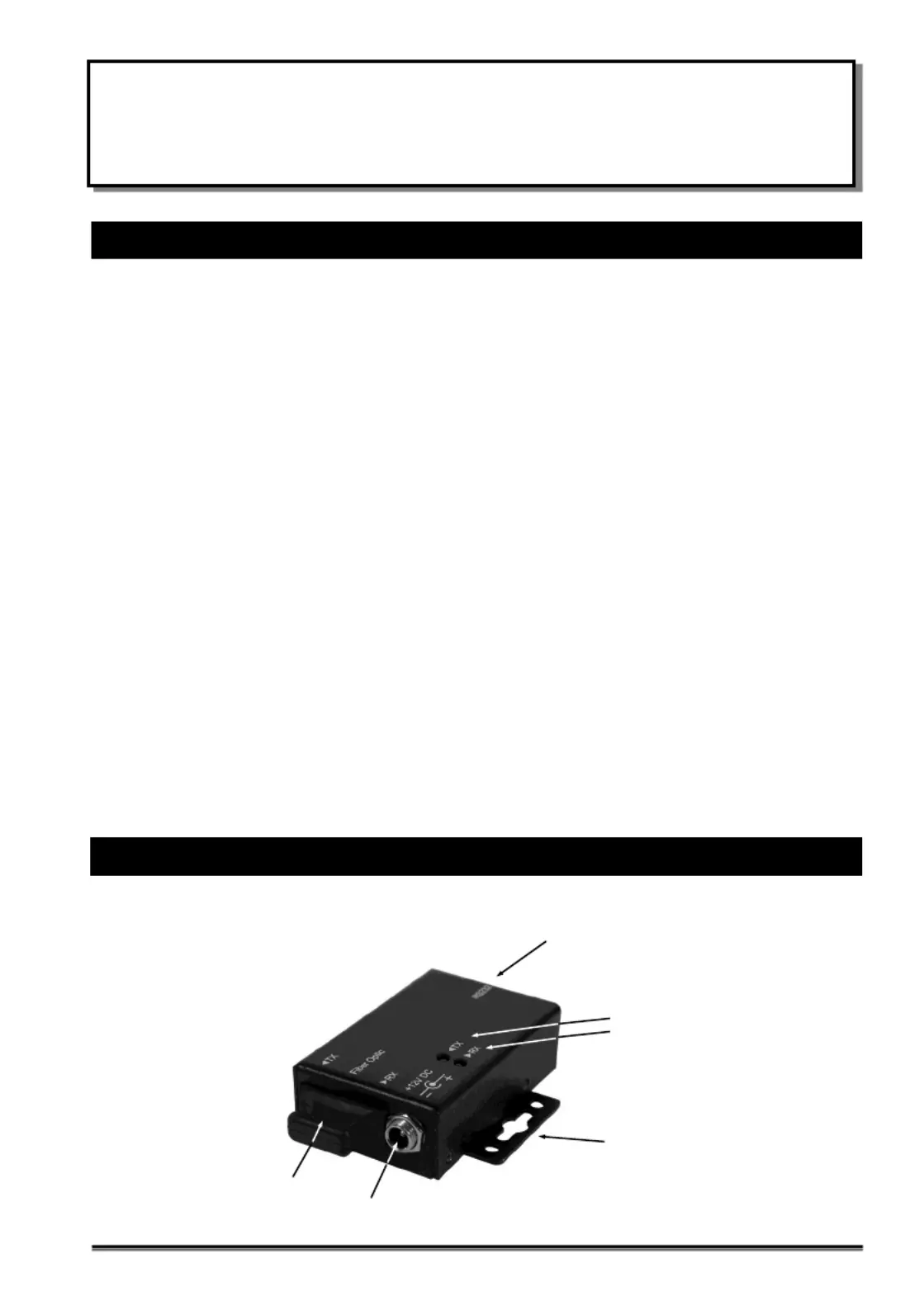

RS232 DB9 male connector

Fiber TX LED

Fiber RX LED

DIN RAI Mounting Kit

12V DC Jack

Fiber Optic

Transceiver

RS- 232 to Fiber Optic Converter

There are 2 green LEDs on the top of the Converter: Windows XP

3. LED Description

LED Color Function

TX Green Blinking when the Fiber is sending data

RX Green Blink when the Fiber is receiving data

4. Hardware Installation

1. Use static electricity discharge precautions.

Remove possible static discharge potential from any objects that the Converter

may come in contact with before installation. This can be accomplished by touching

a bare metal chassis rail after you have turned off the power.

2. Connect the AC power adapter, you need a 12V DC type adapter, either a screw

lock type or non screw lock type will do. The AC adapter supplied with the Convert-

er is a screw lock type.

3. Connecting Fiber Cable: Please remove the protection cover on the fiber connect-

or, connect the fiber cable to it. Please note that the single mode fiber cable is dif--

ferent from the multi mode. You have to check the correct Converter you are con--

necting.

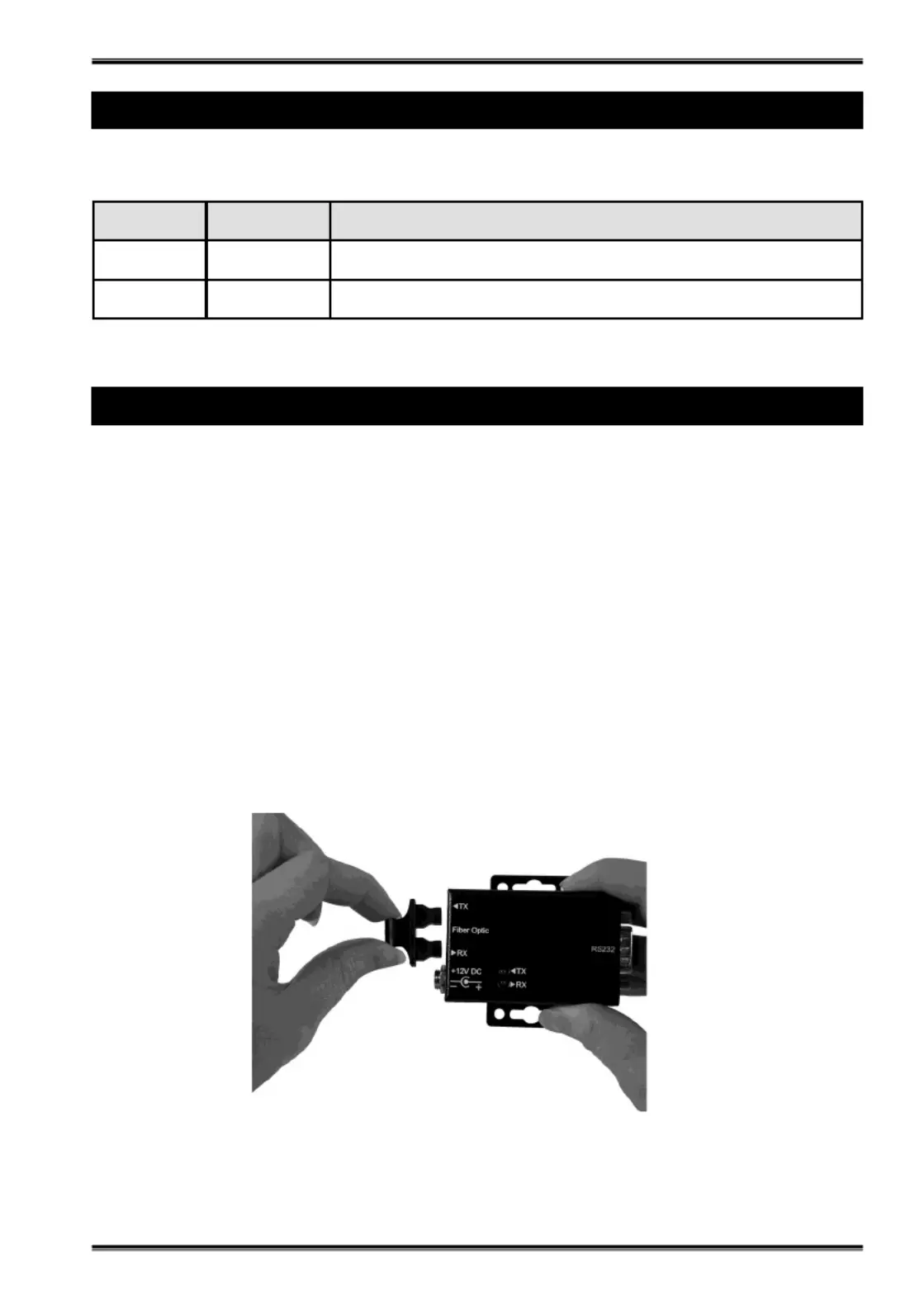

• Removing the fiber protection cover:

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	Ikke kategoriseret
Model:	EX-6300SM
Produktfarve:	Sort
Forbindelsesteknologi:	Ledningsført
Mac kompabilitet:	Ingen
Værtsgrænseflade:	Seriel
Stik:	SC
Maksimal driftstilstand:	20000 m
