EV84A

CLIMATE CONTROL UNIT FOR

FLOOR-MOUNTED HEATING/COOLING SYSTEM

CONTROL

Use

This electronic control unit allows you to automatically

adjust the temperature of delivered water depending

on the external temperature changes, by controlling

the mixing valve and the respective circulating pump

(if available in the system to be controlled). A humi-

dostat input (normally open) is also available, which

turns the system off if the humidity level exceeds a

given limit value.

Operation

The purpose of the EV84A unit is to keep the deliv-

ered water temperature constant, depending on the

external temperature. When the program is selected,

the device calculate the FLOW TEMPERATURE: the

latter is calculated through interpolation by using the

set ow temperature values for four external tem-

perature values:

Winter: TextMin, 0° , 10° , TextMax

Summer: TextMin, 27° , 30° , TextMax

FANTINI COSMI S.p.A.

Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY

Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it

EXPORT DEPARTMENT

Ph +39 02 95682229 | export@fantinicosmi.it

Selecting a language

The language used for displaying the menus can be

selected during the installation phase. Keep button

“+” depressed, with the control unit OFF, then power

the control unit. When the “SCELTA LINGUA:” icon

appears, release button “+” and scroll through the

available languages by means of buttons “+” and “–“.

Once the desired language has been found, press

button “>”. The unit will display the information in the

chosen language:

Adjustment curves

The control unit features a “Summer” curve and a

“Winter” curve: both of which are used to calculate

the ow temperature. The curve can be selected by

means of the SUMMER/WINTER manual control,

which consists of a clean contact on terminal block

“A” terminals 7 and 8.

The “Winter” and “Summer” curves represent the ow

temperature values depending on the external tem-

perature.

The curves are calibrated by setting the four ow tem-

perature values relative to four external temperature

values.

“Winter” curve

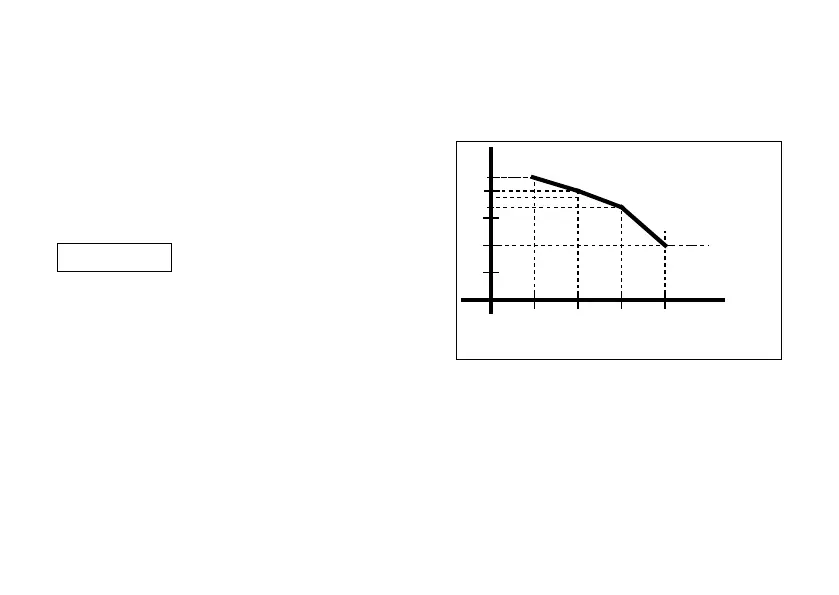

Adjustment broken line

The two extreme points of the broken line (TextMin

– TextMax) can be customized for possible system

operation optimization.

Flow temperature limit values that can be set:

Max. ow temperature: 50°C

Min. ow temperature: 20°C

0°C 10°C

T.Esterna

T.Mandata

TextMax

(15°C -

25°C)

TextMin

(0°C-

-20°C)

FLOW TEMP.

SCELTA LINGUA:

-> ENGLISH

OUTSIDE

TEMP.

TextMin 0°C 10°C TextMax

(0°C / -20°C) (15°C / 25°C)
