Side 1/2

Fea

eatures of

tures of

tures of GY470

GY470

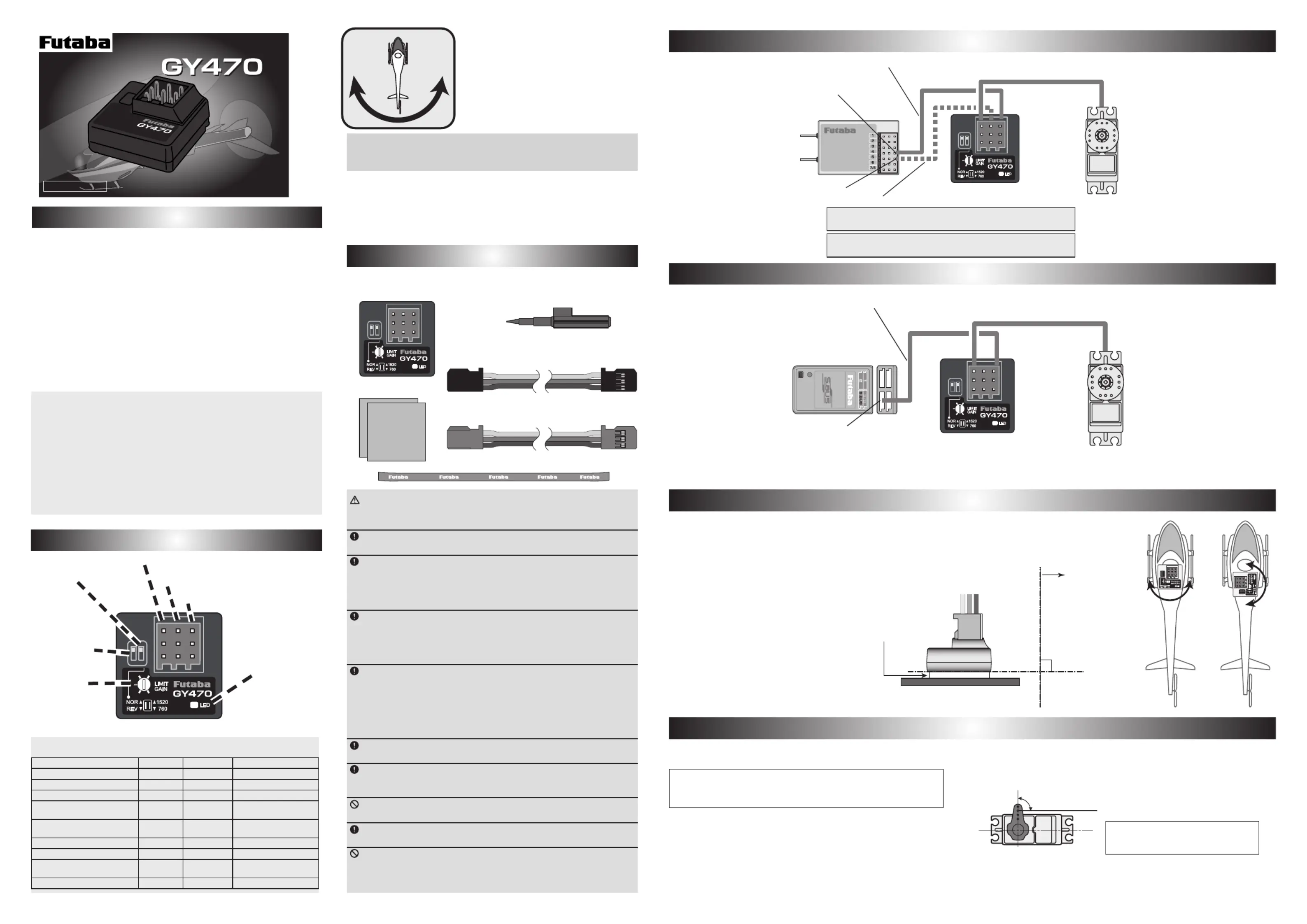

GY470Features of GY470

Set Contents

Set ContentsSet Contents

The following items are supplied with the GY470:

Functions

FunctionsFunctions

Mini screwdriver

Sensor tape

Extension Cord: (Black)

Extension Cord: (Red)

Wiring strap

GY470

Monitor LED display

State Color Move Reference

1. GY470 Power ON Orange 2 blinks

2. No servo pulse / Error Red Slow blink

3. Signal input from receiver Green Fast blink

4. Sensor initialization Red/Green ON

AVCS (Red)

Normal (Green)

5. Turn Red/Green Fast blink

Right (Green)

Left (Red)

6. Neutral offset

Orange Slow blink Stick operation

7. Gain off

OFF

8. Switch operation Green One blink

Each time of switch

operation

9. Low battery Red One ﬂash Less than 3.8 V

You can adjust gain from the transmitter by using the remote

gain function. Gain can also be adjusted with the trimmer on the

GY470. The mode switching function allows AVCS/NORMAL

gyro mode switching.

Compact size

20.7x20.7x11mm

and light weight

3.7g

realized by high density mounting technology.

The GY470 can be used immediately with minimum setup.

Only one wire connection to the receiver can operate the GY470.

I MNSTRUCTION ANUAL

Trimmer

Limit / Gain

LED

Servo Selection Switch

Port1

Rudder input/S.BUS input

Port2

Gain input

Port3

Rudder output

Gyro Direction

Switch

WARNING

Failure to follow these safety precautions may result in severe injury

to yourself and others.

Always check the transmitter and receiver battery voltage to ensure

they have enough remaining capacity to complete the ﬂight.

The GY470 requires 3-5 seconds to initialize when the power is turned

on. Do not move the helicopter and do not move the rudder stick during

this initialization or the gyro may not initialize properly. Once the initializa-

tion process has been completed the rudder servo will move (a little) -sev

eral times indicating that the GY470 is now ready for ﬂight.

Always ensure that there is some slack in the gyro cables to help

maximize performance. Always use the supplied gyro mounting pads to

attach the gyro to the helicopter mechanics. Do not use a strap that en-

compasses the GY470 sensor. This may affect the overall performance of

the gyro.

If you are switching between NORMAL mode and AVCS mode in ﬂight,

please keep in mind that you must have the gyro re-learn the center posi-

tion after making a trim change within the transmitter. To memorize the

new center position simply ﬂip the gain switch on the transmitter three

times between NORMAL mode and AVCS mode (NORMAL

AVCS

ORMAL

AVCS

NORMAL

AVCS) within one second. The servo will

center indicating that the new center position has been memorized.

Be sure to use a digital servo. Use only digital servos with the GY470.

Using the GY470 with an analog servo will damage the servo.

Always check the direction of operation of the servos. If you attempt to

ﬂy the model when a servo operates in the wrong direction, the fuselage

will spin in a ﬁxed direction and enter an extremely dangerous state.

Do not drop the GY470 onto a hard surface or subject the GY470 to a

strong shock as this may damage the sensor.

When using the in the AVCS mode, set revolution mixing to GY470

OFF.

Do not place gyro near heating equipment (engine, motor, ESC, bat-

tery, servo, etc.). Always allow the gyro to adjust to the surrounding envi-

ronmental temperature before ﬂight. A large temperature change during

use will cause drift and other operational issues.

Install the sensor so that the bottom of the

gyro is perpendicular to the main rotor shaft

axial direction. Offset of this axis will also re-

act in the roll and pitch directions.

As shown in a gure, the direc-

tion which sticks GY470 is free.

Before using your new gyro, please read this manual thoroughly

and use the gyro properly and safely. After reading this manual,

store it in a safe place.

Thank you for purchasing a GY470

gyro, a rate gyro for RC helicopters.

GY470 is a lightweight micro gyro

developed for RC helicopter rudder

(yaw axis) control. It can be used with

mininum setup and includes an S.BUS/

S.BUS2 port.

(Integrated sensor type rate gyro)

• Gyro sensor: MEMS vibrating structure gyro

• Operating voltage: DC4.0 V to 8.4 V

• Current drain: 30

mA (excluding a servo)

• Operating temperature range: -10 ºC to +45 ºC

• Dimensions: 20.7 x 20.7 x 11.0 mm (except protrusion)

• Weight: 3.7 g

• Functions: Sensitivity trimmer. LED monitor. Servo selection (1520 uS,

760 uS). S.BUS/S.BUS2 connection.

*Oil on the sensor bottom and the part in-

stalled to the frame can be wiped off with

cleaner, etc.

GY470 installation precautions

·In the rudder neutral position, connect the linkage at the position at

which the servo horn and control wire are perpendicular.

Perpendicular

Control wire

Set the servo horn length based on

the helicopter manufacturer's instruc-

tions.

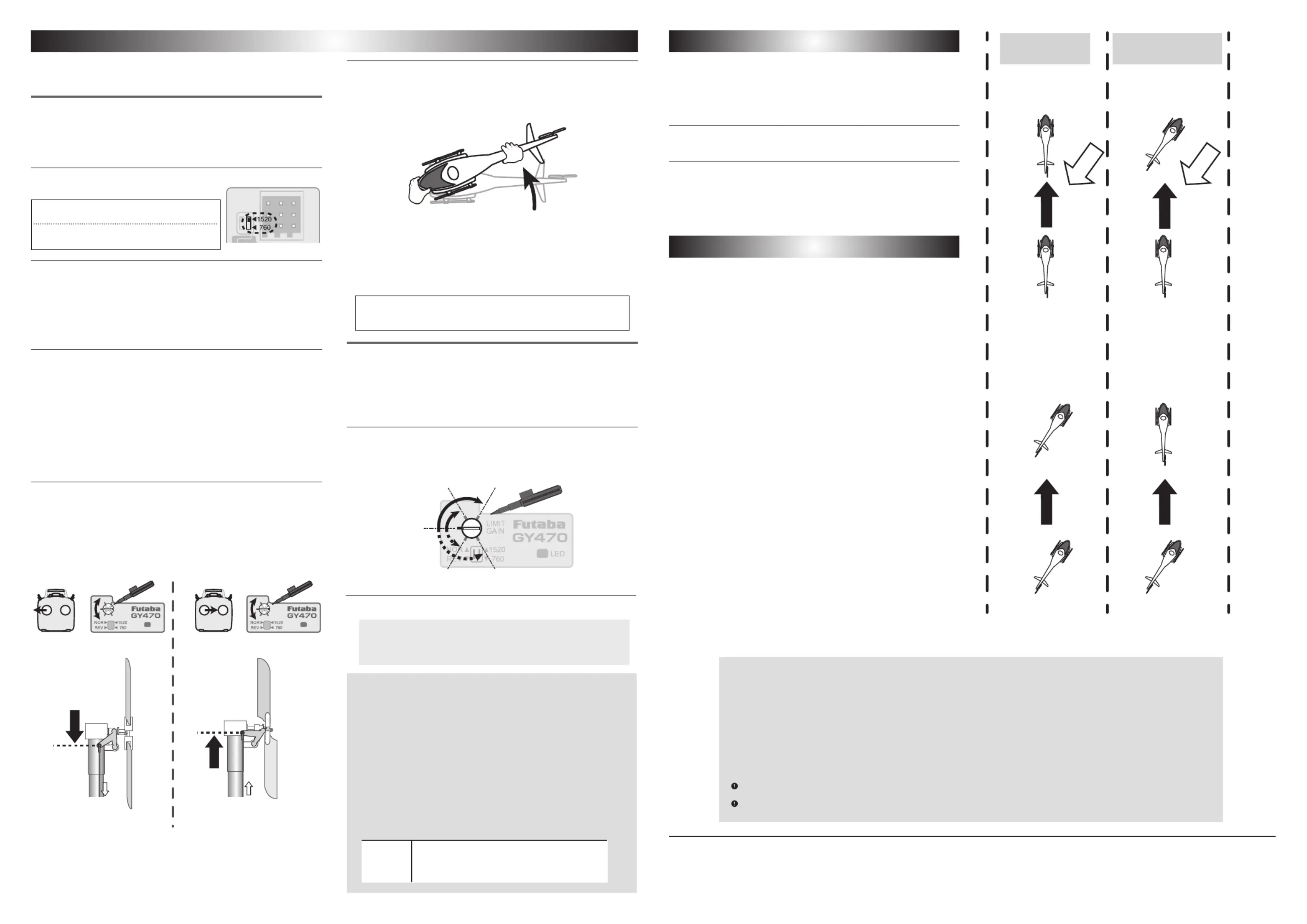

Adjustments

AdjustmentsAdjustments Flight Adjustments

Flight Adjustments

Flight AdjustmentsFlight Adjustments

VCS / NORMAL Mode

CS / NORMAL Mode

CS / NORMAL ModeAVCS / NORMAL Mode

Since the trimmer is small and delicate, operate it by

gently using the provided mini screwdriver.

Setup before a ight [ Remote gain use ]

Adjusting gain with the transmitter.

When S.BUS connection or the gyro gain CH of the port 2 of a

gyro and a receiver is connected.

[ Remote gain not use ]

Adjusting gain with the GY470 trimmer.

When not using an S.BUS connection and port 2 is not connected.

In this case, a limit trimmer is automatically changed by the gyro

gain setting trimmer. A limit is xed by 50 degrees of right and

left.

Transmitter adjustments must not be made while ying

because it is dangerous.

* Do not adjust with the End Point (ATV) function. If the End Point (ATV)

function is used, trimming may change.

A gain trimmer's work

Operation in AVCS mode

If the rudder stick is operated or the helicopter is moved when the

helicopter was stopped during operation in the AVCS mode, the servo

will not return to the neutral position even if the rudder stick is re-

turned to the neutral position, and when the rudder stick is moved, the

rudder servo controls operation until the tail reaches the maximum

point. This is caused by addition of an integration function as an

AVCS mode operation and is not an abnormality. In actual ight, the

gyro constantly monitors movement of the tail and controls the servo

so that movement of the tail is stopped.

AVCS mode servo neutral position check method;

If the rudder stick or the helicopter was moved in the AVCS mode, the servo

will not return to its original neutral position. When the power is turned on,

the servo will return to the neutral position. The servo neutral position can

also be checked by the following method.

Neutral

position

Move the rudder stick 3 times to its full stroke to the left

and check method right at an internal of within 1 second

and immediately return the rudder stick to the neutral

position. The servo moves to the neutral position about 1

second later.

NORMAL mode sends control signals to the rudder servo only

when the tail of the helicopter moves. When the tail stops mov-

ing, the control signal from the gyro becomes zero. Conversely,

the AVCS mode continues to send control signals to the servo

even when the tail of the helicopter stops moving. The following

sequentially describes the NORMAL mode and the AVCS mode.

Operation of NORMAL mode

Basic operation is described by considering the case when the

helicopter is hovering under cross-wind conditions. With a nor-

mal mode, when the helicopter encounters a cross-wind, the

force of the cross-wind causes the tail of the helicopter to drift.

When the tail drifts, the gyro generates a control signal that stops

the drift. When the tail stops drifting, the control signal from the

gyro becomes zero. If the cross-wind continues to cause the tail

to drift in this state, the "stop" operation is repeated until the tail

faces into the winds. This is called the "weathervane" effect.

Operation of AVCS mode

Conversely, with an AVCS mode, when the helicopter encoun-

ters a cross-wind and the tail drifts, a control signal from the gyro

stops the drift. At the same time, the gyro computes the drift an-

gle and constantly outputs a control signal that resists the cross-

wind. Therefore, drifting of the tail can be stopped even if the

cross-wind continues to effect the helicopter. In other words, the

gyro itself automatically corrects(auto trim) changes in helicopter

tail trim by cross-wind. Considering operation of an AVCS mode,

when the tail of the helicopter rotates, the servo also rotates in

accordance with the angle of rotation of the tail. When the tail

stops rotating, the servo judges that it has stopped in that posi-

tion. This is the auto trim function.

Please take a look at both the directions for the helicopter as well

as the transmitter.

LIMIT

GAIN

LIMIT

GAIN

Preﬂight check

Helicopter is turned to the Left

Rudder operates on the

Right.

*This check is performed in the state where an engine (motor)

never starting.

If you try to fly the helicopter while the gyro direction is incorrect,

when the rotor rotates clockwise, the helicopter nose will yaw to the

Left and cause an extremely dangerous situation.

What is S.BUS?

Unlike conventional radio systems, the S.BUS system uses

data communication to transmit control signals from a

receiver to a servo, gyro, or other compatible device. S.BUS

This data includes commands such as “move the channel 3

servo to 15 degrees, move the channel 5 servo to 30 degrees”

to multiple devices. The S.BUS devices execute only those

commands for their own set channel. For this reason, it can

be used by connecting multiple servos to the same signal

line.

* Set the channel at the servos by using an channel changer or a USB serial interface.S.BUS SBC-1 CIU-2

Can also be used together with conventional servos. However, conventional servos cannot be used by the S.BUS output.

When using servos with a remote battery pack, use S.BUS Hub with Cable (2-way/remote battery pack use).

Please refer to the instruction manual of Hub with Cable (2-way/remote battery pack use) for the connection method.S.BUS

Please turn on the power supply of the transmitter rst without fail, and, next, turn on the receiver if you use

S.BUS

. Moreover, please use it

after it conrms the operation without fail. Otherwise, the

S.BUS

communication cannot be judged and it is likely to malfunction.

The wiring for the

S. BUS

servo is replaced at power supply OFF. If you replace the wiring in power supply ON,

S. BUS

communications

cannot be judged, and it seems to malfunction.

FUTABA CORPORATION

Hobby Radio Control Business Center Sales & Marketing Department

1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan

TEL: +81-475-32-6051, FAX: +81-475-32-2915

Produkt Specifikationer

Mærke:	Futaba
Kategori:	Radiostyret legetøj
Model:	GY470

Har du brug for hjælp?

Hvis du har brug for hjælp til Futaba GY470 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Radiostyret legetøj Futaba Manualer

Futaba R7208SB Manual

16 Juli 2025

16 Juli 2025

8 Juli 2025

8 Juli 2025

8 Juli 2025

Futaba R7214SB Manual

5 Februar 2025

Futaba GY470 Manual

5 Februar 2025

Futaba GYA553 Manual

5 Februar 2025

Futaba SBS-01RO Manual

15 Januar 2025

Futaba 12Z Manual

3 Oktober 2024

Radiostyret legetøj Manualer

Nyeste Radiostyret legetøj Manualer

Tamiya Fiat Abarth 1000 TCR Manual

19 Juli 2025

Hobbywing XeRun XR14 Manual

17 Juli 2025

Robbe MDM-1 FOX Manual

11 Juli 2025

Robbe Cyclone PNP Manual

11 Juli 2025

Spektrum AR14410T Manual

10 Juli 2025

Spektrum AR10410T Manual

10 Juli 2025

Robbe MISTRAL 2.0 Manual

10 Juli 2025

Revell Dust Racer Manual

10 Juli 2025

Conrad 1414159 Manual

9 Juli 2025

Hobbywing QuicRun WP1080 G2 Manual

9 Juli 2025
