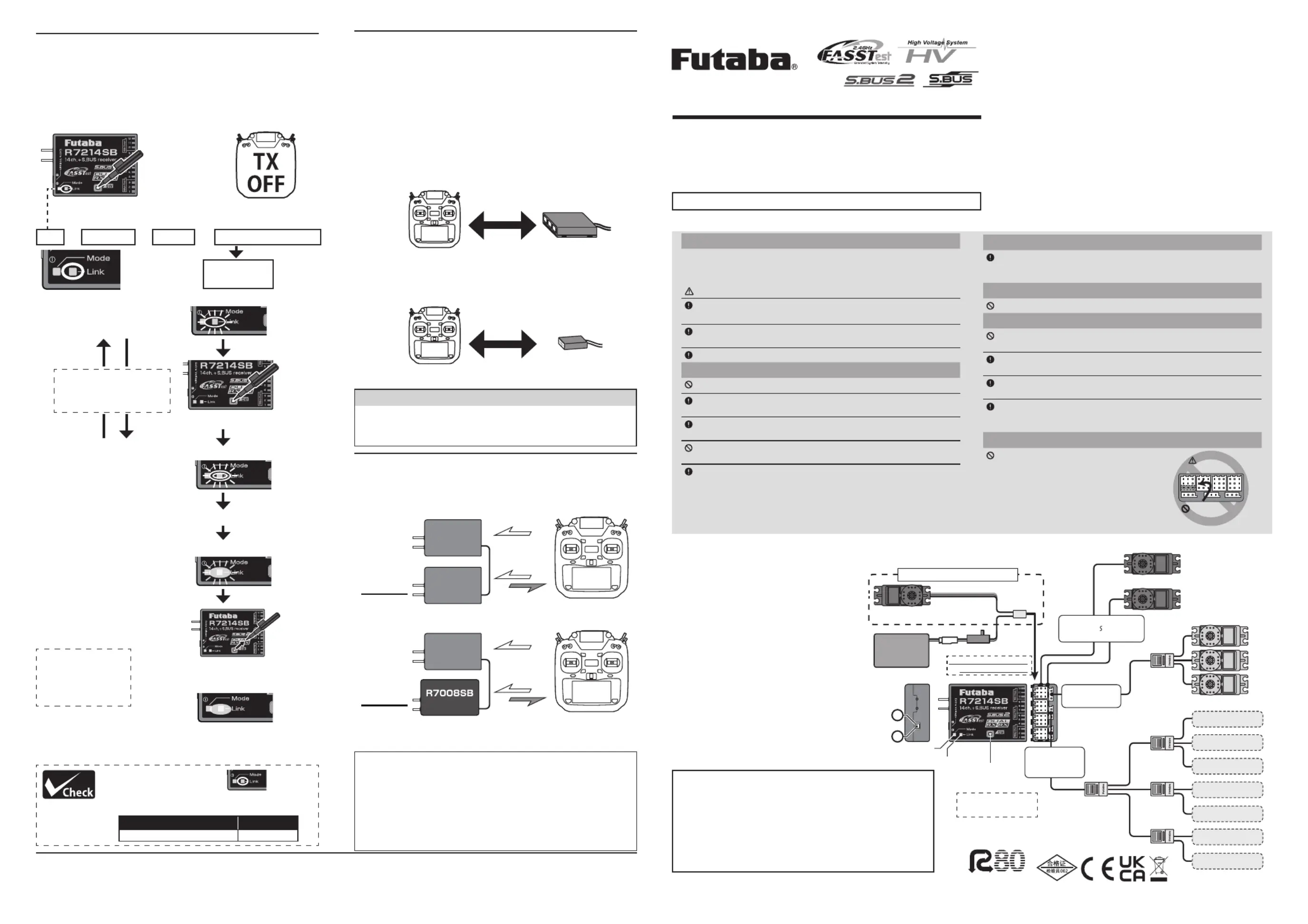

Side 1/2

R7214SB

Thank you for purchasing a Futaba R7214SB

FA S STes t-2.4G Hz compatible receiver.

The

R7214S B r e c e i v e r fe a t u r e s bi - d i r e c t i o n a l

communication with a FASSTest Futaba transmitter

using the S.BUS2 port. Using the S.BUS2 port

an impressive array of telemetry sensors may be

utilized. It also includes both standard PWM

output ports (1-14ch) and output ports. The S.BUS

R7214SB can also be switched to the Dual Rx

Link System. This system can ensure safety by

mounting two FASSTest receivers on one aircraft.

1M23N36204

● Applicable systems: Futaba FASSTest-2.4GHz system transmitter

◆FASSTest-2.4GHz Bidirectional Communication System

◆Dual Rx Link System Equipment

◆S.BUS2 / S.BUS Port and 14 Channels for Conventional System

Receiver

*Be sure that when using ESCs regulated

output the capacity of the ESC must meet

your usage condition.

*Never use dry batteries for the power sup-

ply of the R7214SB as they may cause

di󰀩culties.

R7214SB Specications

FASSTest-2.4 GHz system(18 ch/12 ch mode)

S.BUS2 and port and 14 channels for conventional system receiver S.BUS

• Dual antenna diversity

• Size: 1.46 x 1.98 x 0.63 in. (37.0 x 50.2 x 15.9 mm)

• Weight: 0.73 oz. (20.8 g)

• Power requirement: 3.7 V to 7.4 V(Voltage range: 3.5 V to 8.4 V)

• Battery F/S Voltage: It sets up with a transmitter

• Extra Voltage port: 0

～

70 V DC

＋－

S.BUS2 port

(SB2/RX）

(SB2/DG1)

Port can be changed

(Refer to separate table)

When all ports are used.

Servo for conventional

system

Mode LED

Link LED

Antenna

Mode switch

Extra Voltage Port

(It is not used for a link.)

It connects with the battery

for power, etc.

Exter nal vo ltage input

cable of an option is used.

The voltage of the battery

can be displayed with a

transmitter.

S.BUS Servo

S.BUS Gyro

HUB

Battery

3.7 ～ 7.4 V

Switch

Servo

A battery is connectable

also with which port.

Temperature

Sensor

Voltage

Sensor

Current

Sensor

RPM

Sensor

Altitude

Sensor

Airspeed

Sensor

S.BUS2 Tool

S.BUS port

(SB/DG2）

Channel 12 output

Channel 1 output

(Typical installation)

Receiver

Do not insert either a switch

or battery in this manner.

DANGER

RED

⇒

ORANGE

⇒

GREEN

⇒

ORANGE slow blink

Blinks ORANGE once

Blinks ORANGE twice

Blinks ORANGE

Solid ORANGE

FASSTest12CH(Telemetry

OFF）mode :

FASSTest12CH(Telemetry

OFF）mode :

OFF

Press switch

Press SW once more

to return to ashing

orange once

Press and hold the SW

Release SW

Release the

switch here

Turn o󱐯 the receiver power

Blinking switches every 5 seconds as follows.

Turn on the receiver. [Transmitter is always OFF]

Press and hold the SW for 5 seconds or more.

FASSTest12CH(Telemetry OFF）mode

This mode is forcibly turning o telemetry transmission to prevent

collision of telemetry signals from the receiver to the transmitter

when using dual RX link mode in FASSTest12ch mode.

After restarting, the

LINK LED lights up.

In FASSTest12CH Telemetry OFF Mode

Status LINK LED

Start Orange Solid

Percentage of Waste

Paper pulp %80

C h a n g e

t o

t h i s

C h a n g e t o t h i s

mode

mode when

when

when using

using

using mode when using

FASST

FASSTest

est

est12

12CH

FASSTest12CH in

dual RX link mode.

dual RX link mode.dual RX link mode.

Compliance Information Statement (for U.S.A.)

This devi ce, t ra de n ame F utaba Corpor ati on, m odel number R7214SB, c omplies with part15 of the FCC

Rules. Op erat ion is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION: To assure continued FCC compliance

1. Any changes or modications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

The responsible party of this device compliance is:

FUTABA Corporation of America 2681 Wall Triana Hwy Huntsville, AL 35824, U.S.A.

Phone:1-256-461-9399 FAX:1-256-461-1059 E-mail: service@futabaUSA.com

In FASSTest12CH mode, after linking R7214SB in telemetry

OFF mode, link the receiver you want telemetry to. (The

transmitter will show the telemetry of the last linked transmitter.)

Install two receivers on the aircraft as shown in the

connection example.

Link the two receivers using the dual receiver

feature of the transmitter.

For systems without dual receiver capability, link

each receiver in turn.

Transmitter in link mode

For FASSTest 18CH Select dual mode and link primary

*Follow the link procedure

for each receiver manual.

For FASSTest 18CH Select dual

mode and link secondary

Turn on the main

receiver and link

Turn on the sub

receiver and link

◆ About telemetry system

When using the dual receiver function

・The telemetry function of the main receiver can be used

・Sub-receiver telemetry function is not available

How to Dual Rx Link

Telemetry for FASSTest12CH

FUTABA CORPORATION

Hobby Radio Control Business Center Sales & Marketing Department

1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan TEL: +81-475-32-6051, FAX: +81-475-32-2915

©FUTABA CORPORATION 2023, 6 (1)

Telemetry OFF

mode

Telemetry

Telemetry OFF

mode

First Link

Telemetry display of second-linked receiver.

Telemetry OFF ﬁrst-Linked receiver.

Display

＃1

Second Link

＃2

Second Link

＃2

＃1

＃2

FASSTest receiver

e.g.

R7214SB

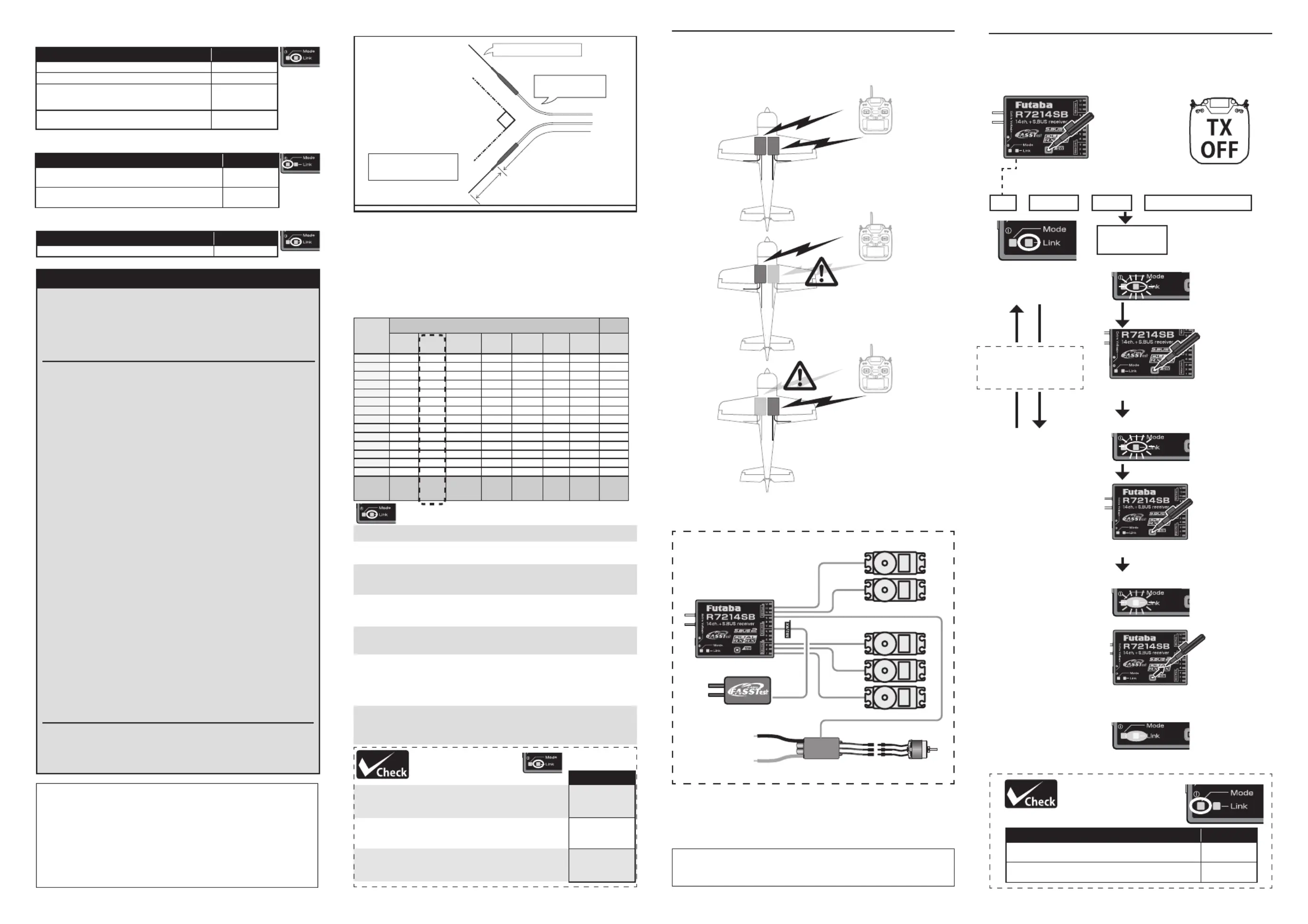

Antenna installation for carbon fuselage

You must leave 30mm at the tip of the antenna fully exposed. The

exposed antenna should be secured so that it cannot move around or

back inside of your aircraft.

Be careful of connector insertion

Don't connect an S.BUS servo / gyro to S.BUS2 connector.

Link precaution

Do not perform the linking procedure while the motor's main power is

connected or the engine is operating as it may result in serious injury.

When the linking is complete, please cycle the receiver power and

ensure the receiver is properly linked to the transmitter.

Power on the system in this order: Transmitter rst, followed by the

receiver.

If the R7214SB receiver was previously linked to another transmitter,

make sure that transmitter is not operating while linking the receiver to

the new transmitter.

Connector precaution

Don't connect a connector, as shown in

this gure.

■ It will short-circuit, if it connected in

this way. A short circuit across the battery

terminals may cause abnormal heating, fire

and burns.

Usage precaution

• Analog servos cannot be used with the R7214SB in the FASSTest 12CH

mode.

• Don't connect to Extra Voltage before turning on a receiver.

WARNING

Changes or modification not approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

The R7214SB receiver should be protected from vibration by foam

rubber, Velcro, or similar mounting methods. Protect from moisture.

Keep away from conductive materials to avoid short circuits.

Antenna installation precaution

Do not cut or bundle the receiver antenna wire.

The antennas must be mounted in such a way to assure they are strain

relieved.

Keep the antenna as far away from the motor, ESC and other noise

sources as you possibly can.

Do not touch the antenna to metal, carbon, or other conductive

material.

Be sure that the two antennas are placed at 90 degrees to each other.

■The R7214SB has two antennas. In order to maximize signal reception

and promote safe modeling Futaba has adopted a diversity antenna

system. This allows the receiver to obtain RF signals on both antennas and

y problem-free.

出力

コネクター

設定チャンネル

Mode A Mode B Mode C Mode D Mode E Mode F Mode G Mode H

1 1 1 1 1 13 13 13 13

2 2 2 2 2 14 14 14 14

3 3 3 3 3 15 15 15 15

4 4 4 4 4 16 16 16 16

5 5 5 5 5 17 17 17 17

6 6 6 6 6 18 18 18 18

7 7 7 7 7 19 19 19 19

8 8 8 8 8 20 20 20 20

9 9 9 9 9 21 21 21 21

10 10 10 10 10 22 22 22 22

11 11 11 11 11 23 23 23 23

12 12 12 12 12 24 24 24 24

SB2/DG1 DG1 SB2 DG1 SB2 DG1 SB2 DG1 SB2

SB/DG2 DG2 SB SB DG2 DG2 SB SB DG2

LED RED 1 RED 2 RED 3 RED 4 RED 5 GREEN1 GREEN2 GREEN3

Default

Communicate with two receivers

Receiver : A Receiver : B

Even if there is a problem with

the B receiver, communication

will be performed with the A

receiver.

Even if there is a problem with

the A receiver, communication

will be performed with the B

receiver.

In Dual RX link mode, the SB2/RX port is for reception

only, so

se separate ports for S.BUS output and S.BUS2

input/output.

How to change to Dual RX Link mode

RED

⇒

ORANGE

⇒

GREEN

⇒

ORANGE slow blink

Blinks GREEN once

Blinks GREEN twice

Blinks ORANGE

Solid ORANGE

Dual RX Link mode

OFF

Dual RX Link mode

Press switch

Press SW once more

to return to ashing

green once

Press and hold the SW

Release SW

Release the

switch here

After restarting, the

MODE LED lights up.

When using ESC

FASSTest Receiver

S.BUS2

R7214SB

ESC

Turn o󱐯 the receiver power

Blinking switches every 5 seconds as follows.

If it is passed,

turn o󱐯 the

power and

restart

Antenna

installation

Do not bend the antenna part

Antenna part

Gently bend the coaxial

cable part.

Coaxial cable

R7214SB CH Mode table

Turn on the receiver. [Transmitter is always OFF]

Press and hold the SW for 5 seconds to 10 seconds.

When the LED of the receiver changes from blinking

red to blinking orange, SW is released.

The LED should now blink red two times in the

patterns described in the chart below.

Each press of the SW advances the receiver to the

next mode.

When you reach the mode that you wish to operate

in, press and hold the SW for more than 2 seconds.

When LED blinks in orange, it is the completion of a

mode change, SW is released.

Cycle the receiver power o󱐯 and back on again after

changing the Channel mode.

Channel Modes

The R7214SB is capable of changing its channel allocations

as described in the table below. This is especially important

when using the receiver in a dual receiver mode. See

your transmitter operation manual for complete details on

operating in the dual receiver mode.

Turn on the receiver. [Transmitter is always OFF]

Press and hold the SW for 5 seconds or more.

Dual Rx Link System

By installing two receivers in one aircraft, if one receiver

becomes unable to communicate, the other receiver can be

operated.

Connection example

Status MODE LED

External receiver is receiving error or not connected.

S.BUS signal not received

Red Solid

S.BUS signal reception from external receiver

(also received by external receiver)

Green Solid

Antenna should be secured so

that it cannot move around or

back inside of aircraft.

In Dual RX Link Mode

In FASSTest12CH Telemetry OFF Mode

Status MODE LED

External receiver is receiving error or not connected.

S.BUS signal not received

Red Solid

S.BUS signal reception from external receiver

(also received by external receiver)

Green Solid

Status LINK LED

Start Orange Solid

Compliance Information Statement (for Canada)

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device. This equipment com-

plies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be

installed and operated with minimum distance 20cm between the radiator & your body.

French: Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositifest

autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur

du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même sice brouillage est suscep-

tible de compromettre le fonctionnement du dispositif. Cet équipement est conforme aux limites d’exposition

aux rayonnements IC établies pour un environnement non contrôlé.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement

non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la

source de rayonnement et votre corps

FASSTest is a bidirectional communication system

between the R7214SB receiver and FASSTest capable

transmitters. Multiple optional telemetry sensors may be

connected to the S.BUS2 on the receiver and that data is in

turn displayed on the transmitter.

Link to the transmitter

Bring the transmitter and the receiver close to

each other, within 20 inches (half meter).

Turn on the transmitter. Place the transmitter into

the receiver linking mode.

Turn on the receiver.

The receiver will wait for the linking process to

begin for 2 seconds. Following that it will return

to the normal operation mode.

When the LED of the receiver changes from

blinking red to solid green, linking is complete.

(A link waiting state is ended in 3 second.)

• Refer to the transmitter's operation manual for complete

details on how to place the transmitter into the linking

mode.

• If there are many FASSTest systems turned on in close

proximity, your receiver might have di󱐰culty establishing

a link to your transmitter. This is a rare occurrence.

However, should another FASSTest transmitter/receiver

be linking at the same time, your receiver could link to the

wrong transmitter. This is very dangerous if not noticed.

To avoid the problem, we strongly recommend that you

double check whether your receiver is really under control

by your transmitter.

• If the System Type of the transmitter is changed, the

receiver will need to be re-linked to the transmitter.

S.BUS2 　　

S.BUS2 extends S.BUS and supports bidirectional

communication. Sensors are connected to the S.BUS2 port.

Link

LED Indication

Status LINK LED

No signal reception Red Solid

Receiving signals Green Solid

Waiting for link

Start → 2second

later → Red Blink

（3 second）

Unrecoverable error (EEPROM, etc.)

Red Green

Alternate blink

Turn on the receiver. ransmitter is [T

always OFF]

Receiver enters link waiting state

The LED will ash for the current CH

output mode.

LINK LED

Red Solid

Start → 2second

later → Red Blink

（3 second）

Current CH mode

display

Declaration of Conformity (for EU)

Hereby, Futaba Corporation declares that the radio equipment type is R7214SB in compliance with Directive

2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://www.rc.futaba.co.jp/support/manual/

90°

Produkt Specifikationer

Mærke:	Futaba
Kategori:	Radiostyret legetøj
Model:	R7214SB

Har du brug for hjælp?

Hvis du har brug for hjælp til Futaba R7214SB stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Radiostyret legetøj Futaba Manualer

Futaba R7208SB Manual

16 Juli 2025

16 Juli 2025

8 Juli 2025

8 Juli 2025

8 Juli 2025

Futaba R7214SB Manual

5 Februar 2025

Futaba GYA553 Manual

5 Februar 2025

Futaba SBS-01RO Manual

15 Januar 2025

Futaba 12Z Manual

3 Oktober 2024

Futaba 2PL Manual

26 September 2024

Radiostyret legetøj Manualer

Nyeste Radiostyret legetøj Manualer

Robbe MDM-1 FOX Manual

11 Juli 2025

Robbe Cyclone PNP Manual

11 Juli 2025

Spektrum AR14410T Manual

10 Juli 2025

Spektrum AR10410T Manual

10 Juli 2025

Robbe MISTRAL 2.0 Manual

10 Juli 2025

Revell Dust Racer Manual

10 Juli 2025

Conrad 1414159 Manual

9 Juli 2025

Hobbywing QuicRun WP1080 G2 Manual

9 Juli 2025

Tamiya MAN TGX 26.540 6x4 XLX Manual

8 Juli 2025

Hobbywing QuicRun Fusion SE Manual

8 Juli 2025
