Preface

This product is the clear type dome cover. <WV-QDC501C>

This product is the smoke type dome cover (approx. 45 % of transmittance). <WV-

QDC501G>

The latest information about the supported cameras <Control No.: C0501>.

Specifications

Ambient operating temperature: –50 °C to +60 °C {–58 °F to 140 °F}

Dimensions:

ø226 mm × 67 mm (H)

{ø8-29/32 inches × 2-21/32 inches (H)}

Mass:

Approx. 246 {0.542 lbs}g

Finish:

PC resin

Clear <WV-QDC501C>

Smoke <WV-QDC501G>

Precaution for installation

Screw tightening

Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening excessively.

Standard accessories

Operating Instructions (this document) 1 pc. Waterproof rubber 1 pc. ......... .......................................

Preparation

Remove the enclosure and installed auxiliary wire from the camera by following the Installation Guide

of the camera.

Caution:

• Before attempting to connect or operate this product, please read these instructions

carefully.

Precautions

Do not use this product except with suitable cameras.

Failure to observe this may cause a drop resulting in injury or accidents.

Refer installation work or dome cover replacement to the dealer.

Installation work requires technique and experiences.

Failure to observe this may cause fire, electric shock, injury, or damage to the product.

Be sure to consult the dealer.

 The screws and bolts must be tightened to the specified torque.

Failure to observe this may cause a drop resulting in injury or accidents.

When using this product, also read the “Precautions” described in the operating instruc-

tions for the camera to be attached.

i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting

from failures arising out of improper installation or operation inconsistent with this

documentation.

Step 3

Remove the IR LED covers.

Step 11

Attach the enclosure and installed auxiliary wire to the camera by following the

Installation Guide of the camera.

Step 4

Remove the dome cover.

Step 10

Attach the installed auxiliary wire, then tighten the screws diagonally in the

order of , , .①②③

0.78 N·m

{0.58 lbf·ft}

Step 2

Remove the dome cover holding plate.

Installation

Step 1

Remove the screws (12 places) and

the installed auxiliary wire.

Installed auxiliary wire

Step 7

Attach the new dome cover

Be careful not to

overlap unsuitably.

Remove the protection film covering outside the new dome cover.

Keep the removed protection film until using it upon the installation.

(Handle the new dome cover with care not to scratch inside and outside.)

Attach the protection film removed in step 7 back to the outside the dome cover.

Remove the protection film of the dome cover after completing the installation.

• Before attempting to connect or install this product, please read these instructions carefully and

save this manual for future use.

• The external appearance and other parts shown in this manual may differ from the actual

product within the scope that will not interfere with normal use due to improvement of the

product.

• Read also the installation guide of the camera to be used.

Waterproof rubber

Step 8

Attach the IR LED covers.

Step 9

Attach the dome cover holding plate.

Step 5

Remove the waterproof rubber.

Step 6

Attach the waterproof rubber (accessory).

①



①

②



③

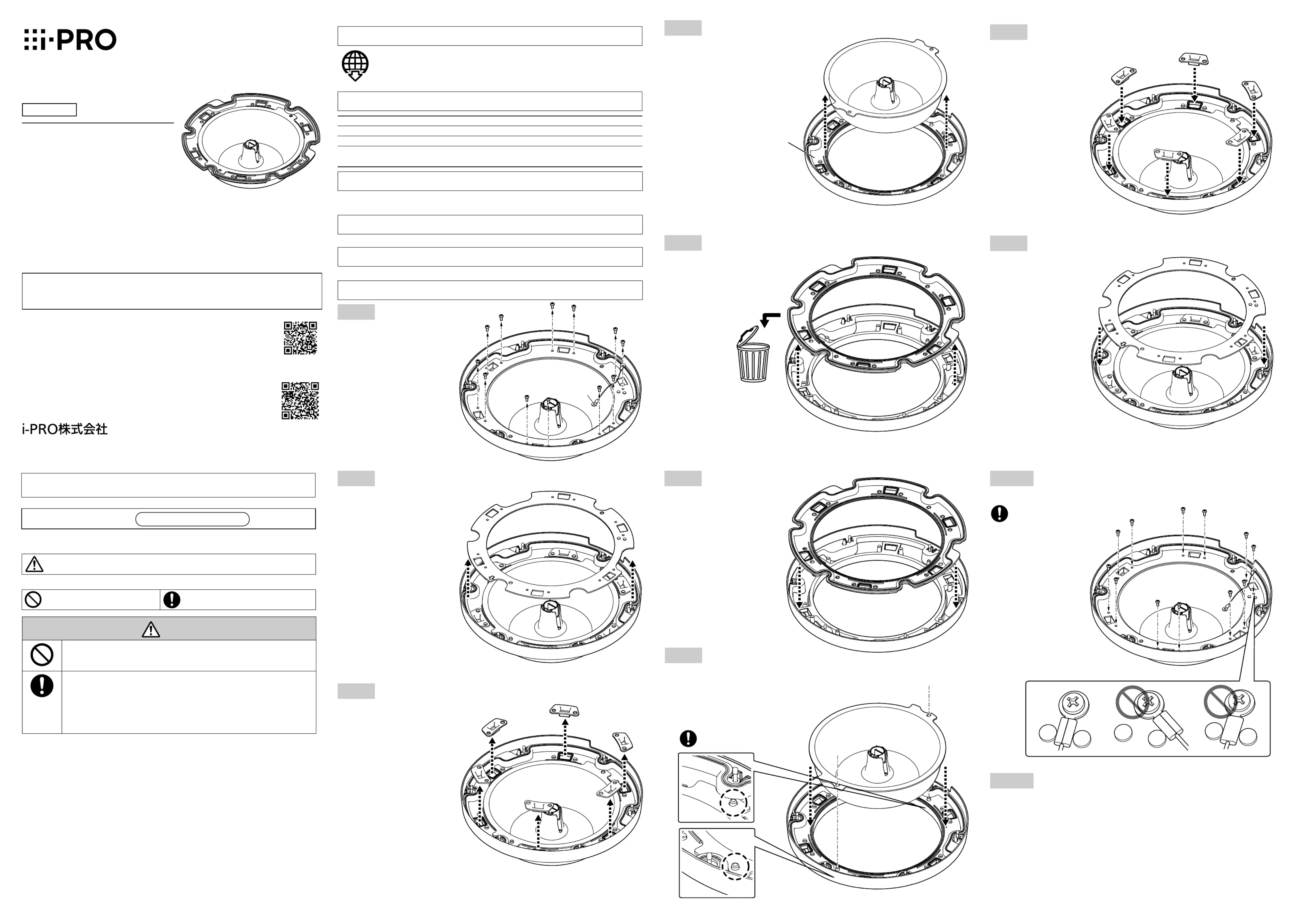

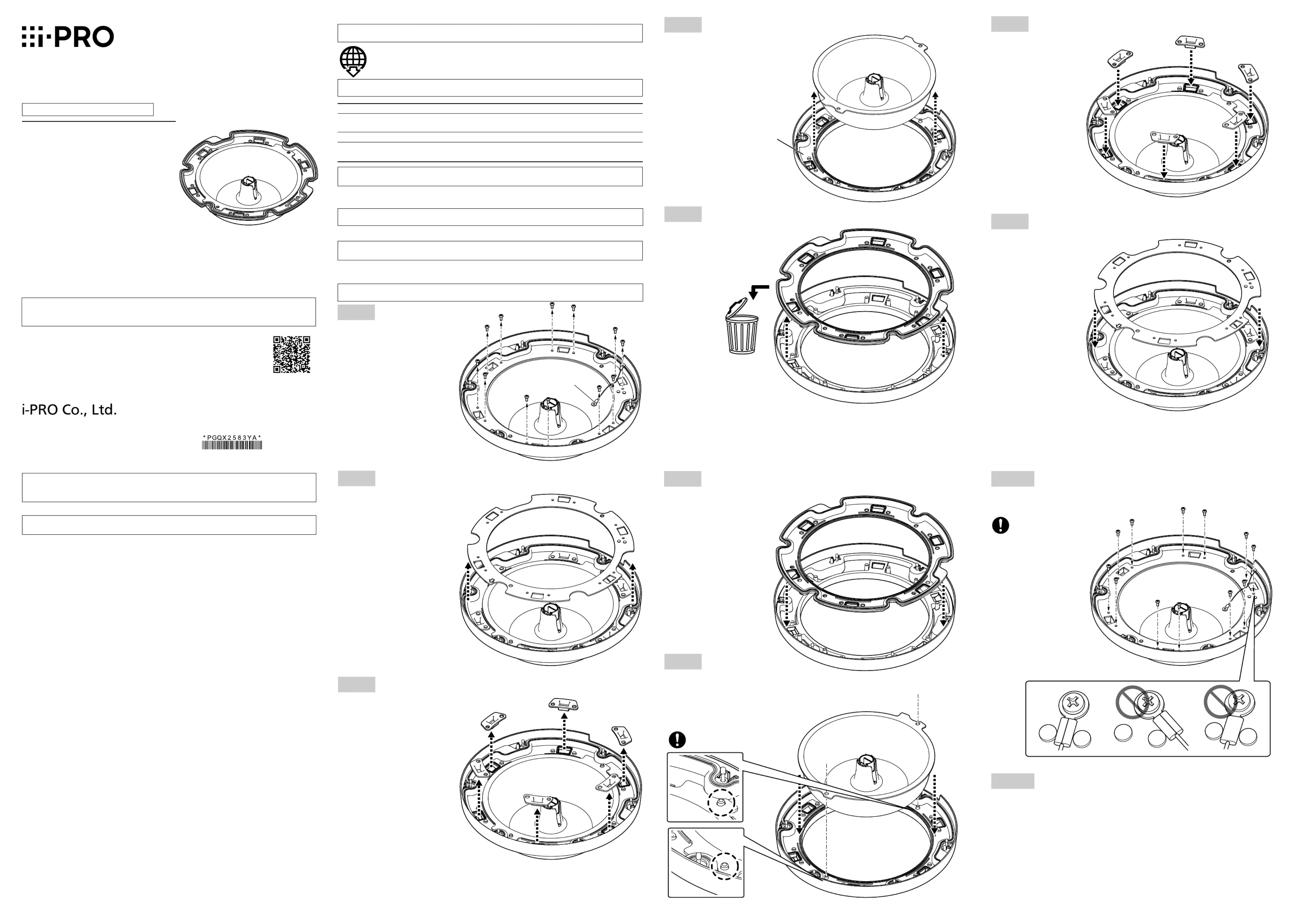

Operating Instructions

Included Installation Instructions

Dome Cover

Model No.

WV-QDC501

"<Control No.: C****>" used in these documents should be used to search for information

on our technical information website (https://i-pro.com/global/en/surveillance/training-

support/support/technical-information) and will guide you to the right information.

Cs0322-1023

Printed in China

https://www.i-pro.com/
