Safety wire

(Accessory)

Mounting base

Ceiling board

Roof space

Ns0522-0

Printed in China

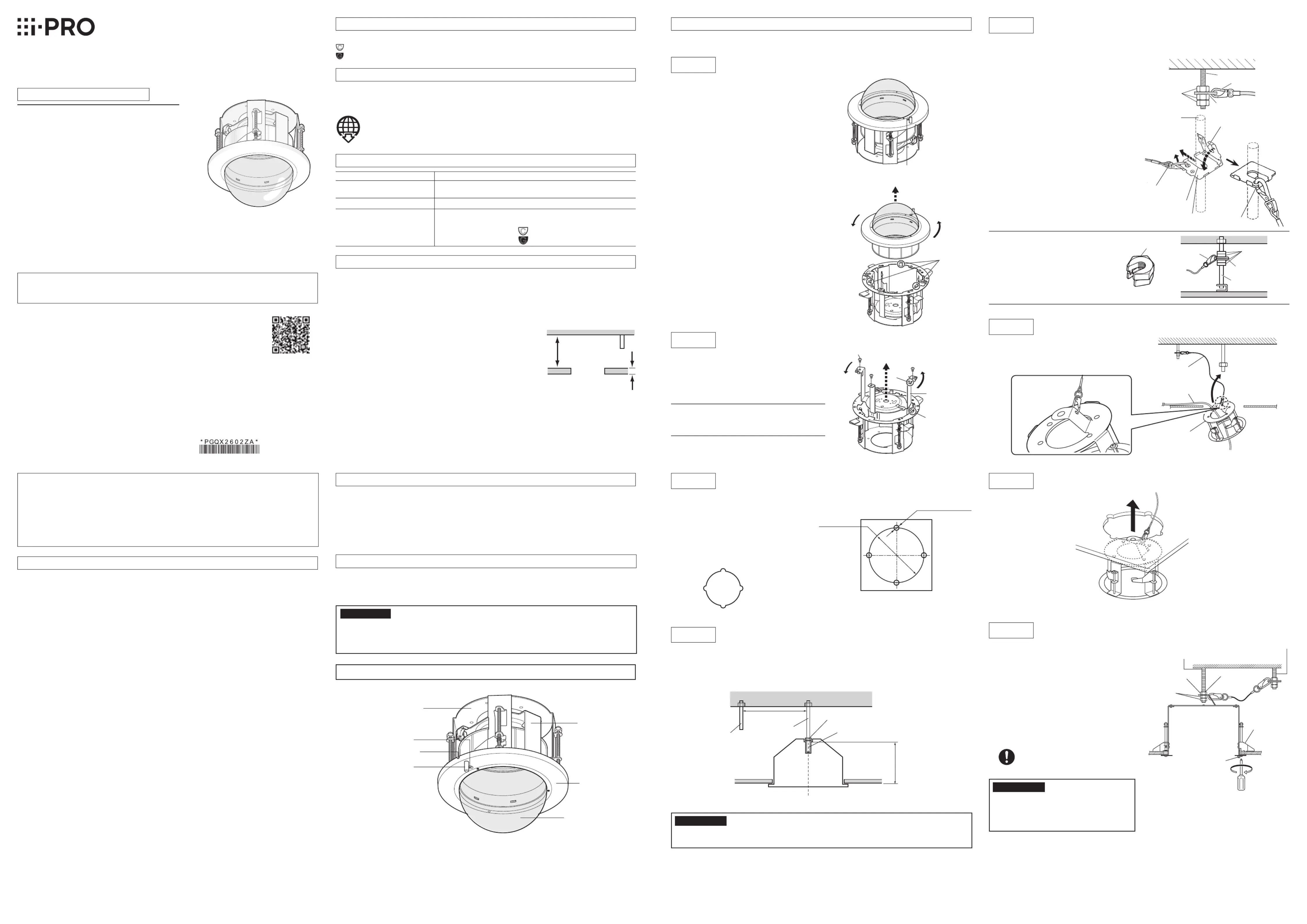

Ceiling Mount Bracket

Model No. WV-QED100

Operating Instructions

• Before attempting to connect or install this product, please read these instructions carefully and

save this manual for future use.

• The external appearance and other parts shown in this manual may differ from the actual product

within the scope that will not interfere with normal use due to improvement of the product.

Preface

About notations

This product is a ceiling mount bracket that is designed to mount the indoor PTZ type camera on a

ceiling. This bracket can be used for an area with weak pull-out strength such as plasterboard in a

double ceiling, and the embedded type makes the visible part of the camera smaller.

The latest information about the supported cameras

Some functions are expressed with the following notations in this document.

Clear dome cover

Smoke dome cover

 Do not use this product except with suitable cameras.

Failure to observe this may cause a drop resulting in injury or accidents.

 Refer installation work to the dealer.

Installation work requires technique and experience. Failure to observe this may cause fire, electric

shock, injury, or damage to the product.

Be sure to consult the dealer.

 The measures of protection against a fall of this product shall be taken.

Failure to observe this may cause a drop resulting in injury or accidents. Be sure to install the safety

wire.

 The screws and bolts must be tightened to the specied torque.

Failure to observe this may cause a drop resulting in injury or accidents.

 Install the product securely on a ceiling in accordance with the installation instructions.

Failure to observe this may cause injury or accidents.

 Do not rub the edges of metal parts with your hand.

Failure to observe this may cause injury.

When using this product, also read the “Precautions” described in the operating

instructions for the camera to be attached.

Precautions

Installation

i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting

from failures arising out of improper installation or operation inconsistent with this

documentation.

Caution:

• Before attempting to connect or operate this

product, please read these instructions care-

fully.

Notice:

• This product is not suitable for use in loca-

tions where children are likely to be present.

• Do not install this product in locations where

ordinary persons can easily reach.

• For information about screws and other parts

required for installation, refer to the corre-

sponding section of this document.

Included Installation Instructions

Specifications

Standard Accessories

Refer to the operating instructions of the camera for details on the camera installation

(including the camera mounting, cable connection and adjustment).

Ambient temperature: –10 °C to +50 °C {14 °F to 122 °F}

Dimensions: Maximum diameter ø190 mm x 212 mm (H)

{ø7-15/32 inches x 8-11/32 inches (H)}

Mass:

Approx. 800 {1.77 lbs.}g

Finish: Surface treatment steel sheet Main body:

Decorative cover: ABS resin i-PRO white

Dome cover: Acrylic resin

(Transmittance: approx. 50 %)

“<Control No.: C****>” used in these documents should be used to search for

information on our technical information website (https://i-pro.com/global/en/

surveillance/training-support/support/technical-information) and will guide you to

the right information.

i-PRO Co., Ltd.

https://www.i-pro.com/

Parts and functions

①Make 4 holes of 12 mm {15/32 inches} in

diameter.

②Remove the center part from the template.

③Make a hole of 160 mm {6-5/16 inches} in

diameter.

* The hole shape is shown below.

①Determine the anchor bolt length (for mounting base) by use of Template B (accessory).

②Position the nut (locally procured) by use of Template B. (The distance between the bottom

surfaces of the ceiling board and nut shall be 136 mm {5-11/32 inches}.)

Step 2

Step 4

Step 1

Remove the decorative cover.

Remove the camera mounting plate.

Install two anchor bolts (M10 recommended) into the concrete

ceiling.

Step 5

Step 6

Step 7

Step 8

Mount the safety wire angle (accessory) on the anchor bolt for the

safety wire and connect the safety wire (accessory) to the angle.

Attach the safety wire.

Insert the mounting base into the hole made in Step 3.

Secure the mounting base.

Step 3

Put Template A (accessory) against the ceiling and make a hole.

 In order to prevent injury, the product must be securely mounted to the ceiling

according to the Installation Guide of this product.

 This product is designed to be used indoors.

This product is not operable outdoors. Do not expose this product to direct sunlight for hours and

do not install the product near a heater or an air conditioner. Otherwise, it may cause deformation,

discoloration and malfunction. Keep this product away from water and moisture.

 Installation area for this product

Make sure that the installation area is strong enough to hold the total

weight of the camera assembly before installation.

The installation area shall have 180 mm {7-3/32 inches} or more

space behind the ceiling.

The thickness of the ceiling board for installation can range between

9mm {11/32inches} and 40mm {1-9/16inches}.

 Make sure to remove this product if it will no longer be used.

Precautions for installation

180 mm

{7-3/32 inches}

or more

Ceiling board: between

9mm {11/32inches} and

40mm {1-9/16inches}

Operating Instructions (this document) 1 pc. .......

The following are for installation

Safety wire* 1 pc. ...............................................

Safety wire angle* 1 pc. ......................................

Template A 1 pc. ................................................

Template B 1 pc. ................................................

Inner cover (WV-QAT100) 1 pc. ..........................

Decorative cover

Rubber-made

microphone stand*

Fixing screw to be used

for cover fall prevention

Camera mounting

plate

Mounting base

Hole for microphone cable

Dome cover

* If a tiepin type microphone is used, mount the microphone on the rubber-made microphone

stand. Unless the microphone is used, cut the rubber with a nipper or conduct another treatment.

①Loosen the fixing screw (unremovable) to be

used for cover fall prevention.

②Turn the decorative cover counterclockwise to

unhook it from the hooks (3 positions) of the

camera mounting bracket, and remove it from

this bracket.

③Take the inner cover out.

FR O NT

LOCK

FR O NT

Fixing screw to be used for

cover fall prevention

Hook

Remove the screws (M4, 3 pcs.) and remove the

camera mounting plate by turning it counterclock-

wise.

Remove the tab of the camera mounting plate (a)

from the hole of the mounting base (b) (2 positions).

Note:

• Keep the removed screws until using them in

Step 14.

IMPORTANT:

• When the existing anchor bolt is used as an anchor bolt for connecting the safety wire, make sure

that the distance between the anchor bolt and camera mounting position is 1 m {3.28 feet} or less.

ø12 mm {15/32 inches}

(4 positions)

Ceiling face

ø160 mm

{6-5/16 inches}

Template A

Template B

Ceiling board

Install the anchor bolt in the center of the hole

①Determine the anchor bolt length

136 mm {5-11/32 inches}

②Use a nut

Anchor bolt for

safety wire

Anchor bolt for

mounting base

①Mount a nut so that the safety wire

angle is secured on the anchor bolt.

②Remove the safety wire from the safety

wire angle.

③Insert the groove of the portion of ❶

the safety wire angle into the anchor

bolt.

④Close the safety wire angle while

inserting the groove of the portion of ❷

the safety wire angle into the anchor

bolt.

⑤Connect the safety wire to the safety

wire angle again.

⑥Engage the nut from beneath, and

secure the safety wire angle with top

and bottom nuts.

⑦Engage another nut from beneath to

tighten and secure the nut that was

engaged from beneath in in a y

double nut fashion

Note:

• When the existing anchor bolt that

has been installed is used for con-

necting the safety wire, the use of 2

spacer nuts is helpful.

Spacer nuts

Safety wire angle

Existing anchor bolt

Safety wire

Ceiling board

fixing screw

(4 places)

Ceiling board

fixing bracket

(4 places)

①

Insert the anchor bolt

Nut (locally procured)

③

Double nuts

(locally procured)

②

Turn clockwise

Anchor bolt for the mounting base

Anchor bolt for safety wire

Ceiling board

①Engage the top of the mounting base with

the anchor bolt for the mounting base.

②Secure the mounting base by turning the

ceiling board fixing screws (4 places)

clockwise.

Turning the ceiling board fixing screws

clockwise provides ceiling board

tightening between the bottom of the

mounting base and ceiling board fixing

bracket resulting in mounting base

securing.

Recommended tigtening torque:

0.78N·m {0.58 lbf·ft}

IMPORTANT:

• When securing the mounting base on the

ceiling, make sure that the four ceiling

board fixing brackets are open as shown

in the figure.

③Secure the top of the mounting base with

double nuts (locally procured).

Other items that are needed (not included)

* One anchor is used for securing the mounting base, and the other anchor is used for connecting

the safety wire. (See Step 4)

IMPORTANT

• Prepare anchor bolts according to the material and strength of the area where the product is

to be installed. The pull-out strength of the anchor bolt shall be more than 5 times of the total

weight of the installed devices (including the camera body, ceiling mount bracket, anchor

bolts, and all other parts).

Anchor bolt (M10)* 2 pcs. Nut (M10) 6 pcs. .................................... ................................................

* The product is shipped in a state where the safety wire is attached to the safety wire angle.

FR O NT

LOCK

(b)

Camera

mounting plate

Screw (M4, 3 pcs.)

(a)

less than 1 m {3.28 feet}

Attach the safety wire to the mounting base as

shown in the illustration below.

Cables

Fix the hook of the

safety wire to this

product.

Upper side

Lower

side

Safety wire

③Insert

②Remove

④Close

❷

❶

⑤Connect

Safety wire angle

Anchor bolt

Existing anchor bolt

Safety wire

Safety wire angle

Nut

(locally procured)

⑥ ⑦

①

F R O N T

FR O N T

Cable inlet

FRONT mark

Run the cables from the cable inlet.

IMPORTANT:

• The cables shall be run from the opposite

side of the FRONT mark. Failure to observe

this makes the cables unconnectable since

the camera faces the opposite side.

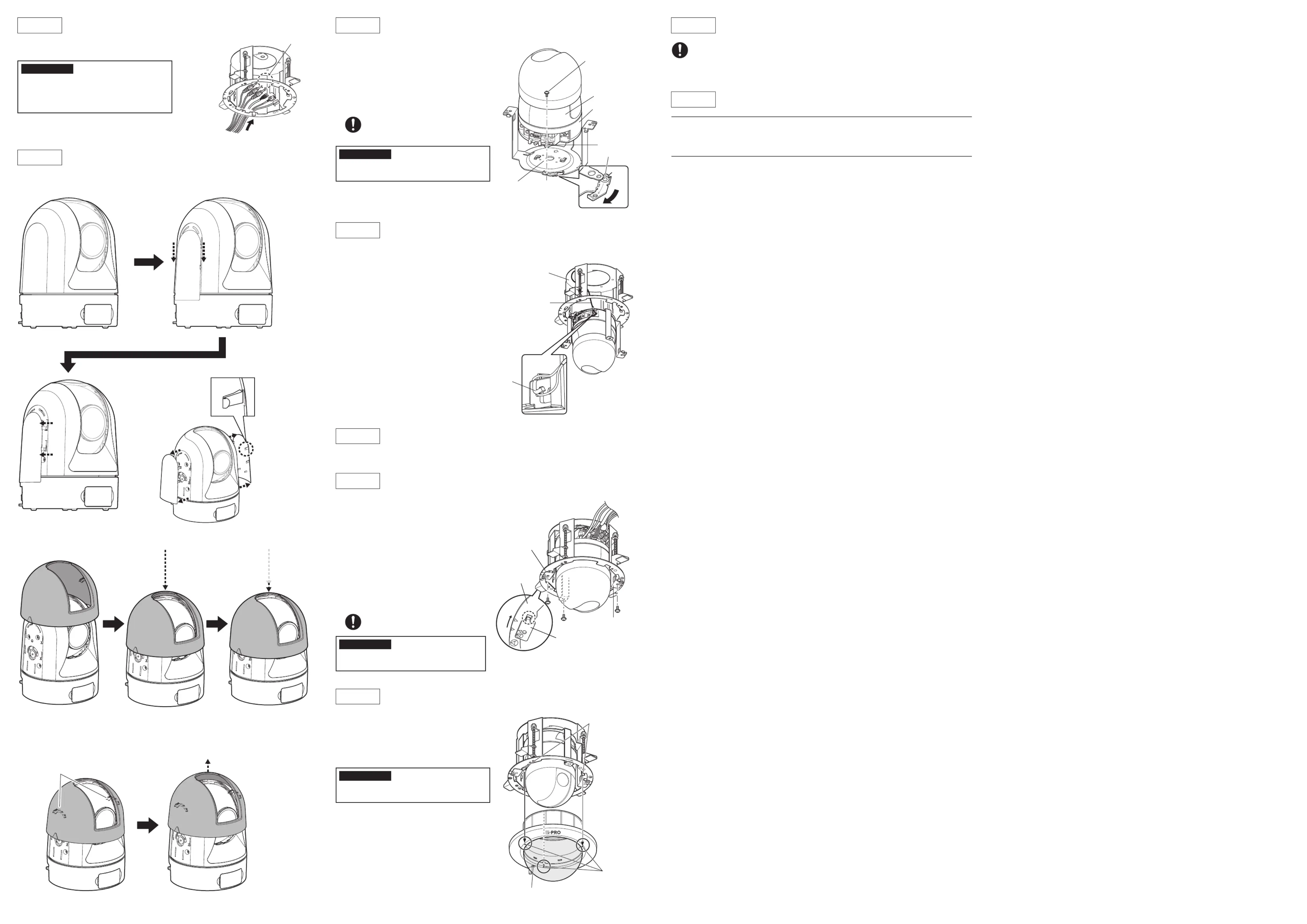

Step 9

Step 10

Prepare the cables.

Attach the inner cover.

①Put the camera onto the camera mounting plate

with aligning the lock plate of the camera with

the guide of the camera mounting plate and

inserting the center of the camera mounting

plate with the center of the camera, and turn the

camera clockwise.

②Secure the camera with the camera fixing screw

(M3: camera accessory).

Recommended tightening torque:

0.68 N·m {0.5 lbf·ft}

IMPORTANT:

• Be sure to mount the camera with holding the

stationary portion of the camera.

①Align the marks ( to and to ) between Ⓐ Ⓐ Ⓑ Ⓑ

the camera mounting plate and mounting base.

②Mount the camera mounting plate on the

mounting base with aligning of the camera g

mounting plate with “START ” of the mounting h

base.

③Turn the camera mounting plate until of the g

camera mounting plate aligns with “END ” of h

the mounting base, and then temporarily fix by

hooking the hooks of the camera mounting

plate into the holes of the mounting base.

④Tighten the 3 screws that were removed in

Step 2.

Recommended tightening torque:

1.6 N·m {1.18 lbf·ft}

IMPORTANT:

• Do not let the cables be caught during

installation work.

①Mount the decorative cover on the camera mount-

ing plate with engaging the projections of the

decorative cover with the hooks for the decorative

cover.

②Turn the decorative cover clockwise while pressing

the projections upward and fix it temporarily.

IMPORTANT:

• The i-PRO logo, shall be aligned with the

FRONT mark.

Step 11

Mount the camera on the camera mounting plate.

FRON T

Stationary portion

Center of the camera

mounting plate

Camera fixing

screw

Lock plate

Guide

Rotating portion

Connect the safety wire locked on the

mounting base to the camera.

Make sure that the apical ring of the safety

wire is engaged with the safety wire hook of

the camera by pulling the safety wire after

connection.

FR O N T

Mounting base

Safety wire

Safety wire hook

Step 12

Step 13

Step 14

Step 15

Step 16

Step 17

Connect the safety wire to the camera.

Connect the cables to the camera.

Mount the camera mounting plate and camera on the mounting

base.

Mount the decorative cover.

Tighten the xing screw to be used for cover fall prevention.

Remove the protection sheet from the dome cover.

START

END

LOCK

Mounting base

Camera mounting plate

Align with Ⓐ Ⓐ

Align with Ⓑ Ⓑ

Projections

Hooks for the

decorative cover

(3 places)

Fixing screw to be used for cover fall prevention

Recommended tightening torque:

1.6 N·m {1.18 lbf·ft}

Note:

• When the tilt angle of the camera is almost level, the upper side of images will be hidden by this

product reflecting on the screen. In such a case, adjust the tilt angle. Refer to the Operating

Instructions of the camera for further information.

②Attach the inner cover.

 When removing the inner cover

Release the claws on the inner surface on both the left and right sides one by one and

then remove the inner cover.

①Remove the side covers from the camera main body. (Both the left and right sides)

Click feeling

A click sound

is heard.

Claws on the

inner surface

Produkt Specifikationer

Mærke:	I-PRO
Kategori:	Ikke kategoriseret
Model:	WV-QED100G

Har du brug for hjælp?

Hvis du har brug for hjælp til I-PRO WV-QED100G stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret I-PRO Manualer

I-PRO WV-QWL500-W Manual

18 Juli 2025

I-PRO WV-QAT501-S Manual

17 Juli 2025

I-PRO WV-QCL500-S Manual

17 Juli 2025

I-PRO WV-QSR506 Manual

16 Juli 2025

I-PRO WV-QSR504 Manual

15 Juli 2025

I-PRO WV-QJB503 Manual

14 Juli 2025

I-PRO WV-QEM500-W Manual

27 Marts 2025

I-PRO WV-QEM100-W Manual

27 Marts 2025

I-PRO WV-QJB501-W Manual

27 Marts 2025

I-PRO WV-QJB502-W Manual

12 Marts 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Grundig GEBD19300BP Manual

1 August 2025

Tripp Lite Protect It! TLP608DMUAM Manual

1 August 2025

Emos ZM5135 Manual

1 August 2025

Grundig HD 6080 B Manual

1 August 2025

Tripp Lite SRWB18410X2STR Manual

1 August 2025

Ikea SKÅDIS 105.994.99 Manual

1 August 2025

Grundig GEBM19400DXHI Manual

1 August 2025

Muse M-271 DB Manual

31 Juli 2025

Ctek NANOGRID AIR Manual

31 Juli 2025

Zoom G5 Manual

31 Juli 2025
