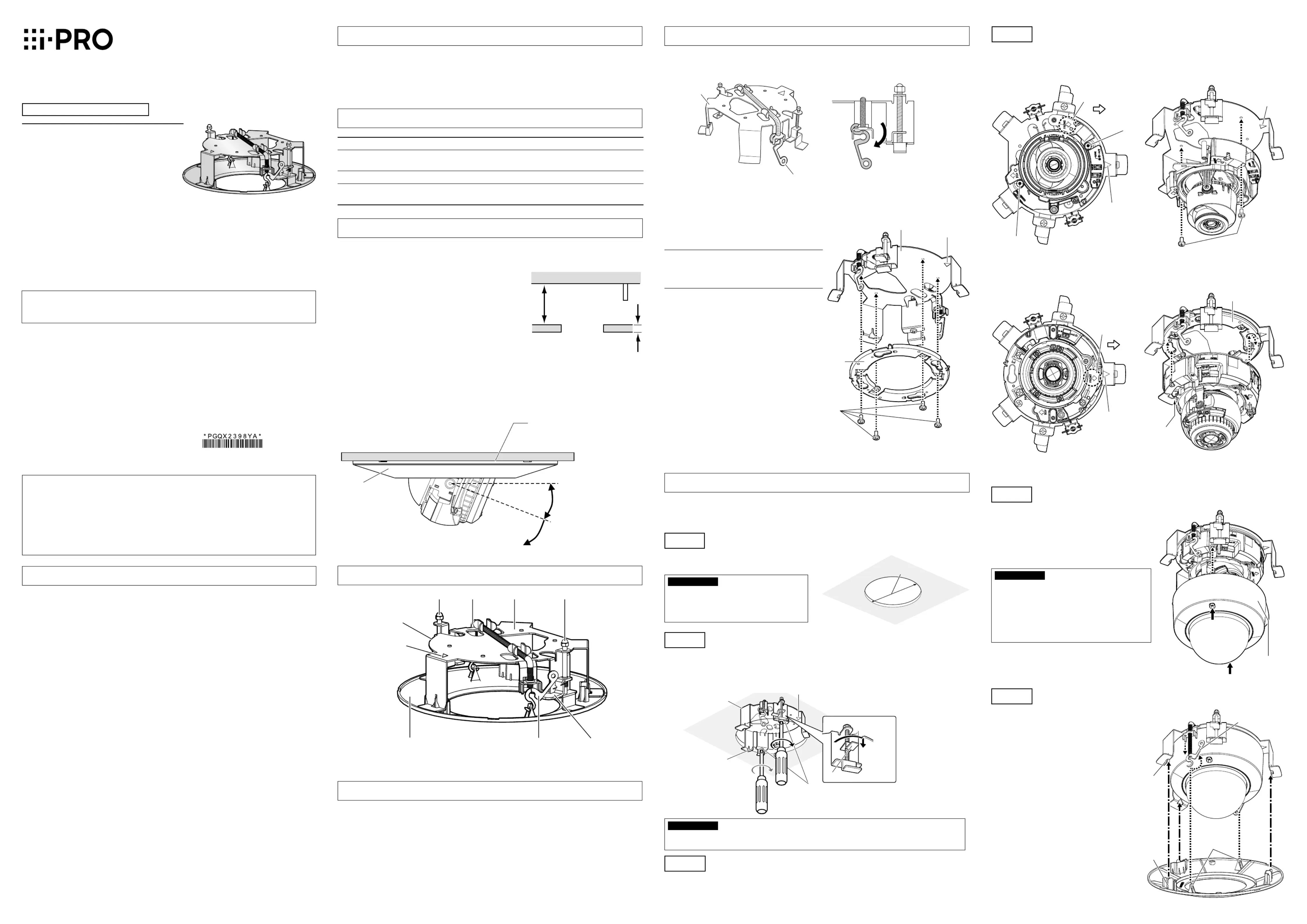

Preface

This ceiling mount bracket is exclusively designed to mount the camera on a ceiling. This bracket

can be used for an area with weak pull-out strength such as plasterboard in a double ceiling. For the

latest information about the supported cameras, refer to our support website

(https://i-pro.com/global/en/surveillance/training_support/support/technical_information<Control No.:

C0501>).

Specifications

Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}

Dimensions: ø186mm × 76.2mm (H)* {ø7-5/16 inches × 3 inches}

*Including decorative cover thickness: 15.7mm {5/8 inches}

Mass: Approx. 350 {0.77 lbs}g

Finish: Main body: Surface treatment steel sheet

Decorative cover: ABS resin i-PRO white

Precautions for installation

 

In order to prevent injury, the product must be securely mounted to a ceiling according to

the Installation Guide of this bracket.



Installation area for this product

• Make sure that the installation area is strong enough

to hold the total weight of the camera assembly

before installation.

• The installation area shall have 70mm {2-3/4 inches}

or more space behind the ceiling board.

• The thickness of the ceiling board for installation can

range between 9mm {11/32 inches} and 30mm

{1-3/16 inches}.

Ceiling board: between 9 mm {11/32 inches}

and 30 mm {1-3/16 inches}

70 mm {2-3/4 inches}

or more



Make sure to remove this product if it will no longer be used.



When using the IR LED built into the camera to view images in a dark area

If the direction is adjusted towards the surface where the camera is installed (a ceiling), reflections

from the decorative cover or installation surface (ceiling) may cause all or a part of the image to

appear washed out. Adjust the tilt so that there are no reflections in the images.

Installation surface (ceiling)

Decorative

cover

Reflections may occur in the

range of approx. 20°.

Reflections are less likely to occur.

* The dome cover is omitted for ease of explanation.

Parts and functions

Triangle mark

(top / bottom)*

Clamp plate

Clamping screw Spring hook Main body

Clamp plateSpring hookDecorative cover

Clamping screw

* Because the triangle mark is engraved on the bracket, it can be seen from both the top and bottom

sides.

Standard accessories

Operating Instructions (this document) ......... 1 pc.

Template (for tracing the hole shape) 1 sheet .......

Fixing screw (M4 x 8 mm) 5 pcs. ..........................

(of them, 1 for spare)

Decorative cover 1 pc. ..........................................

AF button push tool 1 pc. .....................................

Cs0520-1042

Printed in China

For U.S. and Canada:

i-PRO Americas Inc.

For Europe and other countries:

i-PRO EMEA B.V.

https://www.i-pro.com/

Caution:

• Before attempting to connect or operate

this product, please read these instructions

carefully.

Notice:

• This product is not suitable for use in

locations where children are likely to be

present.

• Do not install this product in locations where

ordinary persons can easily reach.

• For information about screws and brackets

required for installation, refer to the

corresponding section of this document.

Precautions



Do not use this bracket except with suitable cameras.

Failure to observe this may cause a drop resulting in injury or accidents.



Refer installation work to the dealer.

Installation work requires technique and experience. Failure to observe this may cause fire, electric

shock, injury, or damage to the product.

Be sure to consult the dealer.



Install the product securely on a ceiling in accordance with the installation

instructions.

Failure to observe this may cause injury or accidents.



Do not rub the edges of metal parts with your hand.

Failure to observe this may cause injury.

When using this product, also read the “Precautions” described in the

operating instructions for the camera to be attached.

Operating Instructions

Included Installation Instructions

Ceiling Mount Bracket

Model No.

WV-QEM100-W

• Before attempting to connect or install this product, please read these instructions carefully and

save this manual for future use.

• The external appearance and other parts shown in this manual may differ from the actual

product within the scope that will not interfere with normal use due to improvement of the

product.

i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting

from failures arising out of improper installation or operation inconsistent with this

documentation.

Preparations



Position 2 of the spring hooks of the main body as shown in the illustration below.

When the ceiling mount bracket is installed after positioning them in the opposite side, they may

become hard to pull out.

Main body

Spring hook

Move the hook head downward.



Fix the attachment plate (camera accessory) to the ceiling mount bracket.

Attach the attachment plate (camera accessory) to the ceiling mount bracket first if they are needed

for the attachment of the camera body.

< When securing the camera body using the

attachment plate>

Main body

Triangle mark

Attachment plate

(camera accessory)

Fixing screws

(M4 x 8 mm: accessory)

Recommended

tightening torque:

1.6 N·m {1.18 lbf·ft}

Note

• When using a camera type that directly

attaches to installation surfaces, this

preparation is not required.

Step4

Fix the camera body to the ceiling mount bracket.

The triangle mark of the ceiling mount bracket and the direction marker (FRONT



) of the camera

body should be located on the same sides.

<When directly attaching to the ceiling

mount bracket>

Fixing screws (M4 x 8 mm: accessory)

Recommended tightening torque: 1.6 N·m {1.18 lbf·ft}

Camera FRONT

direction

Attaching screw

position

Triangle mark

Attaching

screw position

Triangle mark

Fixing screws

(M4 x 8 mm

: accessory)

Align the attachment fixing screws on the bottom side of the camera with the holes of the

attachment plate, and temporarily attach the camera by rotating it about 15° clockwise. Next,

secure the camera with the camera fixing screw.

Camera FRONT

direction

Triangle mark

Attachment plate

Camera fixing screw (Red)

Recommended tightening

torque: 0.78 N·m {0.58 lbf·ft}

From here on explanations use illustrations for <When using the attachment plate>.

Step5

Adjust the angle of view of the camera and attach the enclosure.

Adjust the PAN, TILT, etc. of the camera, and then

adjust the angle of view. When the adjustment is

completed, attach the enclosure to the camera.

• If the AF (Auto Focus) button on the side of the

camera body must be pressed after installing the

camera, use the AF button push tool (accessory).

Enclosure

IMPORTANT

• After complete installation, remove the

protection film from the dome cover.

• Attaching the enclosure may cause slight

defocusing. In this case, execute the auto focus

function from the setup menu.

•

If there are fingerprints or dirt on the dome cover,

wipe the dome cover with a soft, dry cloth.

Step6

Attach the decorative cover.

Align the bracket with the 3 guides of the

decorative cover, pull out both the spring hooks

and attach the hooks to the decorative cover.

Make sure that the cover is attached to the

ceiling with no space between them.

* Match the “i-PRO” logos on the cover and on

the camera.

Guides of the

decorative cover

(3 places)

Decorative

cover

connection

parts

Fixing holes

(3 places)

Spring hooks

(2 places)

Installations

Be sure to read “Precautions” and “Precautions for installation” before installation.

Refer to the operating instructions of the camera for details on the camera installation (including the

camera mounting, cable connection and adjustment).

Step1

Make a hole of 160 mm {6-5/16 inches} diameter using a specialized

tool, etc.

Make a mounting hole in the ceiling using the

template (accessory).

Ceiling

ø160 mm

{6-5/16 inches}

IMPORTANT

• Make a hole precisely. When the opened

hole is bigger or deformed too much, the

ceiling mount bracket cannot be stuck on

the ceiling board securely.

Step2

Fix the ceiling mount bracket onto the ceiling board.

Loosen the fixing screws by rotating them counterclockwise until the length between the clamp plates

becomes wider than the thickness of the ceiling board. Insert the ceiling mount bracket into the

ceiling board, and clamp and secure the ceiling board by rotating the fixing screws clockwise.

Main body

The thickness of the

ceiling board is between

9 mm {11/32 inches}

and 30 mm {1-3/16 inches}

for installation.

Fixing screws (accessory)

Recommended tightening torque:

1.6 N·m {1.18 lbf·ft}

Triangle mark

Clamp plates

Clamp

the ceiling

board.

* The “i-PRO” logo on the camera and the

decorative cover should be located on the

side of this triangle mark.

IMPORTANT

• When the ceiling board is plasterboard, make sure that no crack was made on the ceiling board

by clamping.

Step3

Connect the cables to the camera.

Remove the enclosure from the camera body and connect the cables from above the ceiling board

first.
