KDS-USB2 Quick Start

P/N:

2 9 0 0 - 3 0 1 3 9 1 QS

Rev:

Scan for full manual

KDS-USB2 Kit/KDS-USB2- /KDS-USB2-DEC EN

Quick Start Guide

This guide helps you install and use your KDS-USB2 for the first time.

Go to www.kramerav.com/downloads/KDS-USB2 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check in the bwhat’s ox

KDS KDS-USB2-EN and/or -USB2-DEC

1 Power adapter and cord (for ) KDS-USB2-DEC

1 Quick start guide

1 USB2 cable A male to B male (for ) KDS-USB2-EN

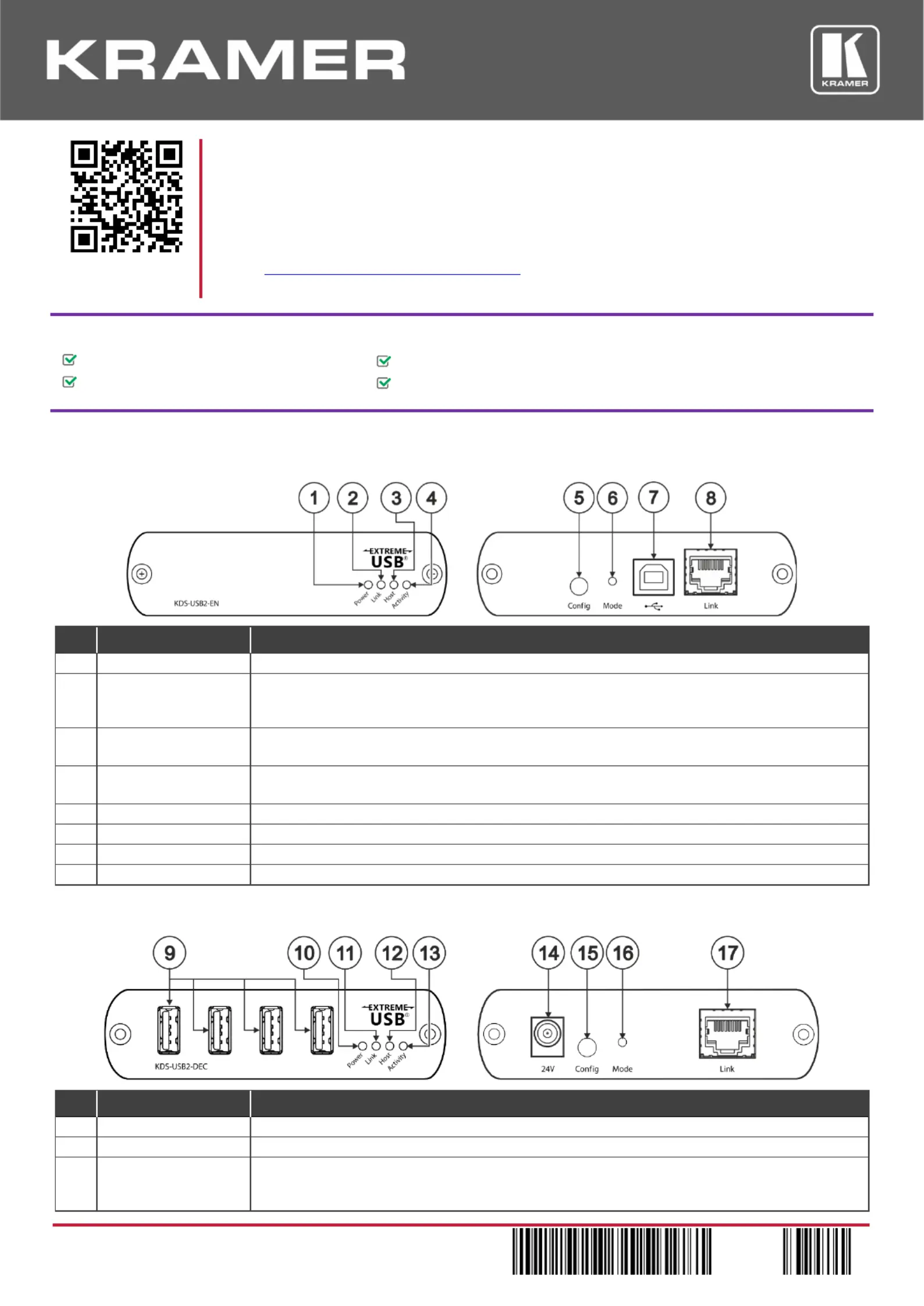

Step 2: Get to know your KDS-USB2

KDS-USB2-EN

Feature

Function

Power LED

Lights blue when power is supplied by USB connection. KDS-USB2-DEC

Link LED

Lights green when a USB link is established between the encoder and the decoder.

Flashes slowly when the unit attempts to establish a link. Flashes quickly when in pairing mode.

O when a link is not established.

Host LED

Lights green when is properly enumerated on the host computer. KDS-USB2

Flashes when in suspended state. a

Activity LED

Lights yellow when activity between the decoder and encoder/s is detected.

O when in suspended mode.

Cong Button

For factory use.

Mode Button

Use for with the decoder/ pairing KDS-USB2-EN KDS-USB2-DEC s.

USB Host Port

Connect to the host computer.

Link RJ-45 Connector

Connect to the . KDS-USB2-DEC

KDS-USB2-DEC

Feature

Function

USB Ports

Connect up to 4 USB type A devices.

Power LED

Lights blue when 24 V power is supplied.

Link LED

Lights green when a USB link is established between the encoder and the decoder.

Flashes slowly when the unit attempts to establish a link. Flashes quickly when in pairing mode.

O when a link is not established.

Feature

Function

Host LED

Lights green when is properly enumerated on the host computer. Flashes when in a KDS-USB2

suspended state.

Activity LED

Lights yellow when activity between the decoder and encoder/s is detected. O when in

suspended mode.

24V Power Connector

Connect to the supplied power adapter.

Cong Button

For factory use.

Mode Button

Use for pairing with the decoder/s. KDS-USB2-EN KDS-USB2-DEC

Link RJ-45 Connector

Connect to the . KDS-USB2-EN

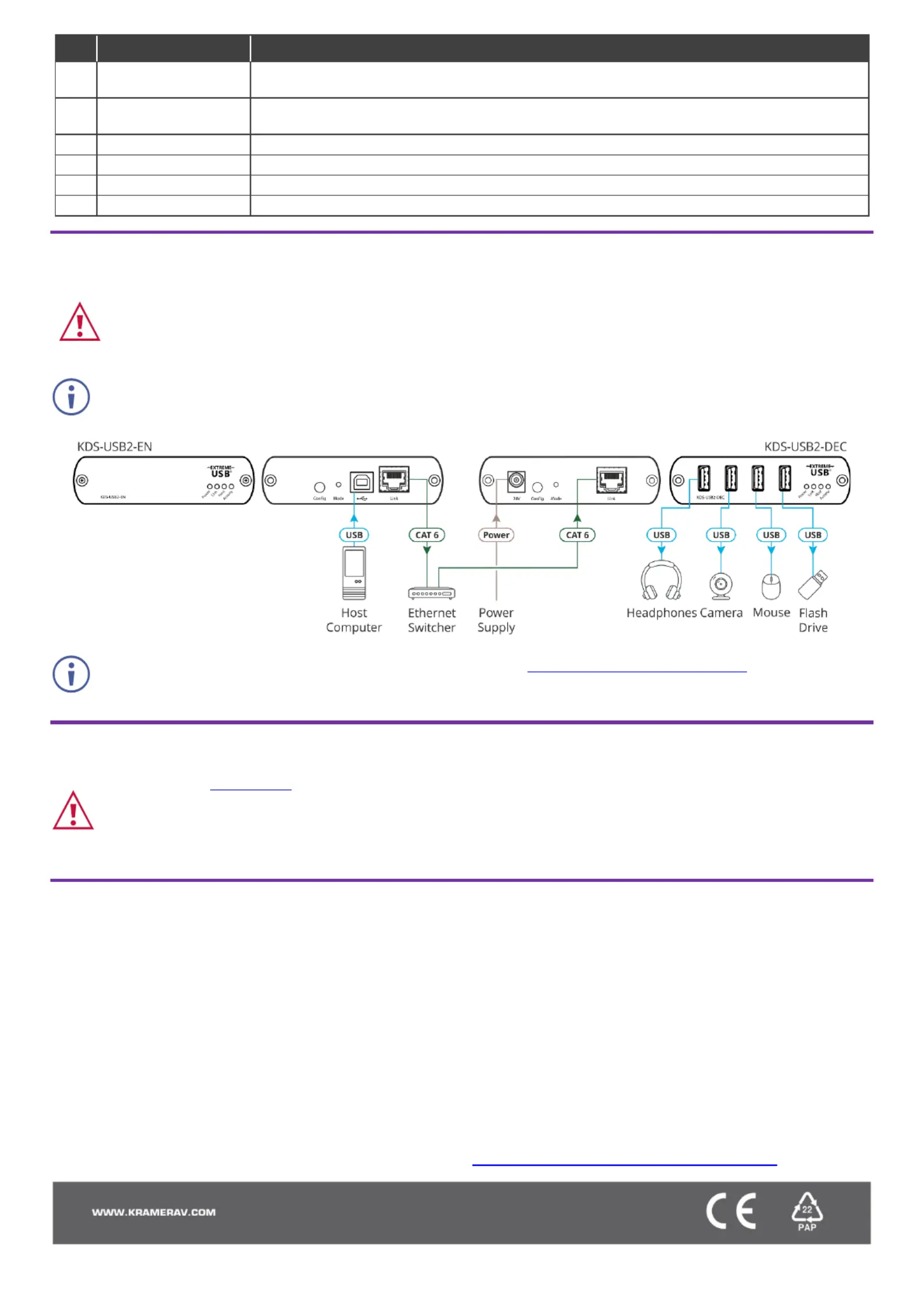

Step 3: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your . KDS-USB2

• Ensure that the environment (e.g., maximum ambient temperature & air ow) is compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

• The encoder is powered by the USB host port only.

• You can also connect multiple units. KDS-USB2-EN and KDS-USB2-DEC

For optimal performance, use the recommended Kramer cables available at www.kramerav.com/product/KDS-USB2.

Using third-party cables may cause damage!

Step 4: Connect power

Connect the power cord to and plug it into the mains electricity. KDS-USB2

Safety Instructions (See for updated safety information)www.kramerav.com

Caution:

• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.

• Disconnect the power and unplug the unit from the wall before installing.

Step 5: Operate KDS-USB2

By default, the kit devices are paired. You can also pair devices manually or map multiple devices via Kramer KDS-USB2

Control.

When using unpaired units (for example, individually

purchased devices), you can pair them manually.

To pair -USB2- with -USB2-DEC manually: KDS EN KDS

1. Make sure that the devices are properly connected.

2. On , press and hold for a few KDS-USB2-EN Mode
