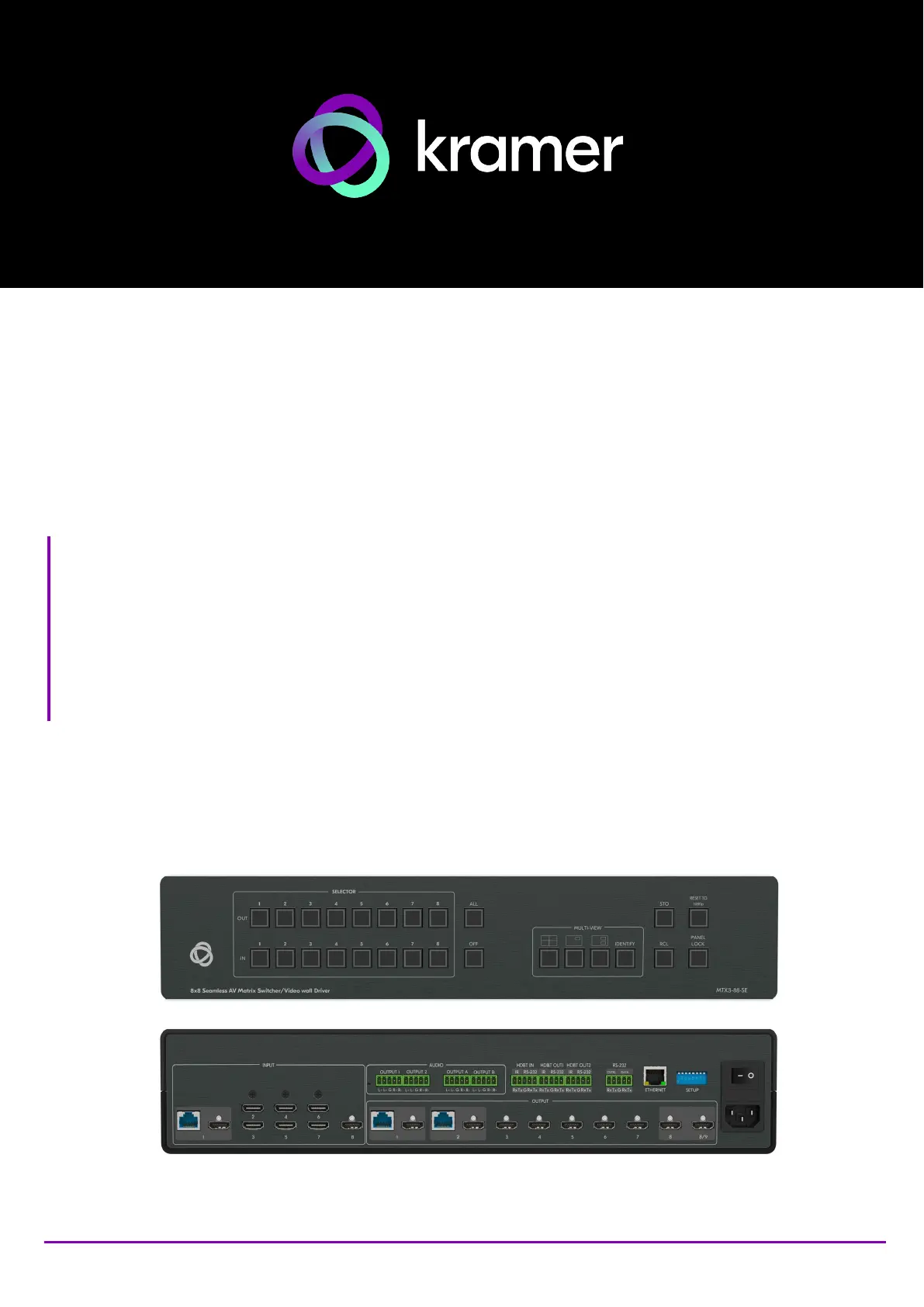

P/N: 2900-301675 Rev 6 www.kramerav.com
USER MANUAL
MODEL:
MTX3-88-SE
4K 8x8 Seamless Matrix
Switcher/Multi-Scaler
Kramer Electronics Ltd.
MTX3-88-SE – Contents
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 4
Defining MTX3-88-SE 5
Mounting MTX3-88-SE 8
Connecting MTX3-88-SE 9
Connecting the Audio Line to a Balanced/Unbalanced Stereo Audio Acceptor 10
Connecting to MTX3-88-SE via RS-232 10
Operating and Controlling the MTX3-88-SE 11
Principles of Operation 11
Operating the Device using the Device Panel Buttons 11
Operating via Ethernet 17
Using Embedded Web Pages 21
8x8 AV Matrix Routing Operation and Settings 24
Multi-View Operation Mode Settings 27
Data Routing 42
Managing EDID 44
Picture Settings 46
Setting Device Properties 49
Setting Control Gateway Properties 53
Setting Security Status 54
Viewing the About Page 59
Upgrading the Firmware 60
Setting the DIP-Switches 60
Technical Specifications 61
Default Communication Parameters 62
Protocol 3000 63
Understanding Protocol 3000 63
Protocol 3000 Commands 64
Result and Error Codes 84
