VS-21DT Quick Start

P/N:

2900- 300925QS

Rev:

Scan for full manual

VS-21DT Quick Start Guide

This guide helps you install and use your VS-21DT for the first time.

Go to www.kramerav.com/downloads/VS-21DT to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VS-21DT 2xHDMI to HDBT Standby Switcher

1 Bracket set

1 Quick start guide

1 Power adapter and cord

4 Rubber feet

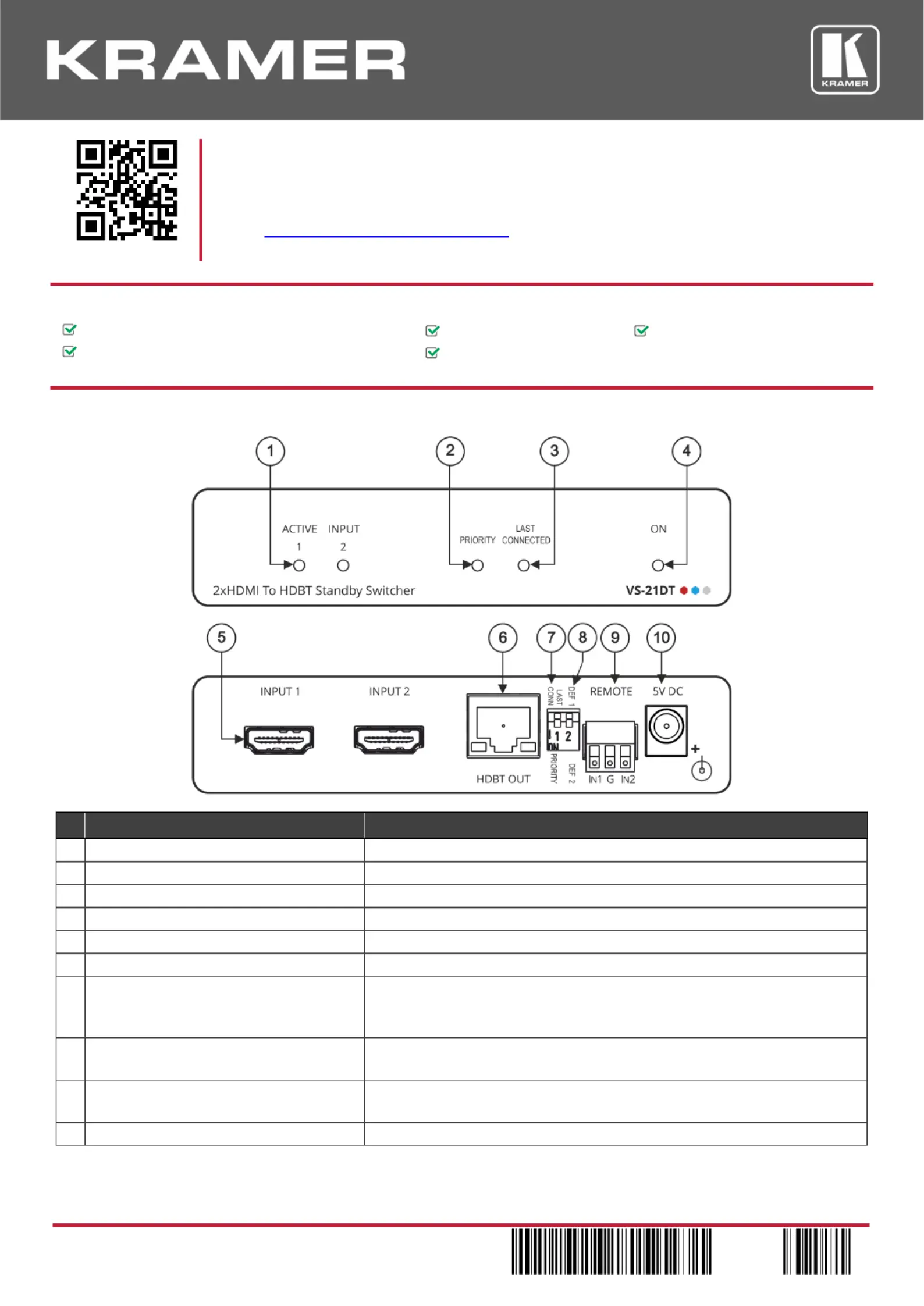

Step 2: Get to know your -21DT VS

Feature

Function

ACTIVE INPUT LEDs (1 to 2)

Lights green when the input active. Both LEDs ash when no input is active. is

PRIORITY LED

Lights green when DIP-switch 1 is set to PRIORITY (down).

LAST CONNECTED LED

Lights green when DIP-switch 1 is set to LAST CONNECTED (up).

ON LED

Lights green when the unit is powered on via power adapter.

INPUT HDMI Connectors (1 to 2)

Connect to an HDMI source.

HDBT OUT RJ-45 Connector

Connect to an HDBaseT receiver (for example, TP-580R).

LAST CONN/PRIORITY DIP-switch 1

Set DIP-switch 1 up (o) to select the Last Connected input.

Set DIP-switch 1 down (on) to select the Priority input determined by DIP-switch

DEF 1/DEF 2 DIP-switch 2

Set DIP-switch 2 up (o) to dene INPUT 1 as the default (priority) input.

Set DIP-switch 2 down (on) to dene INPUT 2 as the default (priority) input.

REMOTE 3-pin Terminal Block Connector

Connects to optional contact closure switches 1 or 2 for manual switching (by

momentary contact between the desired pin and the G pin).

5V DC Power Terminal Block Connector

Connect to the Kramer power adapter.

The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Step 3: Mount -21DT VS

Install using one of the following methods: VS-21DT

• Attach the rubber feet and place the unit on a at surface.

• Fasten a bracket (included) on each side of the unit and attach it to a at

surface (see www.kramerav.com/downloads/VS-21DT).

• Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/VS-21DT).

• Ensure that the environment (e.g., maximum ambient temperature & air

ow) is compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

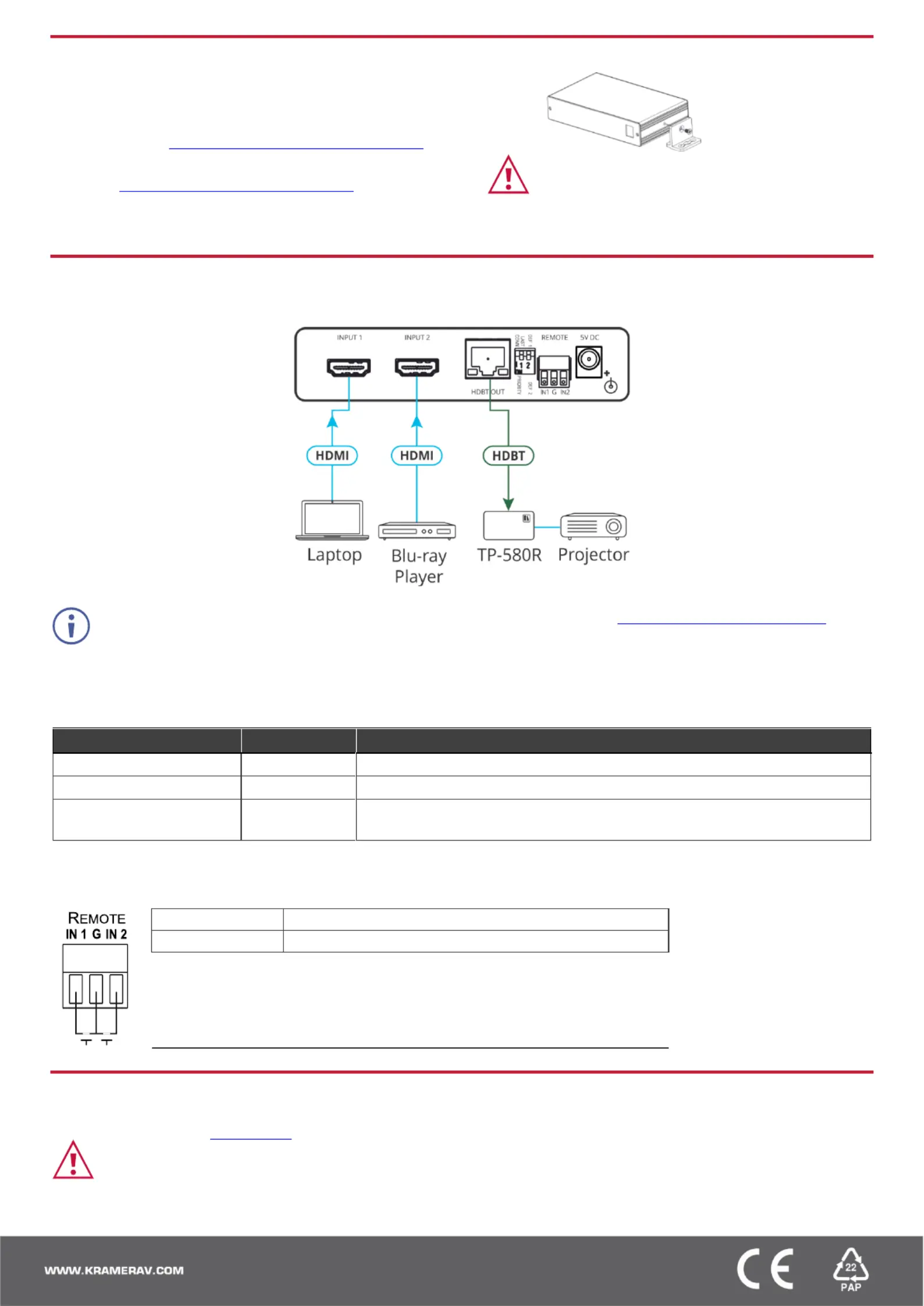

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your . VS-21DT

To achieve specied extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VS-21DT.

Using third-party cables may cause damage!

DIP-switches Setup:

A switch that is down is on; a switch that is up is o. By default, both switches are up (o).

Video Switching Selection:

DIP-switch 1

DIP-switch 2

Video Input Selection

PRIORITY (down)

DEF 1 (up)

INPUT 1 is the default priority and is automatically switched to the output.

DEF 2 (down)

INPUT 2 is the default priority and is automatically switched to the output.

LAST CONNECTED (up)

N/A

The last connected source is switched to the output (a reactivated or reconnected source

becomes the new “Last Connected” source).

Contact Closure Switches (Manual Override):

Controlling via the remote contact closure pushbuttons overrides all DIP-switch settings and automatic switching until

the manually selected source disconnects, becomes inactive or the is powered o.VS-21DT

Select INPUT 1

Momentarily connect REMOTE IN 1 to PIN G (ground).

Select INPUT 2

Momentarily connect REMOTE IN 2 to PIN G (ground).

Step 5: Connect power

Connect the power cord to and plug it into the mains electricity. VS-21DT

Safety Instructions (See for updated safety information)www.kramerav.com

Caution:

• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.

• Disconnect the power and unplug the unit from the wall before installing.
