Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2169

Model ACS-1524 Rev. 05-05-21 | pg. 1/2

INTERNAL USE ONLY: PN 24220

Power strip with 24 NEMA 15A receptacles in a low prole chassis includes

surge suppression with LED status indicator.

FEATURES:

• Power Rating: 120VAC, 60Hz, 15A

• Chassis: 60" x 1.625" x 1.375" steel chassis with black powder epoxy

finish

• Termination: 12-ft. attached (non-removable) power cord with NEMA 5-15P

molded plug

• Receptacles: Total of 24 single NEMA 5-15R receptacles, spaced to allow

room for some power supplies.

• Surge Suppession: Common mode transient voltage surge suppression

(UL 1449-3 Listed) with 15A circuit breaker:

– LED indicator: Lit when protection is active

– Maximum surge current: 6500A (L-G, L-N, N-G)

– Maximum surge voltage: 6000V

– Suppressed voltage rating: 400V

– Energy dissipation: 450 Joules (8 x 20us waveform)

– Lines protected: L-G, L-N, N-G

– Response time: Less than one (1) nanosecond

– Noise ltering: EMI / RFI

• Mounting Hardware: Mounting clips and screws provided for vertical

installation in a rack that has adjustable or xed rails. Includes cable ties to

secure power supplies when the strip is mounted vertically.

• Certication: UL Listed

• Origin: China

• A&E Specications: The UL Listed power strip shall be Lowell model ACS-

1524, which shall have a power rating of 120VAC, 60Hz, 15A and include

a circuit breaker. It shall feature 24 NEMA 5-15R receptacles with space to

accommodate some power supplies. It shall include common mode transient

voltage surge suppression with LED indicator that is lit when protection is

active. The power strip shall have a suppressed voltage rating of 400V with

maximum surge voltage of 6000V and maximum surge current of 6500A. It

shall be terminated with an attached 12-foot cord and molded plug. It shall

include a mounting clip, screw, and cable ties.

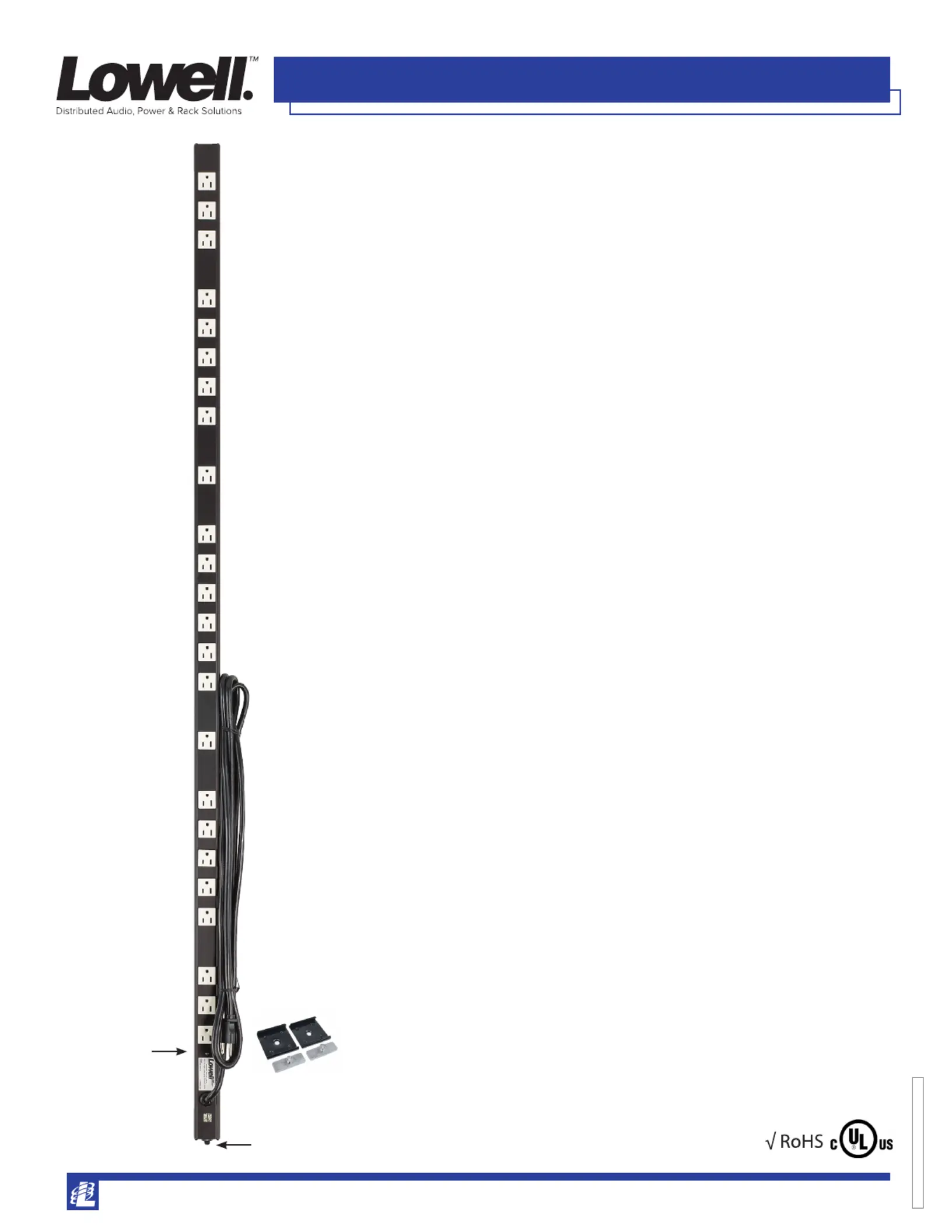

AC Power Strip w/Surge Suppression: ACS-1524

Attached power cord

with plug

Receptacles

are spaced to

accept some

power supplies

15A circuit breaker

LED indicator

is lit when

protection is

active

Mounting hardware

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2169

Model ACS-1524 Rev. 05-05-21 | pg. 2/2

INTERNAL USE ONLY: PN 24220

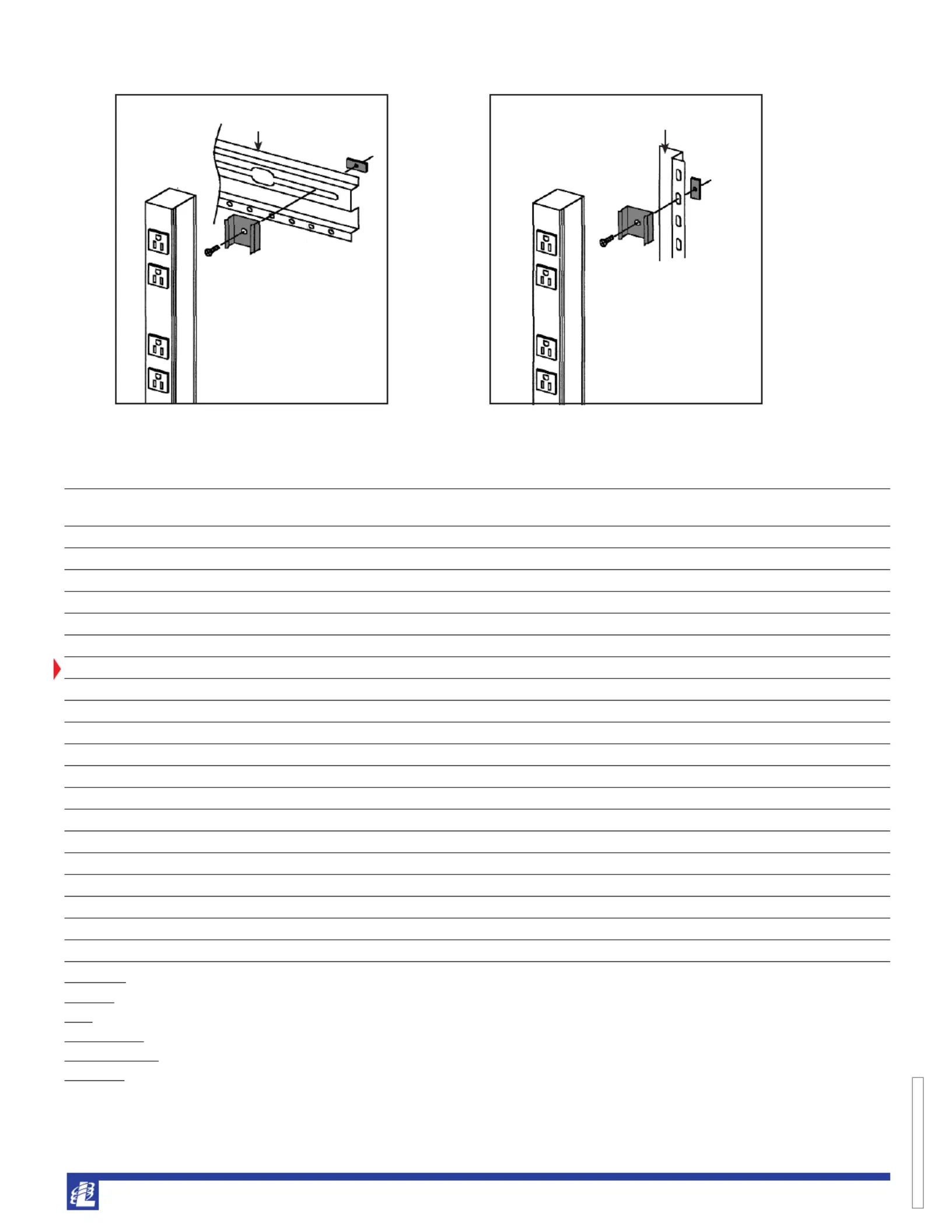

1. Install mounting clip to

Z-bracket using hardware

provided.

2. Align power strip with

mounting clips and snap

into place.

Z-bracket in rear

1. Install mounting clip to rack

rail mounting channel using

hardware provided.

2. Align power strip with mounting

clips and snap into place.

Rack rail mounting channel

Rack with adjustable rails Rack with xed rails and Z-bracket

INSTALLATION: Use the mounting clip and hardware to mount to a rack.

ACS Series Power Strips (overview)

Power NEMA Chassis Chassis On/Off Surge Remote Mounting Country

Model No. Rating Receptacles Circuits Length Profile Termination Switch Suppression Power Control Aids of Origin

ACS-1505-SW 15A 5 (15A) 1 12" Standard 6' Det. cord Yes --- --- Brackets U.S.

ACS-1505-SW-SD 15A 5 (15A) 1 12" Standard 6' Det. cord Yes 2-stage --- Brackets U.S.

ACS-1506 15A 6 (15A) 1 20" Low 6' Fixed cord --- 1-stage --- Clips China

ACS-1506-WW 15A 6 (15A) 1 12" Low 6' Fixed cord --- --- --- Screws U.S.

ACS-1507 15A 7 (15A) 1 12" Low 6' Det. cord --- --- --- Screws U.S.

ACS-1512 15A 12 (15A) 1 32" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-1524 15A 24 (15A) 1 60" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-1524-2C 15A 24 (15A) 2 70" Low Pigtail leads --- --- --- Clips China

ACS-2012 20A 8 (15A) + 4 (20A) 1 32" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-2024 20A 16 (15A) + 8 (20A) 1 70" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-2014-HW 20A 14 (20A) 1 30" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2014-2C-HW 20A 8 (15A) + 6 (20A) 2 30" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2020-6C-HW 20A 20 (20A) 6 60" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2020-IG-6C-HW 20A 20 (I.G. 20A) 6 60" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2020-IG-10C-HW 20A 20 (I.G. 20A) 10 60" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2024-2C 20A 24 (20A) 2 70" Low Pigtail leads --- --- --- Clips China

ACS-1510-RPC 15A 10 (15A) 1 30" Standard 6' Det. cord --- --- Yes Brackets U.S.

ACS-2010-RPC-HW 20A 10 (20A) 1 30" Standard 6' Conduit --- --- Yes Brackets U.S.

ACS-2018-5C-RPC-HW 20A 18 (20A) 5 60" Standard 6' Conduit --- --- Yes Brackets U.S.

ACS-2018-5C-RPCP-HW 20A 18 (20A) 5 60" Standard 6' Conduit --- 1-stage Yes (P) Brackets U.S.

Chassis Profile = Standard profile (2" x 2"), Low profile (1.625" x 1.375")

Termination = Det. cord (detachable cord), Fixed cord (cord is attached–cannot be removed), Conduit (non-metallic flexible whip w/pigtail leads), Pigtail leads (leads at ends of chassis—no whip)

Switch = Yes (On/off rocker switch)

Surge Suppression = 1-stage (basic surge protection), 2-stage (surge protection with backup)

Remote Power Control = Some receptacles are controlled by a remote switch or sequencer (ordered separately); (P) indicates compatibility with Lowell P-Series pass-through sequencers.

Mounting Aids = Brackets (multi-hole brackets with hardware), Clips (clips and screws with wire tires), or Screws (power strips can mount to rear of US or USV Series shelves).
