INTERNAL USE ONLY: PN 24235

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2166

Model ACS-2024-2C | Rev. 12.20.23 | pg. 1/2

POWER RATING: 120VAC, 60Hz, 20A

CHASSIS: 70” x 1.625” x 1.375” steel chassis with black powder epoxy finish

TERMINATION: Symmetrical design has knockouts with pigtail leads at both ends of the

chassis, allowing power connections to be made from either or both ends for feed through

without an additional J-box.

CIRCUITS & RECEPTACLES: A total of 24 receptacles are wired into two circuits. The color

coded receptacles (white and light grey) alternate throughout the power strip and indicate

which circuit they’re on. Receptacle spacing accommodates power supplies (wall warts).

• Circuit 1 powers twelve NEMA 5-20R receptacles (WHITE)

• Circuit 2 powers twelve NEMA 5-20R receptacles (LIGHT GREY)

MOUNTING HARDWARE: Clips and screws are provided for vertical installation in a rack

that has adjustable or fixed rails. Includes cable ties to secure power supplies when the

strip is mounted vertically.

CERTIFICATION: ETL Listed in U.S./Canada

ORIGIN: China

Two-circuit power strip features 24 NEMA 20A receptacles (12 per circuit). Each circuit is

provided with separate neutrals, making the strip suitable for use in independent circuits or

multi-wire branch circuit applications. Receptacle ground and chassis bonding connections

are independent, allowing the strips to be used in insulated ground (isolated ground, I.G.)

applications.

ACS Series Model No.

ACS-2024-2C

AC Power Strip w/Two Circuits

FEATURES

A&E SPECIFICATIONS

The two-circuit power strip for hardwire applications shall be Lowell model ACS-2024-2C.

The power strip shall include twelve white NEMA 5-20R receptacles on circuit 1 and twelve

light grey NEMA 5-20R receptacles on circuit two. Circuit layout shall be alternating white

and light grey receptacles, with spacing to accommodate power supplies. Termination shall

be by color coded leads accessible through knockouts at both ends of the chassis. Each

circuit shall be provided with separate neutrals, making it suitable for independent circuit

connection or multi-wire branch circuit connection. Receptacle ground and chassis bonding

connections shall be independent, allowing strips to be used in isolated ground applica-

tions. The power strip shall include mounting clips and screws for vertical installation in a

rack. Tie wraps shall be provided to secure large power supplies.

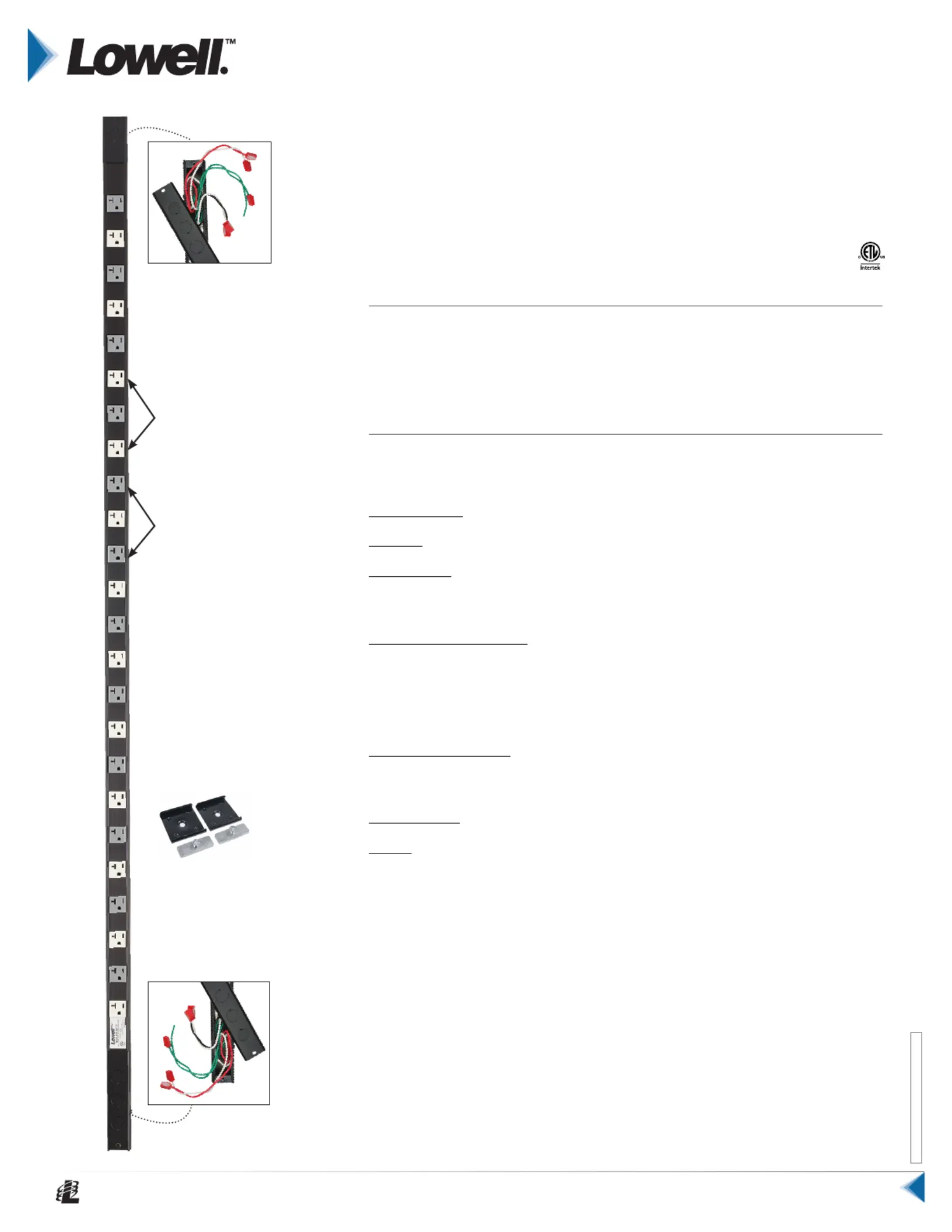

Knockouts with pigtail leads

at both ends of chassis allow

power connections from

either or both ends.

CIRCUIT 1: White receptacles (12)

CIRCUIT 2: Grey receptacles (12)

Mounting hardware

INTERNAL USE ONLY: PN 24235

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2166

Model ACS-2024-2C | Rev. 12.20.23 | pg. 2/2

SERIES SUMMARY

Power NEMA Chassis Chassis On/Off Surge Remote Mounting Country

Model No. Rating Receptacles Circuits Length Pro le Termination Switch Suppression Power Control Aids of Origin

ACS-1505-SW 15A 5 (15A) 1 12" Standard 6' Det. cord Yes --- --- Brackets U.S.

ACS-1505-SW-SD 15A 5 (15A) 1 12" Standard 6' Det. cord Yes 2-stage --- Brackets U.S.

ACS-1506 15A 6 (15A) 1 20" Low 6' Fixed cord --- 1-stage --- Clips China

ACS-1506-WW 15A 6 (15A) 1 12" Low 6' Fixed cord --- --- --- Screws U.S.

ACS-1507 15A 7 (15A) 1 12" Low 6' Det. cord --- --- --- Screws U.S.

ACS-1512 15A 12 (15A) 1 32" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-1524 15A 24 (15A) 1 60" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-1524-2C 15A 24 (15A) 2 70" Low Pigtail leads --- --- --- Clips China

ACS-2012 20A 8 (15A) + 4 (20A) 1 32" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-2024 20A 16 (15A) + 8 (20A) 1 70" Low 12' Fixed cord --- 1-stage --- Clips China

ACS-2014-HW 20A 14 (20A) 1 30" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2014-2C-HW 20A 8 (15A) + 6 (20A) 2 30" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2020-6C-HW 20A 20 (20A) 6 60" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2020-IG-6C-HW 20A 20 (I.G. 20A) 6 60" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2020-IG-10C-HW 20A 20 (I.G. 20A) 10 60" Standard 6' Conduit --- --- --- Brackets U.S.

ACS-2024-2C 20A 24 (20A) 2 70" Low Pigtail leads --- --- --- Clips China

ACS-1510-RPC 15A 10 (15A) 1 30" Standard 6' Det. cord --- --- Yes Brackets U.S.

ACS-2010-RPC-HW 20A 10 (20A) 1 30" Standard 6' Conduit --- --- Yes Brackets U.S.

ACS-2018-5C-RPC-HW 20A 18 (20A) 5 60" Standard 6' Conduit --- --- Yes Brackets U.S.

ACS-2018-5C-RPCP-HW 20A 18 (20A) 5 60" Standard 6' Conduit --- 1-stage Yes (P) Brackets U.S.

Chassis Pro le = Standard pro le (2" x 2"), Low pro le (1.625" x 1.375")

Termination = Det. cord (detachable cord), Fixed cord (cord is attached–cannot be removed), Conduit (non-metallic  exible whip w/pigtail leads), Pigtail leads (leads at ends of chassis—no whip)

Switch = Yes (On/off rocker switch)

Surge Suppression = 1-stage (basic surge protection), 2-stage (surge protection with backup)

Remote Power Control = Some receptacles are controlled by a remote switch or sequencer (ordered separately); (P) indicates compatibility with Lowell P-Series pass-through sequencers.

Mounting Aids = Brackets (multi-hole brackets with hardware), Clips (clips and screws with wire tires), or Screws (power strips can mount to rear of US or USV Series shelves).

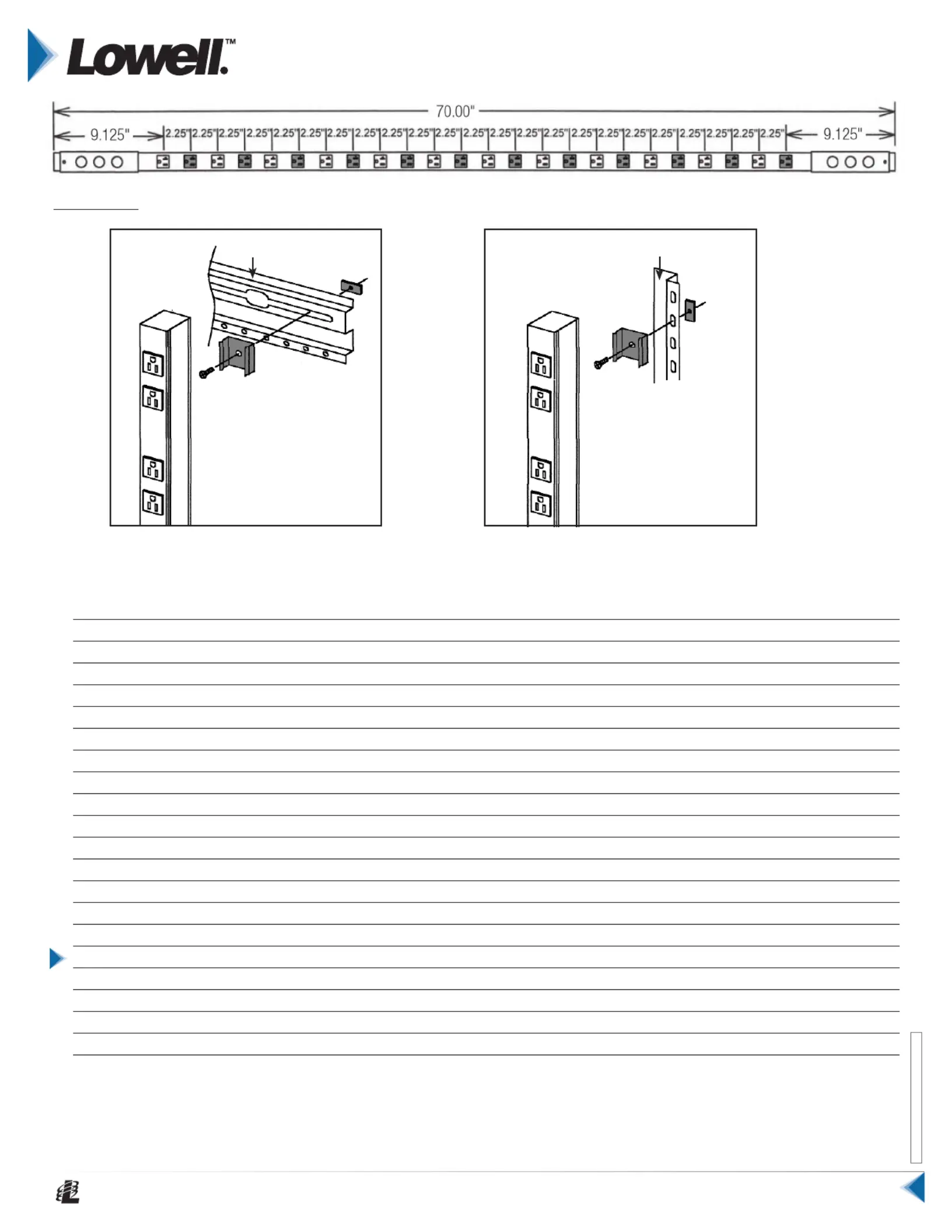

1. Install mounting clips to

Z-bracket using hardware

provided.

2. Align power strip with

mounting clips and snap

into place.

Z-bracket in rear

1. Install mounting clips to rack

rail mounting channel using

hardware provided.

2. Align power strip with

mounting clips and snap into

place.

Rack rail mounting channel

Rack with adjustable rails Rack with fixed rails and Z-bracket

INSTALLATION: Use the mounting clips and hardware to mount to a rack.

T H I S

SPEC

Produkt Specifikationer

Mærke:	Lowell
Kategori:	Ikke kategoriseret
Model:	ACS-2024-2C
Type:	Strømbar
Vekselstrømsindgangsfrekvens:	60 Hz
Bredde:	35 mm
Dybde:	41 mm
Højde:	1778 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Husmateriale:	Stål
Indgangsspænding:	120 V
Oprindelsesland:	Kina
Indgangsstrøm:	20 A
Monteringssæt:	Ja
