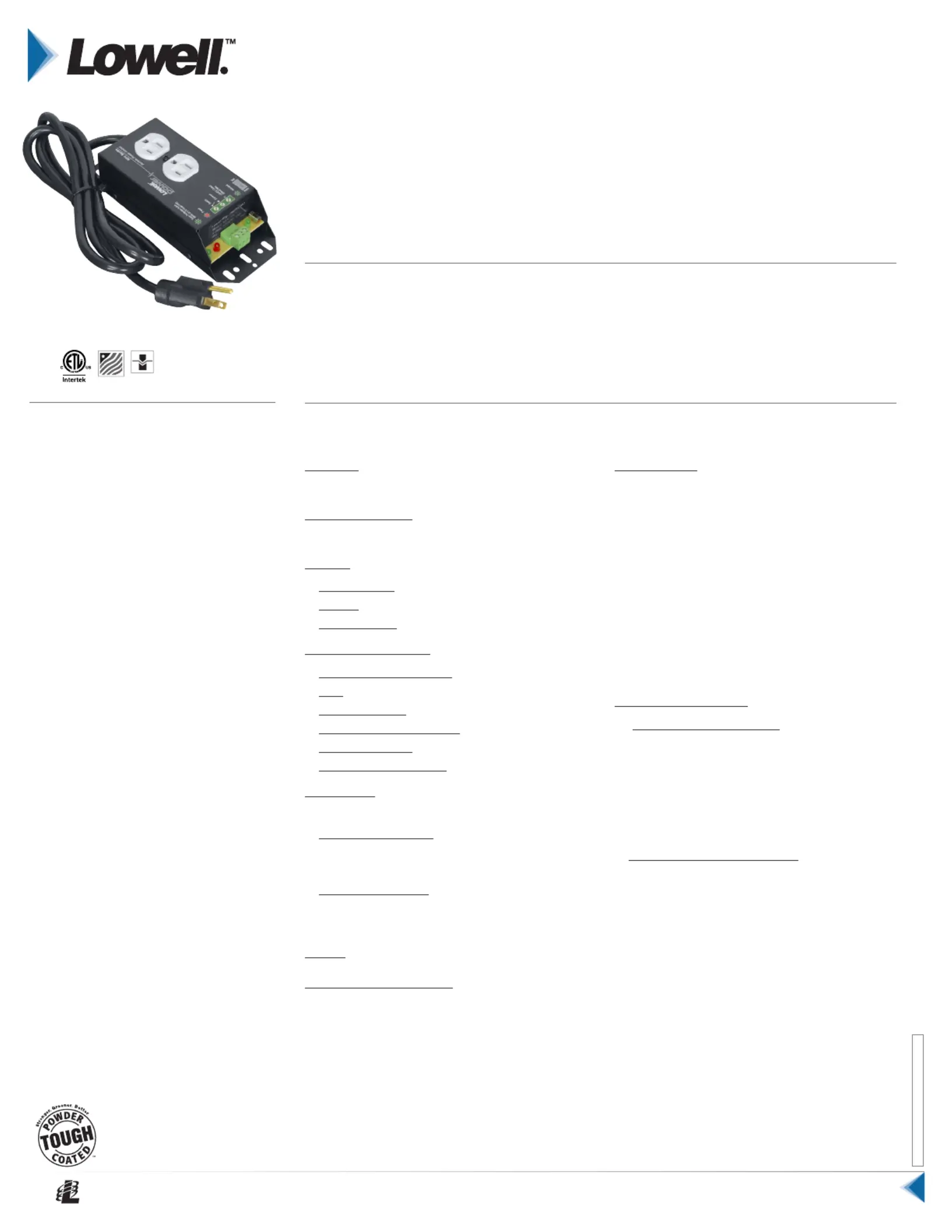

Side 1/2

INTERNAL USE ONLY: PN 24319

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2041

Model RPC-15-S | Rev. 1-10-2023 | pg. 1/2

REMOTE POWER CONTROLS can be combined with a variety of switches or sequencers for an intrinsically

safe, low voltage method of controlling AC power to equipment at remote locations. Controlling power

distribution without directly accessing equipment minimizes the potential for unauthorized access, while

simplifying activation and deactivation of equipment.

Note: RPCs require an external trigger for activation (order separately).

INSTALLATION: The RPC is typically installed near

the equipment to be controlled. Low voltage cable

is run from its terminal strip to a control switch (or

other control method).

• Systems can be configured with multiple RPCs

controlled by a single "Maintained Closure"

switch.

• Systems can also be configured with a single

RPC controlled by multiple "Momentary Clo-

sure" switches and Lowell's MSM2 module

(which converts momentary closure to main-

tained).

COMPATIBLE DEVICES: (order separately)

• SPST Switch (RPS Series): Low voltage wall-

mount or rack-mount switch:

– Switch with maintained closure connects

directly to RPC.

– Switch with momentary closure requires Low-

ell conversion module MSM2 placed between

the switch and RPC.

• Power Sequencer (SEQ Series): A low volt-

age sequencer can be used with the RPC

for time-delayed activation and deactivation

of connected equipment. Lowell standalone

sequencers will require a switch for activation,

while Lowell rack-mount sequencers include a

switch. See product spec sheets for information.

Ideal for Lowell switches featuring main-

tained closure (order separately):

RPSB-P Black wall plate w/rocker switch

RPSW-P White wall plate w/rocker switch

RPSW-KP White wall plate w/key switch

RPSB-R Rack panel w/rocker switch

RPSB-KR Rack panel w/key switch

Certied

US Steel

Made In USA

with Global

Components

Model No.

RPC-15-S

Remote Power Control

actives remote equipment external trigger required—

FEATURES

CHASSIS: Steel chassis with black finish and

mounting holes.

Overall Dimensions:

8.00"L x 3.25"W x 1.95"H

POWER:

• Power Rating: 125VAC 60Hz 15A

• Outlets: NEMA 5-15R duplex

• Attached Cord: 6 ft. with NEMA 5-15P plug

SURGE PROTECTION:

• Maximum Surge Current: 20,000A

• VPR: 400V

• Response Time: 1 nanosecond

• EMI/RFI Noise Reduction: 20dB@100kHz

• Protection Mode: Line to Neutral

• Ground Contamination: None

ACTIVATION: Must be connected to an external

control to trigger activation and deactivation:

• Dry Contact Closure: Connect to SPST switch,

power sequencer, or independent control sys-

tem with dry contact closure.

: Contact Coil Rating

- Voltage: 24VDC

- Current: 37.5mA

ORIGIN: Made in the U.S.A. with global components

THIRD PARTY APPROVAL: ETL Listed to

UL60065 (U.S. and Canada)

A&E SPECIFICATIONS

The device for remotely controlling AC power shall be Lowell model RPC-15-S, which shall feature a steel

chassis with black powder epoxy nish, 125VAC 60Hz 15A power rating, NEMA 5-15R duplex outlet, 6 ft.

cord with NEMA 5-15P plug, and basic surge protection up to 20,000A. The overall dimensions shall be

8.00"L x 3.25"W x 1.95"H. The unit shall require an external trigger for activation (not included).

INTERNAL USE ONLY: PN 24319

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2041

Model RPC-15-S | Rev. 1-10-2023 | pg. 2/2

Remote Power Control #RPC-15-S

GREEN LED (surge protection)

ON = protection active

OFF = protection compromised

Connect equipment

to be controlled by RPC

6-ft. cord

NEMA 5-15P plug

Connect to appropriate

125VAC power source

RED LED (AC power indicator)

ON = power applied to unit

OFF = no power to unit

TEST SWITCH

TEST = AC power applied to outlets (bypassing external controls)

NORM = external control connections enabled

GREEN LED (outlet power indicator)

ON = power applied to outlets

OFF = no power to outlets

RPC DIAGRAM:

EXAMPLE 1: SPST switch with MAINTAINED closure.

See Lowell RPS Series models listed on pg. 1.

RPC TYPICAL CONTROL METHODS

(low voltage, limited current Class 2 wiring):

EXAMPLE 2: Sequencer or Control System.

Lowell SEQ Series sequencer or control system by others.

EXAMPLE 3: Fire Alarm Panel Interface.

Interface with normally closed (N.C.) contact from Fire Alarm Panel.

+24VDC Out (250mA max.)

Switch

Common

+24VDC Out (250mA max.)

Follow polarity indicators, if any, on sequencer/controller

(rating: 24V, 37.5mA)

ON = connection applied (closed)

OFF = connection removed (open)

Switch

Common

Application Example: The RPC provides power to a music/paging

system in a retail store. The Fire Alarm Panel forces music/paging

system OFF so alarm can be heard.

Switch Schematic

Switch Switch SPST

LED

2.2K 1/2W Resistor Common

+24V Out

Lowell

SPST Switch

with MAINTAINED

closure

Switch

Common

( + )

Com ( – )

No Conn.

+24VDC Out (250mA max.)

Fire Alarm

Panel

Sequencer

or Control

System

Model No. Chassis Outlets Input Power Rating Surge Suppression ConnectionsExternal Activation Required

RPC-15 Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-15-S Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A Dry contact closure Terminal StripYes

RPC-15-SCD-RJ Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A Dry contact closure or VT* TS or RJ45Yes

RPC-15-U Standalone IEC C13 (2) 6' detachable cord (2) 100-240VAC 50/60Hz 15A --- Dry contact closure or VT* Terminal Strip

RPC-20-CD Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A --- Dry contact closure or VT* Terminal Strip

RPC-20-SCD Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A Dry contact closure or VT* Terminal StripYes

RPC-20-SCD-RJ Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A Dry contact closure or VT* TS or RJ45Yes

RPC-3N1 Standalone NEMA 5-15R (8) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-4CD Rack-mount NEMA 5-15R (8) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-20-HW Standalone NEMA 20A (2) 6' exible whip 125VAC 60Hz 20A --- Dry contact closure or VT* Terminal Strip

RPC-20-SHW Standalone NEMA 20A (2) 6' exible whip 125VAC 60Hz 20A Dry contact closure or VT* Terminal StripYes

RPC-30-SHW Standalone Twistlock 30A (1) 6' exible whip 125VAC 60Hz 30A Dry contact closure or VT* Terminal StripYes

* VT indicates the RPC can also accept a voltage trigger provided by an independent control system.

T H I S

SPEC

Produkt Specifikationer

Mærke:	Lowell
Kategori:	Ikke kategoriseret
Model:	RPC-15-S
Produktfarve:	Sort
Indgangsspænding:	125 V
Indgangsfrekvens:	60 Hz
Spænding:	24 V
AC udgange, antal:	2 AC stikkontakt(er)
AC stikkontakt typer:	NEMA 5-15R
Strøm (maks.):	15 A
Udgangsstrøm (maks.):	- W
