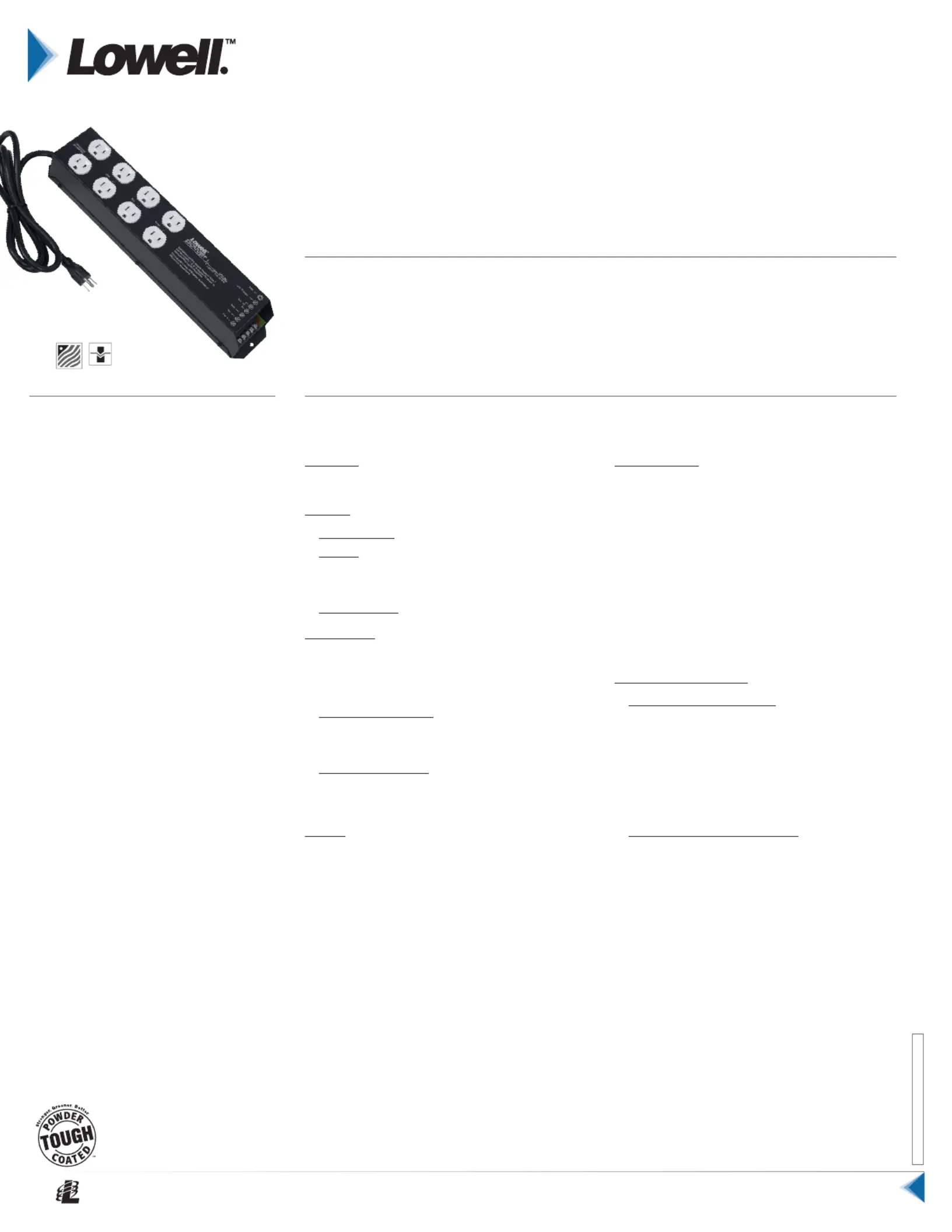

REMOTE POWER CONTROLS can be combined with a variety of switches or sequencers for an intrinsically

safe, low voltage method of controlling AC power to equipment at remote locations. Controlling power

distribution without directly accessing equipment minimizes the potential for unauthorized access, while

simplifying activation and deactivation of equipment.

Note: RPCs require an external trigger for activation (order separately).

Ideal for Lowell switches featuring main-

tained closure (order separately):

RPSB-P Black wall plate w/rocker switch

RPSW-P White wall plate w/rocker switch

RPSW-KP White wall plate w/key switch

RPSB-R Rack panel w/rocker switch

RPSB-KR Rack panel w/key switch

Model No.

RPC-3N1

Remote Power Control

actives remote equipment external trigger required—

FEATURES

CHASSIS: Steel chassis (16"L x 3"W x 2.5"H)

with black finish and mounting holes.

POWER:

• Power Rating: 125VAC 60Hz 15A

• Outlets: Total of eight (8) NEMA 5-15R outlets,

which include 1 unswitched duplex and 3

switched duplexes.

• Attached Cord: 6 ft. cord with NEMA 5-15P plug

ACTIVATION: Activation of the three individually

controlled duplexes is via contact closure be-

tween the common terminal and the (numbered)

control terminals.

• Dry Contact Closure: Connect to SPST switch,

power sequencer, or independent control sys-

tem with dry contact closure.

: Contact Coil Rating

- Voltage: 24VDC

- Current: 37.5mA

ORIGIN: Made in the U.S.A. with global components

INSTALLATION: The RPC is typically installed near

the equipment to be controlled. Low voltage cable

is run from its terminal strip to (one or more) RPS

Series control switches (or other control method).

• Systems can be configured with multiple RPCs

controlled by a single "Maintained Closure"

switch.

• Systems can also be congured with a single

RPC controlled by multiple "Momentary Closure"

switches and Lowell's MSM2 module (which

converts momentary closure to maintained).

COMPATIBLE DEVICES: (order separately)

• SPST Switch (RPS Series): Low voltage wall-

mount or rack-mount switch:

– Switch with maintained closure con-

nects directly to RPC.

– Switch with momentary closure requires

Lowell conversion module MSM2

placed between the switch and RPC.

• Power Sequencer (SEQ Series): A low volt-

age sequencer can be used with the RPC

for time-delayed activation and deactivation

of connected equipment. Lowell standalone

sequencers will require a switch for activation,

while Lowell rack-mount sequencers include a

switch. See product spec sheets for information.

Certied

US Steel

Made In USA

with Global

Components

A&E SPECIFICATIONS

The device for remotely controlling AC power shall be Lowell model RPC-3N1 which shall feature a steel

chassis (16" x 3" x 2.5")with black powder epoxy finish, 125VAC 60Hz 15A power rating, NEMA 5-15R

outlets (1 unswitched duplex, 3 switched duplexes), 24VDC output, and 6 ft. cord with NEMA 5-15P plug.

The unit shall require an external trigger (not included) to activate switched outlets.

INTERNAL USE ONLY: PN 24328

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 1778

Model RPC-3N1 | Rev. 1-12-23 | pg. 2/3

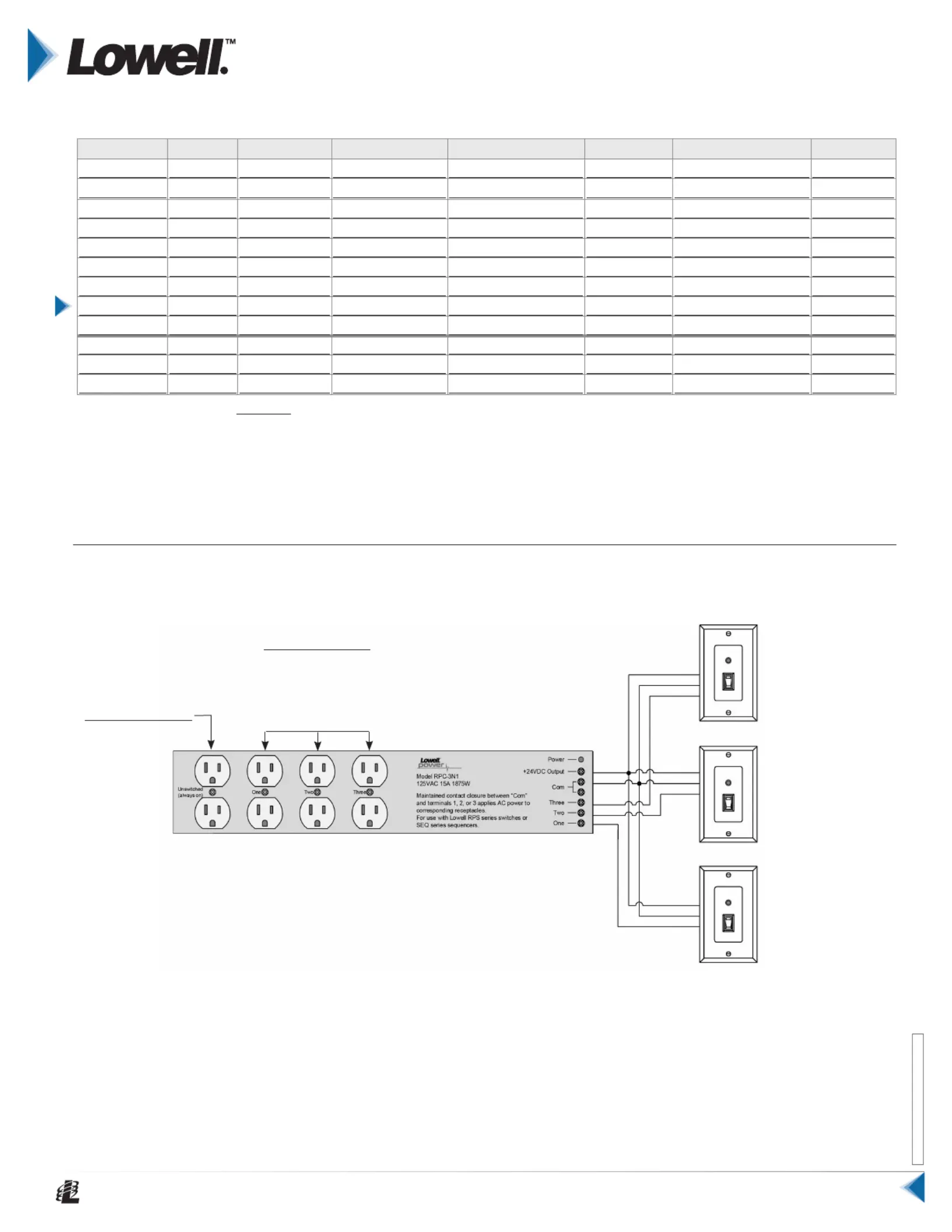

APPLICATION 1 (Switch): Using a remote switch to control individual duplex outlets:

Typical connections are made using low-voltage three-conductor cable run from the RPC terminal strip to remotely located RPS Series switches.

Connect the three barrier strip terminals on the RPC (marked “+24v Out”, “Com” and “Switch”) to corresponding terminals on the RPS Series switch

(see Lowell switches with MAINTAINED closure on pg. 1).

Lowell

RPS Series

switches with

MAINTAINED

closure

Unswitched Duplex (1)

(always on)

Switched Duplexes (3)

Equipment to be controlled plugs into three

individually switched duplexes.

Activation of these outlets is by contact closure

between the common terminal and the (numbered)

control terminals.

SERIES OVERVIEW

Model No. Chassis Outlets Input Power Rating Surge Suppression ConnectionsExternal Activation Required

RPC-15 Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-15-S Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A Dry contact closure Terminal StripYes

RPC-15-SCD-RJ Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A Dry contact closure or VT* TS or RJ45Yes

RPC-15-U Standalone IEC C13 (2) 6' detachable cord (2) 100-240VAC 50/60Hz 15A --- Dry contact closure or VT* Terminal Strip

RPC-20-CD Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A --- Dry contact closure or VT* Terminal Strip

RPC-20-SCD Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A Dry contact closure or VT* Terminal StripYes

RPC-20-SCD-RJ Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A Dry contact closure or VT* TS or RJ45Yes

RPC-3N1 Standalone NEMA 5-15R (8) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-4CD Rack-mount NEMA 5-15R (8) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-20-HW Standalone NEMA 20A (2) 6'  exible whip 125VAC 60Hz 20A --- Dry contact closure or VT* Terminal Strip

RPC-20-SHW Standalone NEMA 20A (2) 6'  exible whip 125VAC 60Hz 20A Dry contact closure or VT* Terminal StripYes

RPC-30-SHW Standalone Twistlock 30A (1) 6'  exible whip 125VAC 60Hz 30A Dry contact closure or VT* Terminal StripYes

* VT indicates the RPC can also accept a voltage trigger provided by an independent control system.
