MANUAL CRMX Galileo LUMENRADIO

APPLICATION AREA

The CRMX Galileo is a wireless lighting control product. It is designed to be used

indoors, or outdoors when installed in a IP65 rated environmental enclosure.

CRMX Galileo replaces the cable in DMX-512A systems. It can be used together

with any CRMX compatible device using either CRMX Classic or CRMX

modes.

CRMX Galileo can also be congured to operate in W-DMX mode where it can

operate together with W-DMX compatible devices.

GENERAL

All personnel must acquaint themselves with the instructions in this leaet before

using this product. This product must not be used if damaged. For additional

documentation for CRMX Galileo, scan the QR code on this leaet, or visit

www.lumenradio.com.

WARRANTY

All warranty claims for this product shall be directed to the local distributor/reseller.

Warranty is deemed void if:

(1) The product is modied, repaired or otherwise altered unless it has been

directed by LumenRadio AB; or

(2) The serial number on the product (the QR code) has been compromised.

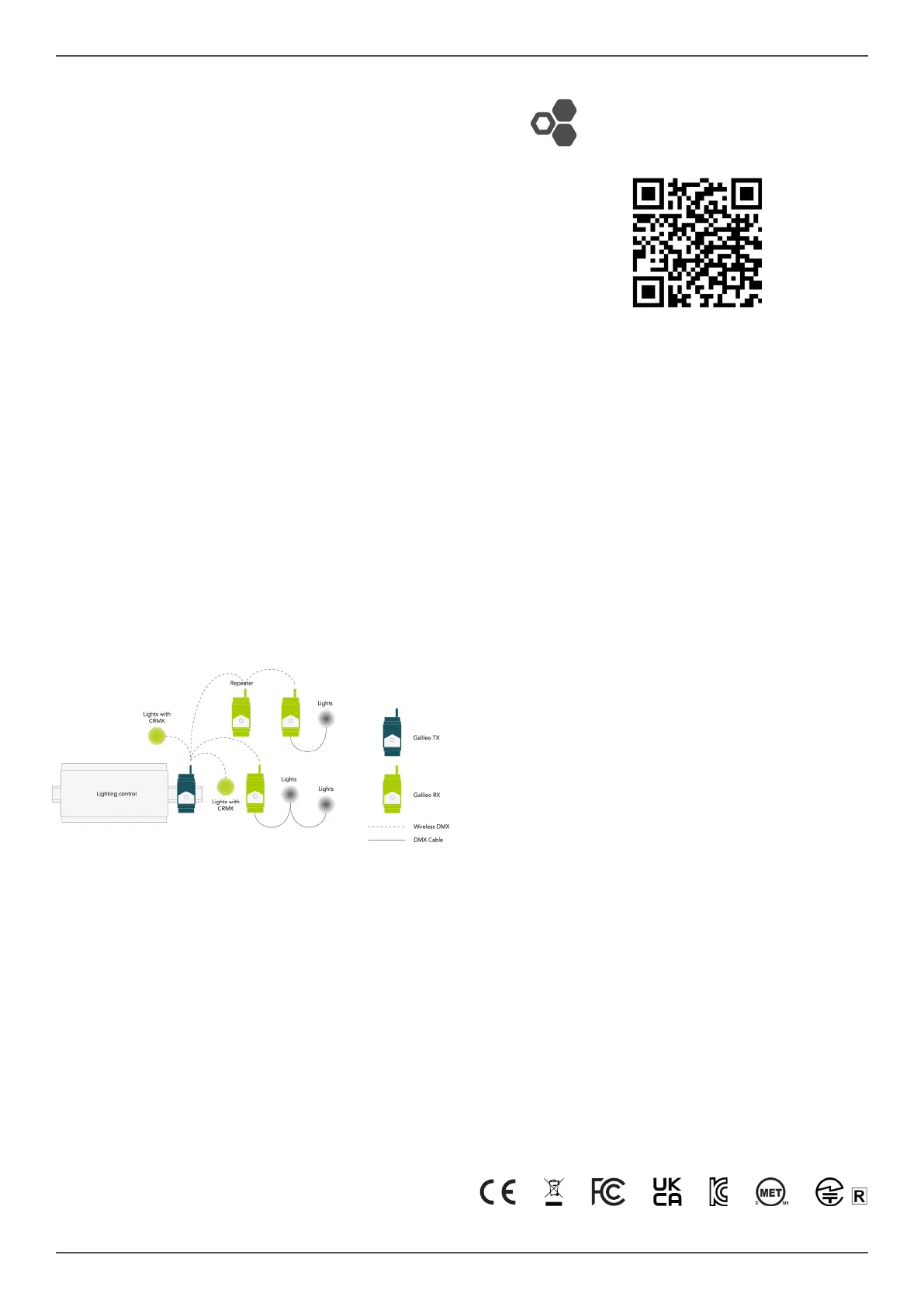

SYSTEM OVERVIEW

A CRMX system replaces the need to use expensive and cumbersome DMX ca-

bles. Place one Galileo TX unit in close proximity to the lighting controller and

let it wirelessly transmit the DMX and RDM data to Galileo RX units, or other

CRMX receivers – for instance built-in receivers in wireless-ready xtures from any

of LumenRadio’s partners.

DMX data can locally be daisy chained with cable between xtures that are phy-

sically close to each other.

If range needs to be extended it is possible to operate a Galileo RX unit as

a repeater (available as an optional upgrade). A repeater receives the wireless

signal and retransmits it for receivers that otherwise would be out of range. A

repeater will also output the DMX and RDM data locally on it’s data port – just like

any receiver would do.

SAFETY

Only qualied electricians or service personnel trained by LumenRadio may

perform installations with this product. Always follow local electrical code and

regulations.

If installed using a 24 VAC isolation transformer, this must be performed in accor-

dance with IEC 61558-1.

Do not use the product if the product is damaged. Only use cables within the spe-

cied conductor sizes. This product may not be connected directly to main power.

INSTALLATION

1. Verify that the product has no physical damage.

2. Clip the unit onto a DIN rail. If installed outdoors, this must be performed in a

IP65 rated environmental enclosure.

3. Mount the antenna, or of installed in an enclosure – mount the antenna

coax cable.

4. Connect the power supply in accordance with specied voltage.

5. Connect the DMX cable to the DMX interface.

6. Power on and verify that the unit is powered up correctly – Galileo units

performs a chase with white color on the three front LEDs at power-on to

make it clearly visible that it is starting up.

BOX CONTENT

1 pc. CRMX Galileo unit 1 pc. RP-SMA antenna

1 pc. 2pin terminal plug for power 1 pc. 3pin terminal plug for data

1 pc. Quick start instruction (this leaet)

SPECIFICATIONS

Power supply AC: 24 VAC +/- 10% 50/60 Hz

Power supply DC: 12-24 VDC +/- 10%

Max. power consumption: 2.5W

Self-healing fuse: Yes

Rated wire size: 0.2 – 1.5 mm

24 – 16 AWG

IP rating: IP X0

Dimensions (W x H x D): 36.5 x 93 x 58.7 [mm]

Weight: 85 g

Antenna connector: RP-SMA

Operating temp. range: -20 to +55 °C

Storage temp. range: -30 to +80 °C

Humidity: 0 – 90% non-condensing

Frequency range: 2402 – 2480 MHz (ISM band)

Max. RF output power: 100 mW (280 mW in US)

Supported protocols: DMX-512A, RDM

Supported RF protocols (TX): CRMX, W-DMX G3 & G4S

Supported RF protocols (RX): CRMX, CRMX

, W-DMX G3, G4,

G4S & G5

LEGAL

CRMX is a trademark of LumenRadio AB, W-DMX is a trademark of Wireless

Solution Sweden AB.

Wireless Solution Sweden AB is a fully-owned subsidiary of LumenRadio AB.

DMX-512A and RDM refers to ANSI national standards developed and maintai-

ned by ESTA, Entertainment Services and Technology Association.

This product makes use of US patents 7,432,803; 8,457,023; 9,208,680; EU

patents EP 2415317, EP 2803248, China patents CN 102369774, CN 104041189B

and others.

Version of this quick start guide: Version 2 (2023-10-17)

MANUFACTURER

LumenRadio AB LumenRadio

Johan Willins gata 6 Alfred-Herrhausen-Allee 3-5

416 64 Gothenburg DE-65760 Eschborn

Sweden Germany

www.lumenradio.com

Scan for additional

information

FCC ID: XRSTIMOMWAN301

IC ID: 8879A-TIMOMWAN301

E115504

UL62368-1

CSA C22.2 No. 62368-1

CRMX Galileo

by LumenRadio

lumenradio

MANUAL CRMX Galileo LUMENRADIO

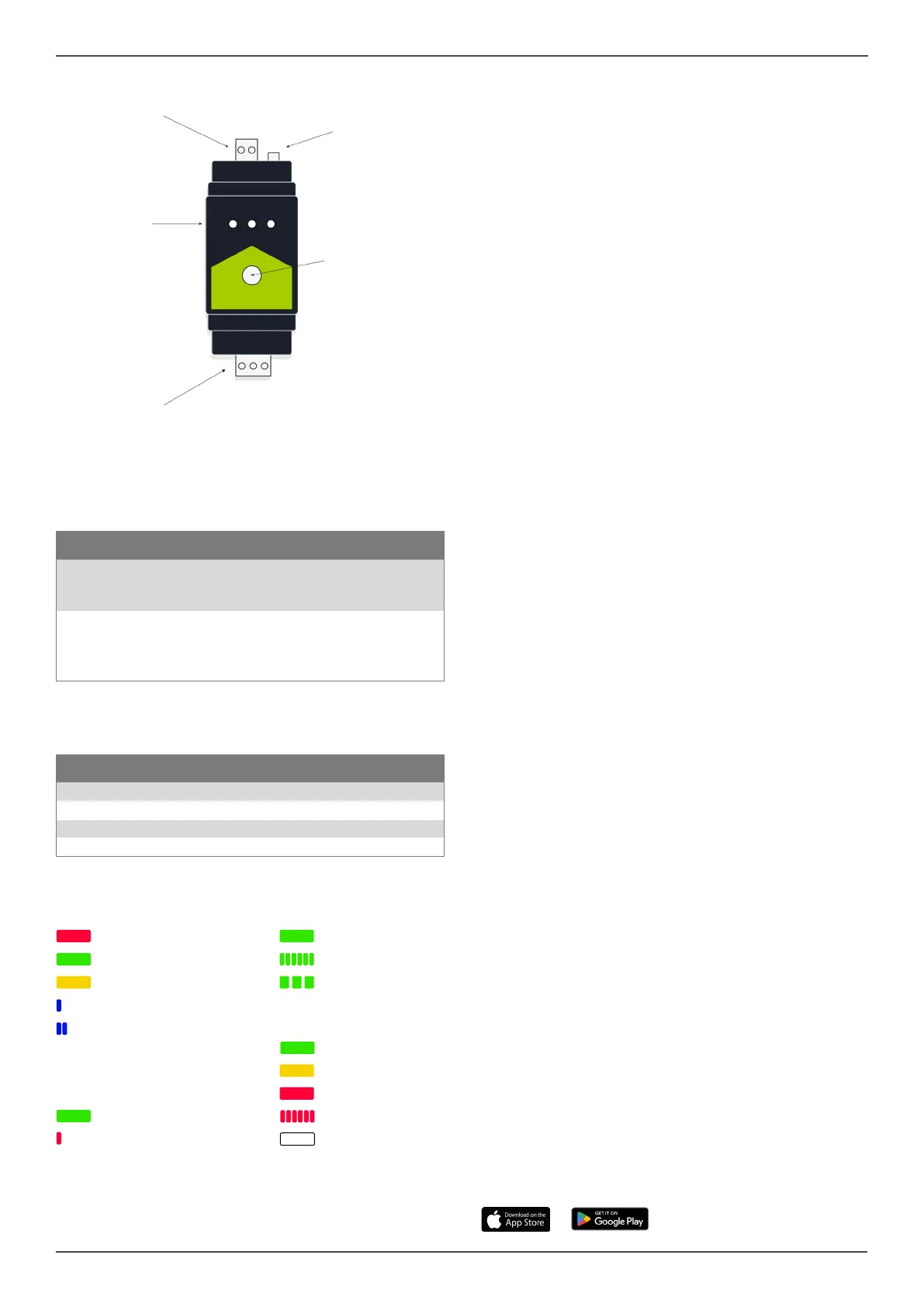

YOUR GALILEO UNIT

LINK SWITCH FUNCTIONS

The link switch performs the basic link and unlink functions, but combinations of

presses can perform some special functions. All functions are listed in the tables

below. In the tables below short press is <0.5 s, long press is >3 s.

BASIC FUNCTIONS

Push Function

Short On transmitter: Link available receivers

On receiver: No function

On repeater: Link available receivers

Long On transmitter: Unlink all receivers

On receiver: Unlink this receiver

On repeater: Unlink all receivers, or unlink this repeater

if pressed again within 5 seconds after unlink process.

SPECIAL FUNCTIONS

The special functions are accessed by pressing the button momentarily a number

of times, followed by a long press (> 3 s).

Push Function

2 x short + long Enable/disable BLE.

3 x short + long Galileo TX: Select RF protocol.

5 x short + long Galileo RX: Enable/disable repeater (if option is installed)

7 x short + long Reset BLE PIN code.

STATUS LEDS

MODE SIGNAL (TX)

Transmitter Transmitting

Receiver Linking receivers

Repeater Unlinking receivers

BLE enabled

BLE connected SIGNAL (RX)

> 70%

30 – 70%

DATA < 30%

DMX data No link

RDM activity Not linked

IDENTIFY

When connecting via BLE using the CRMX Tooolbox app, or when using RDM, it

is possible to identify a device to know what device is accessed. When doing this,

all LEDs will ash rapidly.

LINKING

To be able to transmit data through the system, receivers needs to be linked to

the appropriate transmitter, or repeater.

1. Make sure the receivers are unlinked and that they are withing communica-

tion range.

2. If receiver is already linked, follow the steps in the unlink section.

3. Press the link switch momentarily on the transmitter.

4. Wait for the linking process to nish.

UNLINKING

Unlinking can be done directly from the transmitter, which will unlink all currently

powered receivers that are within range that is linked to this transmitter. This is

done by holding the link switch for >3 s.

Unlinking can also be done on one specic receiver by holding its link switch

pressed for >3 s.

USING REPEATERS

When the range needs to be expanded, a receiver can be upgraded to

repeaters (software license required). Before a repeater can be linked to receivers

it rst need to be linked to a transmitter.

To unlink a repeater from a transmitter, its receivers rst needs to be unlinked. Re-

peating the unlink step within 5 seconds after the unlinking process has nished

will unlink the repeater from its transmitter.

RDM (REMOTE DEVICE MANAGEMENT)

Galileo supports RDM both as transmitter and receiver (including repeater mode).

This enables conguration of RDM capable xtures, allowing DMX start address

and DMX personality to be set among other things. It also allows for monitoring

the system, such as detecting if devices goes ofine, monitor receivers’ signal

levels, and much more.

Available RDM functions varies depending on the controller and the xtures.

A Galileo TX incorporates an RDM Proxy that needs to be enabled before any

downstream devices can be discovered. This can be done either by changing the

DMX personality of the transmitter, via the link switch button, or from the CRMX

Toolbox app.

BLUETOOTH

Bluetooth, or BLE, is enabled by default. It is recommended to disable the BLE

interface after installation has been completed, or to protect the BLE interface

by setting a PIN code.

It is possible to send DMX data to the Galileo device via BLE. There are several

apps that supports this that can be downloaded from App Store. When sending

DMX data to a receiver or a repeater, the DMX data is only forwarded to the local

DMX interface. But when DMX data is sent via BLE to a transmitter device, the

DMX data will be sent to the entire network.

DMX via BLE is limited in performance due to the limitations of BLE, and is not

suitable for fast effects.

FIRMWARE UPDATES

The software in your Galileo device, called rmware, is continuously improved

and new functions may be added. It is therefore recommended to make sure you

keep the devices up to date. In all cases, make sure you have the latest rmware

installed before commissioning a new system.

Firmware can be updated via Bluetooth using the CRMX Toolbox

app. The latest

rmware is automatically downloaded from LumenRadio’s cloud and pushed to

your device when you initiate an update.

INSTALLING REPEATER OPTION

Galileo RX units can have an optional repeater option installed. It is installed

using the CRMX Toolbox app and requires you to have an account registered

through the app. To purchase this option, reach out to your local reseller.

CRMX TOOLBOX

CRMX Toolbox

is an app available from LumenRadio to congure CRMX de-

vices. It is available for iOS and Android and can be downloaded directly from

Apple App Store or Google Play Store.

Power in

Status LEDs

DMX port

Antenna connector

Link switch

- +

Gnd D- D+
