UMT 70 S
Windscreen, anthracite Order-No. 202407
Order-No. 600018
Microphone holder, black Order-No. 202306
black Order-No. 600001
Elastic suspension, satin nickel Order-No. 202318
Elastic suspension, black matt Order-No. 202319
Elastic suspension, modified, anthracite Order-No. 600004
Power supply Order-No. 202101
Connection cable Order-No. 202212
Popscreen, black
Clamp,
W 76
PO 70
MH 75
MKV 9
EA 21
EA 21
N 200
C 70
AT 8410 a
Accessories, optional
MICROTECH GEFELL
FÜR STUDIO - UND MESSTECHNIK
KONDENSATORMIKROFONE
SEIT 1928

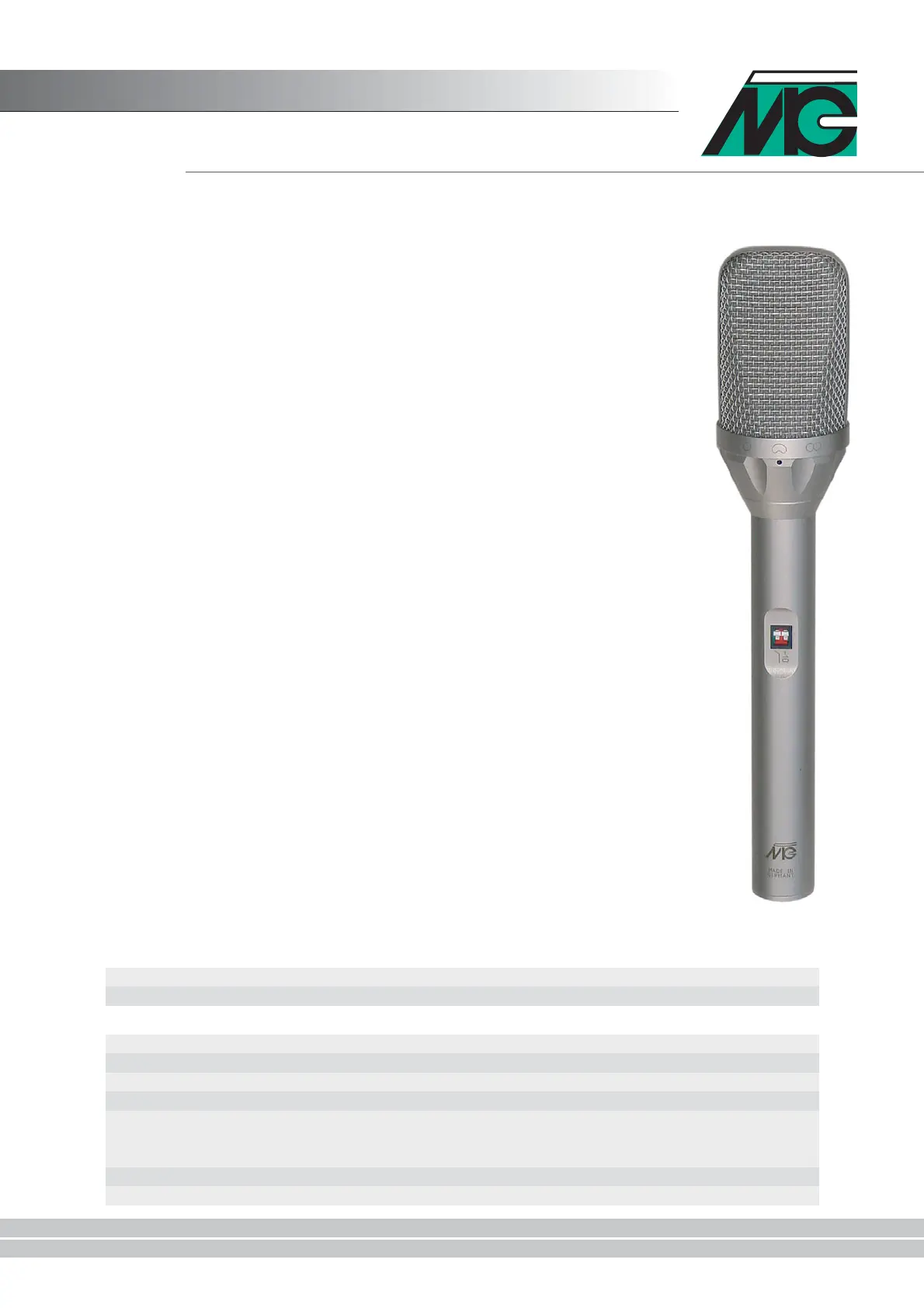

Transformerless Condenser Microphone
with switchable polar pattern
The UMT 70 S condenser microphone, equipped with our reliable large
diaphragm capsule, features outstanding performance, high sensitivity, and
improved signal-to-noise ratio.
The UMT 70 S guarantees particularly clean and colourless sound
reproduction. It is well suited for instrumental and vocal soloists in radio and
television broadcasting and any other kind of accurate production.
The pressure gradient transducer is a dual capacitor design that uses a
single brass back plate and two large-diameter gold-plated plastic
diaphragms. Varying the polarization voltage applied to the diaphragms
results in three directional characteristics: omni, cardioid and figure 8. A ring
at the bottom of the microphone's head grille is used to select the pattern.
The omni-directional pattern shows a slight 2 dB rise in the vicinity of
10,5 kHz while the bass response is perfectly flat. The cardioid and figure 8
patterns exhibit a smooth presence boost rising to about 4 dB in the 7 kHz
range. This response, coupled with a slight roll-off at low frequencies, is
responsible for the legendary 'presence' of this microphone.
The direction of maximum sensitivity is perpendicular to the microphone's
axis (side addressed).
The newly developed transformerless circuit design substitutes the previous
transformer for a symmetrical output stage yielding a superb transient
response combined with a high RFI rejection. The circuit technology also
achieves a wider dynamic range by lowering the self-noise floor and
increasing the headroom for loud signals.
A 10 dB attenuator has been installed to reduce the sensitivity of the micro-
phone when placed near very loud sound sources. A sensitivity reduction for
low frequencies can be utilized to suppress the proximity effect when close-
miking with the cardioid or figure 8 patterns.
The microphone is equipped with a standard 3-pin XLR connector fitting to a
microphone cable, e.g. C 70.
The operation voltage for the UMT 70 S is provided by 48 V phantom power-
ing according to the international standards DIN 45596 and IEC 268-15.
The microphone is available in a satin nickel or a black matt finish.
Delivery
Microphone UMT 70 S in wooden case L x B x H 275 x 90 x 70 mm
satin nickel Order-No. 211130
black matt Order-No. 211131
MICROTECH GEFELL GMBH GEORG NEUMANN PLATZ D-07926 GEFELL TEL. ++49 (0)36649 / 882-0 FAX ++49 ( 36649 / 882 11-- 0)
INTERNET http://www.microtechgefell.de e-mail info@microtechgefell.de

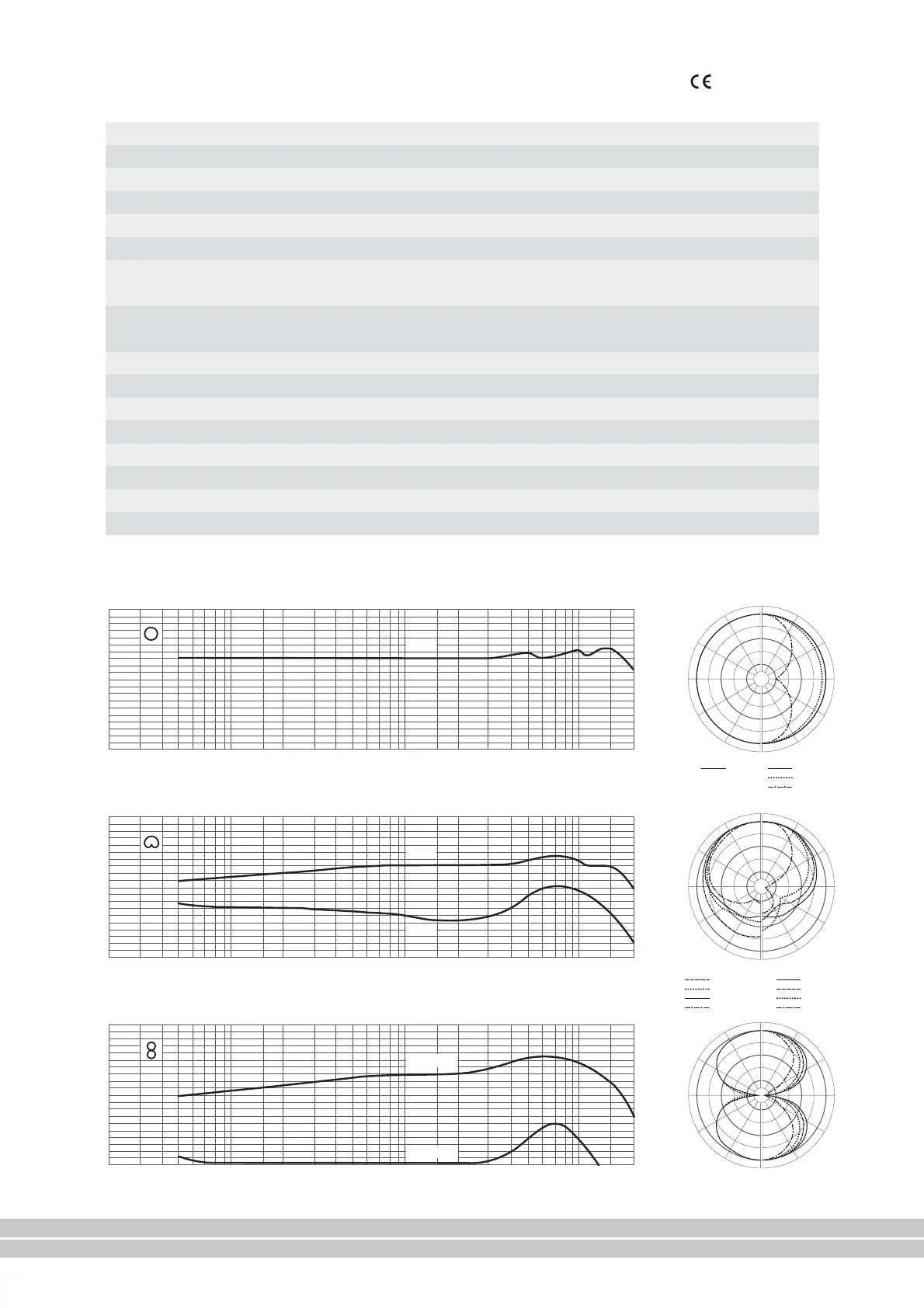

Frequency responses UMT 70 S
omni, cardioid, figure 8
Pressure gradient transducer
40 ... 18000 Hz
7/13/8 mV/Pa ± 3 dB
-10 dB ± 1 dB
150 Ω
22 dB
14 dB - A
72 dB
80 dB
139/134/139 dB
149/144/149 dB
120 dB
3 mA
290 g
217 mm x 42/21 mm
Polar patterns
Acoustical operating principle
Frequency range
Sensitivity
Switch position "reduced bass roll-off" at 90 Hz
Rated impedance
Equivalent loudness level CCIR
468-4
DIN EN 60 651
Equivalent loudness level CCIR-weighted
due to inherent noise A-weighted
Max. SPL for THD 0,5 %≤
3-pin XLR connector goldplated contacts
with 10 dB preattenuation
Total dynamic range of the microphone preamplifier
Current consumtion (P 48, DIN 45596, IEC 268-15)
Output connector
Weight
Dimensions (L x )∅
Specifications UMT 70 S
Certificate
satin nickel, black matt
Finish
due to inherent noise
Transformerless condenser microphone with switchable polar pattern
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
-20
-10
0
+10
dB
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
-20
-10
0
+10
dB
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
-20
-10
0
+10
dB
16 kHz
2 kHz
8 kHz
bis
1/4kHz
125 Hz
1 kHz
2 kHz
500 Hz
125 / 250 Hz
16 kHz
4 kHz
8 kHz
1 kHz
0°
0°
0°/180°
180°
90°
30°
60°
120°
150°
180°
210°
0°
0
dB
-10
-20
90°
240°
270°
300°
330°
30°
60°
120°
150°
180°
210°
0°
0
dB
-10
-20
90°
240°
270°
300°
330°
30°
60°
120°
150°
180°
210°
0°
0
dB
-10
-20
90°
240°
270°
300°
330°
MICROTECH GEFELL GMBH GEORG NEUMANN PLATZ D-07926 GEFELL TEL. ++49 (0)36649 / 882-0 FAX ++49 ( 36649 / 882 11-- 0)
INTERNET http://www.microtechgefell.de e-mail info@microtechgefell.de
