The CRS354 is a network switch with 48 Gigabit ports supporting PoE out for your devices, four 10G SFP+ ports, two 40G QSFP+ ports. The device is

ready to use as a switch.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Ultimate disposal of this product should be handled according to all national laws and regulations.

The Installation of the equipment must comply with local and national electrical codes.

This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.

Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.

Read the installation instructions before connecting the system to the power source.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk!

In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.

It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling

requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Quick start

The device has all interfaces switched.

Mount the unit in a rackmount cabinet or place it on a flat surface (see " ").

Mounting

Connect the device to the AC source using a power cord.

Set the IP address of your PC to 192.168.88.3

Use a Web browser to connect to the default IP address of 192.168.88.1 from any port, with the username and no password

admin

(or, for some

.models, check user and wireless passwords on the sticker)

If IP is not available download Winbox from our webpage and uses it to connect through MAC address.

Update RouterOS software to the latest version, and make sure that the device has an internet connection.

If the device does not have an internet connection update software by downloading the latest version from our webpage https://mikrotik.com

/download

Find the latest (mipsbe) software and choose your packages.

Download packages to the PC and upload them to the Winbox, Files menu, and reboot the device.

Set up your password to secure the device.

Mounting

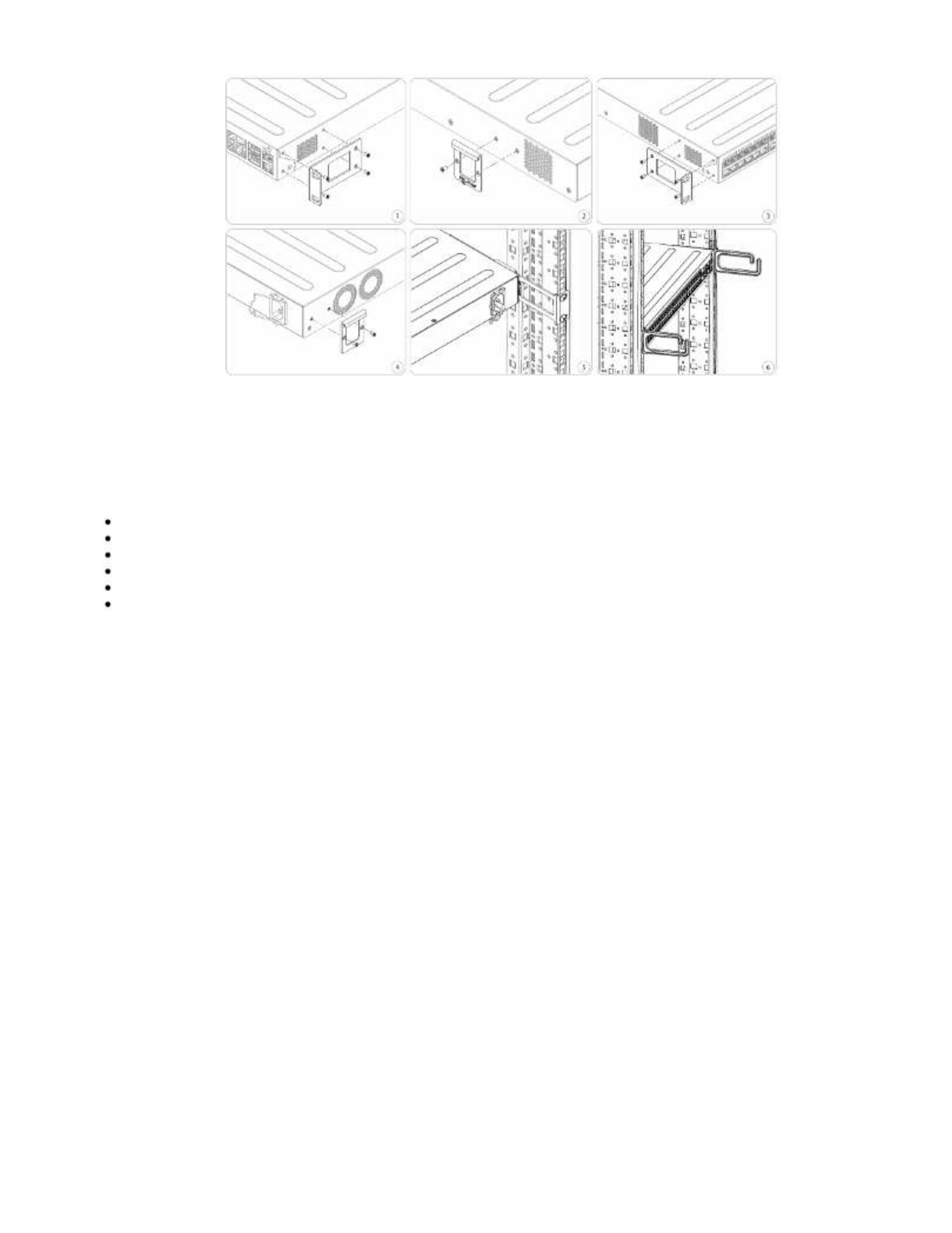

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop.

Use a Phillips screwdriver to attach rackmount ears on both sides of the device and for both sides of the back of the device if designated use is for

rackmount enclosure:

Attach the bracket to the front right side.

Attach the rear right bracket.

Attach the bracket to the left front side.

Attach the rear left bracket.

Attach long brackets to the rackmount and install the device with the holes so that the device fits conveniently.

If needed, install cable management brackets.

Please ensure the placement of the device in a dry and ventilated environment. Ingress rating IP20.

We recommend Cat6 cables for our devices.

The mounting and configuration of this device should be done by a qualified person.

Extension slots and ports

48 Gigabit Ethernet ports supporting 802.3af/at PoE.

Four 10G SFP+ ports.

Two 40G QSFP+ ports.

1x RJ45 console port (set at 115200bits/s, 8 data bits, 1 stop bit no parity).

1x 10/100Mbit Ethernet port for management access.

Four cooling fans with automatic speed control.

Please visit wiki pages for MikroTik SFP module compatibility and configuration table: https://wiki.mikrotik.com/wiki

/MikroTik_SFP_module_compatibility_table

Powering

The device accepts power from the input of 100 – 240 V AC .

Nominal voltage 53 V.

Nominal amperage 13.5 A.

The power consumption of this device under maximum load is up to 85 W. With attachments 800 W.

Power output

The device supports PoE 802.3af/at out from Ethernet 1 - 48 port, you can power Mikrotik devices which supports powering through Ethernet.

Output per port (53V out) 570 mA

Output per port (26V out) 1000 mA

Total output power 700 W

Total output 27 A at 26 V, or 13,2 A at 53 V.

Configuration

RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to

the possibilities: . In case the IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC

https://mt.lv/help https://mt.lv/winbox

address of the device from the LAN side. When using Winbox on login the default configuration settings will be shown.

CRS Router configuration manual https://wiki.mikrotik.com/wiki/Manual:CRS_Router

For recovery purposes, it is possible to boot the device for reinstallation, see a section .Reset button

Produkt Specifikationer

Mærke:	Mikrotik
Kategori:	Ikke kategoriseret
Model:	CRS354-48P-4S+2Q+RM
Vekselstrømsindgangsspænding:	100 - 240 V
Bredde:	443 mm
Dybde:	382 mm
Højde:	44 mm
Formfaktor:	1U
Strømforbrug (typisk):	85 W
Driftstemperatur (T-T):	-20 - 60 °C
Intern hukommelse:	64 MB
Kabler inkluderet:	Vekselstrøm
Certificering:	CE/RED, EAC, RoHS
Strømforbrug (maks.):	800 W
Netværksstandarder:	IEEE 802.3af, IEEE 802.3at
Processormodel:	Qualcomm Atheros QCA9531
Flashhukommelse:	16 MB
Strøm over Ethernet (PoE):	Ja
Hukommelsestype:	Flash
Indbygget processer:	Ja
Switch-type:	Administreret
Switch lag:	L3
Power over Ethernet (PoE) effekt pr. port:	30 W
10G understøttelse:	Ja
Basis omskiftning RJ-45 Ethernet porte, antal:	48
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
Port til konsol:	RJ-45
MAC adresselabel:	- entries
Switch kapacitet:	- Gbit/sek.
Stativ-montering:	Ja
Gigabit Ethernet (kobber) porte, antal:	48
Skruer inkluderet:	Ja
Fast Ethernet (kobber) porte, antal:	1
Power over Ethernet (PoE) porte, antal:	48
Strømforsyning inkluderet:	Ja
Rack monteringskit:	Ja
Antal SFP + modulslots:	4
Power over Ethernet (PoE) spænding:	53 V
Antal QSFP + modulpladser:	2
