Side 1/2

To check the alarm settings

In OFF mode, press ALM. 1/M- (9) or ALM. 2/M+ (10) button. Time and alarm source of

the corresponding alarm are displayed for 5 seconds.

Turning off Alarm

The alarm is programmed to run for 59 minutes and triggers progressively.

Once the alarm 1 or alarm 2 is activated, corresponding alarm indicator “ ” / “ ”,

“ ”/” ” or “ ” / “ ” will flash on display,

1. In wake up mode, to temporarily stop alarm, press the SNOOZE/DIM button (7). The

alarm will resume to the previous playing mode after 9 minutes. “ ” / “ ”, “ ”/” ”

or “ ” / “ ” and “SNOOZE” are on display.

2. To stop the alarm for 24 hours, press ON/OFF button (1), “ ” / “ ”, “ ”/” ”

or “ ” / “ ” remains displayed. The alarm will trigger at the preset time one day later.

3. To turn off the alarm permanently, in OFF mode, press and hold ALM. 1/M- (9) or

ALM.

2/M+ (10) until “ ” / “ ”, “ ”/” ” or “ ” / “ ” disappears.

NOTE:

- You can adjust the wake up sound level by VOL+/- button on wake to iPhone/iPod or

radio modes your last setting.

- But since this is a progressive alarm, the sound will be louder and louder. You could

decrease the volume after the alarm reaches to its max volume level (24).

In OFF mode, press ALM. 1/M- (9) or

ALM. 2/M+ (10) button, alarm type will flash on

display. Press (11) or (12) button to select to wake up by buzzer, iPhone/iPod,

or radio. The icon “ ”/“ ”, “ ”/” ” or “ ”/ “ ” will show on display

accordingly.

- “ ” or “ ” (wake up by buzzer): “Beep“ sound comes when the alarm time is

reached.

- “ ” or ” ” (wake up by iPod): Follow the procedure in “PLAY YOUR DOCKABLE

iPhone/iPod”. The iPhone/iPod will start playing automatically when the alarm time is

reached and the unit is off.

- “ ” or “ ” (wake up by radio): Follow the procedure in “LISTENING TO THE

RADIO” to select your desired radio station. The radio will turn on automatically when

the alarm time is reached and the unit is off.

Press ALM. 1/M- (9) or ALM. 2/M+ (10) button again, the hour digit flashes on display.

Press the (11) or (12) button to adjust the hour.

Press ALM. 1/M- (9) or ALM. 2/M+ (10) button again, the minute digit flashes on

display. Press the (11) or (12) button to adjust the minutes.

Press ALM. 1/M- (9) or ALM. 2/M+ (10) to save the setting of alarm 1 or alarm 2. The

display will resume to the current time.

This unit can be set for two different wake up times which you can choose to use inde-

pendently or simultaneously ALARM1, ALARM2 or both ALARM1 and ALARM 2.

Alarm 1 or Alarm 2 setting

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

ON/OFF button

VOL + / - buttons

EQ button (equalizer)

MEMO./SET button (memory/clock

setting)

FUNCTION button

iPhone/iPod Socket

SNOOZE/DIM button

SLEEP Button

ALM. 1/M- button

ALM. 2/ M+ button

button

button (play/pause)

LCD display

Speakers

FM Wire Antenna

VIDEO OUT jack

AUX IN jack

DC input (AC adaptor jack)

Battery Backup Compartment

M-103 IP

GB - 1

User Manual

Docking Clock Radio PLL for iPhone/iPod

Please read the instruction carefully

before operating the unit.

English GB - 2

GB - 4

Main Unit

Top View

BASIC OPERATION

Back View

GB - 3 GB - 5

UNPACKING YOUR UNIT

PRODUCT DESCRIPTION

TIME SETTING

Current time

When used for the first time, or if the mains plug has been removed with no backup

battery inside, the clock display will blink.

1. In OFF mode, Press the MEMO./SET button (4) on the unit, the clock blinks on the

display.

2. With clock display blinking, press FUNCTION button (5) to select 12 or 24 hour format.

3. Press the MEMO./SET button (4), the hour digits will flash, set the hour with (11)

or (12) button.

4. Press the MEMO./SET button (4) to save the hour setting, the minute digits flash. Set

the minutes with (11) or (12) button.

5. Press MEMO./SET button (4) to complete time setting.

NOTE: With clock display blinking, if no button is pressed within 8 seconds, it will return

to previous clock display.

SLEEP (Automatic turn off)

In sleep mode, the unit will turn off automatically after a specified time.

Note: Sleep time can only be set when the unit is turned ON.

You can select duration in minutes before the unit turns off automatically. Press SLEEP

button (8) repeatedly to select 90-80-70-60-50-40-30-20-10 or 00 minutes, then release

SLEEP button (8). “SLEEP” icon displays.

NOTES:

- To turn off the unit before the SLEEP activates, press ON/OFF button (1), or press

SLEEP button (8) repeatedly until value is adjusted to “00”. It will return to normal display

after 5 seconds, the sleep function will be cancelled and “SLEEP” icon will not be displayed.

- If the playing time from your iPhone or other player is shorter than the selected sleep

time, the music will stop at the end of the playing time.

ALARM SETTING

Cautions:

- The included AC adaptor is for use with this unit only. Do not use it with other equipments.

- When the unit is not going to be used for long time, disconnect the AC adaptor from the

AC outlet.

- Be sure to use it near the wall outlet. If a malfunction occurs, disconnect the plug from

the wall outlet at once.

- When the AC adaptor is plugged in, the apparatus is not completely disconnected from

the main power source, even when the unit is turned off.

- AC adaptor is used as the disconnect device. It shall remain readily operable and should

not be obstructed during intended use. To disconnect the apparatus from supply mains,

completely disconnect the AC adaptor of the apparatus from the mains socket outlet

Battery backup system

DC power: 2x1.5V, battery type AAA/R03/UM4 (not provided) for clock and alarm time

backup system.

An alkaline type battery is recommended. For optimum performance, this battery should

be replaced every 6 months.

BACKUP SYSTEM: All clock settings will be kept in memory; however, the clock time

may require adjustment for exact accuracy. If the backup battery is not installed, the

display will show the clock flashing to indicate that you have to reset the time and the

alarm.

Note: When the battery backup is functioning, the display has no backlight.

When you unpack your new iPhone/iPod clock-radio, make sure that you have removed

all the accessories and information papers:

- Docking Clock Radio PLL for iPhone/iPod

- AC adaptor

- 5 pieces iPhone/iPod interchangeable adaptors

- 1 piece Dust Cover

- User manual

LCD DISPLAY

D1. - Alarm #1 wake to buzzer

- Alarm #2 wake to buzzer

- Alarm #1 wake to iPhone/iPod

- Alarm #2 wake to iPhone/iPod

- Alarm #1 wake to radio

- Alarm #2 wake to radio

D2. -iPhone/iPod mode playback

D3. - Radio mode

D4. - AUX IN mode

D5. Equalizer modes

D6. Volume

D7. SNOOZE

D8. SLEEP

D9. Memory

D10.Time or radiofrequency display

D11. FM Stereo.

D12. Radio frequency unit

D13. “PM”-12hr time mode display

Turn on the unit

The unit is in clock mode when it is plugged in, Press ON/OFF button (1) to turn on or

turn off the unit.

Operating mode selection (FUNCTION)

Press FUNCTION button (5) repeatedly to select iPhone/iPod, AUX or Radio mode.

Sound volume

Press VOL +/- button (2) to adjust sound level. There are a total of 32 volume levels.

Equalizer

When listening to the radio, iPhone/iPod or other music source from AUX IN, press the

EQ button (3) repeatedly to select different modes: CLASSIC, ROCK, POP, JAZZ or EQ

off.

Display dimmer

In OFF mode, press the SNOOZE/DIM button (7) repeatedly will change the backlight

brightness of the display. There are 3 levels: low, medium, and high.

POWER SUPPLY

Using the AC adaptor

This AC adaptor operates on AC100-240V~50/60Hz.

• The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V~50/

60Hz and should only be connected to a mains supply within these parameters.

• Use the supplied AC adaptor only. Using any other AC adaptor could damage the unit.

iPhone/iPod

not included

ＩＣＲ－２４８６　ＩＢ　ＭＵＳＥ　００１　ＲＥＶ０－ＧＢ．Ｐ６５ 2010-7-12, 15:411

IMPORTANT

The docking station in this system follows the Apple “Universal Dock” design. This sys-

tem can be fitted to different iPhone or iPod model.

Play your iPhone/iPod on the main unit

1. Connect your iPhone/iPod to the socket of the unit.

2. Press the ON/OFF button (1) to turn on the unit.

3. Press the FUNTION button (5) repeatedly to select iPhone/iPod mode. The display

indicates “iPhone”.

4. Press button (13) to play or pause. Press and hold button (13) for 5 seconds

to enter the iPod/iPhone sleep mode.

5. Select the previous or next track by pressing (11) or (12) button, press and

hold (11) or (12) on the unit to review or fast forward.

6. Press VOL + / - buttons (2) to adjust sound level.

iPhone call pick up

1. When phone call coming in, the music from the docking iPhone will pause automatically.

2. Incoming call ring comes out from the unit speaker.

3. You can take iPhone from the unit and pick up phone call.

4. After finish your call, connect back the iPhone to the socket, it will resume the playback

of iPhone.

Charge your iPhone/iPod

While your iPhone/iPod is docked on the system, its battery recharges automatically until

fully charged.

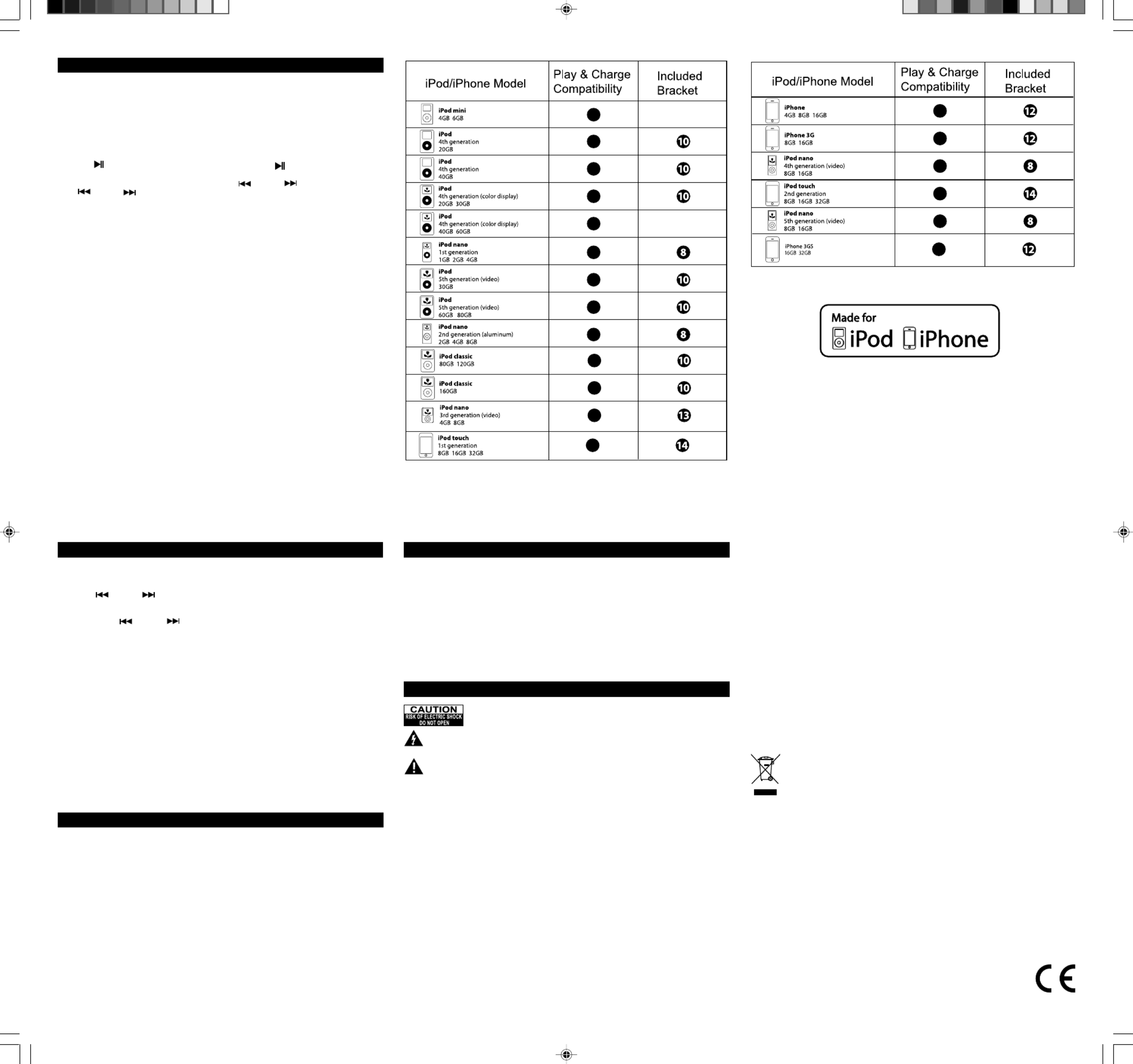

iPhone/iPod interchangeable adapter

This system includes 5 different adapters designed to allow you to securely connect any

“dockable” iPhone/iPod model to the docking station. Refer to the chart below to select

the proper adapter for your particular iPhone/iPod model and insert that adapter into the

docking station before connecting your iPhone/iPod.

NOTE: No adapter is provided for the 3G (third generation) iPod.

Please use that adapters that were included with these iPod at time of purchase. They

will fit properly into the docking station of this system.

We have also included one flat adapter with no opening at all. This serves as a dust

cover that can be inserted in the docking station if no iPhone/iPod will be connected to

the system for an extended period of time.

GB - 9

-The ventilation should not be impeded by covering the ventilation openings with items

such as newspapers, table-cloths, curtains, etc.

-No naked flame sources, such as lighted candles, should be placed on the apparatus.

-The use of apparatus in moderate climates.

-The apparatus should not be exposed to dripping or splashing.

-Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.

-Do not place objects filled with liquids, such as vases, on the apparatus.

-The rating plate is located on the bottom of unit.

-Attention should be drawn to the environmental aspects of battery disposal.

-Do not throw batteries in fire!

-Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

-Excessive sound pressure from earphones and headphones can cause hearing loss.

-Under the influence of electrical fast transient or/and electrostatic phenomenon, the

product may malfunction and require user to power reset.

MAINTENANCE

Cleaning

Be sure to turn the unit off and disconnect the AC adaptor before maintaining the

unit.

- Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.

- Using solvents, abrasive or alcohol-based products risks damaging the appliance.

- If an object or liquid enters inside the appliance, unplug it immediately and have it

checked by an authorized engineer.

If at any time in the future you should need to dispose of this product please note

that Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer

for recycling advice.(Waste Electrical and Electronic Equipment Directive)

GB - 6

GB - 10

CONNECTIONS

SPECIFICATIONS

GENERAL

Power source

Dimension

TUNER

Frequency range

AUDIO SECTION

Power Consumption

Speaker Impedance

SAFETY INSTRUCTION

ATTENTION: To reduce the risk of electric shock, do not remove the

cover or back. There are no user serviceable parts inside the unit.

Refer all servicing to qualified personnel.

The lightning flash with arrowhead symbol within the triangle is a warning sign

alerting the user of “dangerous voltage” inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of

important instructions accompanying the product.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

GB - 7 GB - 8

GB - 11

LISTEN TO THE RADIO

Manual operation

1. Press ON/OFF button (1) to turn on the unit.

2. Press FUNCTION button (5) to select the RADIO mode. The display indicates “FM”

3. Press (11) or (12) to tune to a desired station.

Automatic search operation

Press and hold (11) or (12) button for approx. 2 seconds to start searching in

the chosen direction. The automatic searching operation locates strong stations. Press

again to stop searching. A station with a weak signal can be tuned manually.

NOTE: During the search operation the sound level will be muted automatically.

Program preset stations

This unit is able to store 20 FM radio stations in memory.

1. Select a radio station either manually or by automatic search.

2. Press MEMO./SET button (4) once, “MEMO” will flash and “01” will appear on display.

3. Press ALM. 1/M- (9) or ALM. 2/M+

(10) button to select a preset channel.

4. Press MEMO./SET button (4) again to save the radio station in the selected preset

channel.

5. Repeat steps 1-4 to store other stations.

When you memorize a station on a preset, the previous station is erased and replaced by

the new one.

Listening to the preset stations

Press ALM. 1/M- (9) or ALM. 2/M+ (10) button directly to select a preset station.

NOTE: For a better reception in FM, extend the antenna. If a stereo broadcast is received,

“((ST))” is displayed.

Made for iPod and iPhone

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been

designed to connect specifically to iPod or iPhone respectively, and has been certified by

the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and

regulatory standards.

iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

LISTEN TO YOUR iPhone/iPod

AC 100-240V ~ 50/60Hz

DC 3V, 2x1.5V “AAA/R03/UM4” size batteries (not included) or

equivalent for memory backup

130(W) x 78 (H)x 120(D) mm

FM: 87.5 - 108 MHz

2X2W

8 ohms

IMPORTANT SAFETY INSTRUCTIONS

• AC adaptor is used as the disconnect device. It shall remain readily operable and should

not be obstructed during intended use. To be completely disconnected the apparatus

from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains

socket outlet completely.

• Never use an AC adaptor that is damaged, route power lead in a safe manner and make

sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a

qualified service agent.

• Place the unit on a flat and even surface.

• Do not restrict the air flow of the unit by placing it in a place with poor air flow, by

covering it with a cloth, or by placing it on carpeting.

• To avoid magnetized, do not place the unit near speaker or magnet.

• Do not use this unit in direct sunlight or leave the unit in a closed automobile (or yacht,

etc) where it would be exposed to high temperatures above 40°C.

• It also should not be placed in temperatures less than 5°C or greater than 35°C.

•Do not use the unit immediately after transportation from a cold place to a warm place,

condensation problem may result.

AUXILIARY

This unit includes the AUX IN jack (18) to allow you to connect external devices, such as

MP3 player, and listen to the music of your external device through the speakers of this

unit.

1. Connect the external device to the AUX IN jack (18) at the back of the unit.

2. Press ON/OFF button (1) to turn on the unit.

3. Press FUNCTION button (5) to select AUXILIARY mode. The display indicates “AUX”

4. Start to play your auxiliary source.

5. Adjust the volume to desired level.

6. To stop playback, disconnect your external device from the AUX IN jack.

VIDEO

You can view the video from the iPhone/iPod on a TV by connecting it to your unit via the

VIDEO OUT jack (17) at the back of unit.

Use the cable with yellow plug of an AV cable to connect the composite video output of

this unit to the video input of a TV/monitor.

ＩＣＲ－２４８６　ＩＢ　ＭＵＳＥ　００１　ＲＥＶ０－ＧＢ．Ｐ６５ 2010-7-12, 15:412

Produkt Specifikationer

Mærke:	Muse
Kategori:	Højttaler
Model:	M-103 PK
Vekselstrømsindgangsspænding:	220 V
Vekselstrømsindgangsfrekvens:	50 Hz
Vægt:	540 g
Brugervejledning:	Ja
Batterispænding:	1.5 V
Pakkevægt:	1050 g
Bluetooth:	Ingen
FM radio:	Ja
Udgangseffekt (RMS):	4 W
Equalizer:	Ja
Slumretimer:	Ja
Skærm:	LCD
Volumenkontrol:	Digital
Dimensioner (BxDxH):	143 x 139 x 93 mm
Pakketype:	Kasse
Batterier inkluderet:	Ingen
Frekvensområde:	- Hz
Lyd-output kanaler:	2.0 kanaler
DC-in-stik:	Ja
Strømkilde type:	AC,Battery
AC-adapter inkluderet:	Ja
Pakkens dimensioner (BxDxH):	180 x 240 x 130 mm
Batteritype:	AAA/R03/UM4
Vækkeur:	Ja
Antal understøttede batterier:	2
Visning af ur/dato:	Ja
AUX-indgang:	Ja
Baggrundslys:	Ja
Indbygget batteri:	Ingen
Kampatibilitet med Apple-docking:	iPhone,iPod
Antal forudindstillede stationer:	20
Snooze funktion:	Ja
Equalizer, funktioner:	Classic,Jazz,Pop,Rock
Indbygget oplader:	Ja
