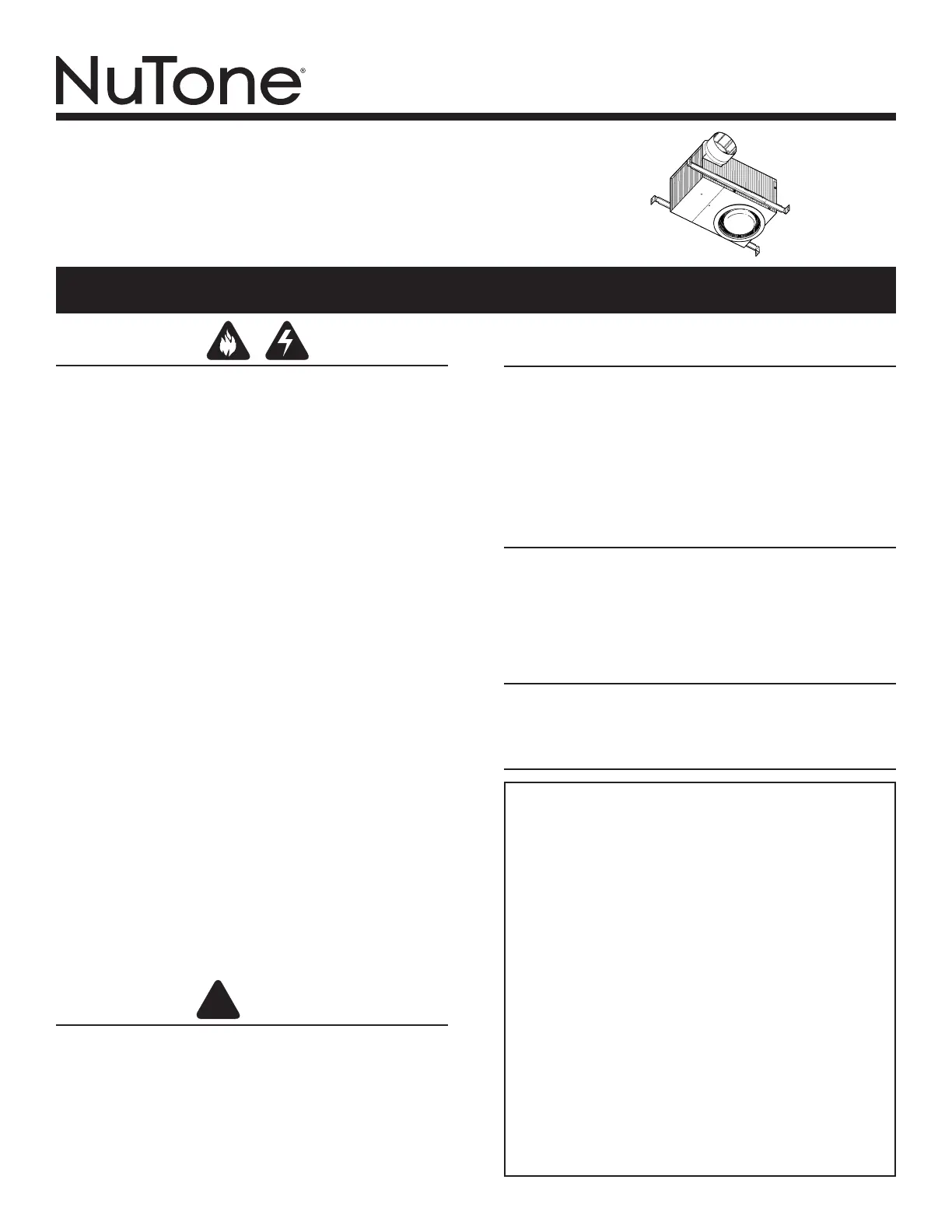

MODEL 744LEDNT

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-

JURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address

or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equip-

ment to prevent backdrafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA),

and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authori-

ties.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Never place a switch where it can be reached from a tub or

shower.

8. A dimmer switch may be used to operate the light in this unit.

Refer to the list of compatible dimmer switches on nutone.com.

9. Install this unit in a flat ceiling only.

10. For use in non fire rated installations only.

11. Not for use in environmental air handling spaces.

12. If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected

to a GFCI (Ground Fault Circuit Interrupter) - protected branch

circuit.

13. Do not install in a ceiling thermally insulated to a value greater

than R60.

14. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. To avoid motor bearing damage and noisy and/or unbalanced

impellers, use the cardboard protector (provided) to keep

drywall spray, construction dust, etc. off power unit.

3. The LED bulb used with this product twists into the bulb socket.

Do not attempt to insert or remove bulb by pushing it

straight in or pulling it straight down.

4. Please read specification label on product for further

information and requirements.

RECESSED

LED FAN / LIGHT

READ AND SAVE THESE INSTRUCTIONS

To clean trim ring / baffle: Vacuum with a soft brush attachment

or remove trim ring / baffle and clean with a soft cloth and mild

soap or detergent. Dry thoroughly before reinstalling.

To clean inside of housing: Remove trim ring / baffle and

vacuum inside of housing with a soft brush attachment.

OPERATION

The fan and light can be operated using various combinations of

on/off switches and controls:

• Fan and light controlled with single on/off switch

• Fan and light controlled with separate on/off switches

• Fan controlled with timer control

• Fan controlled with speed control

See “Connect Wiring” section for various wiring options.

CLEANING

MAINTENANCE

WARRANTY

Motor is permanently lubricated. Do not oil or disassemble motor.

See “Service Parts” section for a list and illustrations of service parts.

NuTone Ventilation Fan/Lights - Limited Warranty

WARRANTY PERIOD: NuTone warrants to the original consumer purchaser of its NuTone Ventilation

Fan/light (the “Fan”) that your Fan (excluding lamps/bulbs) will be materially free from defects in

materials or workmanship for a period of three (3) years from the date of original purchase. The

warranty on the lamps/bulbs provided with the Fan is one (1) year and does not cover lamp/bulb

breakage. This warranty does not cover accessories, such as speed controls, that may be purchased

separately and installed with the Fan.

The limited warranty period for replacement parts, and for Fans repaired or replaced under this limited

warranty, shall continue for the remainder of the original warranty period.

THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, NuTone will, at its option, repair or replace, without charge, any product

or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This war-

ranty does not cover (a) normal maintenance and service or (b) any products or parts which have been

subject to misuse, negligence, accident, improper maintenance or repair (other than by NuTone), faulty

installation or installation contrary to recommended installation instructions.

The duration of an implied warranty is limited to the one-year period as specified for the express

warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above

limitation may not apply to you.

BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT NUTONE’S OPTION, SHALL BE THE

PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL

NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR

IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state

to state. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify NuTone at the address or telephone number stated

below, (b) give the model number and part identification and (c) describe the nature of any defect

in the product or part. At the time of requesting warranty service, you must present evidence of the

original purchase date.

Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 800-558-1711

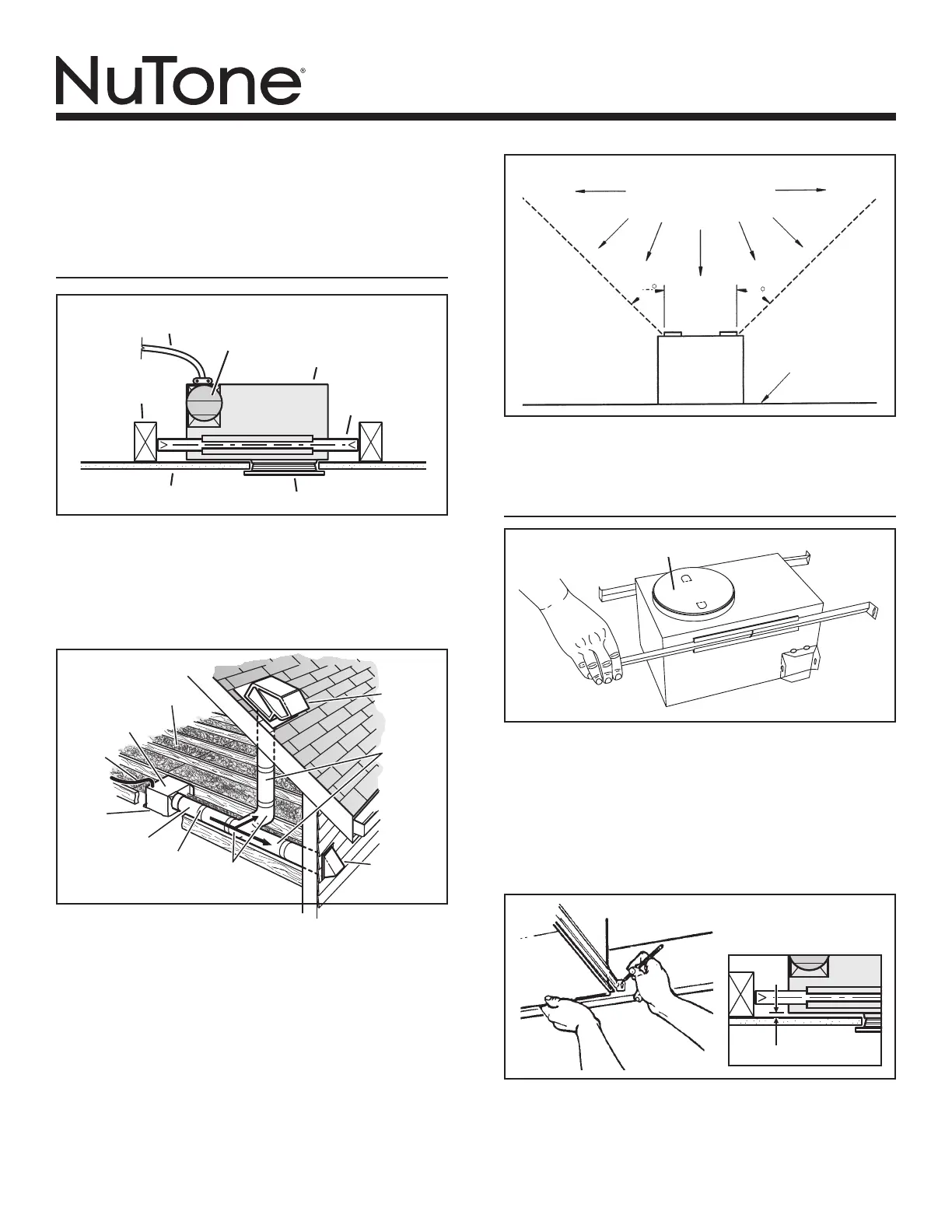

Page 2

MODEL 744LEDNT

Installer: Leave this manual with

the homeowner.

HOUSING

MOUNTING

BRACKET

CEILING

JOIST

POWER

CABLE

TRIM RING / BAFFLE

FINISHED CEILING

4" ROUND

DAMPER/DUCT

CONNECTOR &

4” ROUND

DUCTWORK

PLAN THE INSTALLATION

The unit can be installed anywhere between ceiling joists using

mounting brackets provided.

* Install in a flat ceiling only.

Typical Installation

INSTALLATION

2. Mark mounting location.

Position unit between joists and extend mounting brackets.

IMPORTANT: Position brackets so there will be an 1/8” gap

between bottom of housing and ceiling material. Mark the

top of keyhole slot on all four mounting brackets.

COOKING AREA

Do not install above

or inside this area

Cooking

Equipment

Floor

The unit must not be installed above or inside the cooking area

shown.

Do not install in a cooking area.

1/8" GAP

1. Install mounting brackets.

Slide the adjustable mounting brackets into the bracket channels

on the housing.

Bend the tabs on the cardboard protector and insert protector

into opening in housing.

NOTE: The cardboard protector shields the inside of the housing

from drywall spray and construction dust. Do not remove it until

after construction is completed.

CARDBOARD PROTECTOR

The ducting from this fan to the outside of the building has a strong

effect on the air flow, noise and energy use of the fan. Use the

shortest, straightest duct routing possible for best performance,

and avoid installing the fan with smaller ducts than recommended.

Insulation around the ducts can reduce energy loss and inhibit

mold growth. Fans installed with existing ducts may not achieve

their rated airflow.

Plan to supply the unit with proper line voltage and appropriate

power cable.

*Purchase

separately.

INSULATION*

(Place around and

over Fan Housing.)

ROOF CAP*

(with built-in

damper)

FAN

HOUSING

POWER

CABLE*

4-IN. ROUND

DUCT*

4-IN.

ROUND

ELBOWS*

Seal gaps

around

Housing.

Seal duct

joints with

tape.

Keep duct

runs short.

WALL CAP*

(with built-in

damper)
