FOR YOUR SAFETY
WARNING: BE SURE THE ELECTRICITY TO THE WIRES YOU ARE
WORKING ON IS SHUT OFF; EITHER THE FUSE IS REMOVED OR
THE CIRCUIT BREAKER IS SHUT OFF.
GENERAL
You don’t need special tools to install this xture. Be sure to follow
the steps in the order given. Under no circumstances should a xture
be hung on house electrical wires, nor should a swag type xture be
installed on a ceiling which contains a radiant type heating system.
Read instructions carefully. If you are unclear as to how to proceed,
consult a qualied electrician.
NOTE: Proper wiring is essential for the safe operation of this xture.
FIXTURE ASSEMBLY
Carefully remove the xture from the carton and check that all parts
are included as shown in gure. Be careful not to misplace any of the
screws or parts, which are needed to install this xture.
INSTALLATION
IMPORTANT: Do not attach xture directly to outlet box.
STEP 1: Install mounting plate to junction box in wall using mounting
screws.
STEP 2: Secure the two screws to the mounting plate. You should
leave the proper length of the two screws beyond the surface of the
mounting plate to ensure enough thread is available to properly mount
the canopy with the mounting screws.
STEP 3: Pull the existing electrical wires out of the junction box and
make proper connections using wire nuts.
GROUNDING INSTRUCTIONS
STEP 1: Insert the green grounding screw into the hole with two
raised dimples on the mounting bar. Wrap the ground wire from the
xture (if supplied) around the green grounding screw, then connect it
to ground wire from the outlet box (if not xed on the outlet box) using
a wire connector (not supplied). If ground wire from the xture is not
supplied, wrap the ground wire (if not xed on the outlet box) from the
outlet box around the green grounding screw and tighten it.
NEVER CONNECT GROUND WIRE TO BLACK OR WHITE
POWER SUPPLY WIRES.
STEP 2: Take note of the color of the wire(s) on your xture. Identify
which group your xture wire(s) falls into and connect the wires
according to the directions below:
GROUP A:
Connect to Black House Wire
GROUP B:
Connect to White House Wire
BLACK WHITE
* PARALLEL WIRE (round & smooth) * PARALLEL WIRE (square & ridged)
WHITE OR GREY WITH TRACER WHITE OR GREY WITHOUT TRACER
BROWN, GOLD OR BLACK
WITHOUT TRACER
BROWN, GOLD OR BLACK
WITH TRACER
NOTE: When parallel wire (SPT-I & SPT-2) is used, the tracer wire is
square shaped or ridged and the less tracer wire is round in shape or
smooth (seen best when viewed from wire end).
STEP 3: Take your xture wire(s) from group A and place evenly
against the black wire from the outlet box. Do NOT twist wires together
before using wire connectors.
STEP 4: Fit a wire connector over the wires and screw the connector
clockwise until you feel rmness.
STEP 5: Try gently to pull the connector off the wires. If you can pull
the connector off, carefully re-do steps 3 and 4 as above, and check
again for a rm connection.
STEP 6: Connect the xture wire from group B to the white wire from
the outlet box in the same manner. Make sure no bare wires can be
seen outside wire connectors.
FINAL ASSEMBLY
STEP 1: Position canopy over mounting plate and align holes in
canopy with mounting screws. Leave thread protruding through
canopy surface and secure the two decorative nuts with a
at-head screwdriver.
CLEANING
To clean, wipe xture with a soft cloth. Clean glass with a mild soap.
Do not use abrasive materials such as scouring pads or powders,
steel wool or abrasive paper.
ORDERING PARTS
Keep this sheet for future reference, and in case you need to order
replacement parts. Be sure to use exact wording from illustration when
ordering parts.
Line art shown may not exactly match the xture enclosed. However, the installations
do apply to this xture.
La ilustración puede no concordar exactamente con la pieza enviada. Sin embargo,
las instalaciones sí aplican para esta pieza.
Les images peuvent ne pas correspondre exactement au luminaire de la boîte.
Par contre, les directives d’installation s’appliquent au luminaire.
INSTALLATION AND SAFETY INSTRUCTIONS
ITEM NO: 62-2620, 62-2621, 62-2622, 62-2630,
62-2631, 62-2632, 62-2640, 62-2641, 62-2642
© Copyright 2025 Satco Products, Inc. 01/25 v2.0

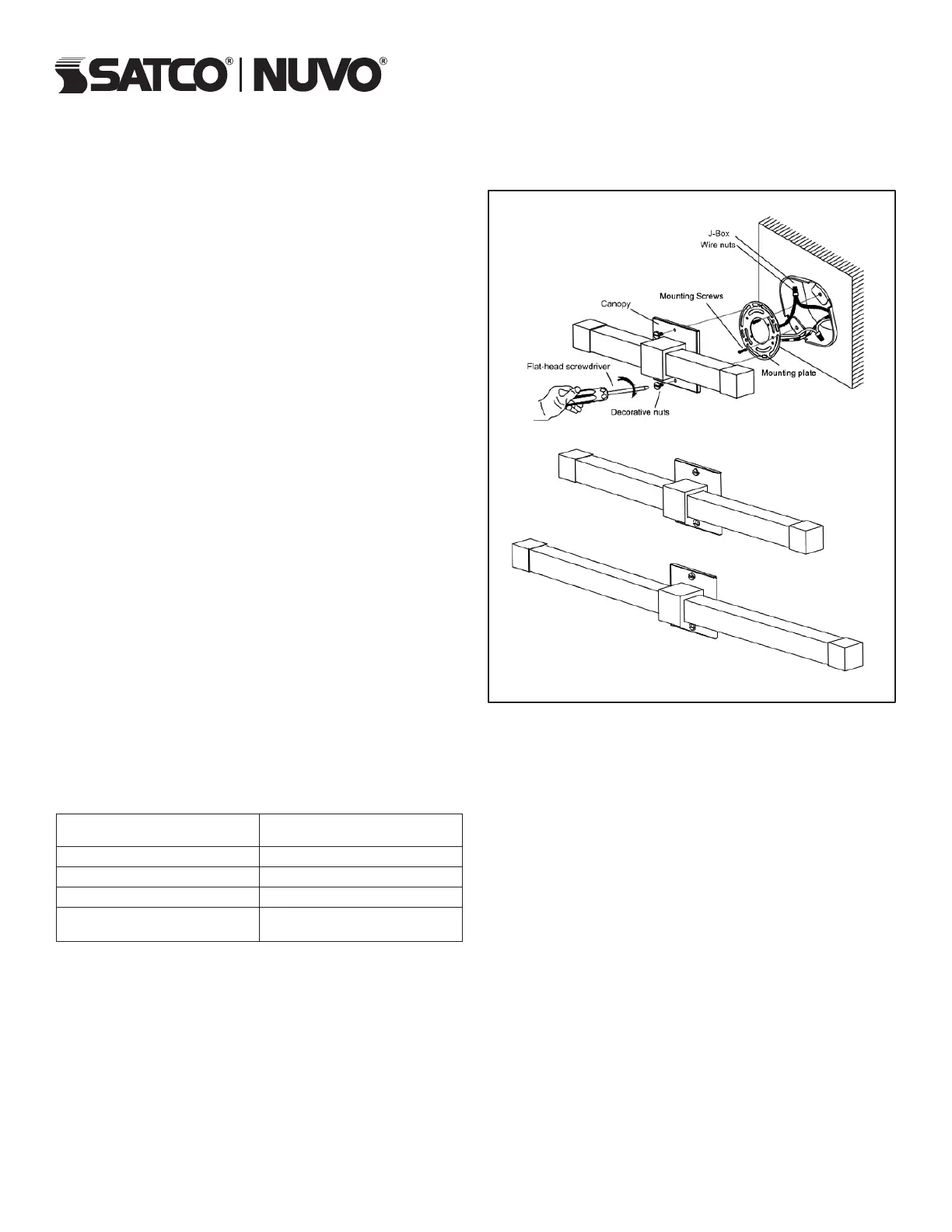

FIGURE
