INSTALLATION AND SAFETY INSTRUCTIONS

FOR YOUR SAFETY

WARNING: BE SURE THE ELECTRICITY TO THE WIRES

YOU ARE WORKING ON IS SHUT OFF; EITHER THE FUSE

IS REMOVED OR THE CIRCUIT BREAKER IS SHUT OFF.

GENERAL

You don’t need special tools to install this fixture. Be sure to

follow the steps in the order given. Under no circumstances

should a fixture be hung on house electrical wires, nor should a

swag type fixture be installed on a ceiling which contains a

radiant type heating system. Read instructions carefully. If you

are unclear as to how to proceed, consult a qualified electrician.

NOTE: Proper wiring is essential for the safe operation of this

fixture.

FIXTURE ASSEMBLY

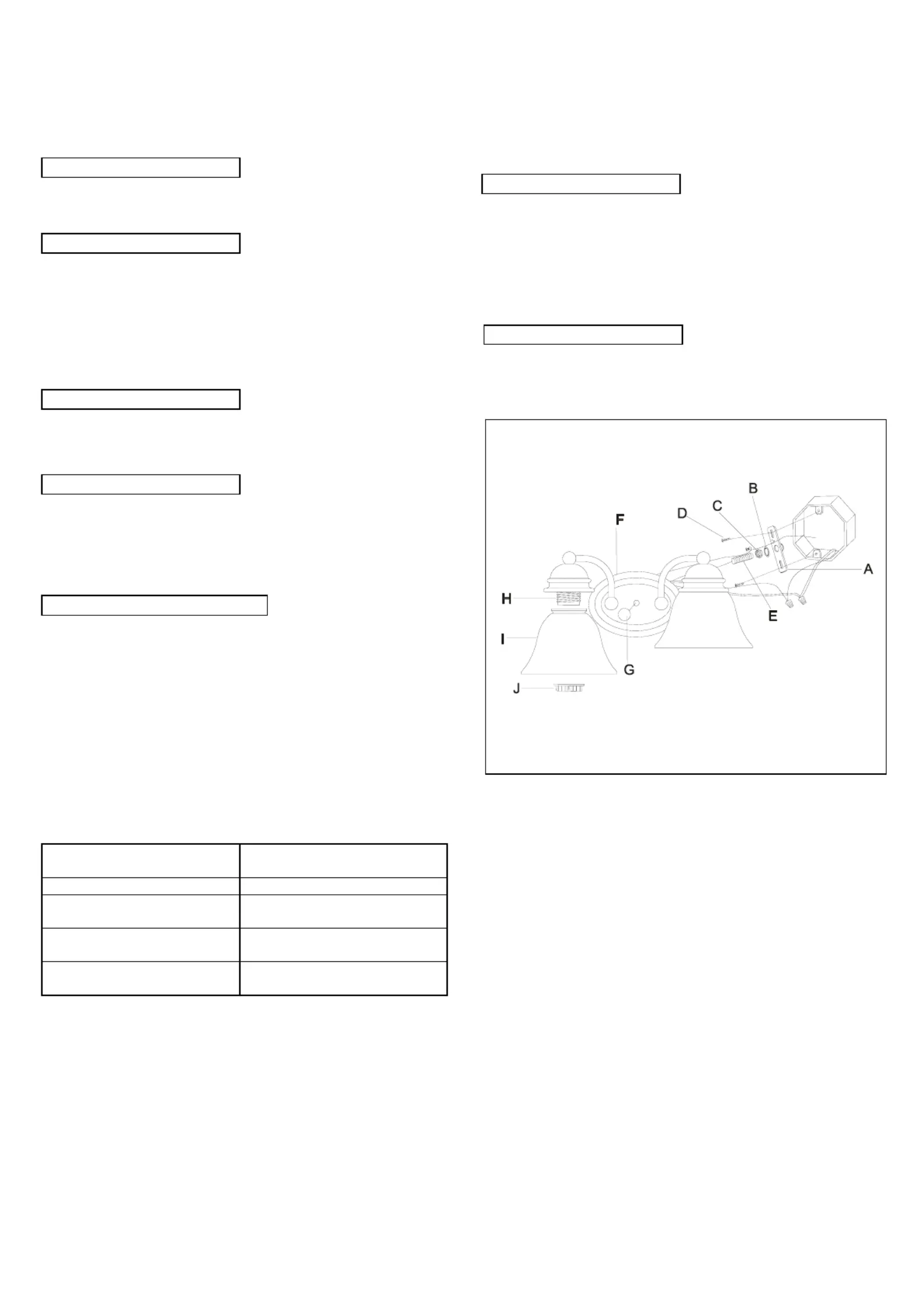

Carefully removed the fixture from the carton and check that all

parts are included as shown in figure 1.Be careful not to

misplace any of the screws or parts, which are needed to install

this fixture.

INSTALLATION

IMPORTANT: Do not attach fixture directly to outlet box.

STEP 1: Secure mounting bar (A) to outlet box with outlet box

screws (D).

STEP 2: Thread nut (C) onto the nipple (E), insert lock washer

(B) then thread nipple (E) into the mounting bar and

secure with nut (C).

GROUNDING INSTRUCTION

STEP 1: Insert the green grounding screw into the hole with two

raised dimples on the circular strap. Wrap the ground

wire from the fixture (if supplied) around the green

grounding screw, then connect it to ground wire from

the outlet box (if not fixed on the outlet box) using a

wire connector (not supplied). If ground wire from the

fixture is not supplied, wrap the ground wire (if not

fixed on the outlet box) from the outlet box around the

green grounding screw and tighten it.

NEVER CONNECT GROUND WIRE TO BLACK OR WHITE

POWER SUPPLY WIRES.

STEP 2: Take note of the color of the wire(s) on your fixture.

Identify which group your fixture wire(s) falls into and

connect the wires according to the directions below:

GROUP A: Connect to Black

House Wire

GROUP B: Connect to White

House Wire

BLACK WHITE

*PARALLEL WIRE (round &

smooth)

*PARALLEL WIRE (square &

ridged)

WHITE OR GREY WITH

TRACER

WHITE OR GREY WITHOUT

TRACER

BROWN GOLD OR BLACK

WITHOUT TRACER

BROWN, GOLD OR BLACK

WITH TRACER

*NOTE: When parallel wire (SPT-I & SPT-2) is used, the tracer

wire is square shaped or ridged and the less tracer wire is round

in shape or smooth (seen best when viewed from wire end.)

STEP 3: Take your fixture wire(s) from group A and place

evenly against the black wire from the outlet box. Do

NOT twist wires together before using wire connectors.

STEP 4: Fit a wire connector over the wires and screw the

connector clockwise until you feel a firmness.

STEP 5: Try gently to pull the connector off the wires. If you can

pull the connector off, carefully re-do steps 3 and 4 as

above, and check again for a firm connection.

STEP 6: Connect the fixture wire from group B to the white wire

from the outlet box in the same manner. Make sure no

bare wires can be seen outside wire connectors.

FINAL ASSEMBLY

STEP 1: After wires are connected, tuck them carefully inside

outlet box. Raise canopy (F) allowing for nipple (E) to

protrude through the hole on canopy (F), and secure

with finial (G).

STEP 2: Raise the glass (I) over the socket (H), and secure

with retaining ring (J).

STEP 3: Install lamp(s). (Please do not exceed the maximum

capacity recommended on the socket.)

CLEANING

To clean, wipe fixture with a soft cloth. Clean glass with a mild

soap. Do not use abrasive materials such as scouring pads or

powders, steel wool or abrasive paper.

ITEM NO:60-349, 60-337, 60-345, 60-341, 60-1271, 60-353,

60-351, 60-339, 60-347, 60-343, 60-1273, 60-355

NUVO

A Satco Product.
