For Technical Support: www.panduit.com/resources/install_maintain.asp

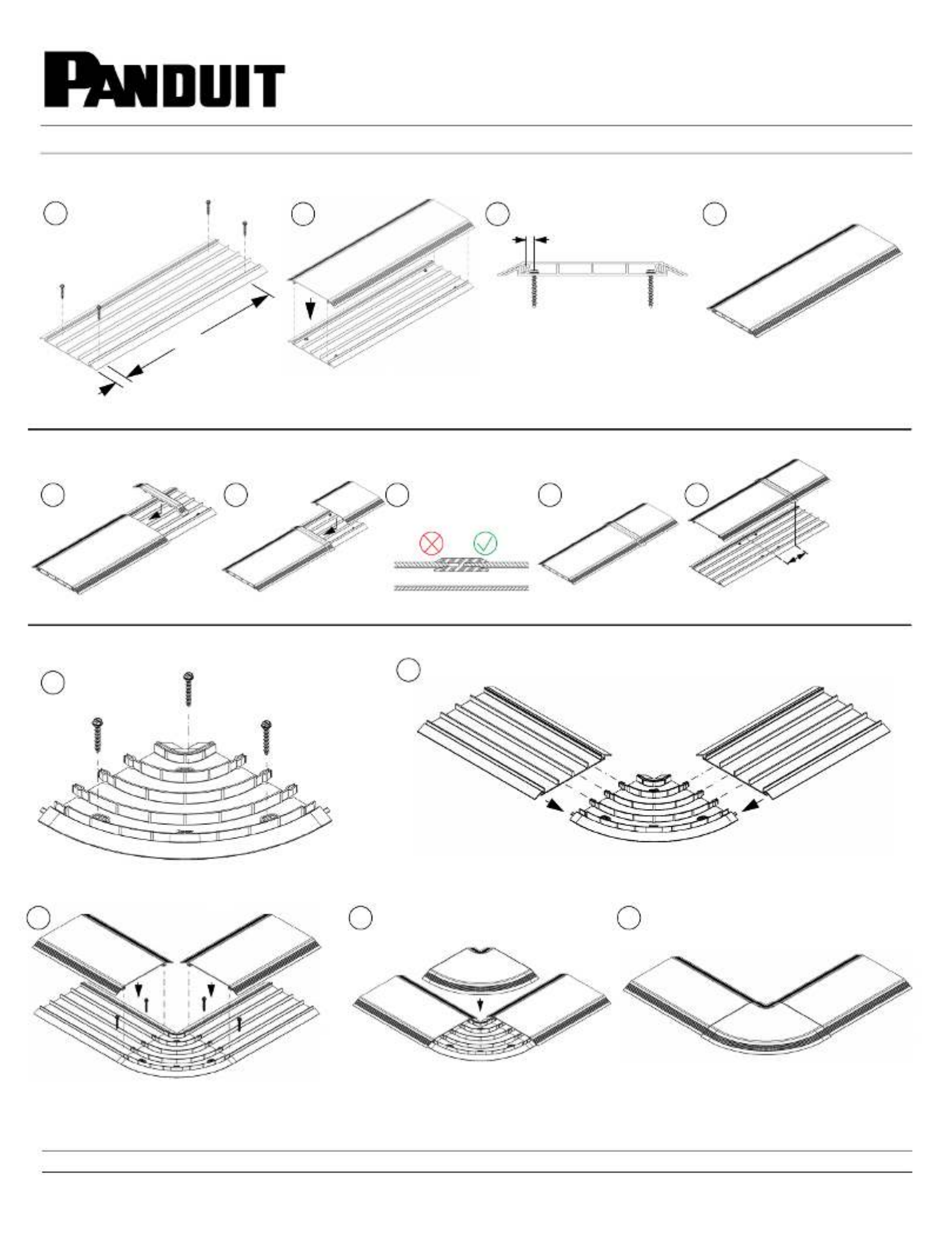

INSTALLATION INSTRUCTIONS
© Panduit Corp. 2019 PN616B
Page 1 of 15
The mounting hardware used to secure
the raceway shall be appropriate for the
mounting surface.
Screws provided with raceway are
intended for installation on a concrete
surface.
NOTES:
• An adhesive strip may serve only as a positioning aid during the installation process. The raceway shall be secured by mechanical
fastening means.
• Holes for mounting raceway and associated fittings should be predrilled into infrastructure prior to the installation of the mounting
hardware.
• A 5/32" concrete drill bit is needed for the provided concrete screws.
Above Floor Raceway 4-Channel Standard Product
Part Number(s): AFR4BC**%, AFR4RA**, AFR4TRT70**, AFR4JB2S**, AFR4EC**, AFR4CC**,
AFR4TBLG**, AFR4WTR**
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2019 PN616B
Page 2 of 15
BASE & COVER
0 3".
Screw to be no closer than
0.3" to inside latching rib
Space approximately 24"
3" maximum
COUPLER
Ensure coupler is fully
engaged with cover
Stagger base
joint and cover
coupling joint to
strengthen
assembly.
2 2a 3
1 2 2a 3 4
1
where ** denotes a color code and %
denotes a length in feet
RIGHT ANGLE
1
3 4
5
2
