INSTALLATION INSTRUCTIONS

PN664

Page 1 of 6

MULTIPORT SERVICE TERMINAL

Part Number: P-MST-4D-200, P-MST-4D-500, P-MST-4T-200, P-MST-4T-500,

P-MST-8D-200, P-MST-8D-500, P-MST-8T-200, P-MST-8T-500,

P-MST-12D-200, P-MST-12D-500, P-MST-12T-200, P-MST-12T-500

MST MOUNTING OPTIONS

The Multiport Service Terminal (MST) can be installed using any one of several standard Outside Plant

(OSP) enclosures. However, it doesn’t necessitate an OSP enclosure and can be mounted openly on a

pole or strand. The following describes various mounting options.

HAND-HOLE MOUNTING (below ground)

A hand-hole enclosure (Figure 1) an underground muunting option for the MST and similar product,

ensuring a secure installation that aligns flush with the ground surface. The enclosure comprises a base

unit and a top cover. The base unit is securely mounted in the ground, with cables and conduit entering

from the bottom.

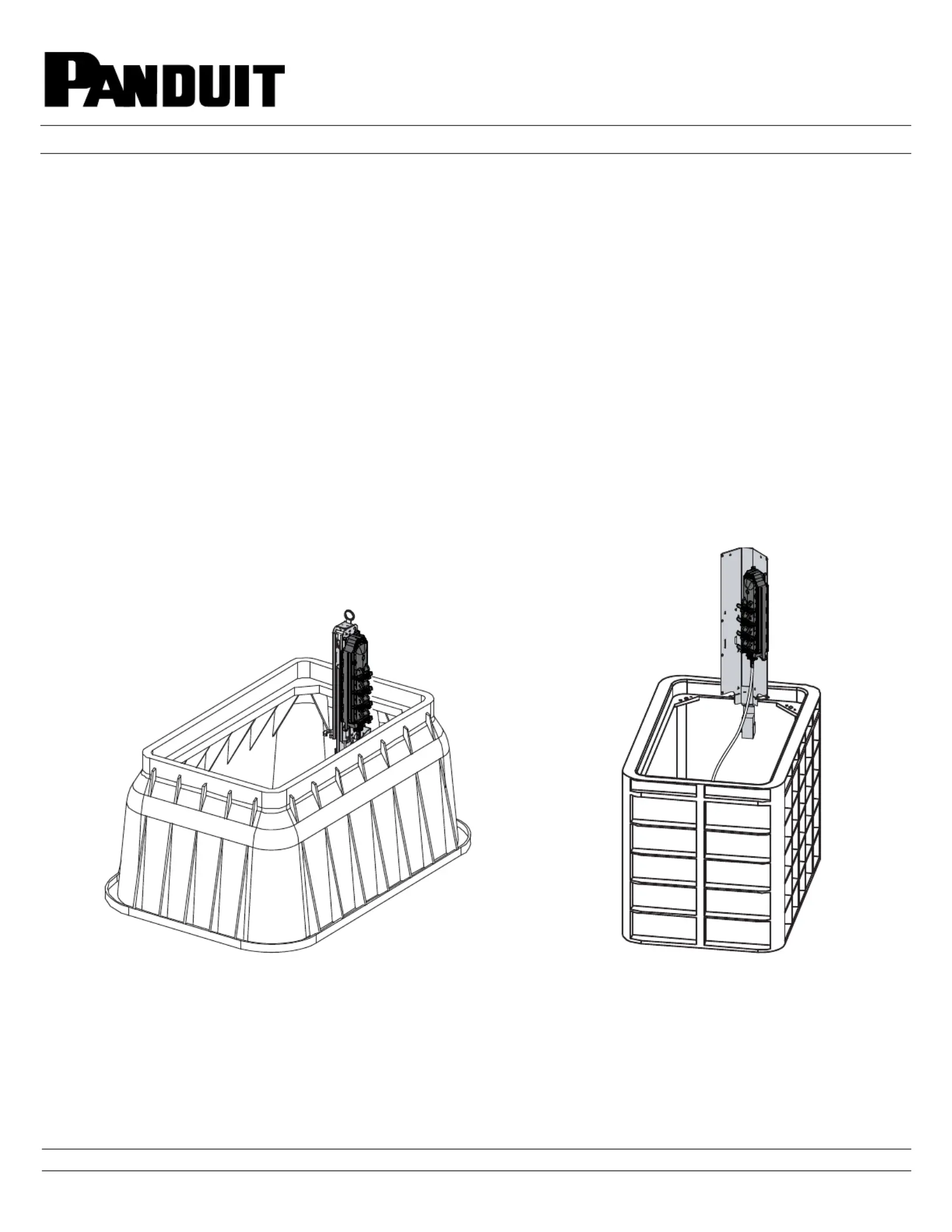

Figure 1: Typical Hand-Hole Mounting

For Technical Support: www.panduit.com

INSTALLATION INSTRUCTIONS

PN664

Page 2 of 6

POLE-MOUNTING (aerial)

The MST can be affixed to a utility pole, demonstrated in figure 3. The Multiport Service Terminal Mount-

ing Case (MC) can be secured to the pole using lag screws or construction screws. Apart from these fas-

teners, no additional components are needed for pole-mounting.

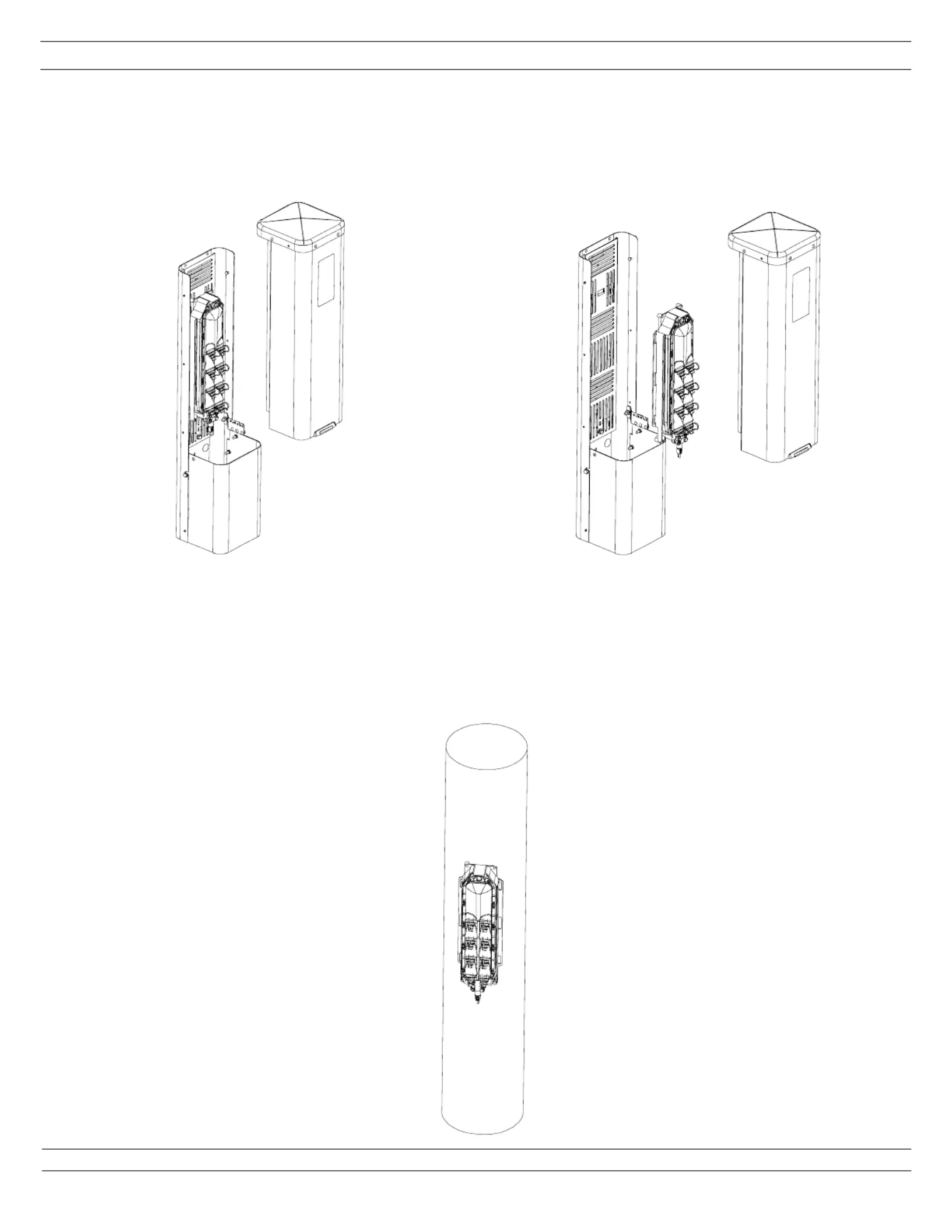

Figure 2: Pedestal Mounting

Figure 3: Pole-Mount Installation

Pedestal enclosures, as depicted in Figure 2, offer a solution for installing the MST at ground level. These

enclosures are comprised of a base assembly and a top cover. The base assembly is partially mounted in

the ground, with cables and conduit entering from the bottom.

PEDESTAL MOUNTING (at final grade)
