Side 1/8

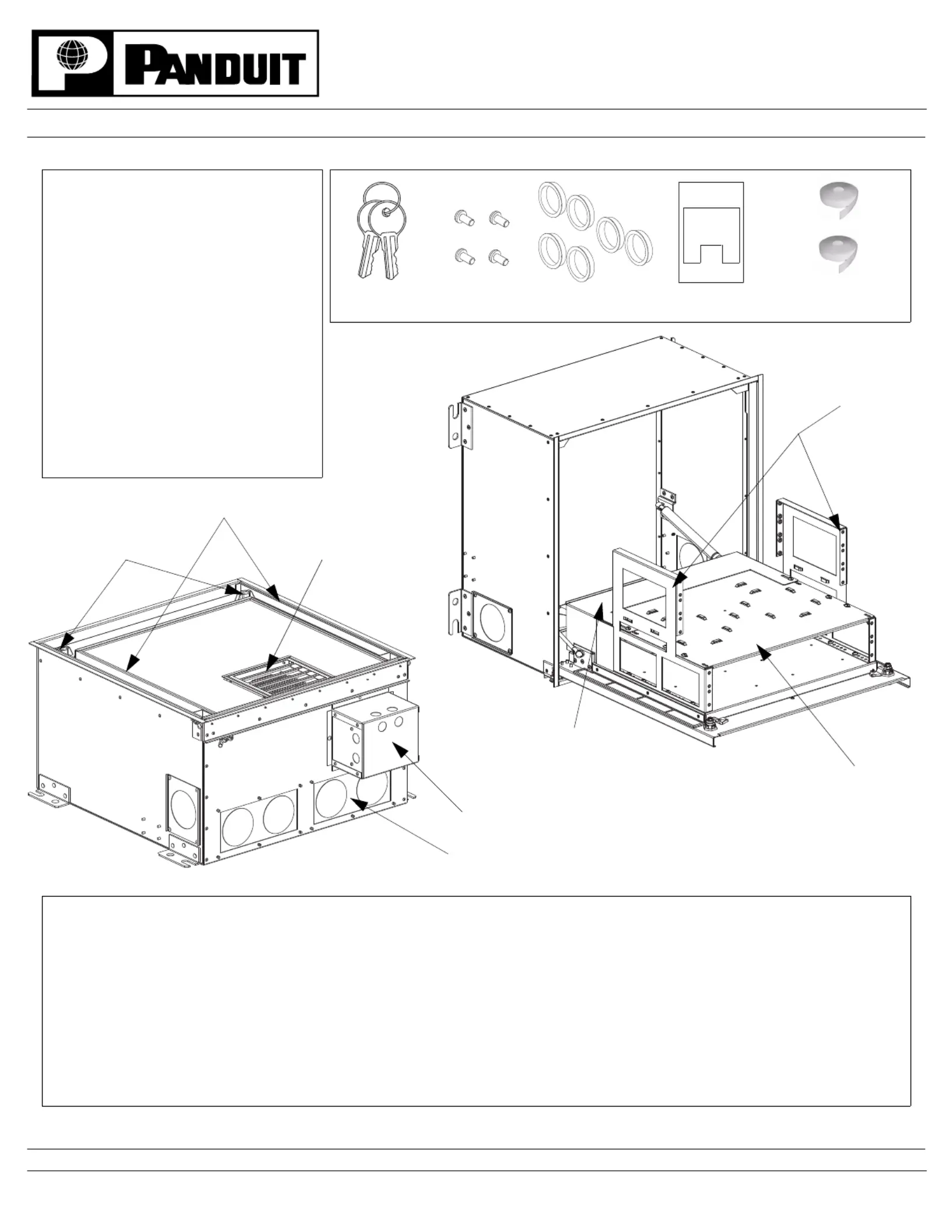

INSTALLATION INSTRUCTIONS CM361C

FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

Page 1 of 8

P Z AN ONE In-Ceiling Enclosure

PZICEA Active Equipment Version

Part Numbers:PZICEA

List of Components:

(1) Set of two Keys

(1) Left Mounting Bracket

(1) Right Mounting Bracket

(1) Fan Module

(6) Grommets

(2) Tak-Ty Rolls (Hook and Loop)

(4) Self-Tapping #10-32 screws

(1) Ceiling Tile Template

(1) Electrical Junction Box

(1) Integrated Horizontal Slack Manager

(1) Adjustable Air Dam

(2) Filters

(4) Entry/Exit Knockout Plates

Install in Ceiling..........................................................................................................................................

Electrical Installation.................................................................................................................................

Equipment Installation...............................................................................................................................

Cable Routing and Slack...........................................................................................................................

Patch Cord Management...........................................................................................................................

Maintenance...............................................................................................................................................

Accessories................................................................................................................................................

Table of Contents

Fan Module

Air Inlet

Entry/Exit Knockout Plates (4x)

Electrical Junction Box

Mounting Brackets

Keyed Locks

Integrated

Horizontal

Slack Manager

Adjustable Air

Dam

#10-32 screwsSet of two keys

Grommets

Ceiling tile template

Tak -Ty Rolls

Note: Enclosure door load rating

is 50 lbs.

INSTALLATION INSTRUCTIONS CM361C

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 2 of 8

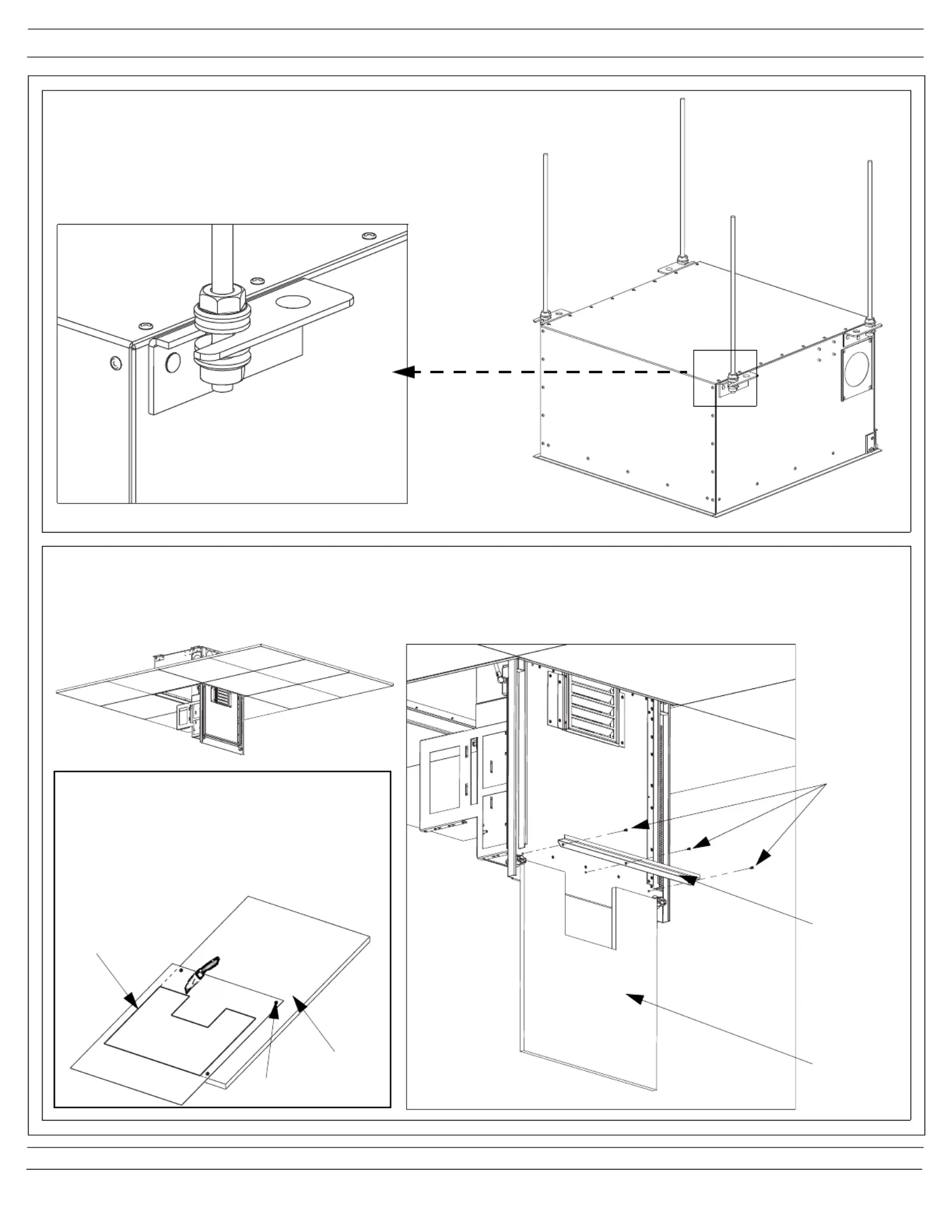

Install in Ceiling

Install (4) threaded rods to the building structure. The threaded rod must

be attached on all four corners of the enclosure with a nut and washer

above and below the support bracket. Level the enclosure so the weight

is not supported by the ceiling grid system.

Ceiling Tile Cutout

Place the included ceiling tile cutout template over

the removed ceiling tile. Secure the template with

tape of thumb tacks. Trace the outline with a utility

knife to extract the necessary shape to insert into

the enclosure.

While the enclosure is installed in the ceiling and open, remove the (3) #6-32 screws and ceiling tile bracket as shown below. Once

removed, slide the ceiling tile cutout into place fitting around the fan module. After proper orientation is achieved, replace the ceiling tile

bracket and the (3) #6-32 screws back into enclosure.

Insert Ceiling Tile Cutout into Housing

#6-32

Screws

Ceiling Tile

Bracket

Ceiling Tile

Cutout

Ceiling Tile

Template

Thumb Tacks
