Side 1/12

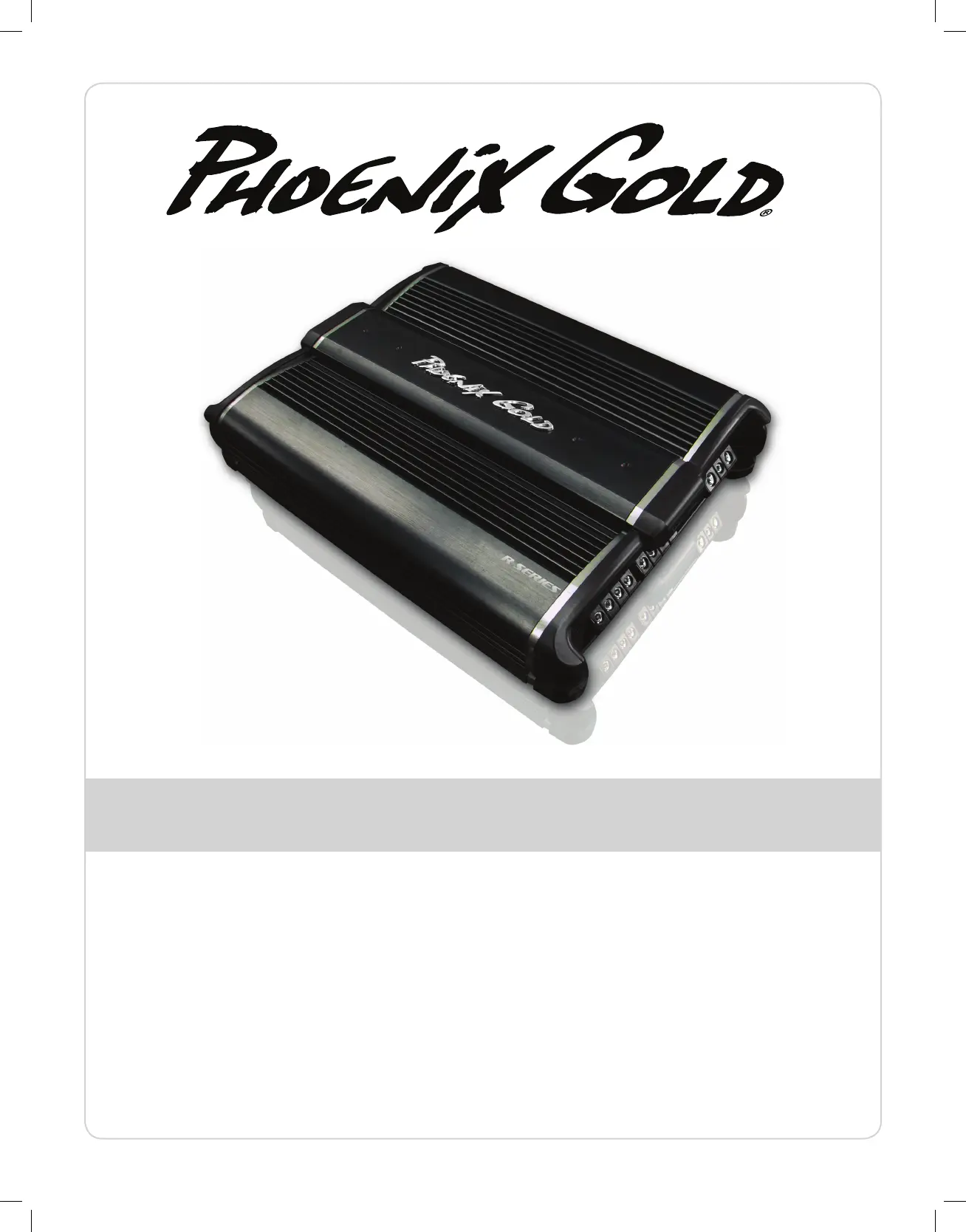

Amplifier Manual

Manuel de l’amplificateur

Features Caractéristiques

Models: R1000.1, R500.1, R250.1

R500.4, R300.4

• 12dBVariableLowPassandSubsonicCrossovers(R250.1,R500.1)

• 18dBVariableLowPassandSubsonicCrossovers(R1000.1)

• 12dBVariableHighandLowPassCrossovers(R300.4)

• 12dBVariableHighandLowPassCrossovers(R500.4)

• HighLevelInputwithSignalSensingTurn-onforEasyOEMintegration

• OversizedDirectInsertPowerand

 SpeakerTerminals

• RobustUnregulatedPowerSupply

• AudiophileBi-PolarOutputTransistors

• LPL44-LowPassLevelControlReady

• RMD-RemoteMonitoringDisplayPort

• AdvancedThermalandProtectionCircuitry

• 12dBPasseBasseVariableetSubsoniqueCroisé(R250.1,R500.1)

• 18dBPasseBasseVariableetSubsoniqueCroisé(R1000.1)

• 12dBHautetPasseBasseVariableCroisé(R300.4)

• 12dBHautetPasseBasseVariableCroisé(R500.4)

• LeNiveauSupérieurentrepourl’intégrationdeFABRICANT

D’ORIGINEfacile

• DirigerlePouvoird’InsertionetlesTerminauxdeHaut-parleur

• PouvoirnonRéguléeRobust

• AudiophileTransistorsdeBipolaire

• LPL44-LaPassebasseNivellePrêtdeContrôle

• RMD-EntréeDeL’afchagedeTensionaDistance

• AvancéThermiqueetlesCircuitsdeProtection

Amplier Owner’s Manual

MONOBLOCK SPECIFICATIONS

Frequency Response: ± 1dB from 20Hz to 300Hz

Signal to Noise Ratio: >110dB

Subsonic and Low Pass Crossovers: 12dB per octave

Low Pass Crossover Range: 30Hz to 300Hz

Subsonic Crossover Range: 10Hz to 55Hz

Bass Boost @ 45Hz: 0 to +18dB

Low Level Input Range: 200 millivolts to 8 volts

High Level Input Range: 400 millivolts to 12 volts

Lowest Recommend Load: 2 ohm

Typical Efciency: 50%

Damping Factor: Greater than 200

R1000.1 MONOBLOCK SPECIFICATIONS

Frequency Response: ± 1dB from 20Hz to 300Hz

Signal to Noise Ratio: >90dB

Subsonic and Low Pass Crossovers: 18dB per octave

Low Pass Crossover Range: 30Hz to 300Hz

Subsonic Crossover Range: 10Hz to 55Hz

Bass Boost @ 45Hz: 0 to +18dB

Low Level Input Range: 200 millivolts to 8 volts

High Level Input Range: 400 millivolts to 12 volts

Lowest Recommend Load: 1 ohm

Typical Efciency: 80%

Damping Factor: Greater than 200

FOUR CHANNEL SPECIFICATIONS

Frequency Response: ± 1dB from 20Hz to 20kHz

Signal to Noise Ratio: >110dB

High and Low Pass Crossovers: 12dB per Octave

Low Pass Crossover Range: 40Hz to 400Hz

High Pass Crossover Range: 40Hz to 400Hz

Bass Boost @ 45Hz: 0 to +18dB

Low Level Input Range: 200 millivolts to 8 volts

High Level Input Range: 400 millivolts to 12 volts

Lowest Recommend Load: 4 ohm Bridged or 2 ohm Stereo

Typical Efciency: 50%

Damping Factor Greater than 200

R250.1

Dynamic Power 14.4Vdc >1% THD 150 x 1 @ 4 ohm

250 x 1 @ 2 ohm

RMS Power 14.4Vdc ≤ 1% THD 85 x 1 @ 4 ohm

140 x 1 @ 2 ohm

Recommended Fuse Size: 25A

Power/Ground Wire Size: 8 Gauge

Dimensions: 9.5” L x 9.75” W x 2.5” H

242mm x 248mm x 63mm

R500.1

Dynamic Power 14.4Vdc >1% THD 300 x 1 @ 4 ohm

500 x 1 @ 2 ohm

RMS Power 14.4Vdc ≤ 1% THD 220 x 1 @ 4 ohm

325 x 1 @ 2 ohm

Fuse Size: 40A x 1

Power/Ground Wire Size: 8 Gauge

Dimensions: 11.1” L x 9.75” W x 2.5” H

282mm x 248mm x 63mm

R1000.1

Dynamic Power 14.4Vdc >1% THD 750 x 1 @ 2 ohm

1000 x 1 @ 1 ohm

RMS Power 14.4Vdc ≤ 1% THD 550 x 1 @ 2 ohm

800 x 1 @ 1 ohm

Fuse Size: 40A x 2

Power/Ground Wire Size: 4 Gauge

Dimensions: 12.7” L x 9.75” W x 2.5” H

322mm x 248mm x 63mm

R500.4

Dynamic Power 14.4Vdc >1% THD 75 x 4 @ 4 ohm Stereo

125 x 4 @ 2 ohm Stereo

250 x 2 @ 4 ohm Bridged

RMS Power 14.4Vdc ≤1% THD 60 x 4 @ 4 ohm Stereo

85 x 4 @ 2 ohm Stereo

170 x 2 @ 4 ohm Bridged

Fuse Size: 25 amp x 2

Power/Ground Wire Size: 8 Gauge

Dimensions: 15.0” L x 9.75” W x 2.5” H

382mm x 248mm x 63mm

R300.4

Dynamic Power 14.4Vdc >1% THD 50 x 4 @ 4 ohm Stereo

75 x 4 @ 2 ohm Stereo

150 x 2 @ 4 ohm Bridged

RMS Power 14.4Vdc ≤1% THD 40 x 4 @ 4 ohm Stereo

55 x 4 @ 2 ohm Stereo

110 x 2 @ 4 ohm Bridged

Fuse Size: 40 amp x 1

Power/Ground Wire Size: 8 Gauge

Dimensions: 12.7” L x 9.75” W x 2.5” H

322mm x 248mm x 63mm

Specifications
