Side 1/14

INSTALLATION INSTRUCTIONS

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada

Phone: 1.800.368.9700

Fax: 1.800.832.4888

Other Locations

Phone: (001).714.632.7100

Fax: (001).714.632.1044

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

AUSTRALIA AND OCEANIA

Distributed by Amber Technology Limited

Unit B, 5 Skyline Place

Frenchs Forest NSW 2086

Australia

Phone: +61 2 9452 8600 Sydney Ofﬁ ce

Toll Free: 1-800-368-9700

Email: mounts@ambertech.com.au

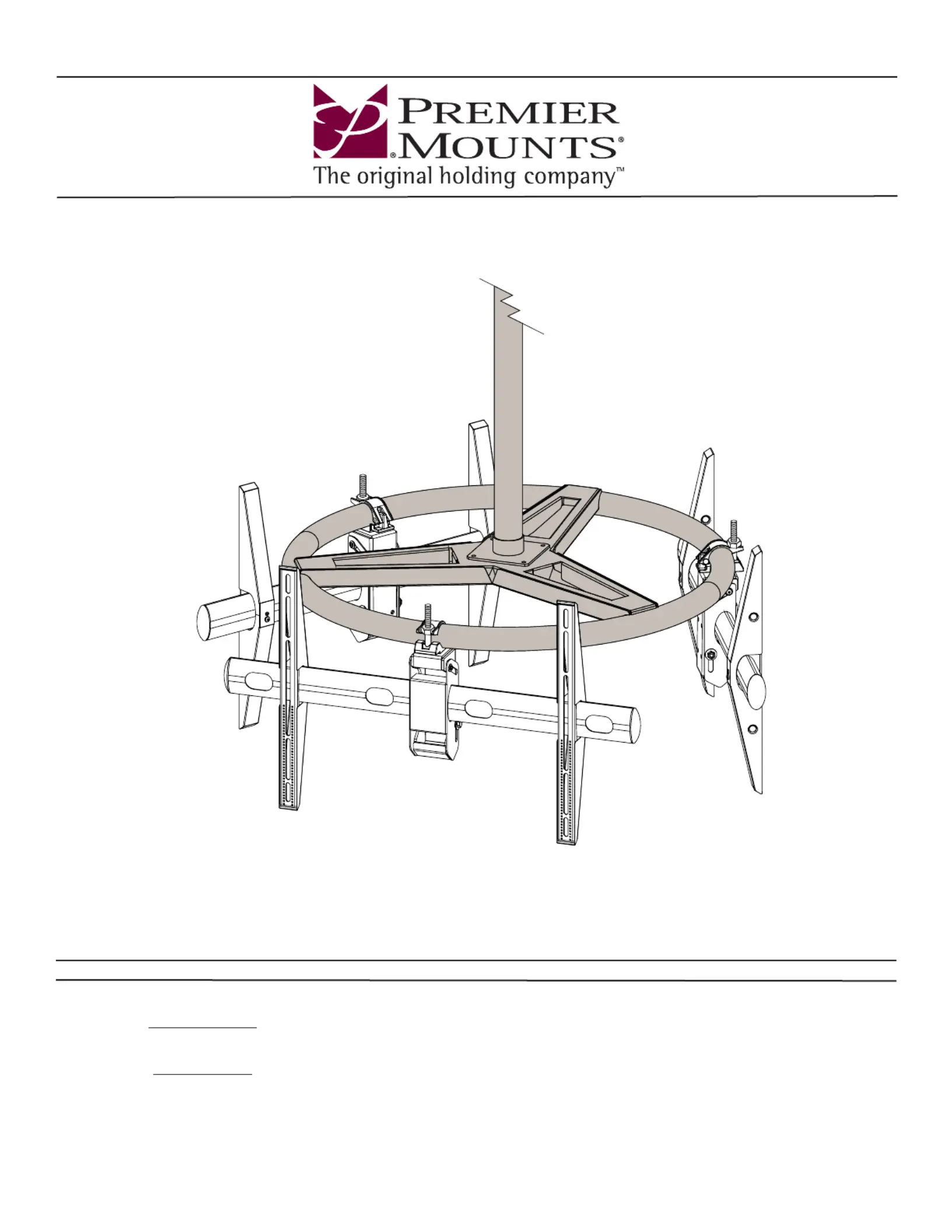

Elliptical Ceiling Mount for 37 to 63 Flat Panels˝ ˝

Model: ECM-3763T

9531-007-034-00

ECM-3763T

Page 2

Visit Premier Mounts website at http://www.mounts.com Installation Instructions

Contact Premier Mounts with any questions:

(800) 368-9700

techsupport@mounts.com

Contents

Weight Capacity

Warning Statements

At least two qualiﬁ ed people should perform the assembly procedure. Personal injury and/or property damage

can result from dropping or mishandling the ﬂ at panel.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure

that there are no electrical wires in the ceiling. Cutting or drilling into an electrical line may cause serious

personal injury.

Make sure there are no water or natural gas lines inside the ceiling where the mount is to be located. Cutting or

drilling into a water or gas line may cause severe property damage or personal injury.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or

serious personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or

chance of impact.

Maximum ﬂ at panel weight:

160lbs. x 3

THE CEILING STRUCTURE MUST BE CAPABLE OF HOLDING

FIVE (5) TIMES THE WEIGHT OF THE FLAT PANEL AND

MOUNT. IF NOT, THEN THE CEILING STRUCTURE MUST BE

REINFORCED.

INSTALL THE MOUNT ACCORDING TO THE INSTRUCTIONS PROVIDED BY PREMIER MOUNTS. PERFORM ALL

STRUCTURAL REINFORCEMENTS BEFORE ATTACHING THE FLAT PANEL TO THE CEILING MOUNT. USE THE

APPROPRIATE LIFTING DEVICE WHEN LIFTING THE FLAT PANEL INTO PLACE.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND

COMPLETELY UNDERSTOOD TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE

INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS

PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY

UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,

DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF

OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE

PROPER SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

Weight Capacity. ........................................................................................................................................................................... 2

Warning Statements. .................................................................................................................................................................... 2

Installation Tools. .......................................................................................................................................................................... 3

Mounting Hardware. ..................................................................................................................................................................... 4

Features. ...................................................................................................................................................................................... 5

Attaching the Ceiling Mount.......................................................................................................................................................... 6

Selecting the Proper Mounting Hardware. ..................................................................................................................... 7

Griplate™ Washer Installation. ...................................................................................................................................... 8

Nylon Spacer Installation. .............................................................................................................................................. 8

Removing the Locking Nut. .......................................................................................................................................................... 9

Determining the Mounting Placement. ......................................................................................................................................... 9

Elliptical Tilt Mount Installation.................................................................................................................................................... 10

Attaching the Flat Panel. .............................................................................................................................................................11

Attaching the Decorative Covers. ............................................................................................................................................... 12

Cable Management. ................................................................................................................................................................... 12

Tilt Positioning. ........................................................................................................................................................................... 13

Technical Speciﬁ cations. ............................................................................................................................................................ 13

Warranty ..................................................................................................................................................................................... 14

Disclaimer. .................................................................................................................................................................................. 14

Produkt Specifikationer

Mærke:	Premier Mounts
Kategori:	Flad panel støtte
Model:	ECM-3763T
Bredde:	945 mm
Højde:	549 mm
Vægt:	70900 g
Produktfarve:	Sort
Monteringstype:	Loft
Hældningsvinkelområde:	-15 - 15 °
Maksimal vægtkapacitet:	79.5 kg
Drejelig vinkel:	360 °
Maksimal skærmstørrelse kompatibilitet:	63 "
Antal understøttede skærme:	3
Minimal skærmstørrelse kompatibilitet:	37 "
Montering interface kompatibilitet (min.):	200 x 200 mm
Montering interface kompatibilitet (maks.):	875 x 505 mm
