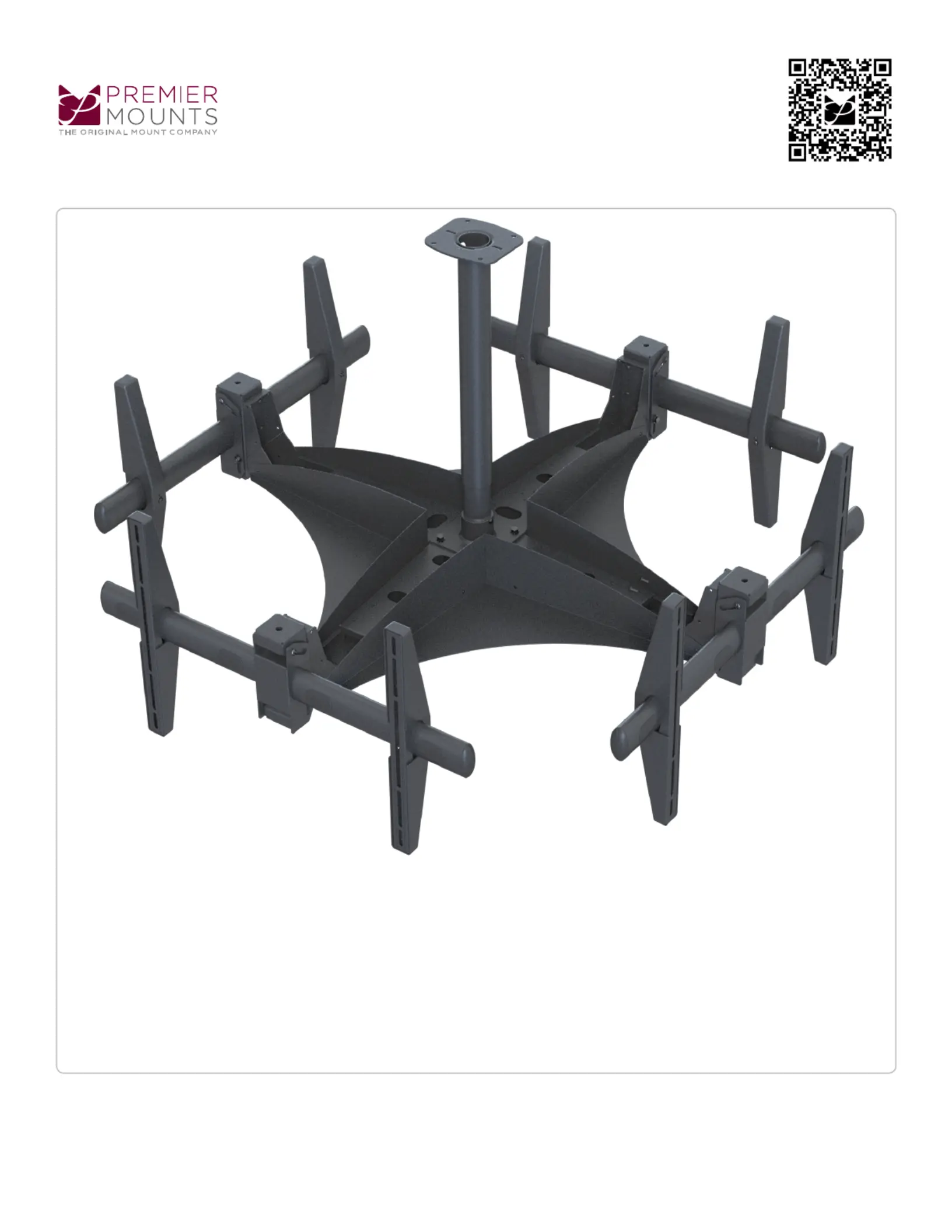

Elliptical Ceiling Mount for 37˝ to 63˝ Flat Panels

Model: ECM-4000

9531-000-000-0X Rev.0

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

1321 S. State College Blvd., Fullerton, CA 92831 USA

Warranty, Garantie, Garantía, Garanzia, Garantie, Waarborg: http://www.mounts.com/warranty

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

ECM-4000

AST-2446/2

Lower Half

Upper Half

M8 Pan

Philips

Screw

Allen Wrench

Minimum four (4)

complete turns

Pan Philips

Threaded

Coupler

Mount

Lower Half

Upper Half

The ceiling should be capable of supporting a weight of at least ve times

the product weight. If not, the ceiling surface must be reinforced. Proper

installation procedure by qualied personnel as outlined in the installation

instructions must be adhered to.

Mounting hardware is not included with this product. Commercially

available hardware must be used for this installation. The hardware used

will depend on your installation environment (i.e. wood stud, concrete

surface, metal I-beam etc).

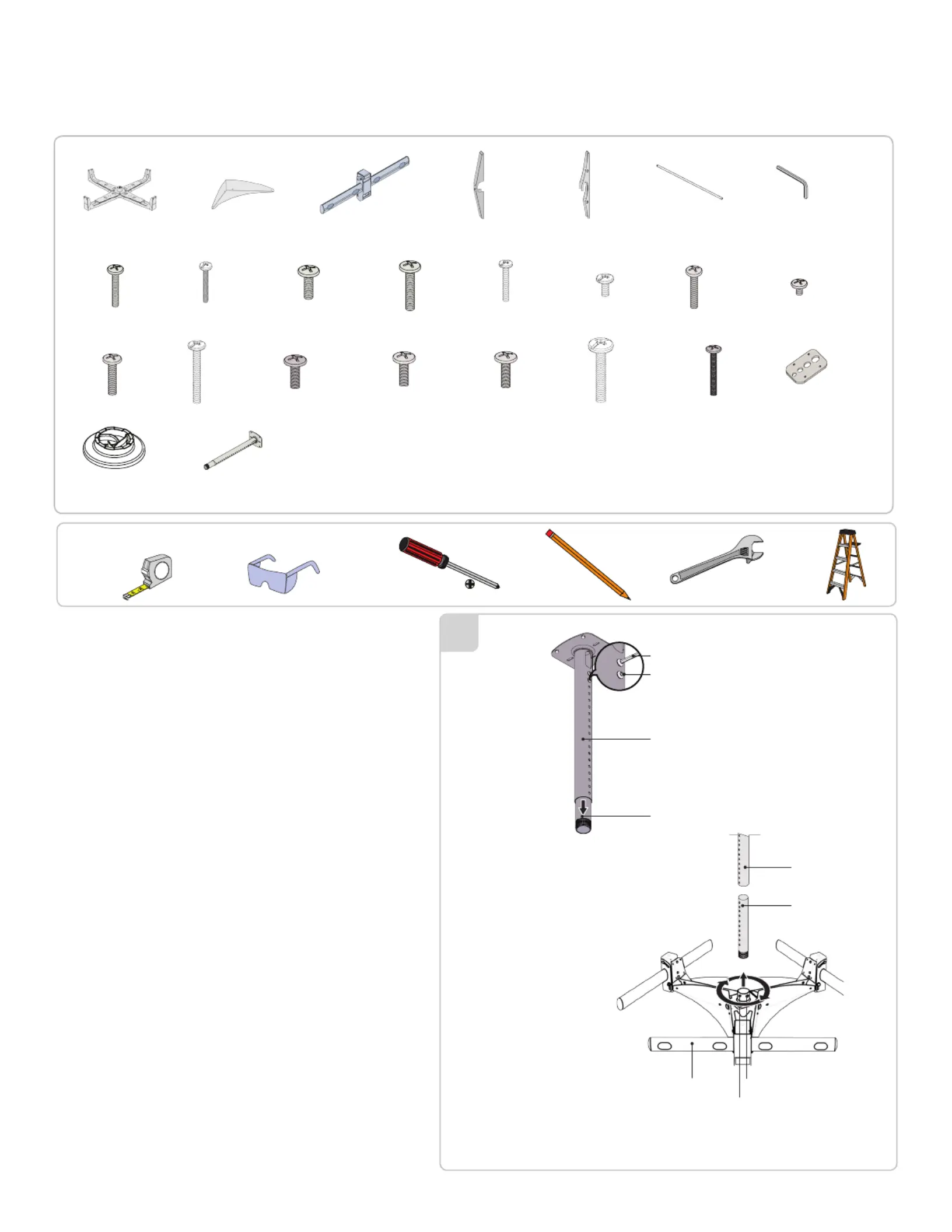

Separate the upper and lower halves of the AST-2446/2 by removing both

M8 screws and wave washers. Unpack the trio mount and place it on the

ground.

The set screw on the threaded coupler must be backed out in order for the

AST-2446/2 to be threaded into place.

Thread the lower half of the AST-2446/2 into the threaded coupler on the

trio mount. The lower half of the AST-2446/2 must be threaded fully until

the piece is safely secured to the threads, then tighten the screw back into

place. Use the screwdriver to tighten the set screw once the AST-2446/2

has been attached.

The following steps must be performed by a minimum of three people:

Two people lift the trio mount into place. Align the upper and lower halves

of the AST-2446/2. Slide the lower half/trio mount into the upper half of the

AST-2446/2.

It is recommended that the height, and location, of the ECM-3000 be

determined prior to performing the following steps.

Determine the mounting height. Align the M8 mounting holes on the upper

and lower halves of the AST-2446/2 and insert the M8 screws and wave

washers. Use the 516˝ wrench to tighten the M8 screws.

Verify that all hardware is secure and tight before proceeding to the next

section.

Mounting

Bracket Arms

Decorative

Covers

Elliptical

Tilt Mount

Quad Mount

Structure

side Skirt

Thread Depth

Indicator

M6 x 25mm

˝ Allen Wrench

M4 x 16mm

M4 x 25mm

M5 x 16mm

M5 x 25mm

M6 x 30mm

M8 x 25mm

M8 x 30mm

M8 x 70mm

Griplate™

Washers

AST-2446/2

x24

M8 x 16mm

M4 x 30mm

M5 x 30mm

M6 x 16mm

M6 x 45mm

M8 x 45mm

Universal Spacers

x1 x1 x4 x8 x8

x24

x4 x1

x24

x32

x24 x24 x24

x98

x24

Required for installation

Included components

Max Flat-Panel Capacity: 80 lb. each
