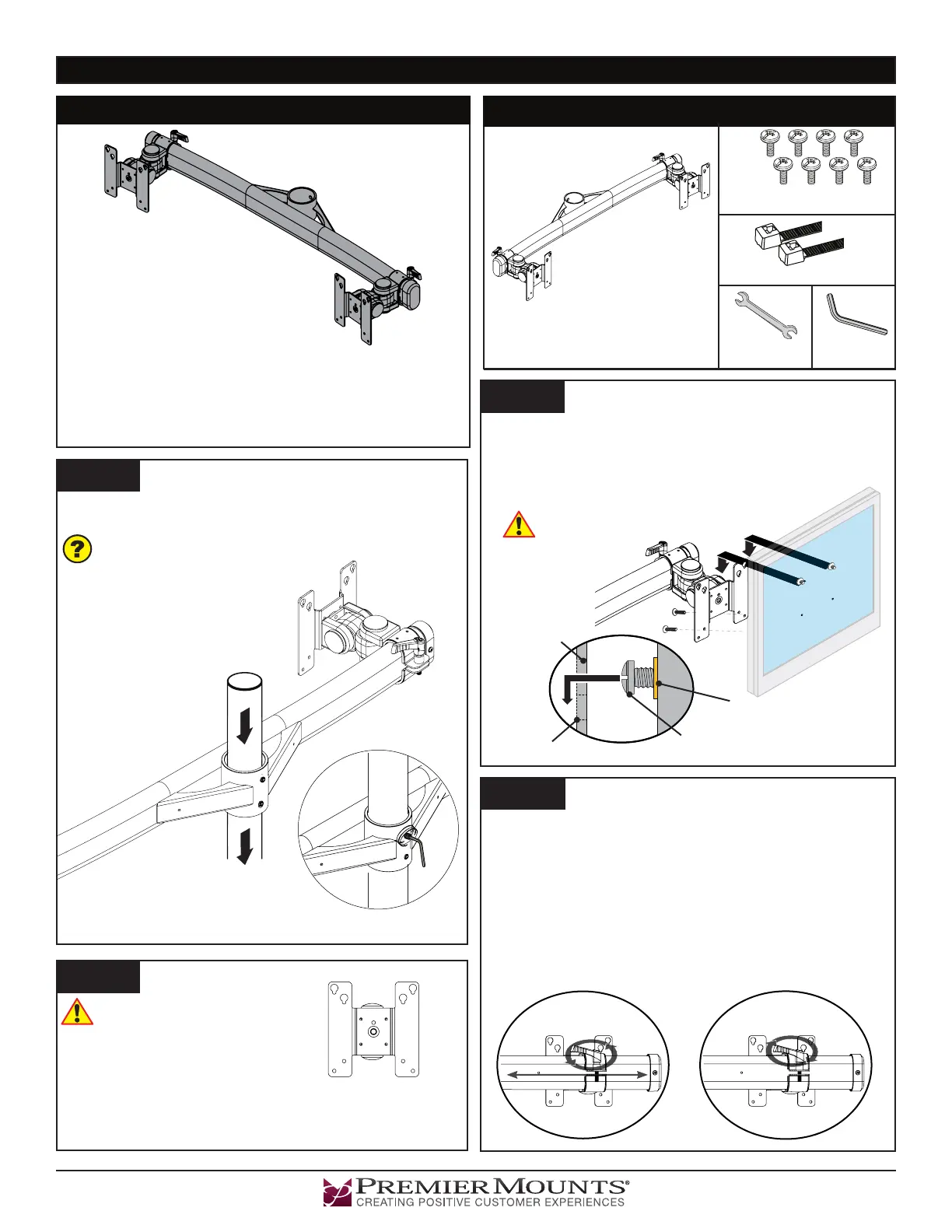

Page 1 Installation Instructions

Installation Instructions

9531-000-041-00

Parts List

MM-CB2

Dual Multi-Monitor Mounting Arm

(Qty 1)

The MM-CB2 is a dual multimonitor mount arm that works with any

2” tubing. Each mounting head provides 90° of omnidirectional tilt.

The mounting heads include both 75x75mm and 100x100mm VESA

mounting patterns. The arm includes integrated cable management

tabs to keep wires and cables protected and organized. The mounting

heads can be horizontally adjusted.

Step 1

1. Slide your mounting arm over the pole and base (Figure 1)

(not included, but should be previously installed).

Determine the position on the pole desired for your mounting arm.

2. Once in desired position,tighten the two (2)

pre-intalled M8 x 6mm set screws in the

holes in the back of the MM-CB2. Tighten

with included allen key (Figure 2).

Step 2

M4 x 10mm Combo Screws

(Qty 8)

Introduction

MM-CB2

(Figure 1)

(Figure 3)

Are you installing to a 75x75mm or

100x100mm VESA moutning pattern?

For 75x75mm, use mounting points A. For

100x100mm use points B in gure 3.

1) Thread the M4 screws to one-half of their

length into the top two mounting holes on

each display, but do not tighten the M4

screws at this time.

Step 3

(Figure 2)

A A

B B

Thread Insert in Flat

Panel or Adapter Plate

M4 Screw Partially

Threaded Into Flat Panel

Keyhole Slot

MM-CB2 Mount

1) Insert the heads of the M4 screws through the keyhole slots on the

mounting head (Figure 5).

2) Insert the remaining two (2) M4x10mm screws, into the bottom mounting

points (Figure 4)

3) Repeat sub-steps 1 & 2 for the second display.

4) Tighten all M4 screws.

Do not overtighten the mounting hardware

Figure 4

Figure 5

Step 4

To adjust the position of your displays horizontally

1. Turn the mounting head adjustment knob counter clockwise until the

mounting head is lose enough to slide easily along the pole.

2. Slide the display (or mounting head) to the desired position.

3. When in place, turn the adjustment head clockwise to tighten it. Make sure

it is completely secure and does not move before you move on to the next

display or nish.

4. Repeat steps for other displays if desired.

Loosen

& Adjust

Tighten

& Secure

5/32” Allen Key

(Qty 1)

Socket Wrench

(Qty 1)

4” Cable Ties (Qty 2)

3100 E. Miraloma Avenue, Anaheim, CA 92806 | 800.368.9700 USA | F 800.832.4888 | www.mounts.com

Unit 3, The Moorings Business Park, Channel Way | Longford, Conventry, CV6 6RH, UK | +44 (0) 2476 644105 | F +44 (0) 2476 644165

Page 2 Installation Instructions

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of the

original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is

defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be

shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DISPLAYS,

PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN PART, FROM

IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS

IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED

TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE

PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the

address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer

purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,

the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts

Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

Premier Mounts

Attn: Warranty Claim

3130 East Miraloma Ave.

Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

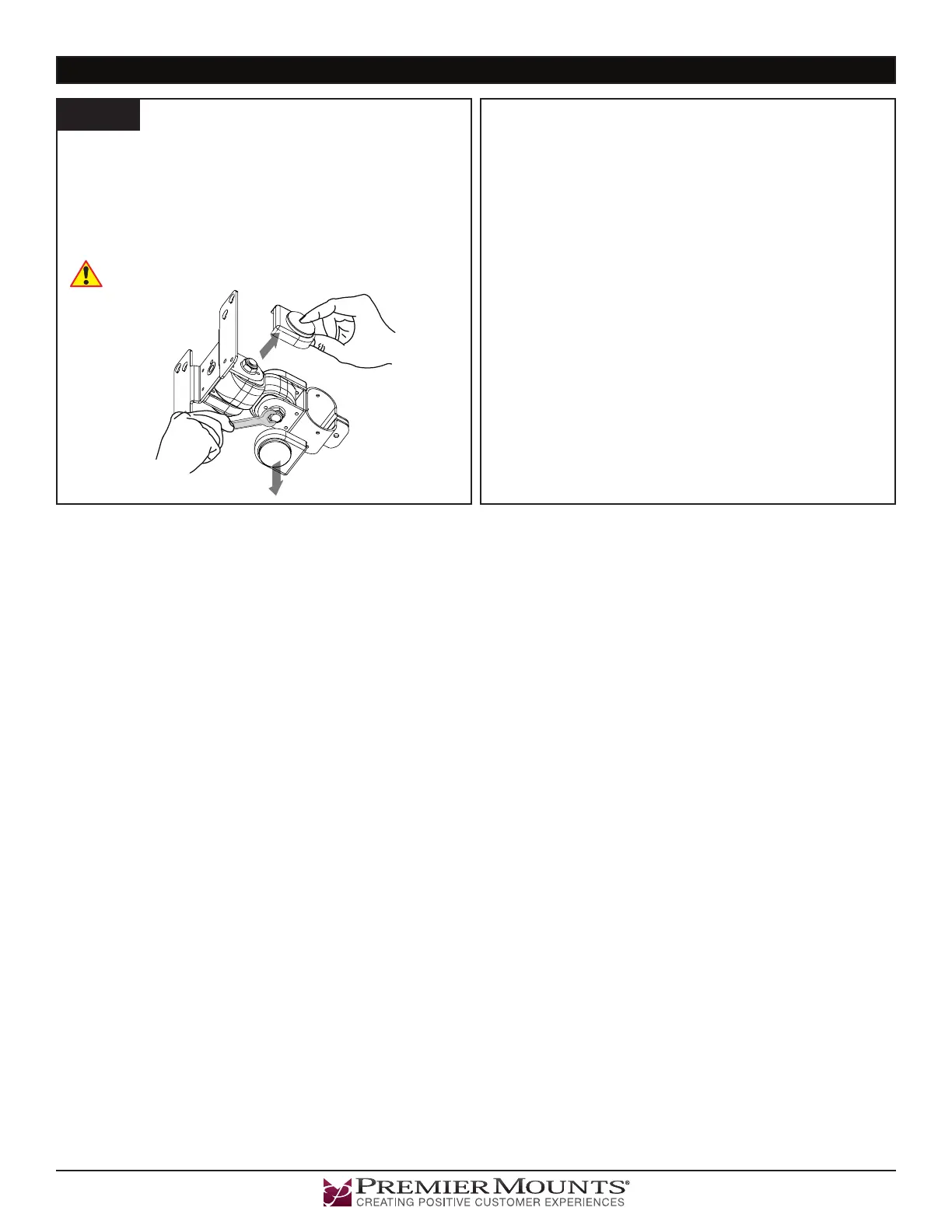

Step 4

To adjust the tension and/or tilt angle of the mounting head:

1) Adjust the mounting head by utilizing the 90 continuous tilt, until it is in the °

desired position.

2) Remove the side and bottom cosmetic cap from the mounting

head (Figure 6)

3) Use the supplied socket wrench to tighten both nuts.

4) The side nut secures the tilt position (Point A), while the bottom nut secures

the pivot (Point B).

Do not overtighten the mounting hardware

(Figure 6)

Bottom View

Installation Instructions

3100 E. Miraloma Avenue, Anaheim, CA 92806 | 800.368.9700 USA | F 800.832.4888 | www.mounts.com

Unit 3, The Moorings Business Park, Channel Way | Longford, Conventry, CV6 6RH, UK | +44 (0) 2476 644105 | F +44 (0) 2476 644165
